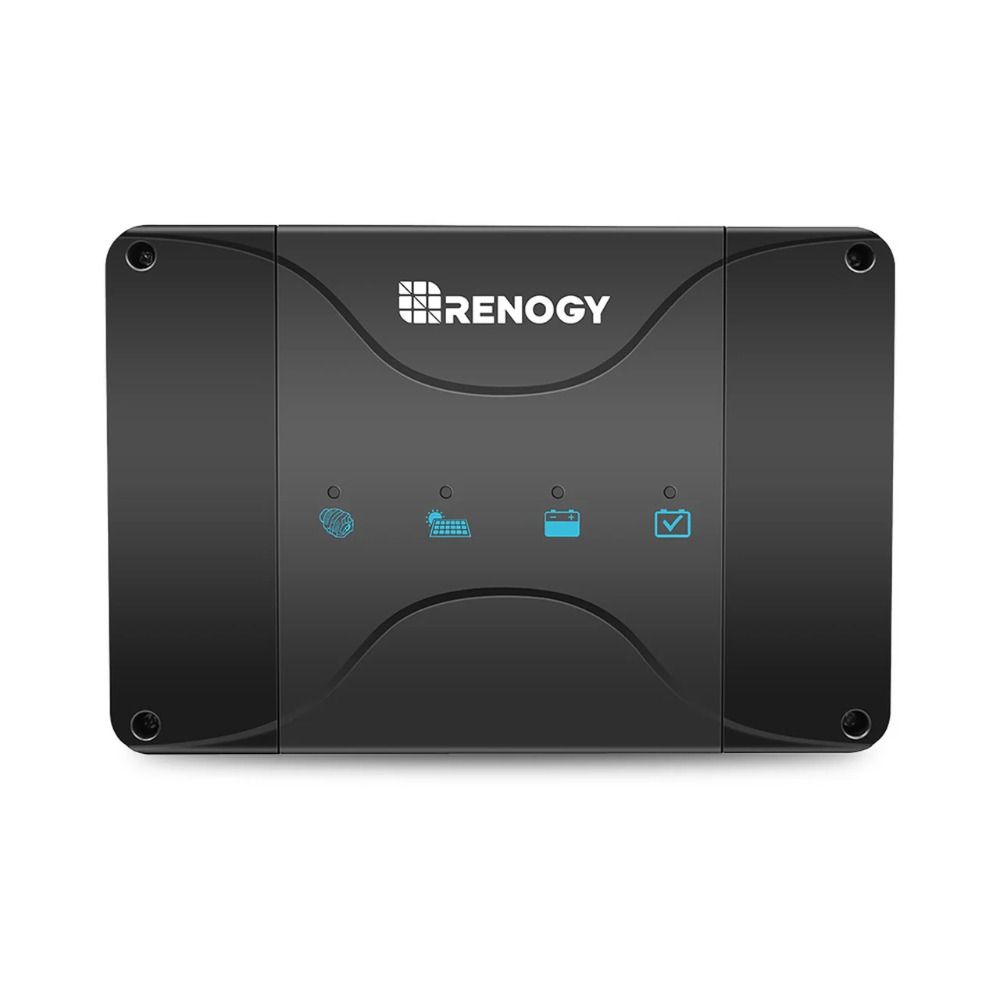

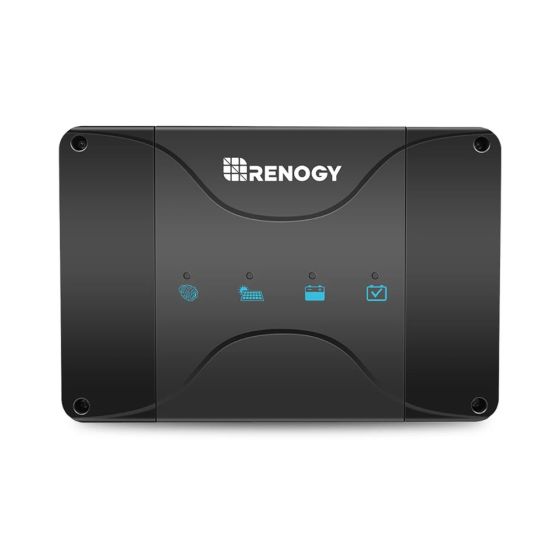

Renogy DC-DC On-Board Battery Charger with MPPT - 12V 50A

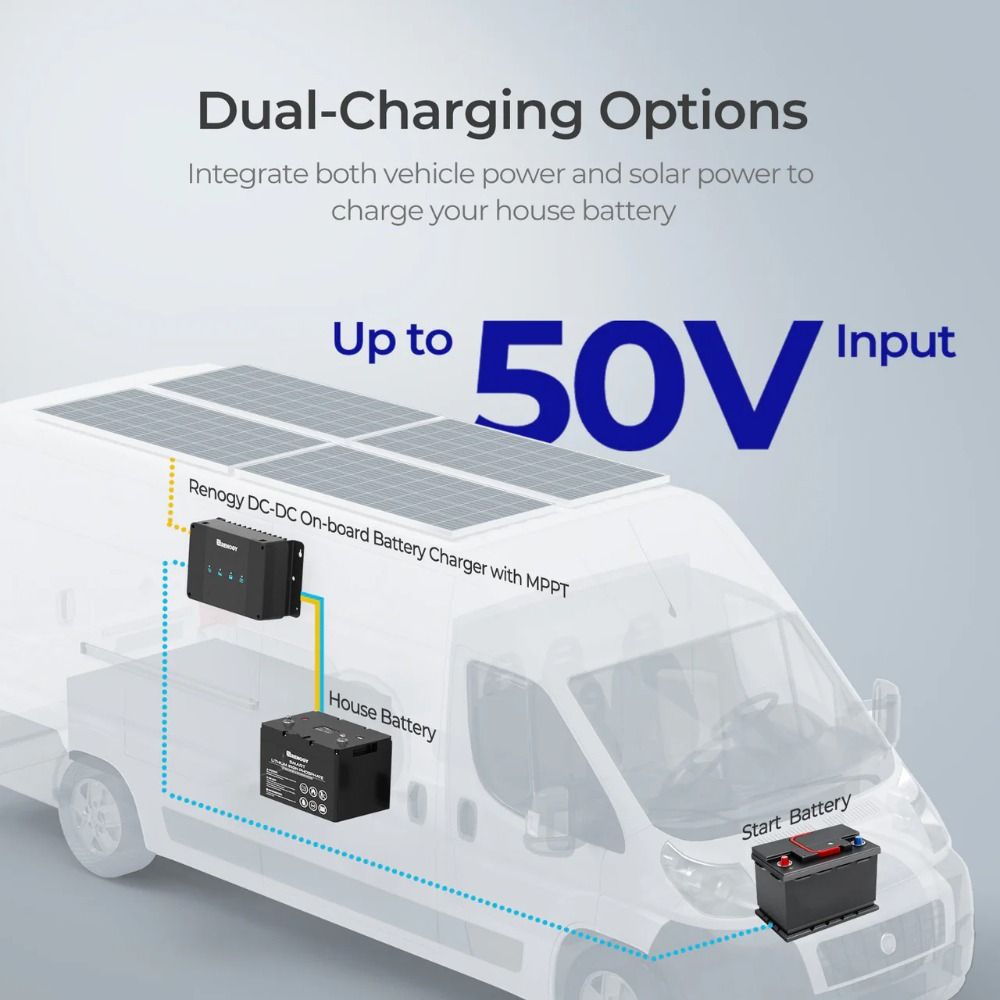

Renogy's enhanced DC-DC Dual Input Battery Charger supports up to 50V solar input, enabling faster and more efficient house battery charging.
- System Voltage: 12V
- Max Output Current: 50A

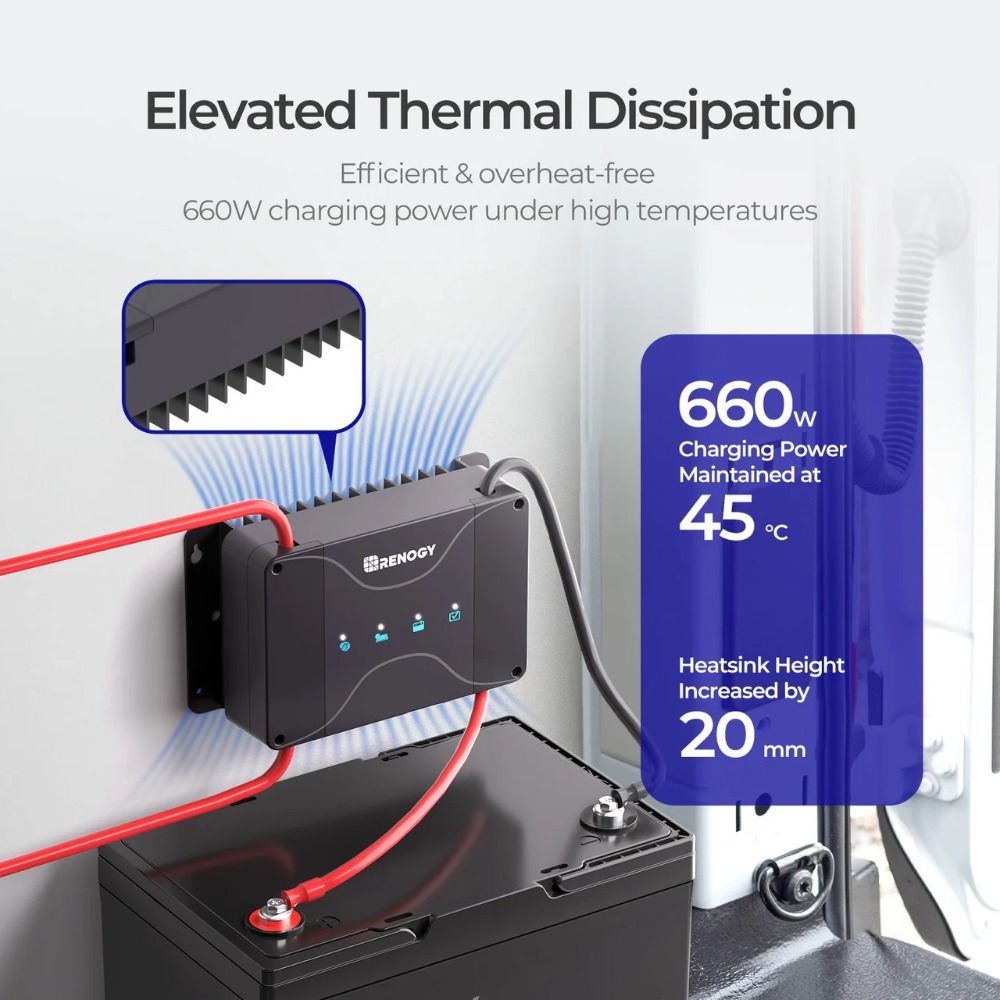

- Enhanced heat dissipation and safety
- Maximum solar panel input voltage has been upgraded to 50V
- Versatile connections for DIY solar panel setups
- Optimized charging logic for a significant efficiency boost

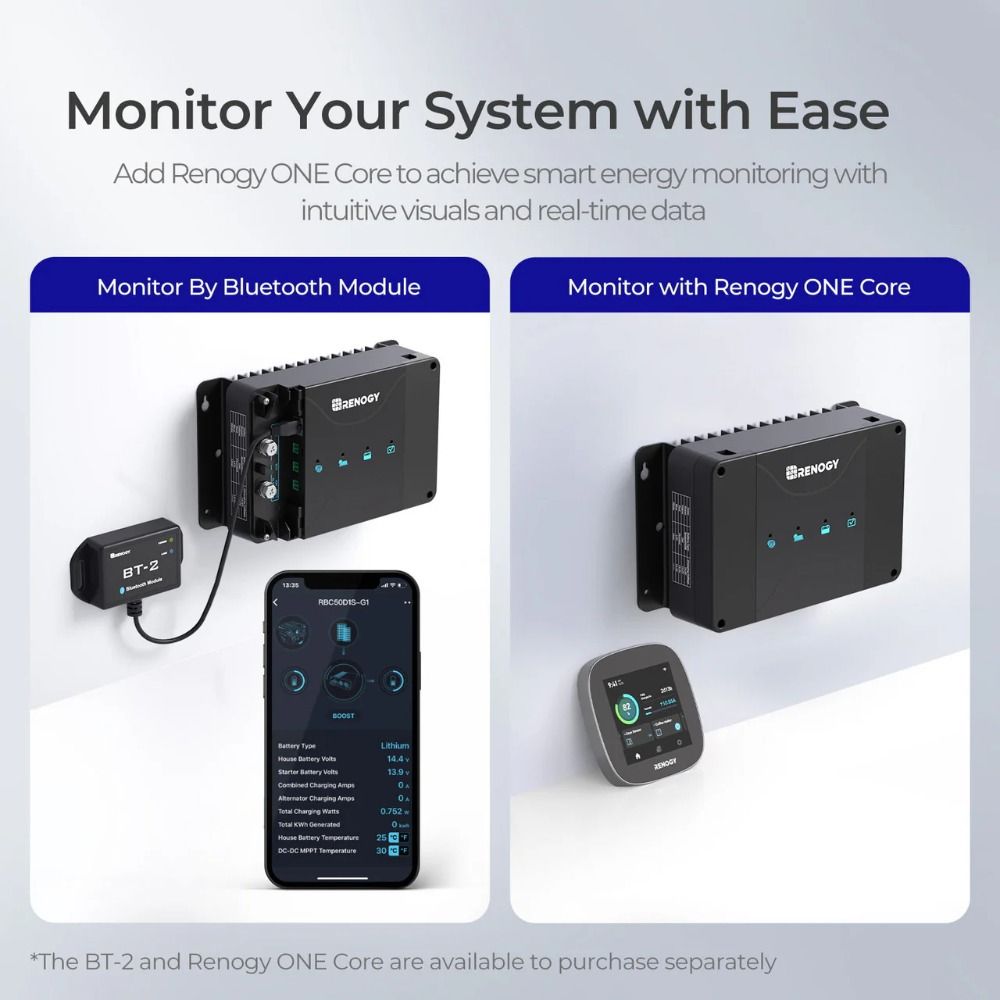

- Control charging via the DC Home app

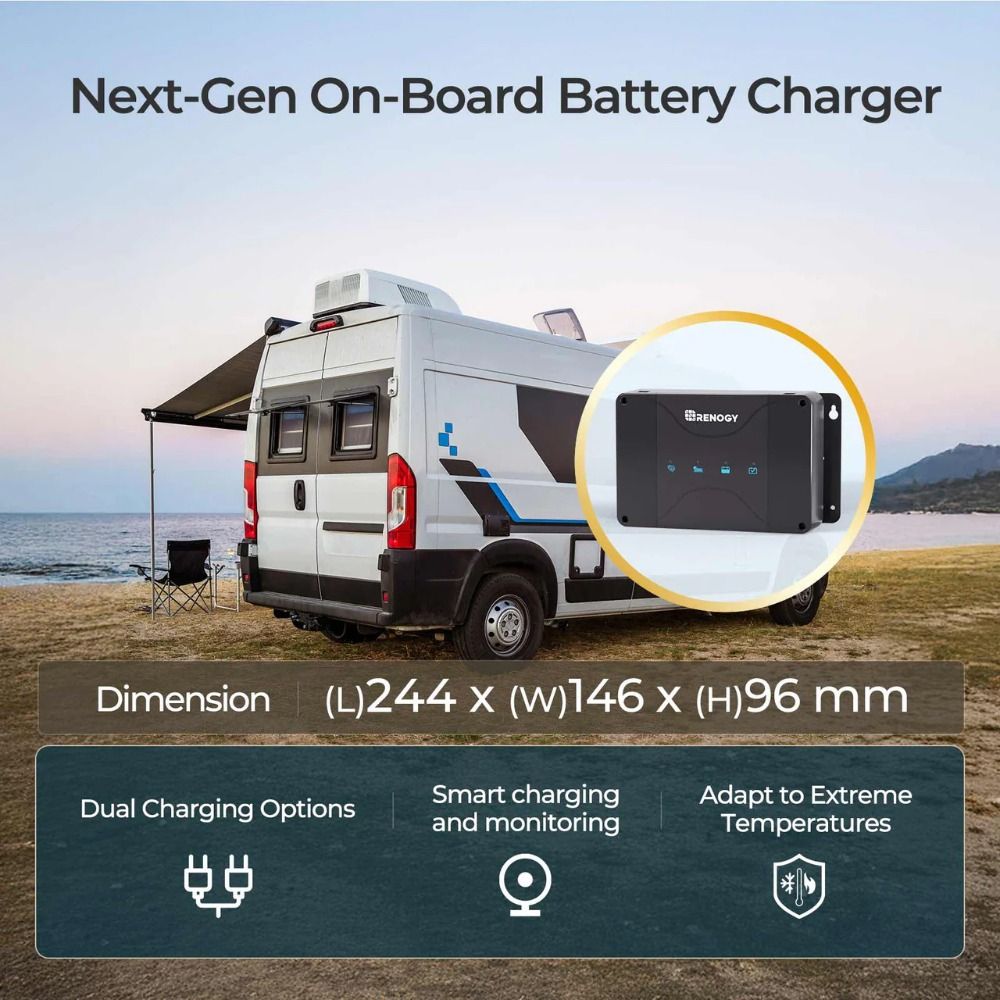

- Dimensions: 244 x 146 x 96mm
- Weight: 1.86Kg
Specifications
X| Electrical | |
|---|---|
| System Voltage | 12V-12V |
| Input Voltage | 50 VDC |
| Output Voltage | 9-16 VDC |
| Alternator Input | Traditional Alternator: 13.2-16 VDC
Smart Alternator (Euro 6): 12-16 VDC |
| Maximum Output Current Rating | 50A |
| Output Power | 660W |

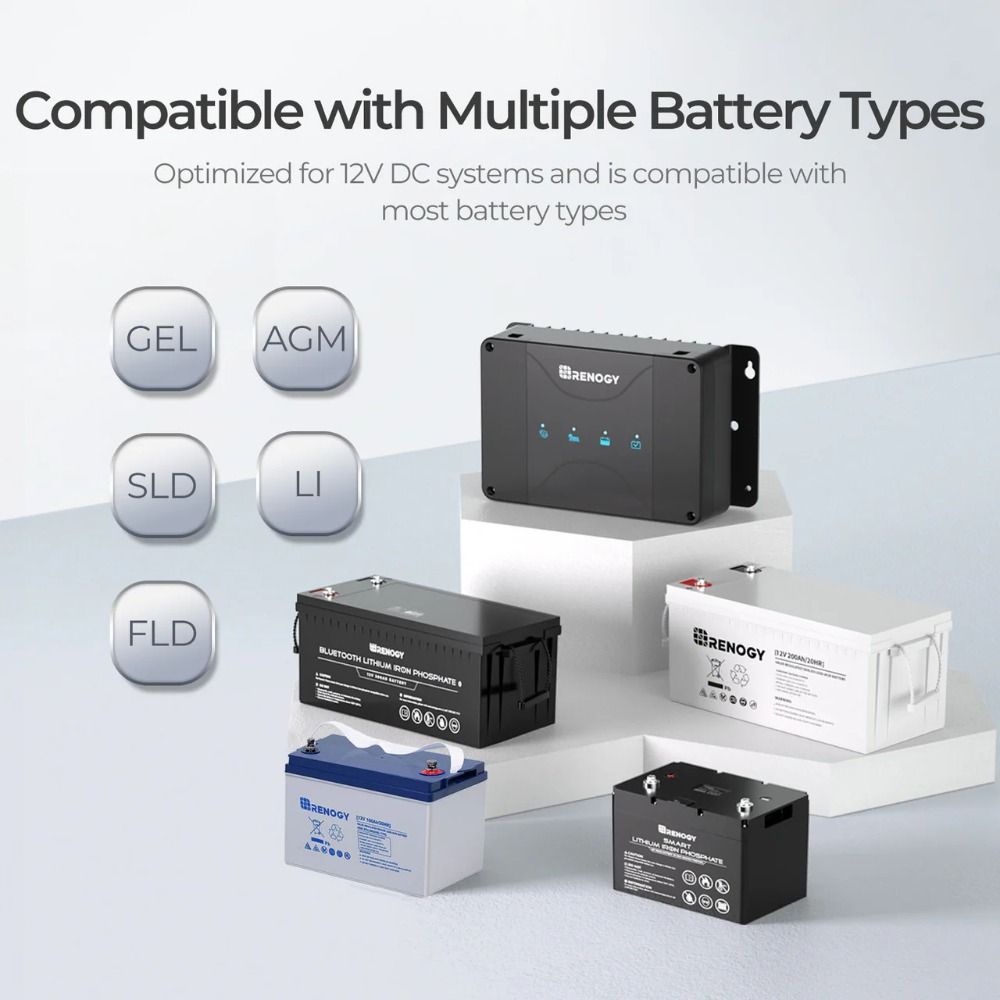

| Battery Types | AGM/SLD , GEL ,FLD ,LI,USER |
| Input Fuse Rating | 75A-100A |
| Output Fuse Rating | 75A-100A |
| Charging Efficiency | 94% |
| Temperature Compensation | '-3mV / ℃ / 2V (Non-Lithium)
'0mV / ℃ / 2V (Lithium) |
| Idle Power Consumption | ＜30mA |
| General | |
|---|---|
| Terminal Size | M8 x 1.25 - 10mm |
| Terminal Range | 8AWG-4AWG |
| Grounding | Common Ground |
| Communication Protocol | RS485 |
| Operating Temperature Range | '-31℉ to 149℉/-35℃ to 65℃ |
| Storage Temperature Range | '-40℉ to 176℉/-40℃ to 80℃ |
| Humidity | 0%-95%, No Condensation |
| Dimensions | 9.61 x 5.75 x 3.78 inch/244 x 146 x 96mm |
| Weight | 4.10 lb / 1.86 kg |

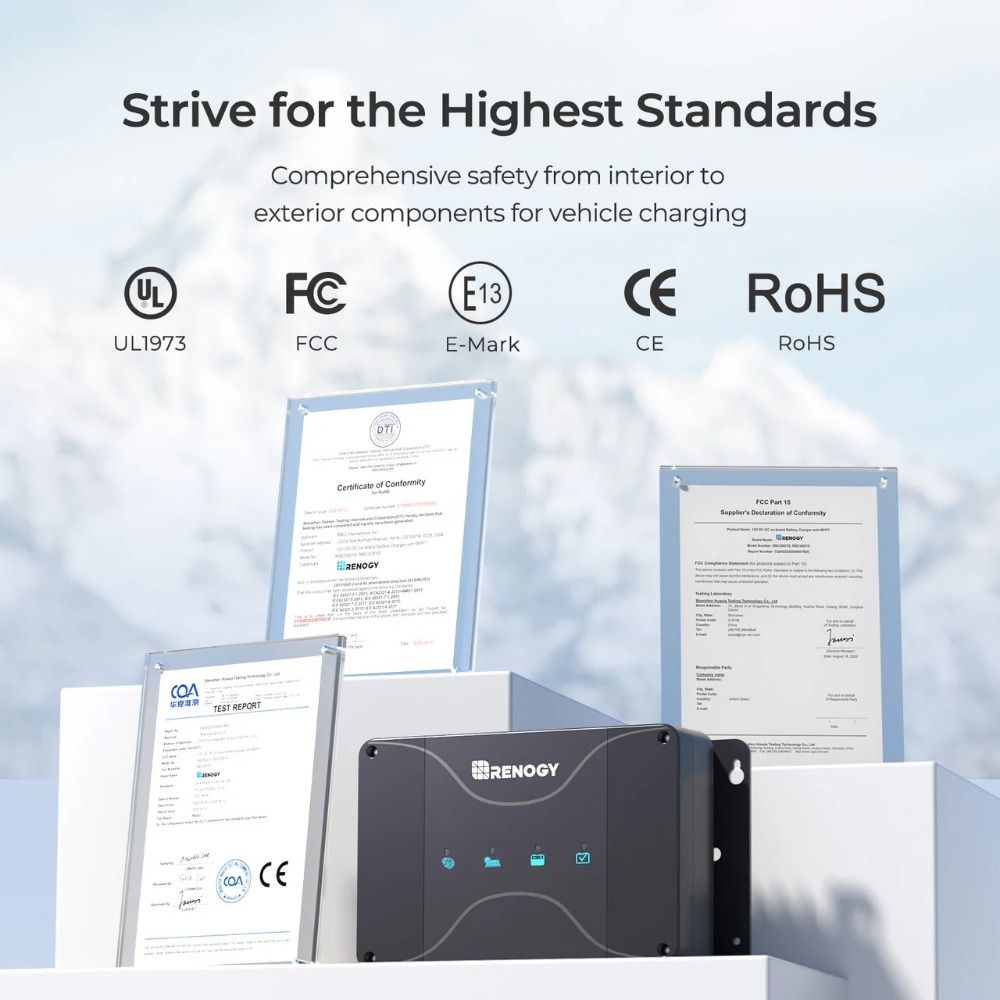

| Certification | CE;ROHS;FCC Part 15 class B; ETL listed to UL 1741 & CSA C22.2 |
| Protection | Reverse Polarity Protection/Overvoltage Protection/Over Discharge Protection/Overcurrent Protection/Over Temperature Protection/Overcurrent Protection |
Renogy's enhanced DC-DC Dual Input Battery Charger supports up to 50V solar input, enabling faster and more efficient house battery charging.

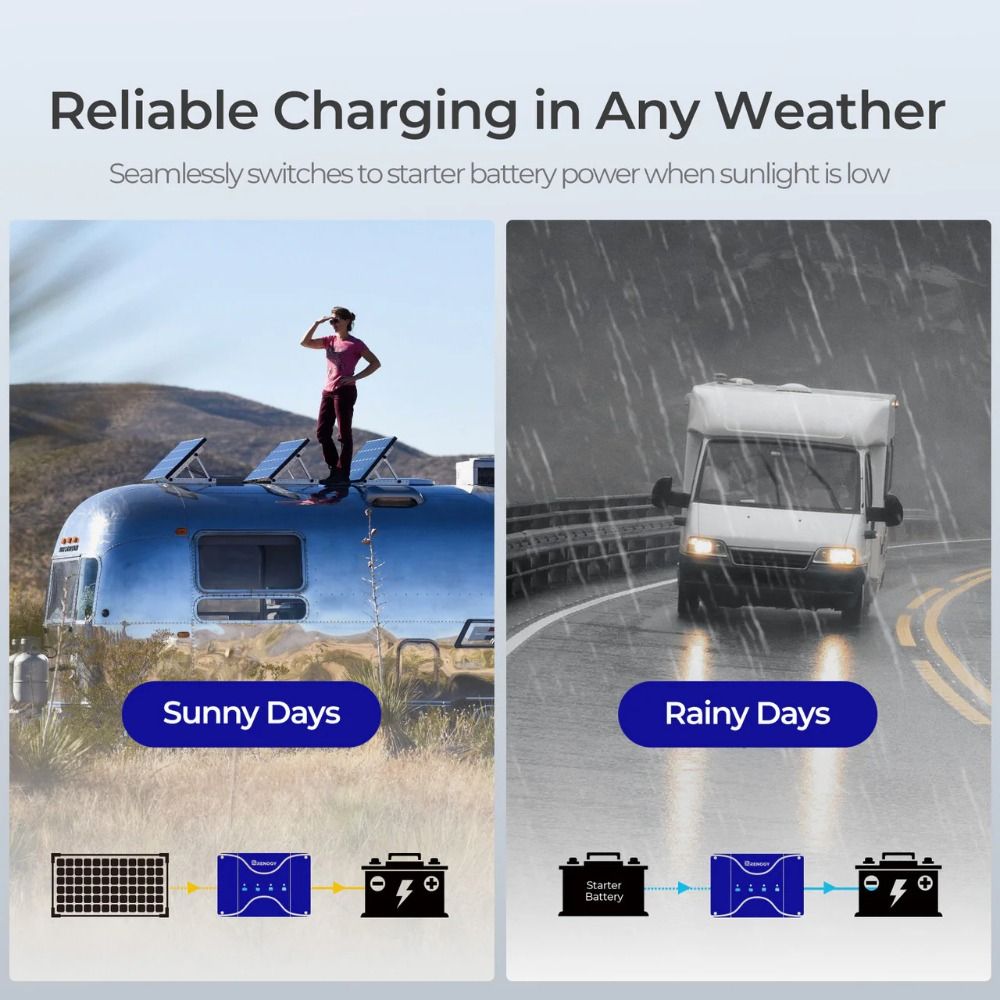

Intelligent Charging Mode Switching - Charge with advanced logic and 'Low Solar Cutoff Mode' for optimal performance in all weather conditions.
Versatile DIY Options - Enjoy greater customization with support for connecting solar modules in series, accommodating up to 50V solar input voltage, and expanding your DIY possibilities.
Adapt to Extreme Temperatures - Consistent high efficiency in extreme temperatures with precise battery temperature compensation.

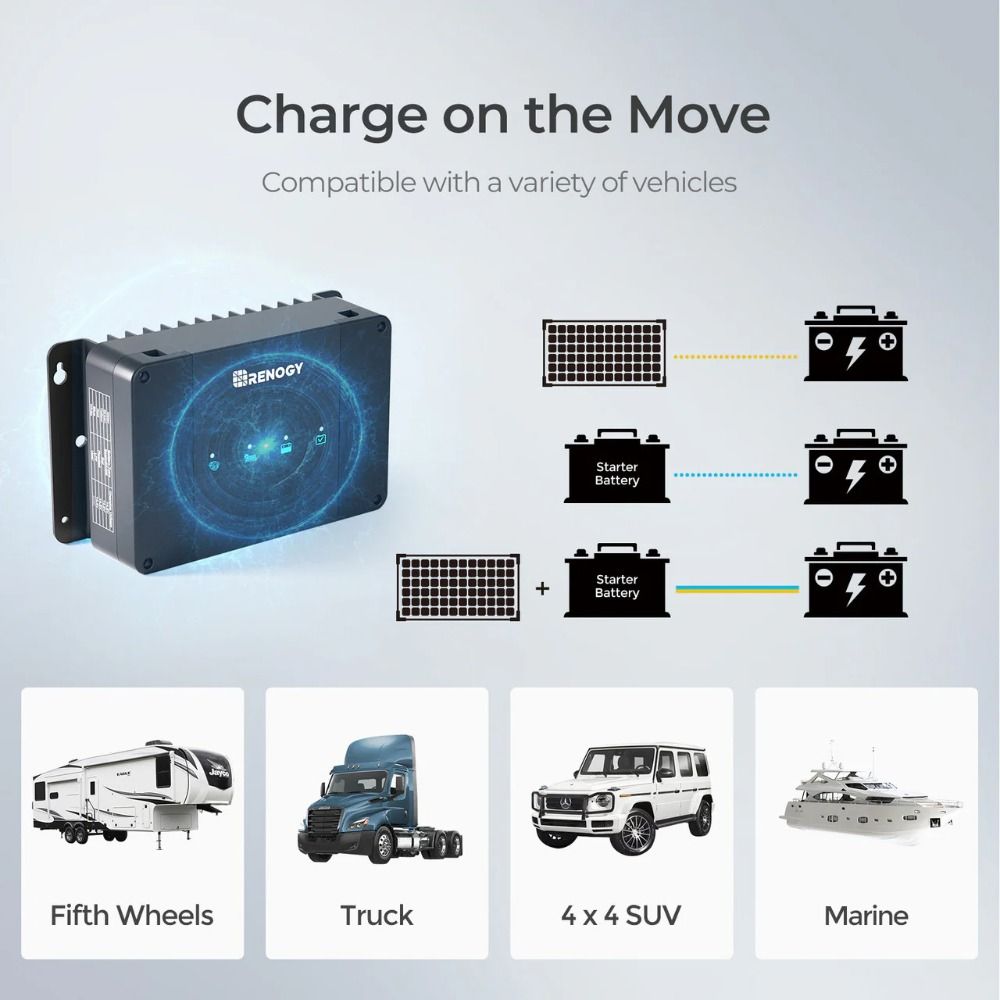

NEG-terminal design for Easy Installation - The all-in-one NEG-terminal design consolidates connections for the solar panel array, starter battery, and house battery, optimizing installation space and simplifying setup.
Comprehensive System Protections - This battery charger offers advanced intelligent protections for batteries, solar panels, and the alternator, delivering a secure and efficient charging experience while safeguarding your system components.
Soft Start Circuit Design for Enhanced Battery Stability - The soft start circuit gradually increases the charger's input voltage, preventing sudden overvoltage and over-discharge.
Protect Your Solar Panels at Night - Reverse current protection prevents potential damage caused by reverse charging from the battery to the solar panels at night, ensuring system safety and reliable performance.
