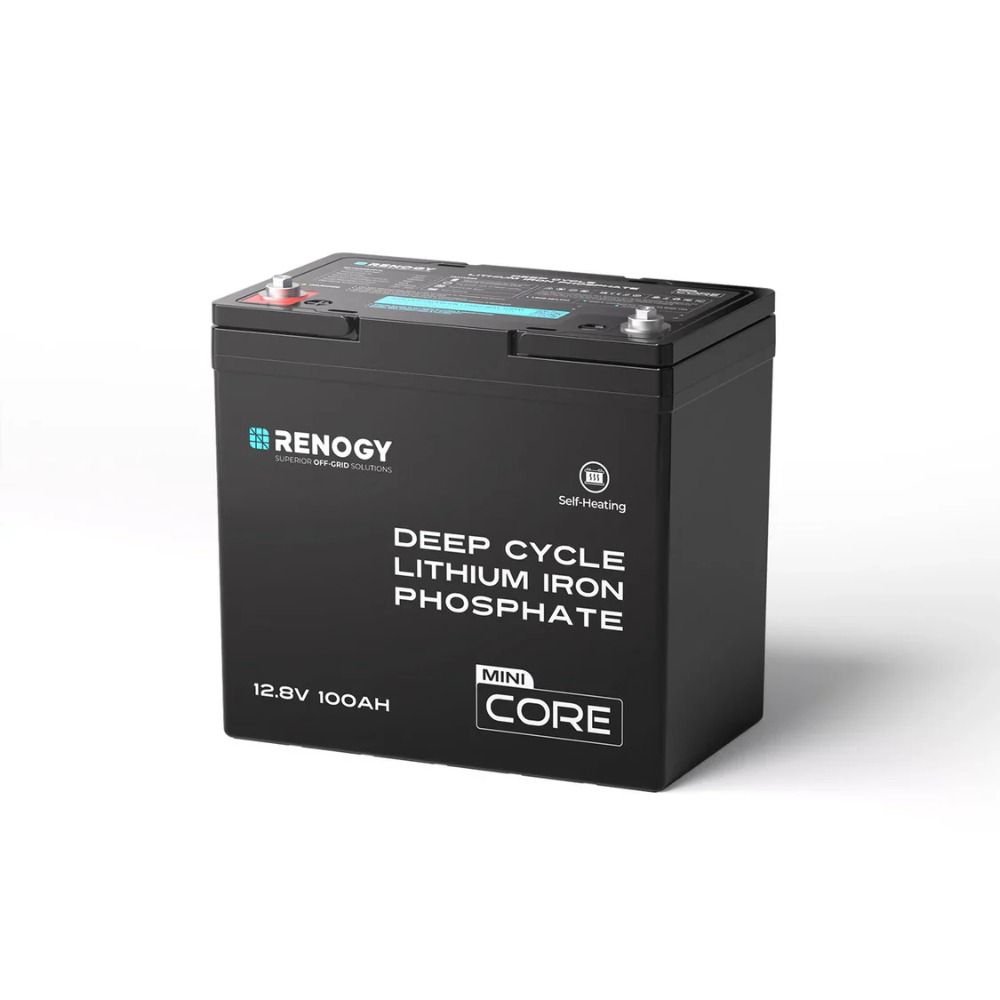

Renogy DuoHeat Tech - CORE Mini LiFePO4 Battery - 12V 100Ah
Operates from -30°C to 55°C with weatherproof IP65 casing and dual heating pads that provide 110W, heating upto 40% faster than other batteries. Group 22NF size 45% smaller than similar batteries and has a built-in 100A BMS for secure and safe operation.
- Rated Capacity (0.5C, 25°C): 100Ah
- Nominal Voltage: 12V
- Battery Cell Type: Lithium Iron Phosphate
- Cycle Life (0.5C, 25°C): 5000 Cycles (80% DOD)
- Dimensions: 229 x 138 x 213mm
- Weight: 9.7Kg
- Protection Rating: IP65
Specifications
X| Operation Parameters | |
|---|---|
| Charge Voltage | 14.6V |
| Maximum Continuous Charge Current | 100A |
| Maximum Continuous Discharge Current | 100A |
| Peak Discharge Current | 300A (for 10 seconds) |
| Charge Temperature Range | -30°C to 55°C – Ideal for safe charging |
| Discharge Temperature Range | -20°C to 60°C |
| Storage Temperature Range | -20°C to 45°C |
| Operation Relative Humidity | 10% to 95% |
| General | |
|---|---|
| Battery Type | Lithium Iron Phosphate |
| Nominal Voltage | 12V |
| Rated Capacity | 100Ah (0.5C, 77°F/25°C) |
| Voltage Range | 10V to 14.6V |
| Cycle Life (0.5C, 77°F/25°C) | 5000 Cycles (80% DOD) |
| Dimension | 229 × 138 × 213 mm |
| Weight | 9.7 kg |
| Connection Method | Series & Parallel (up to 4S4P) |
| Terminal Bolt Size | M8 x 1.25 × 12 mm |
| Recommended Terminal Torque | 53.1 inch-lbs to 70.8 inch-lbs (6 N·m to 8 N·m) |
| Protection Rating | IP65 (Dust-tight & splash-resistant) |
| Certification | MSDS, UN38.3, FCC, CE, PSE, IC, RoHS, UKCA |
Operates from -30°C to 55°C with weatherproof IP65 casing and dual heating pads that provide 110W, heating upto 40% faster than other batteries. Group 22NF size 45% smaller than similar batteries and has a built-in 100A BMS for secure and safe operation.

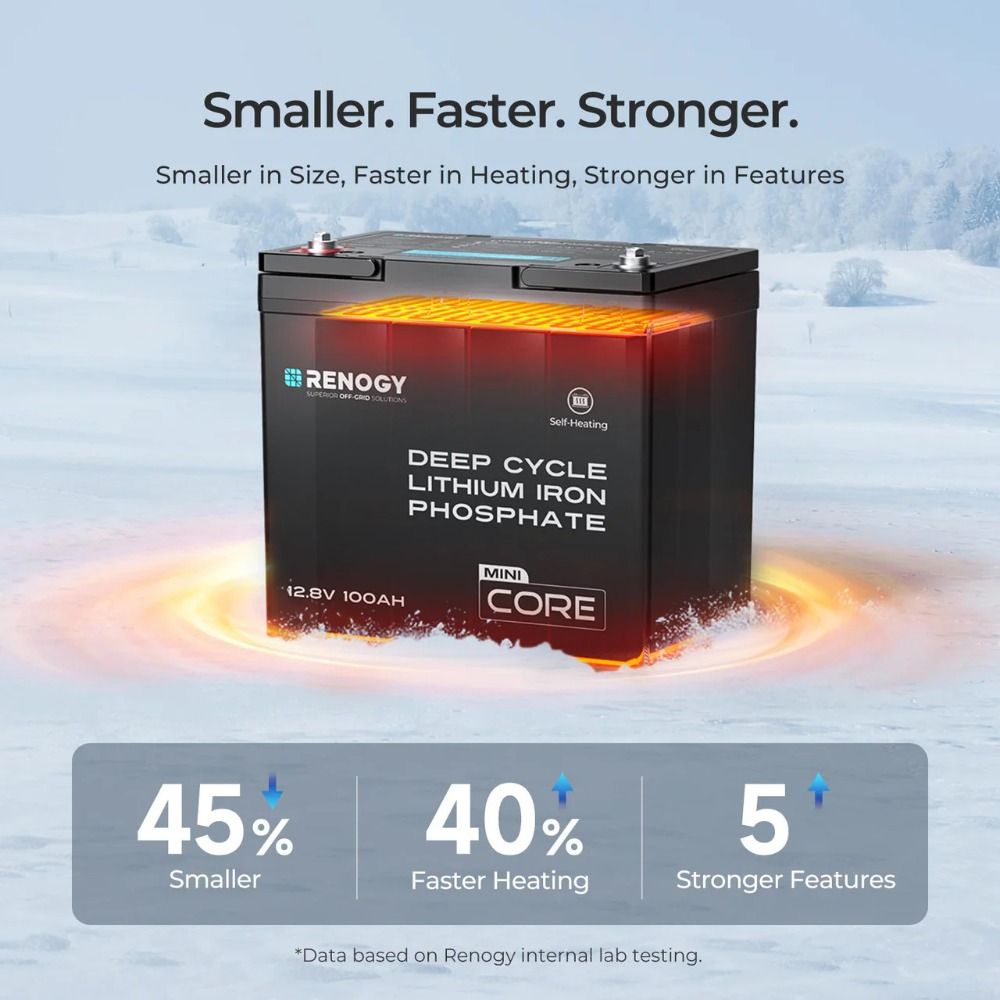

Faster Heating, Superior Performance - Renogy DuoHeat Tech delivers reliable power in any weather, ensuring your battery performs at its best—even in extreme cold.

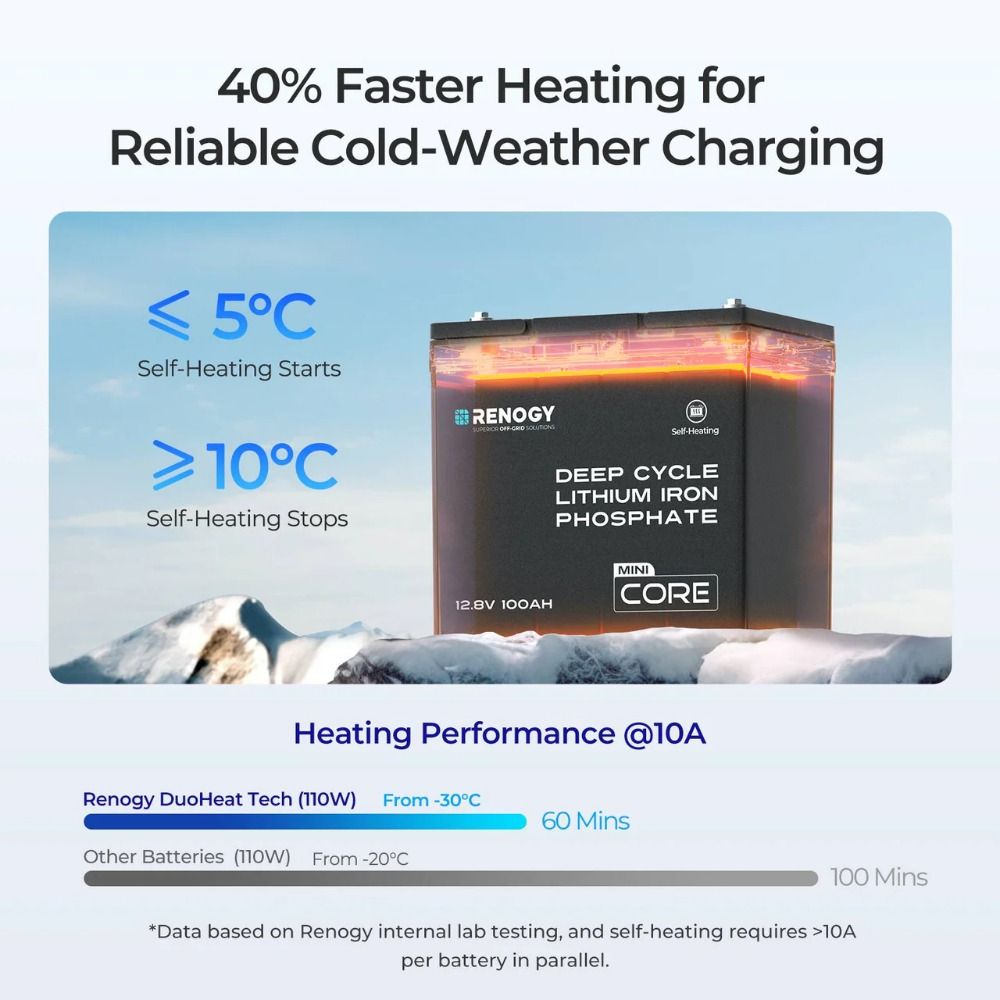

Efficient Performance, Even in Cold - DuoHeat Tech kicks in automatically at 41°F (5°C) to protect your battery from stress and turns off at 50°F (10°C) to save energy. Whether you're winter camping or exploring off-grid, it ensures reliable power in any climate.
Advanced Design, Maximum Safety - Renogy's exclusive Duo Heating Pads deliver consistent warmth to every battery cell. The integrated oxygen board ensures even heat distribution by securing heating films directly against each cell while maintaining a cool exterior. Designed for dependable performance in the toughest conditions.

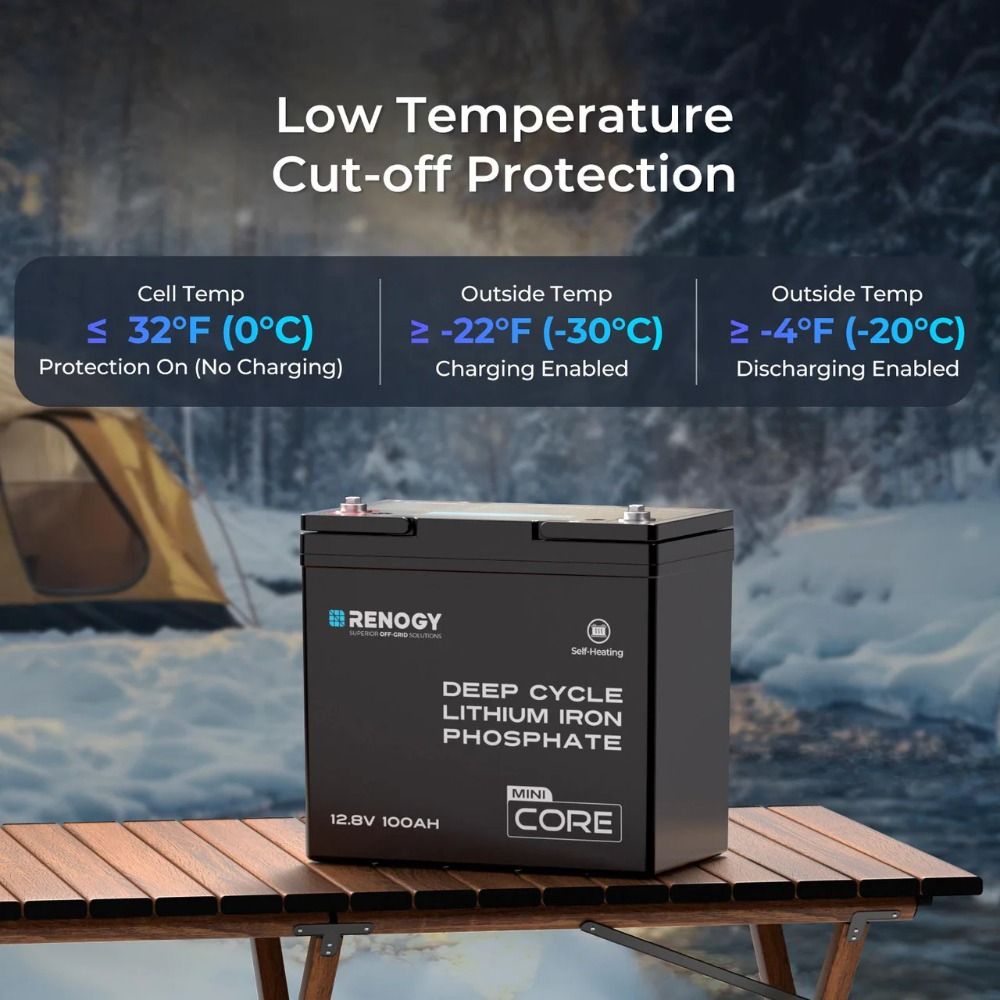

Charge with confidence, perform without limits - Protect your battery with precision temperature control, safeguarding it from damage during charging and ensuring dependable power whenever you need it. Enhanced discharge protection guarantees steady performance in any condition. Renogy delivers worry-free power for all your adventures.

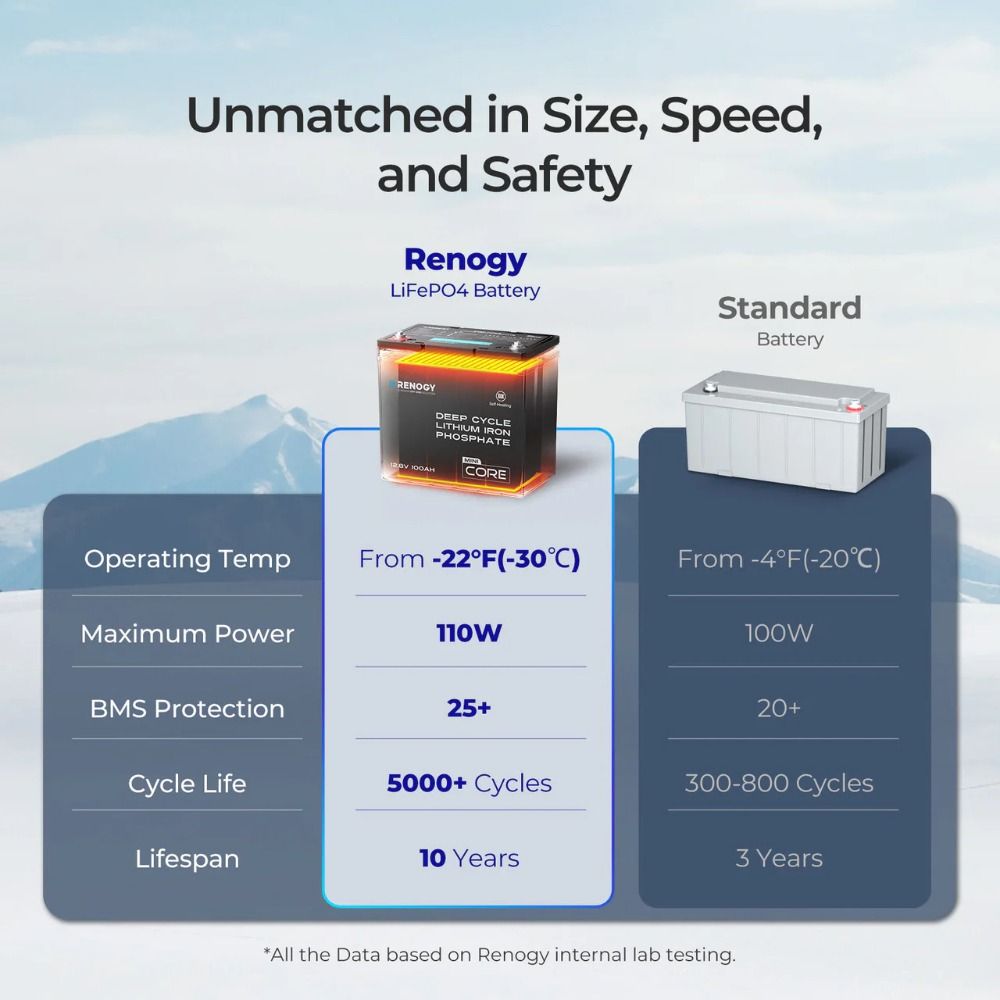

Conquer the Cold, Power Your Journey - The Renogy 12V 100Ah LiFePO4 Battery with DuoHeat Tech offers 110W of dual-heating power, providing double the efficiency of conventional designs. Enjoy 40% faster heating and a 13% higher temperature tolerance, reaching ready-to-charge status from as low as -22°F (-30°C) in just 60 minutes. Don’t let the cold weather hold back your adventure.

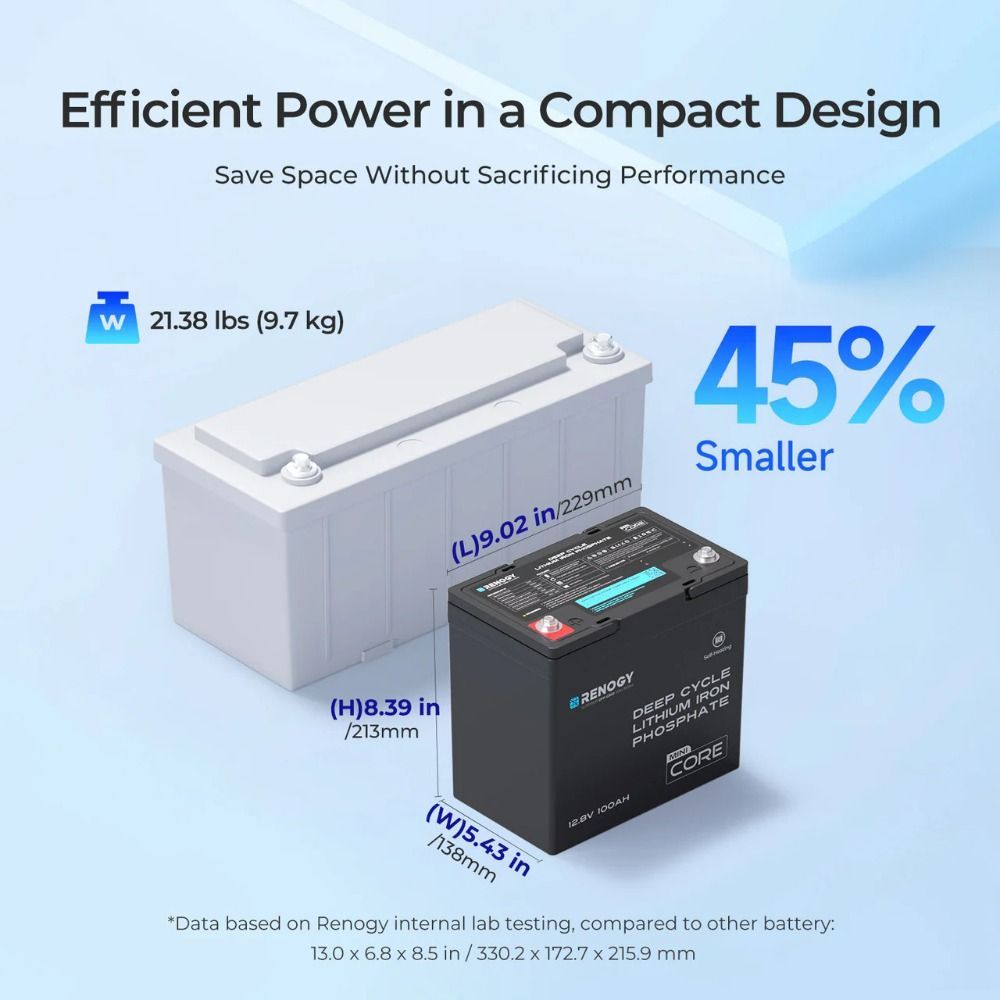

Harness Maximum Power in Minimum Space - Experience exceptional performance in a 45% smaller package. The Renogy 12V 100Ah Core Series LiFePO4 Battery delivers heavyweight power in a lightweight design, weighing 11% less than standard batteries. Get more space for your adventures and more power for your journey.

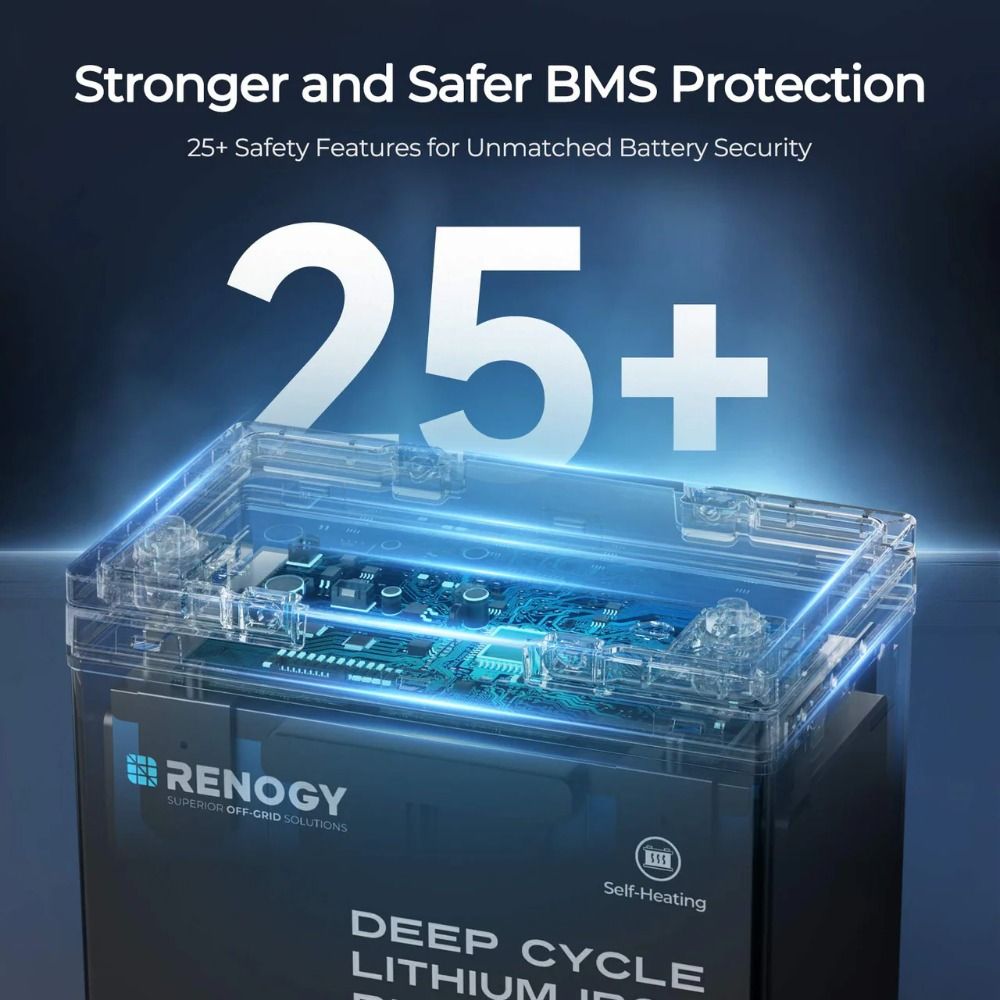

Peace of Mind, Built In - With over 25 intelligent safety features, your battery is safeguarded against every threat, from overcharging to short circuits. Advanced protection against temperature extremes, current surges, and discharge risks ensures stable power and worry-free adventures.

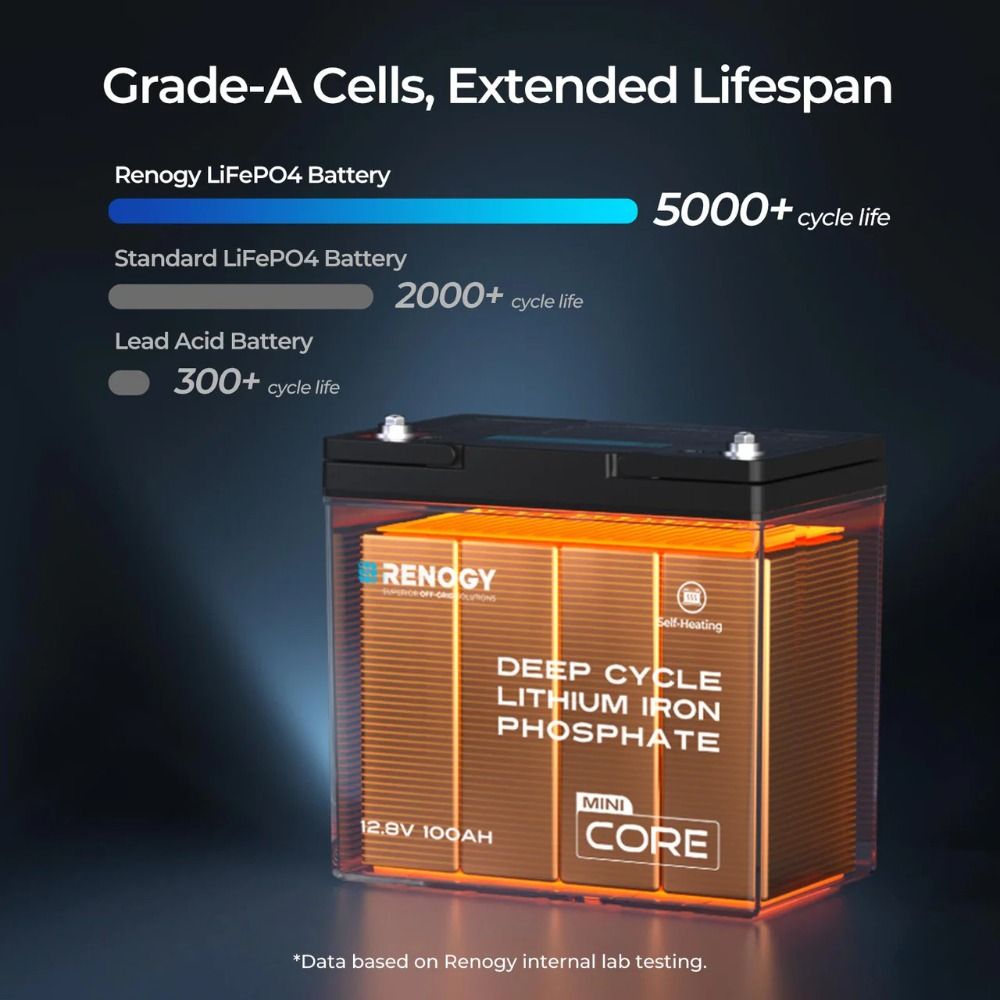

Built for Performance, Engineered to Last - Premium cells provide an exceptional 5,000+ cycles at 80% DOD, far exceeding industry standards. Designed for daily use and built to power your adventures for over 10 years. Experience professional-grade reliability that safeguards your investment while delivering uncompromising performance.
World-Class Standards, Rigorously Tested - The Renogy 12V 100Ah LiFePO4 Battery meets global safety certifications, including MSDS, UN38.3, FCC, CE, PSE, IC, RoHS, and UKCA. Each unit undergoes thorough testing to ensure the reliable performance you can trust.
Up to 20.48 kWh of Scalable Power - Connect up to four batteries in series or parallel configurations for a tailored solution that meets your exact needs. Flexible installation options ensure you have the right power for any adventure.
In The Box
- Renogy Core Mini 12V 100Ah LiFePO4 Battery with DuoHeat Tech
- M8 × 1.25 × 12 mm Terminal Bolts
- Insulating Sleeve
- User Manual
