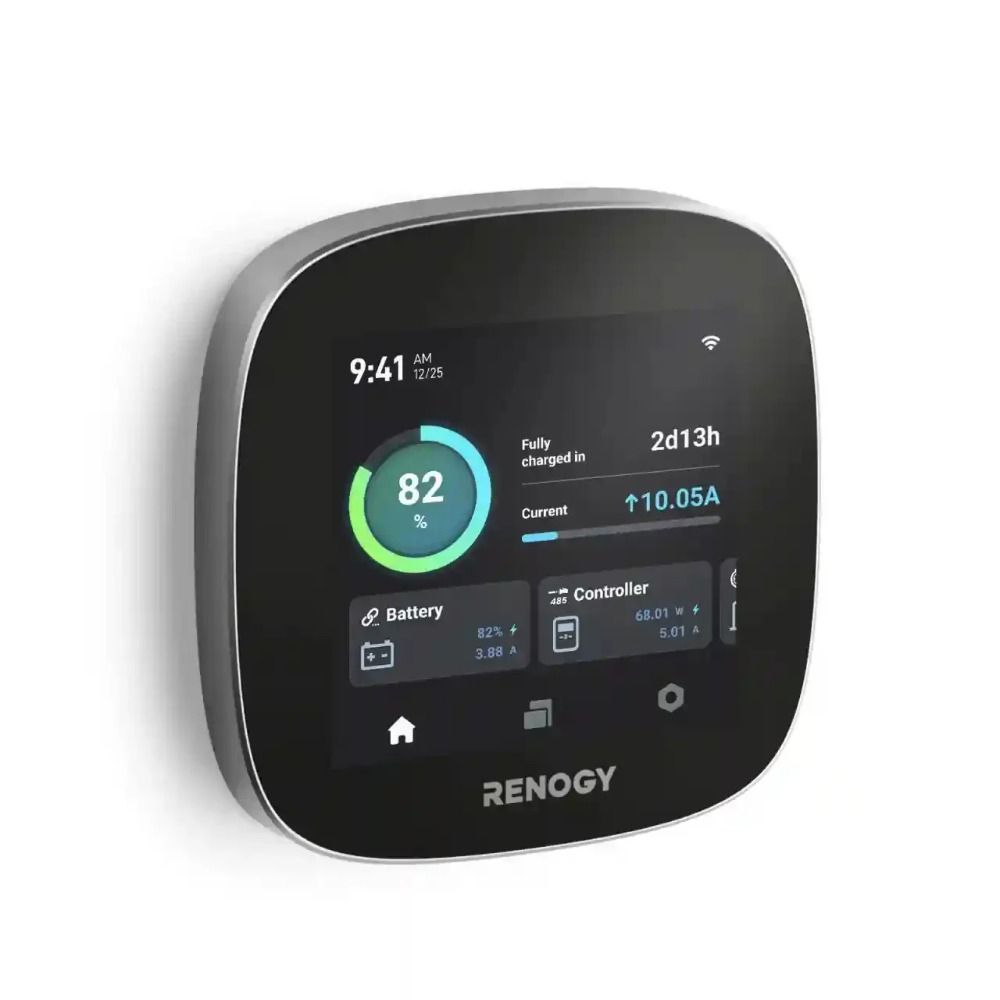

Renogy One Core (G3) - All-in-One Energy Monitoring - Wi-Fi CAN
The Renogy One Core is a fully featured Smart Home Hub with Wifi, Bluetooth LE, BLE Mesh, Zigbee 3.0 and CAN communication. More than just an energy monitor the Renogy Core allows you to connect your smart home appliances for home automation.

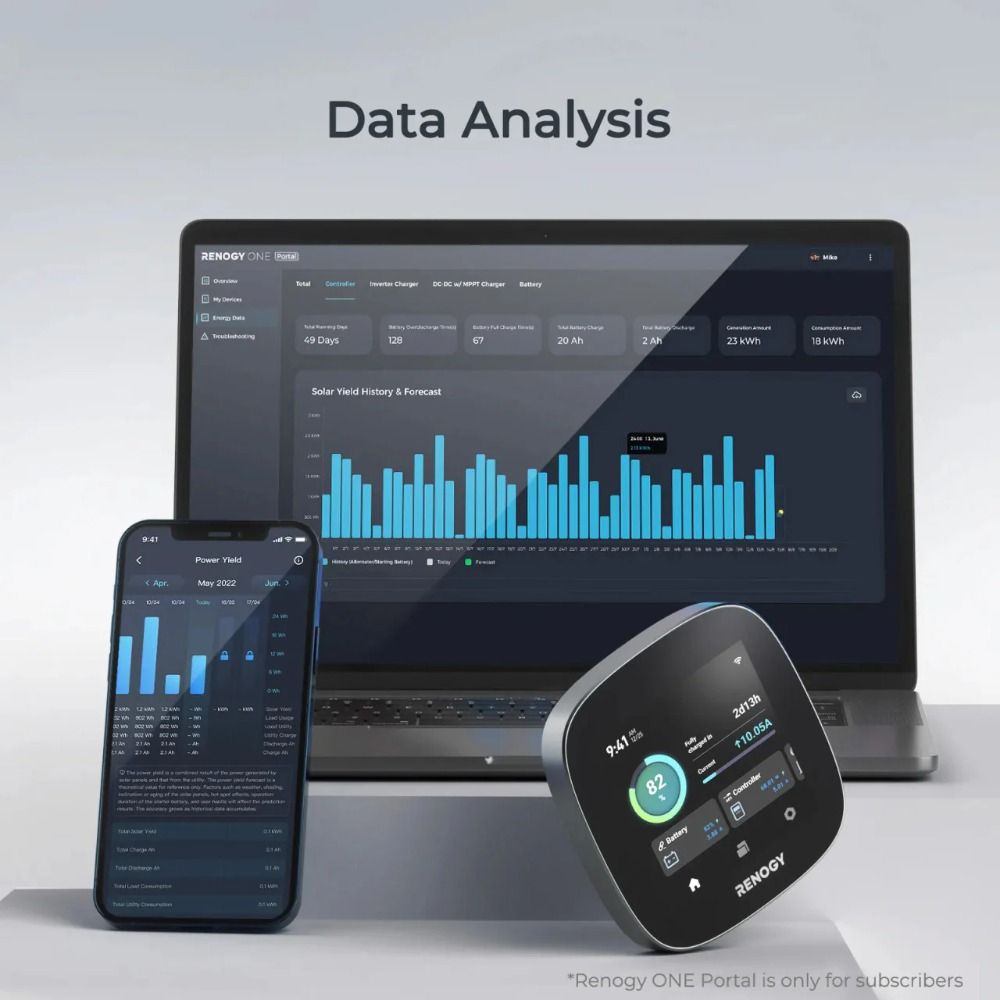

- Cloud-based energy monitoring worldwide.
- 24/7 energy analysis on multiple devices.
- Connect smart accessories for home automation.
- Easy installation with horizontal bubble
- 4" 480 x 480p touch screen display
- Physical on-off key

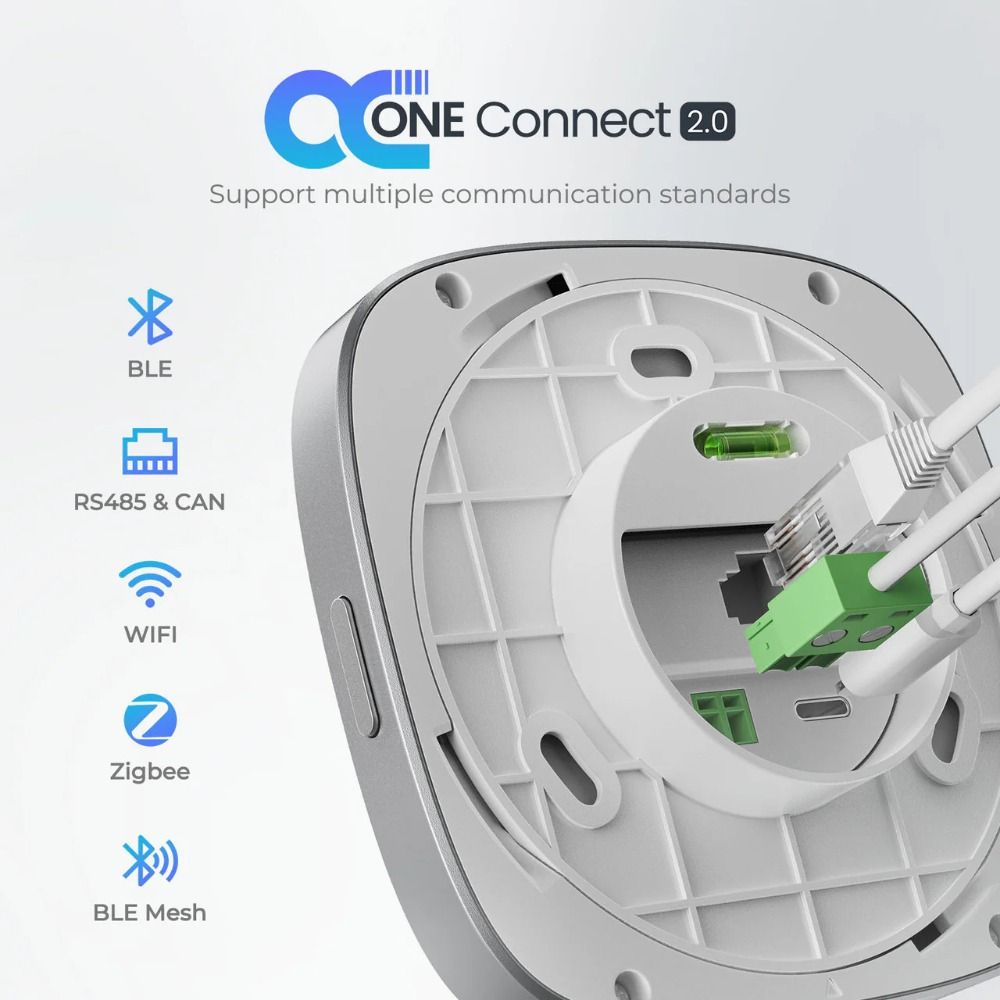

- Connections: 2.4GHz WiFi, Bluetooth LE & BLE Mesh, Zigbee 3.0, RS485 and CAN

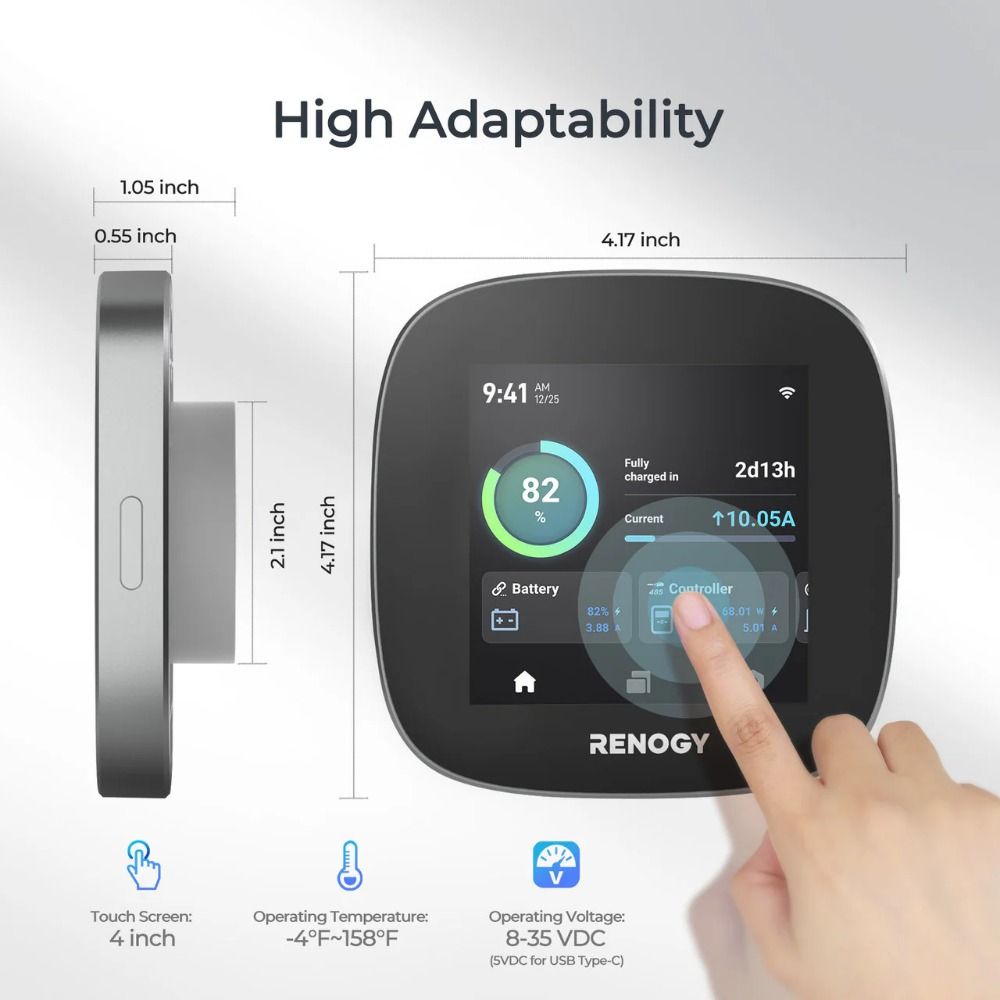

- Dimensions: 106 x 106 x 26.6mm (4.17" x 4.17" x 1.05")
Specifications
X| Specifications | |
|---|---|
| Operating Voltage 8-35 VDC (5 VDC for USB Type-C) | |
| Power Consumption at 12V | Operating, WiFi On, 100% illumination: 3.2 W
Operating, WiFi On, 50% illumination: 2.4 W Operating, WiFi On, 0% illumination: 1.9 W Off, logger still active: 1.5 W |
| Communication | IEEE 802.11 a/b/g; 2.4GHz & 5GHz; Bluetooth LE and Bluetooth Mesh; Zigbee 3.0 (IEEE 802.15.4); RS-485 & CAN |
| Touch Screen | 4 inches (480 x 480p) |
| Operating Temperature | -20℃ to 70℃ (-4℉ to 158℉) |
| Operating Humidity | 0% to 95% RH |
| Operating Altitude | Less than 5000m above sea level |
| Installation | Flush mount |
| Dimensions | 106 x 106 x 26.6 mm (4.17" x 4.17" x 1.05") |
| Weight | 128g (0.28lb) |
| Certification | CE, FCC, RoHS, TSCA, BQB, IC-ID |
The Renogy One Core is a fully featured Smart Home Hub with Wifi, Bluetooth LE, BLE Mesh, Zigbee 3.0 and CAN communication. More than just an energy monitor the Renogy Core allows you to connect your smart home appliances for home automation.
Energy efficiency at your fingertips - Dedicated to off-gridders, Renogy ONE Core helps save money and reduce your carbon footprint by tracking energy generation and consumption.
Distance is not a problem - Remote energy monitoring in various scenarios.

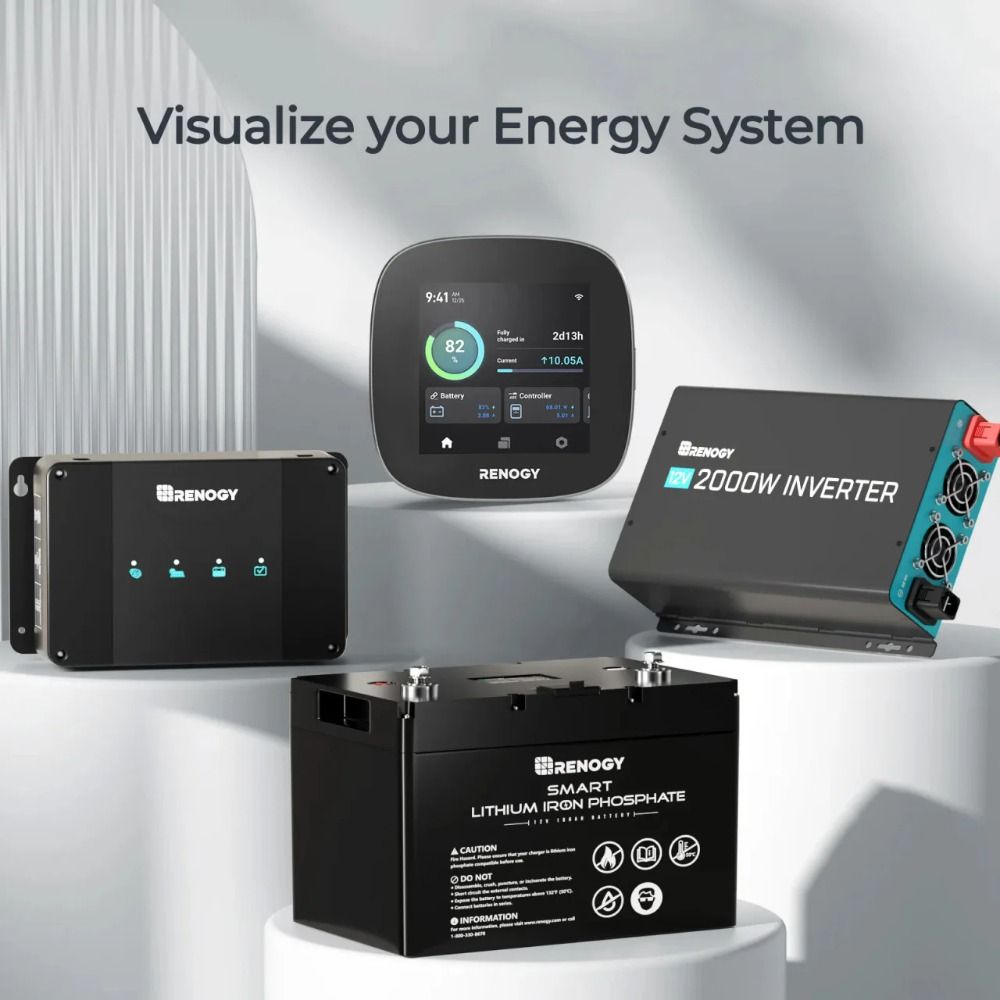

One Command Center for Your Renogy Devices
Compatible with devices with Bluetooth including devices using the Renogy BT-1 & BT-2 Bluetooth Modules, and Zigbee devices such as smart plugs and door & window sensors.

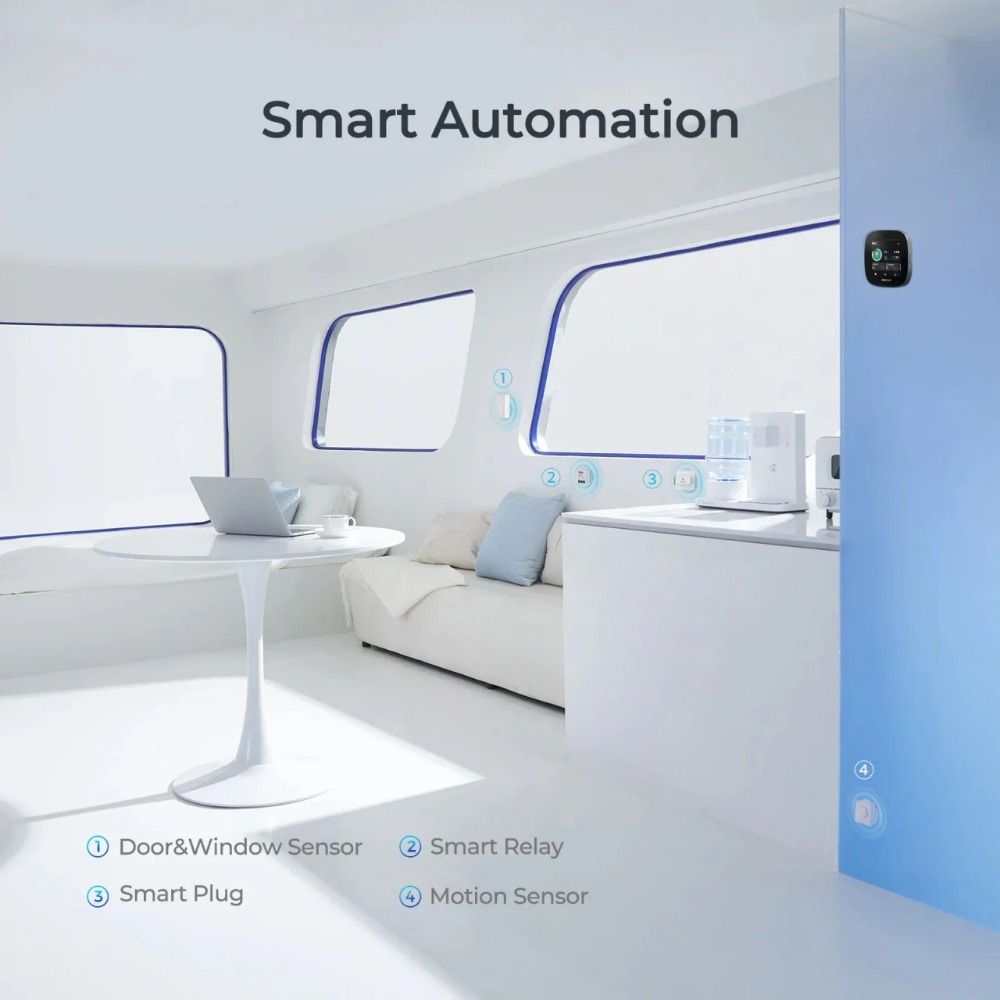

Make it a smart home - ONE Core also serves as a smart home hub, allowing you to connect your smart home appliances like door entry alert or climate sensors, enjoy added convenience and security of home automation.
Peace of mind with 24/7 security - Detect unexpected motions occurring in your RV, keep you alert and informed of anything suspicious.
In The Box
- Renogy One Core
- Mounting bracket and hardware
- Power cable
- Quick start guide
