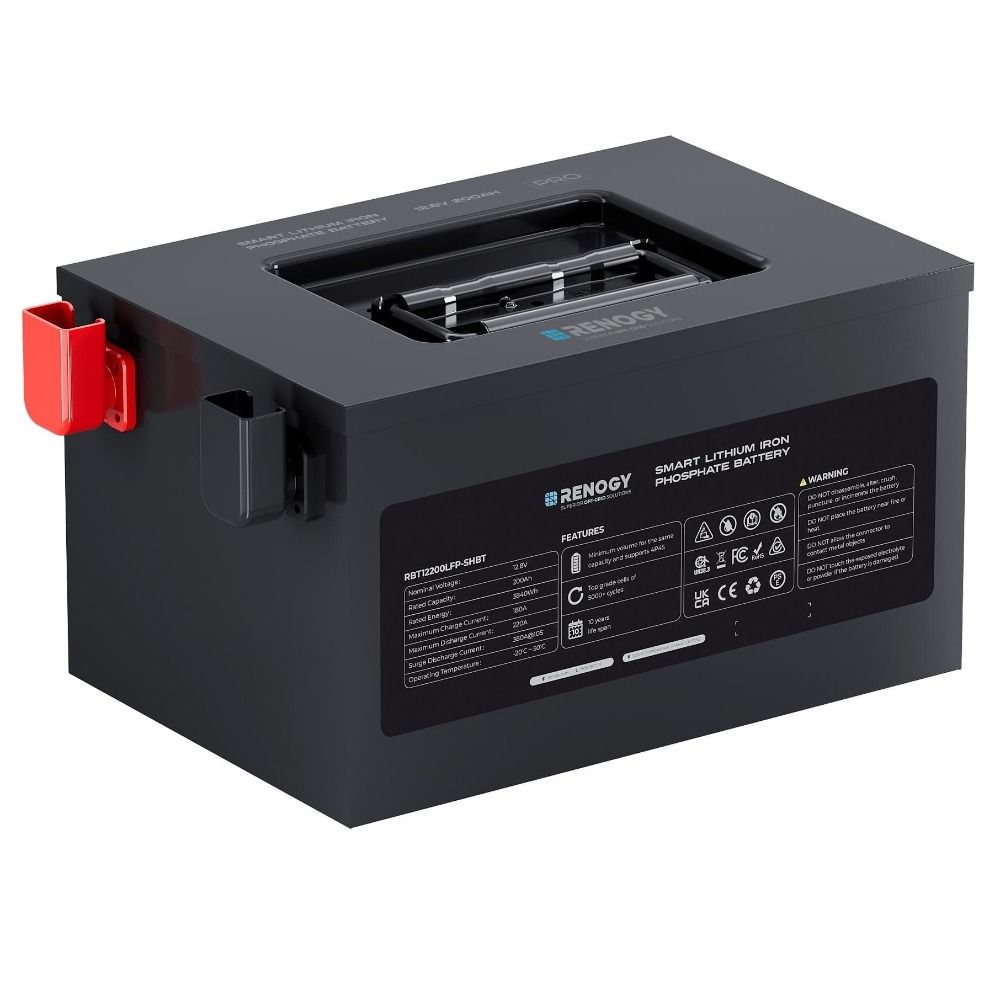

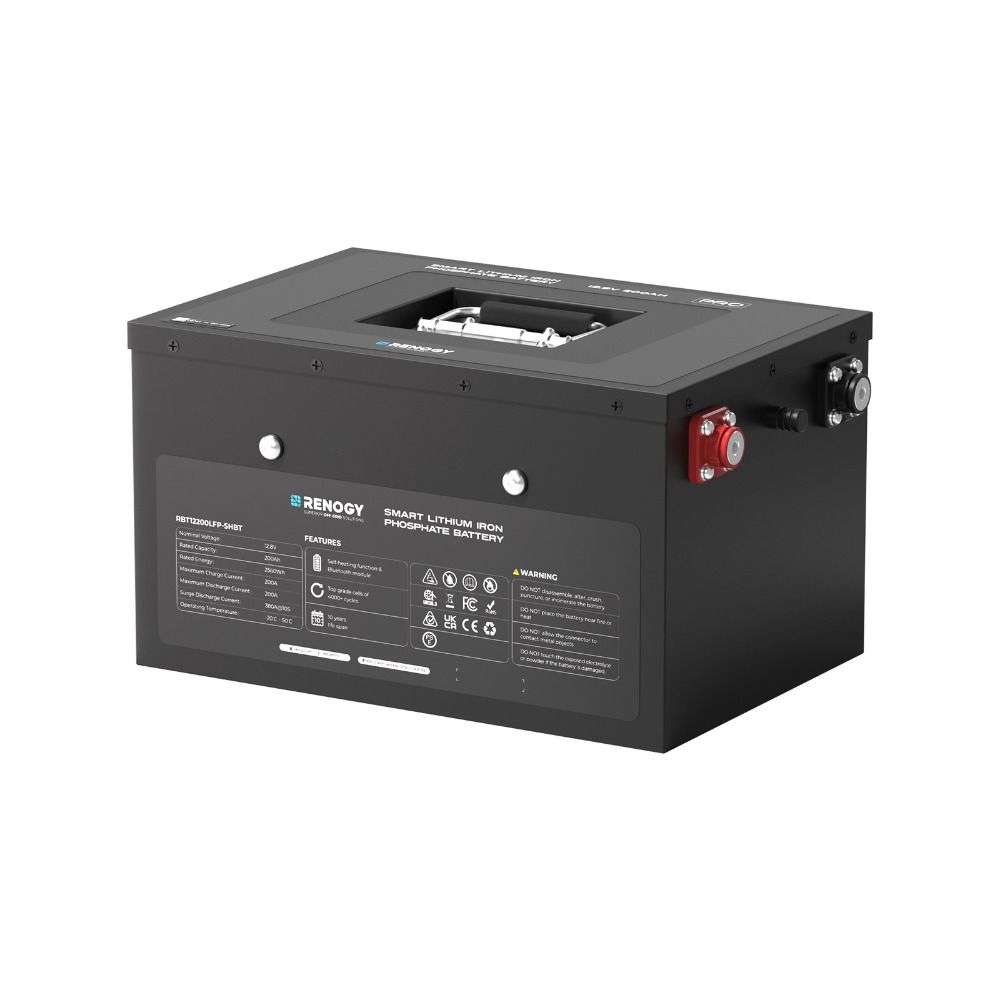

Renogy Pro Underseat Lithium Battery With BT & Canbus - 12.8V 200Ah
Compact size fits under RV seats while delivering strong, safe power, Built-in Bluetooth gives real-time battery updates via Renogy app. Automotive cells enable up to 200A charge/discharge, 4000+ cycles, Self-heating allows safe cold-weather charging down to -20°C.

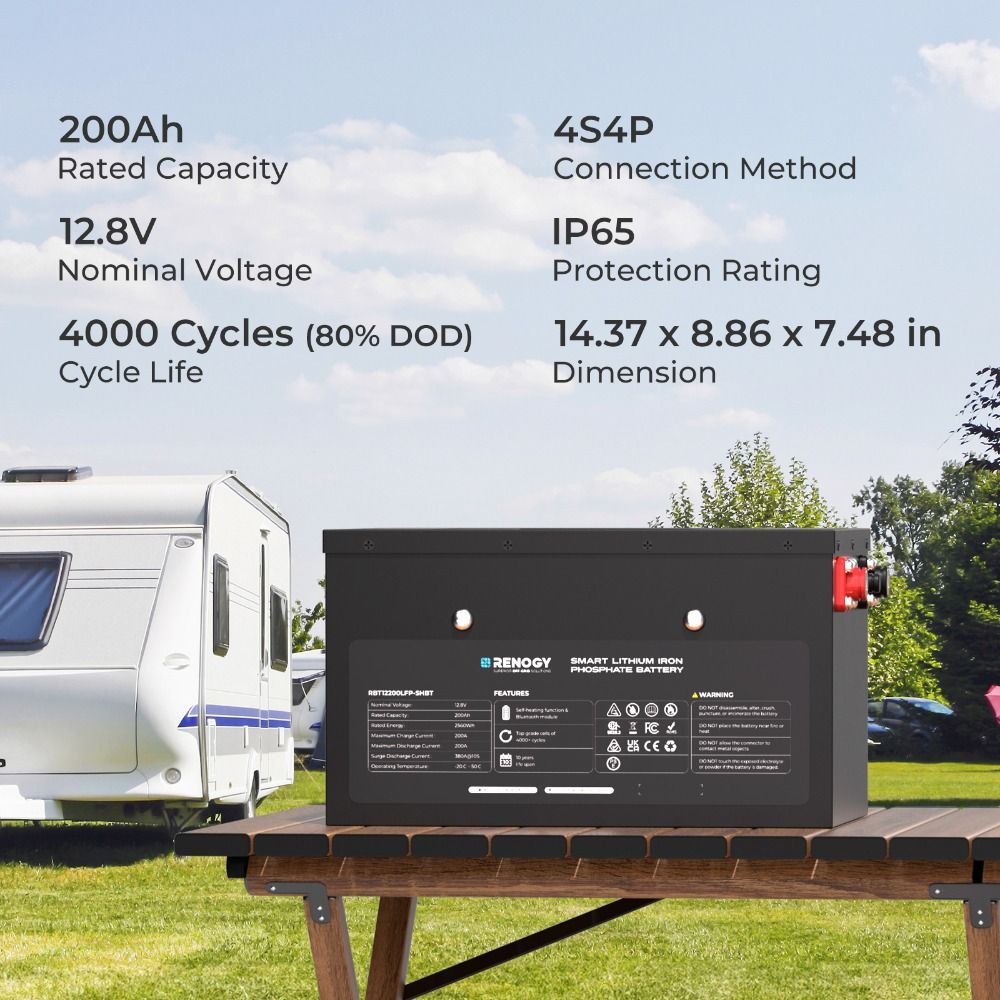

- Rated Capacity (0.5C, 25°C): 200Ah
- Nominal Voltage: 12.8V
- Battery Cell Type: Lithium Iron Phosphate
- Cycle Life (0.5C, 25°C): 4000 Cycles (80% DOD)

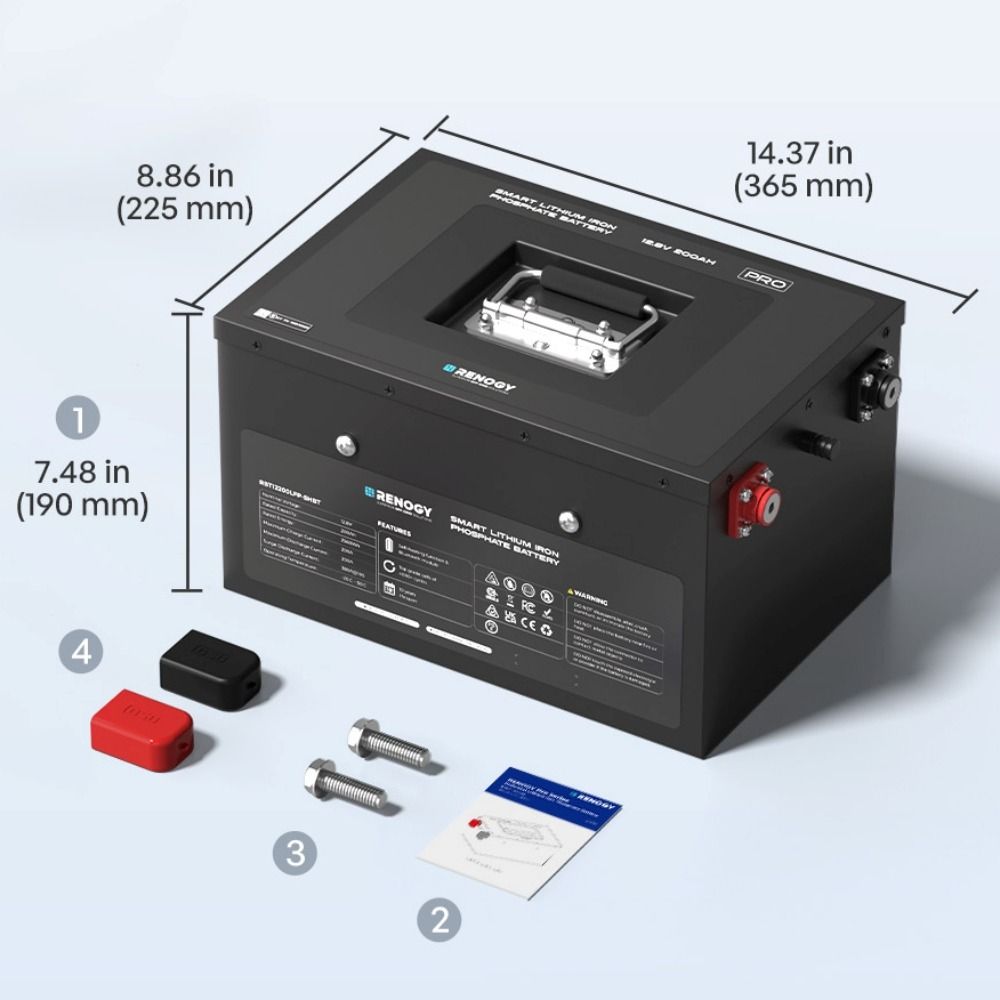

- Dimensions: 365 x 225 x 190mm (14.37" x 8.86" x 7.48")
- Weight: 23Kg (50.71lbs)
- Protection Rating: IP65
Specifications
X| Specifications | |
|---|---|
| Battery Cell Type | Lithium Iron Phosphate |
| Rated Capacity (0.5C, 25°C) | 200Ah |
| Nominal Voltage | 12.8V |
| Voltage Range | 10V to 14.8V |
| Cycle Life (0.5C, 25°C) | 4000 Cycles (80% DOD) |
| Dimension | 365 x 225 x 190mm (14.37" x 8.86" x 7.48" |
| Weight | 23.0kg (50.71lbs) |
| Connection Method | 4S4P |
| Terminal Bolt Size | M8 x 1.25 x 16 mm |
| Recommended Terminal Torque | 88.5 inch·lbs to 106.2 inch·lbs / 10 N·m to 12 N·m |
| Protection Rating | IP65 |
| Certification | MSDS, UN383, CE, and RoHS |
| Charge Voltage | 14.4V |
| Maximum Continuous Charge Current | 200A |
| Maximum Continuous Discharge Current | 200A |
| Peak Discharge Current | 380A@10S |
| Charge Temperature Range | -20°C to 55°C (-4°F to 131°F) |
| Discharge Temperature Range | -20°C to 50°C (-4°F to 122°F) |
| Storage Temperature Range | -25°C to 65°C (-13°F to 149°F) |
| Operation Relative Humidity | 10% to 95% |
Compact size fits under RV seats while delivering strong, safe power, Built-in Bluetooth gives real-time battery updates via Renogy app. Automotive cells enable up to 200A charge/discharge, 4000+ cycles, Self-heating allows safe cold-weather charging down to -20°C.
Versatile Power for Life Off the Grid - Designed for RVs and beyond-from cabins to boats, it delivers dependable energy wherever life takes you.

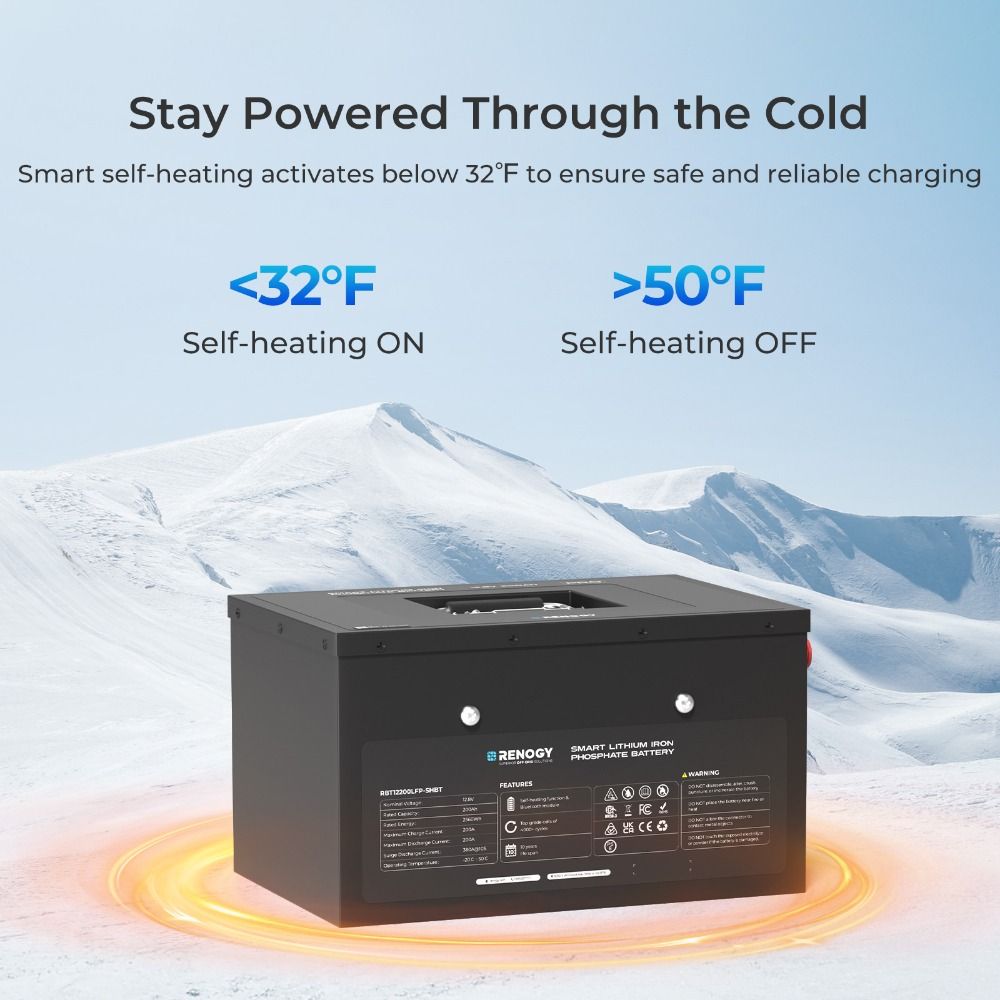

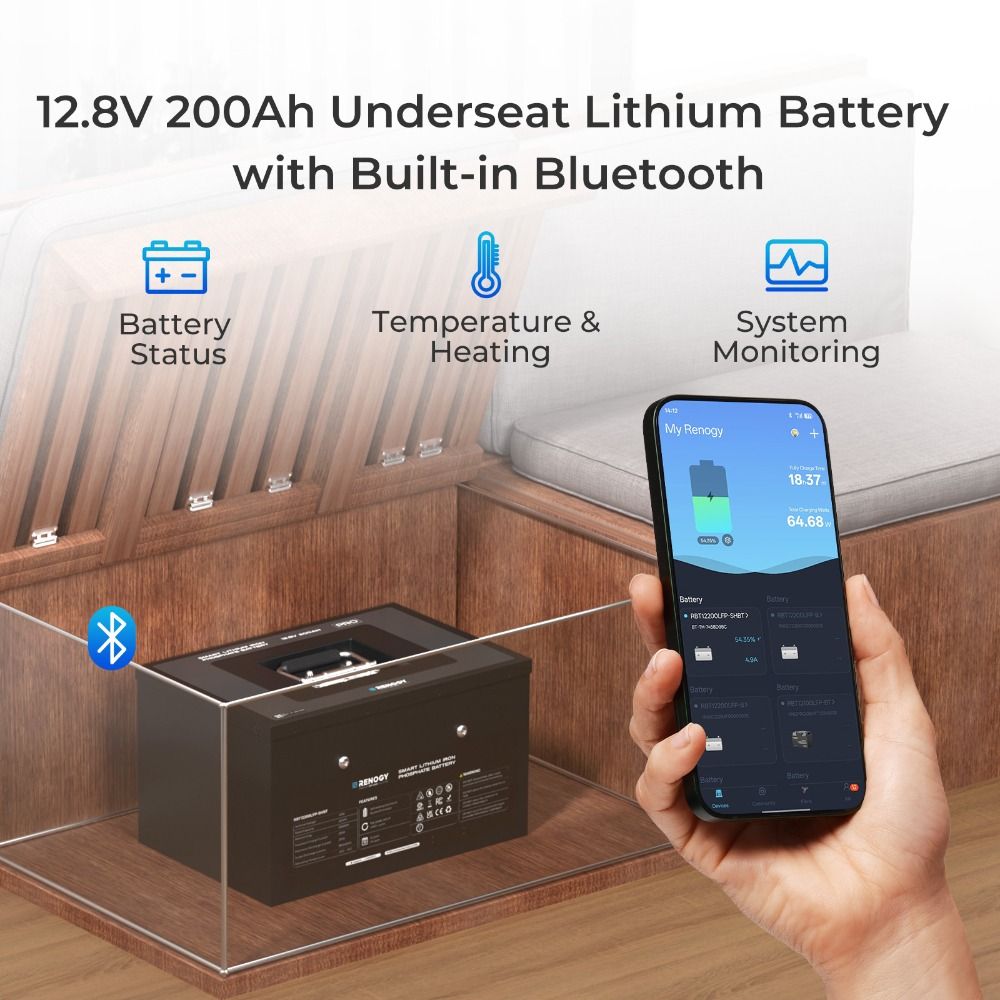

Powerful Built-In Features - Integrated Bluetooth offers seamless connectivity while the self-heating function keeps your battery operating reliably even in freezing temperatures.

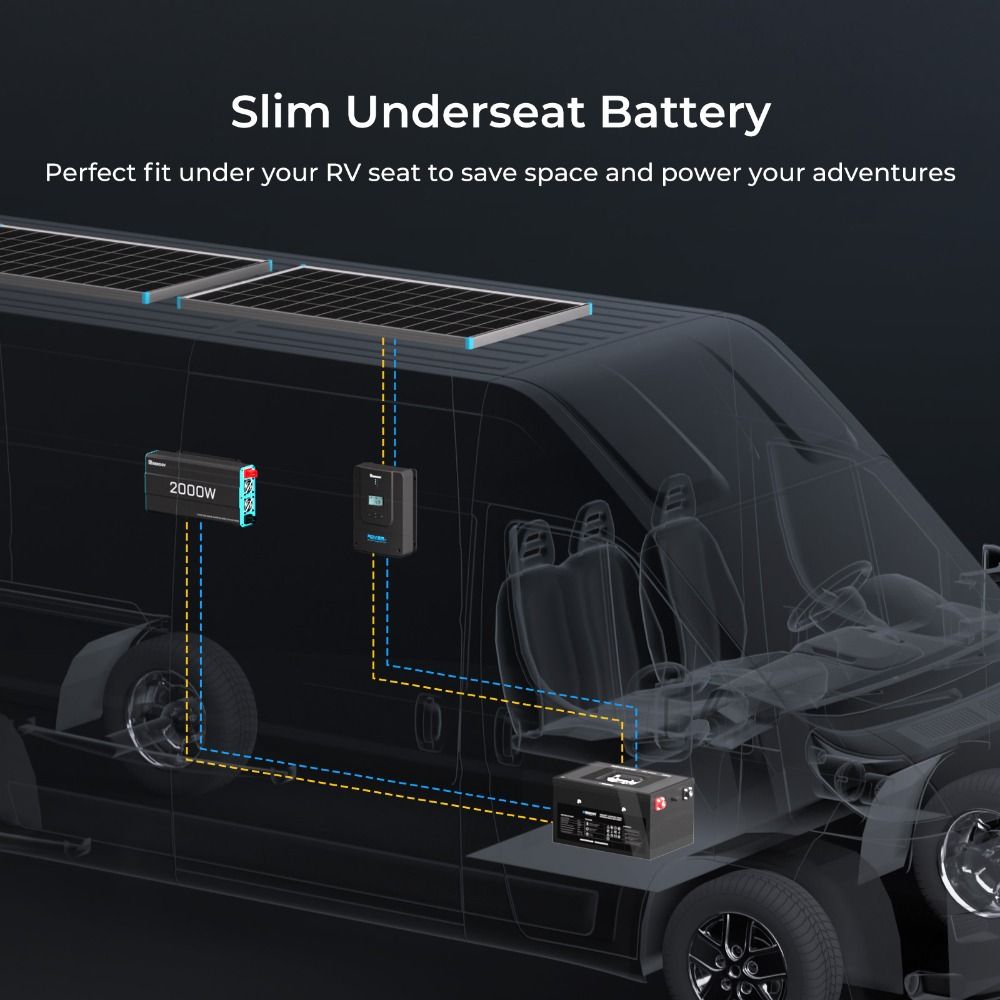

Power Made Easy on the Move - Step up your power game. Two 200Ah batteries provide reliable energy for multi-day road trips.
Effortless Power for Your Tiny Sheds - Power up electric tools and kitchen gear. Perfect balance of work and leisure in your cabin life.

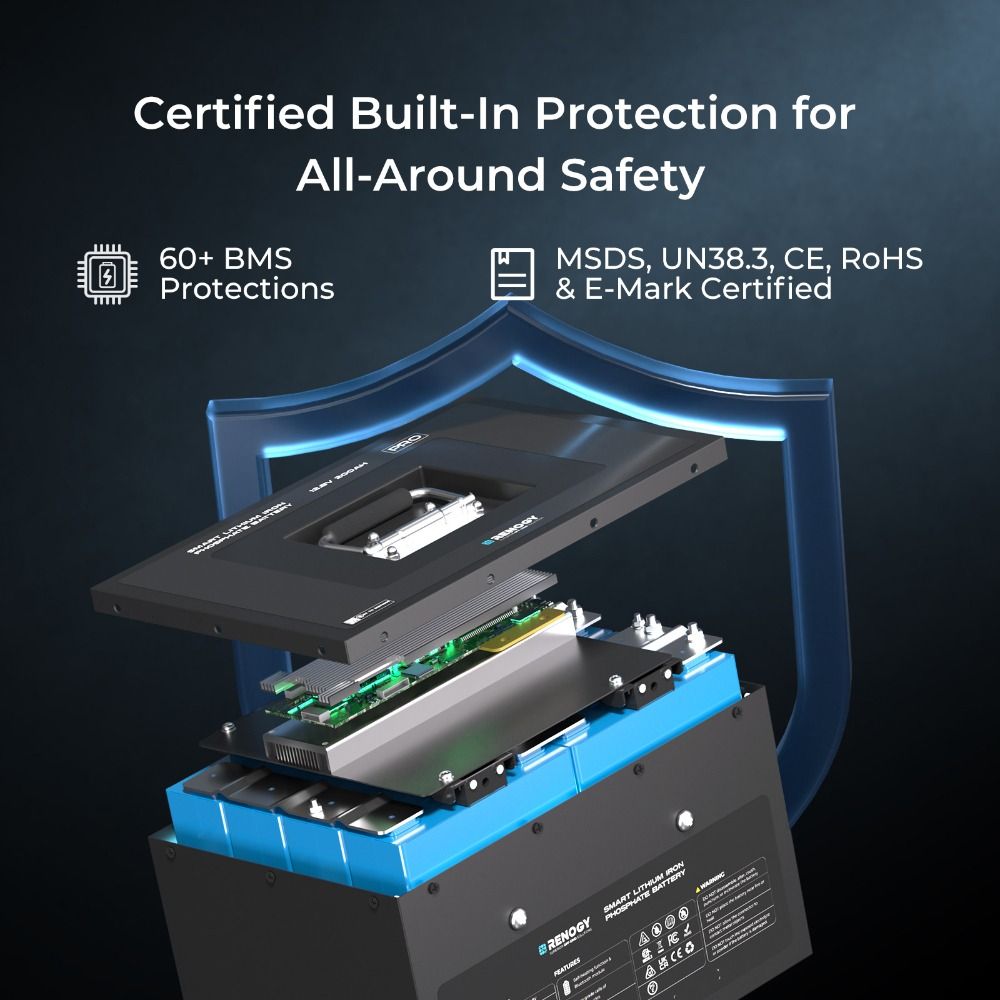

Safeguard Your Power on Every RV Journey - Equipped with 60+ lavers of battery protection and certified to meet strict safety standards for worry-free use.
In The Box
- 12.8V 200Ah Pro Series Underseat Lithium lron Phosphate Battery
- User Manual
- Long Terminal Bolt
- Insulation Sleeves
