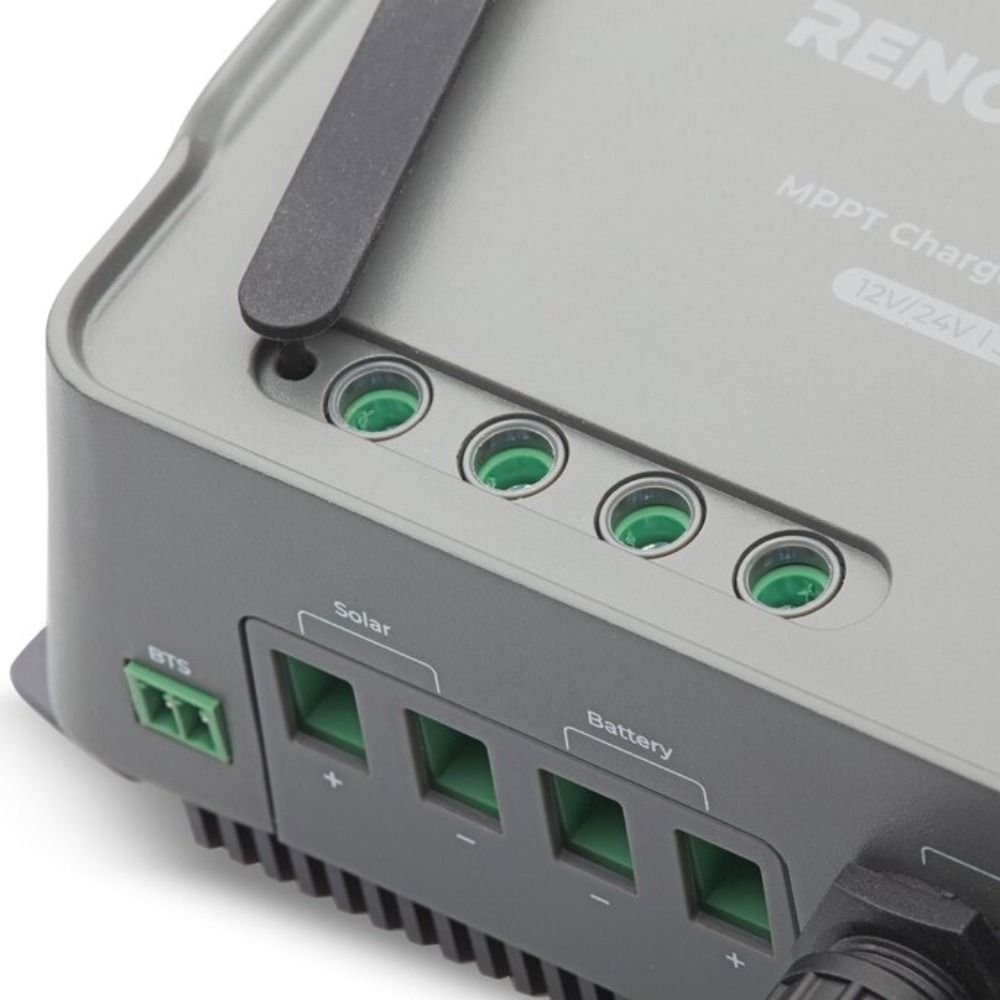

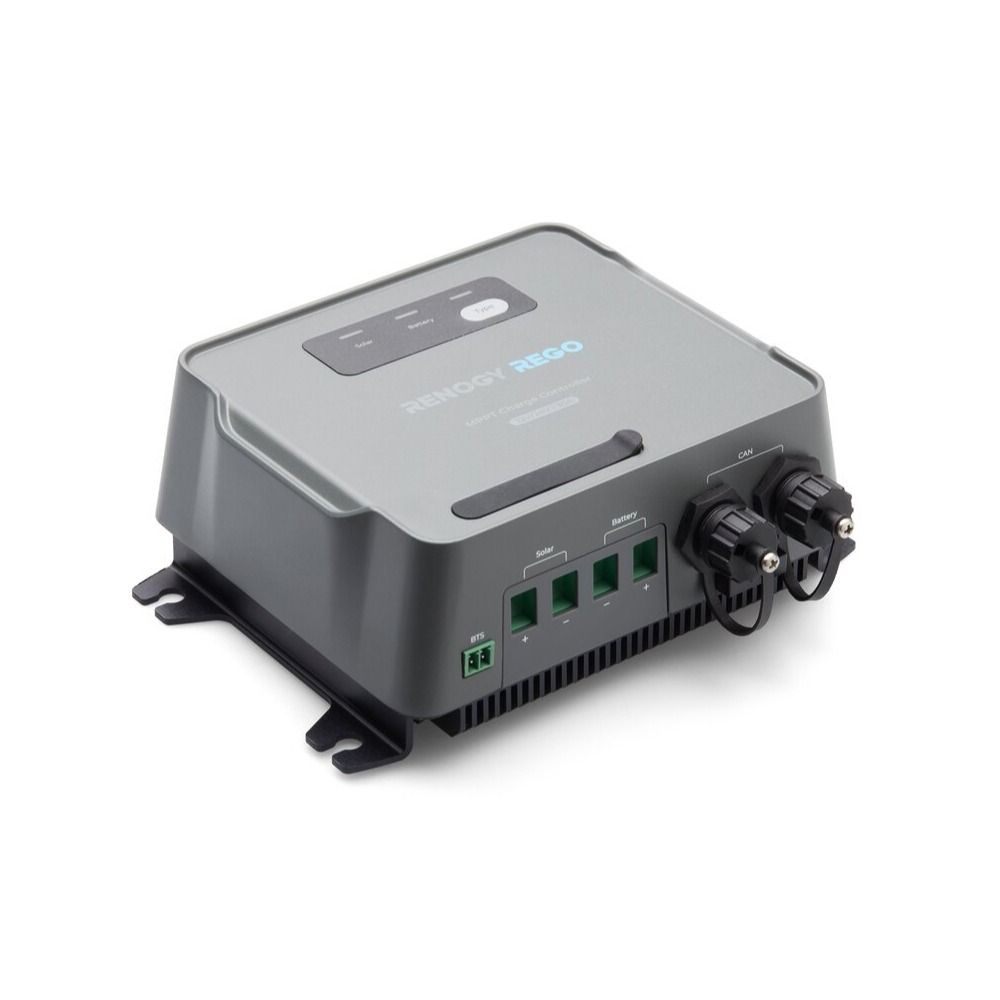

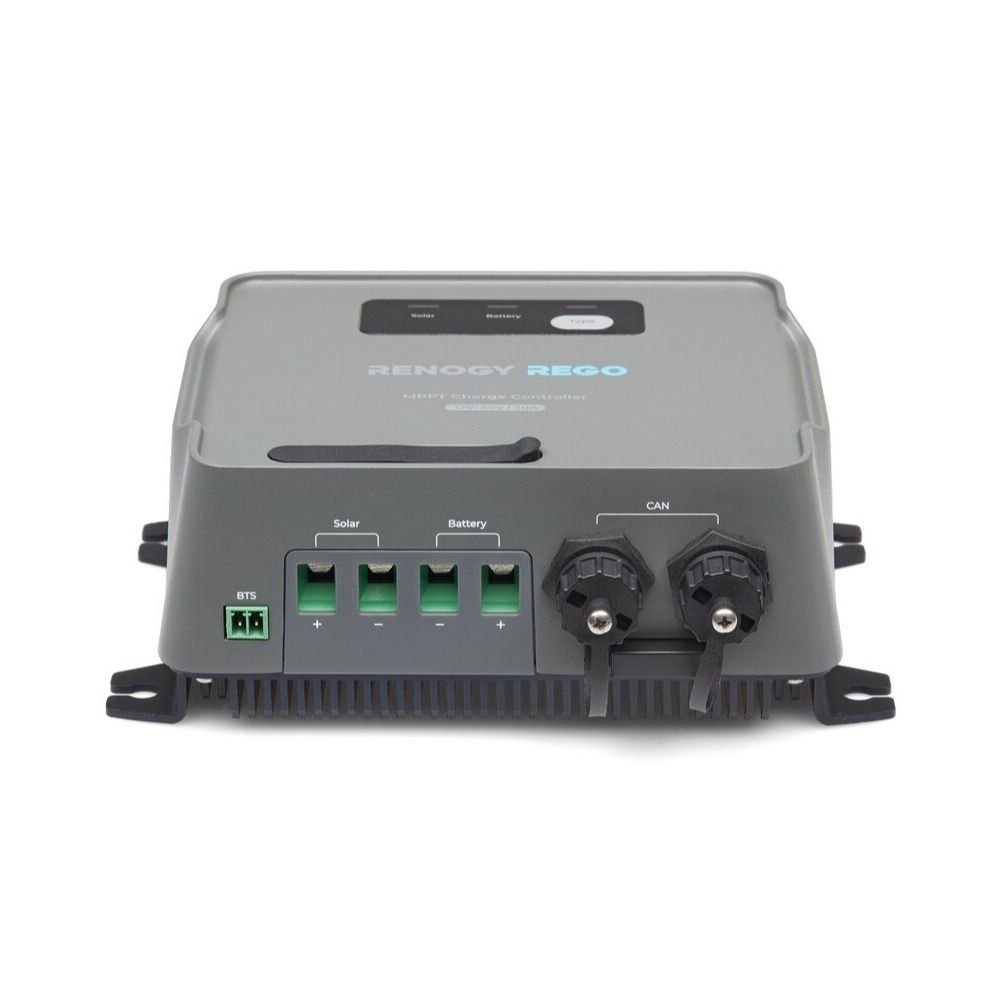

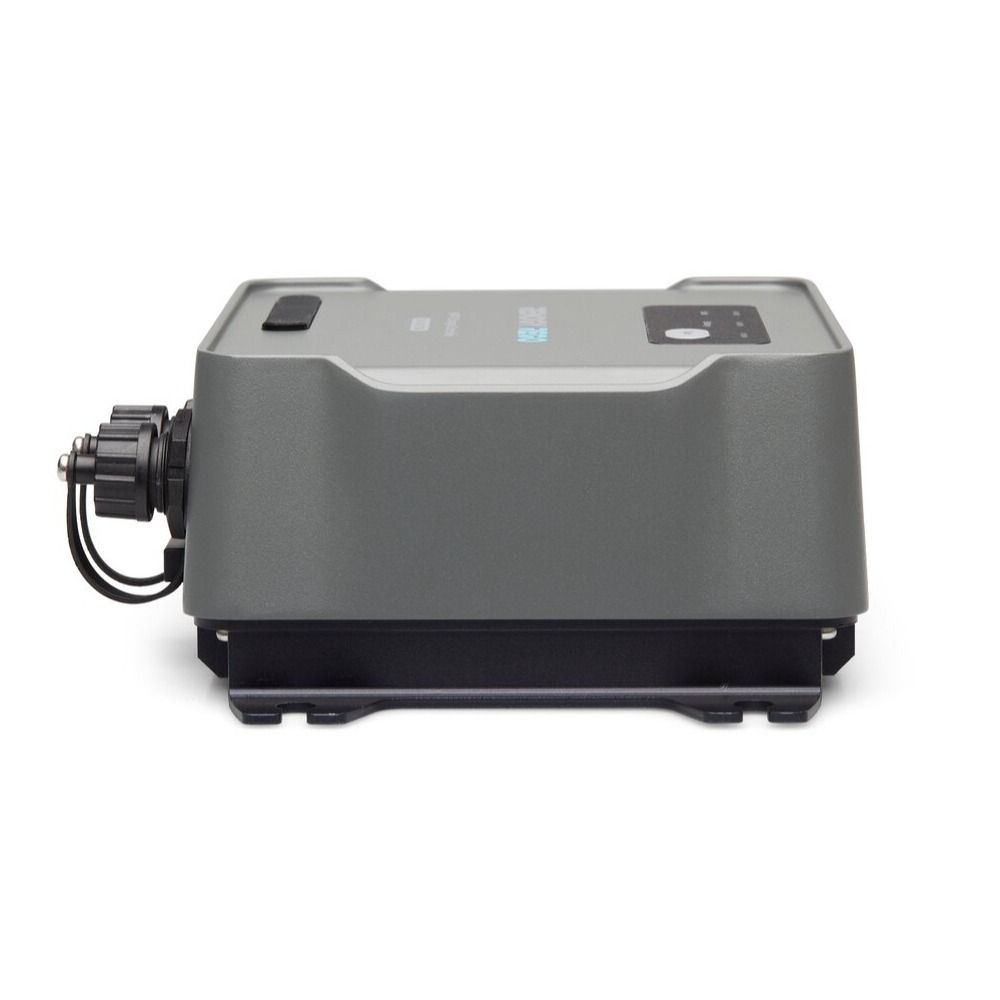

Renogy Rego MPPT Solar Charge Controller - 12-24V 30A
The Renogy Rego 30A MPPT solar charge controller is designed to install easily and protect your solar system. Its plug and play connections can save a lot of installation time. Advanced battery protect unit (BPU) technology provides excellent protection for the batteries with CAN & Bluetooth for direct monitoring.
- System voltage: 12/24V
- Max Output Current: 30A
- Rated Max Charge Power: 12V: 450W, 24V: 900W
- Communications: CAN (RV-C), Bluetooth
- Compatible Batteries: AGM, Gel, Standard Lead Acid, Lithium (LiFePO4), User Mode
- Dimensions: 170 x 120 x 60mm
- Weight: 3.6KG
Specifications
X| Specifications | |
|---|---|
| System Voltage | 12V/24V |
| Power Type | DC to DC |
| Solar Input Voltage | 100V |
| Maximum Output Current Rating | 30A |
| Rated Max Charge Power | 12V Battery: 450W
24V Battery: 900W |
| Communications | CAN (RV-C), Bluetooth |
| Compatible Batteries | AGM, Gel, Standard Lead Acid, Lithium (LiFePO4), User Mode |
| Operating Temperature Range | -35℃ to 65℃ |
| Dimensions | 170 x 120 x 60mm |
| Weight | 3.6Kg |
| Certification | FCC, RoHS, CE, SAA, RCM & UL 1741 |
The Renogy Rego 30A MPPT solar charge controller is designed to install easily and protect your solar system. Its plug and play connections can save a lot of installation time. Advanced battery protect unit (BPU) technology provides excellent protection for the batteries with CAN & Bluetooth for direct monitoring.
Full protection for peace of mind - High Temperature, Overvoltage, Undervoltage, Short Circuit, Low Temperature, Reverse Current, Battery Portable Unit, Reverse Polarity and Power limiting protection.
Most Climate-Resilient MPPT Controller on the Market - With a -30°C to 65°C operating temperature range this MPPT controller can maintain its high efficiency performance at 45°C.
Compact Size, Maximum Output - Around 53% smaller than traditional MPPT controllers the Rego 30A MPPT solar charge controller packs up to 10% more power harvesting than other MPPT controllers and upto 30% more power harvesting than PWM controllers.
Compatible with all battery types - Compatible with Lithium, Gel, AGM, SLA, and FLD batteries.
