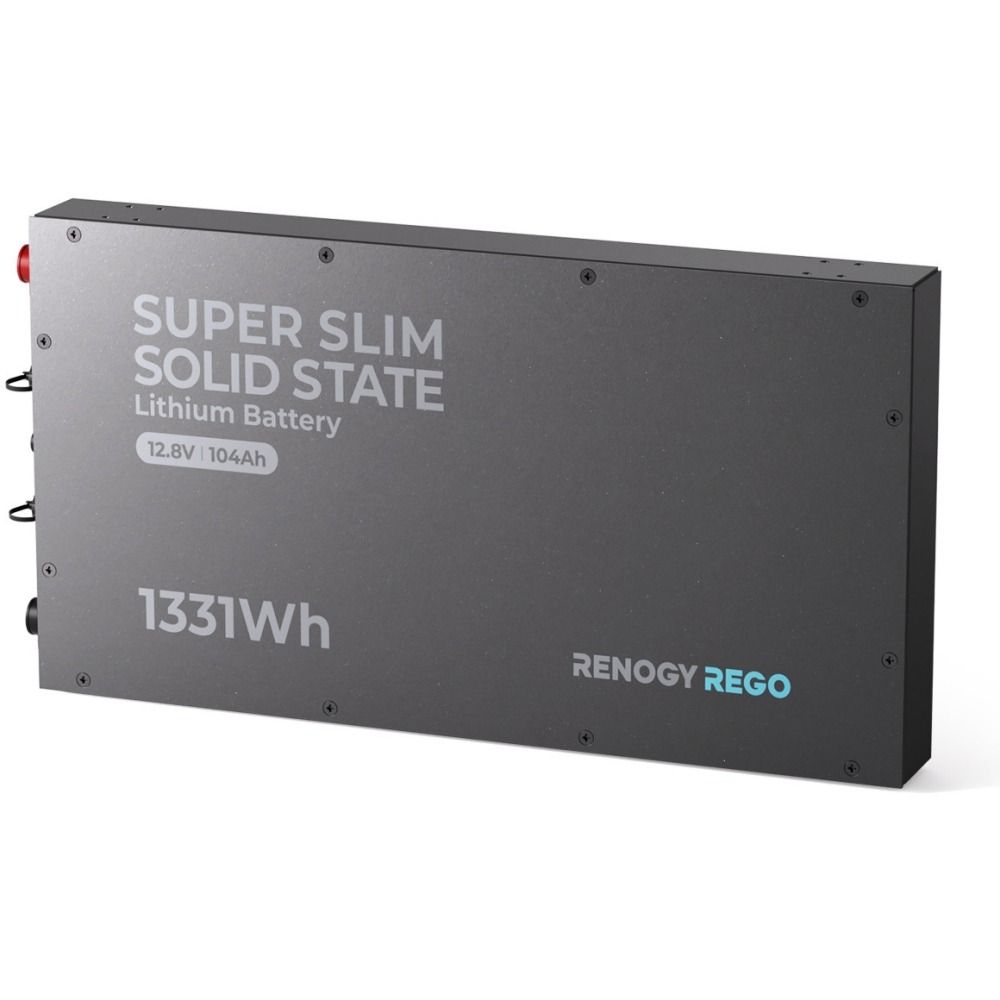

Renogy Rego Super Slim Lithium Battery With BT & Canbus - 12.8V 104Ah

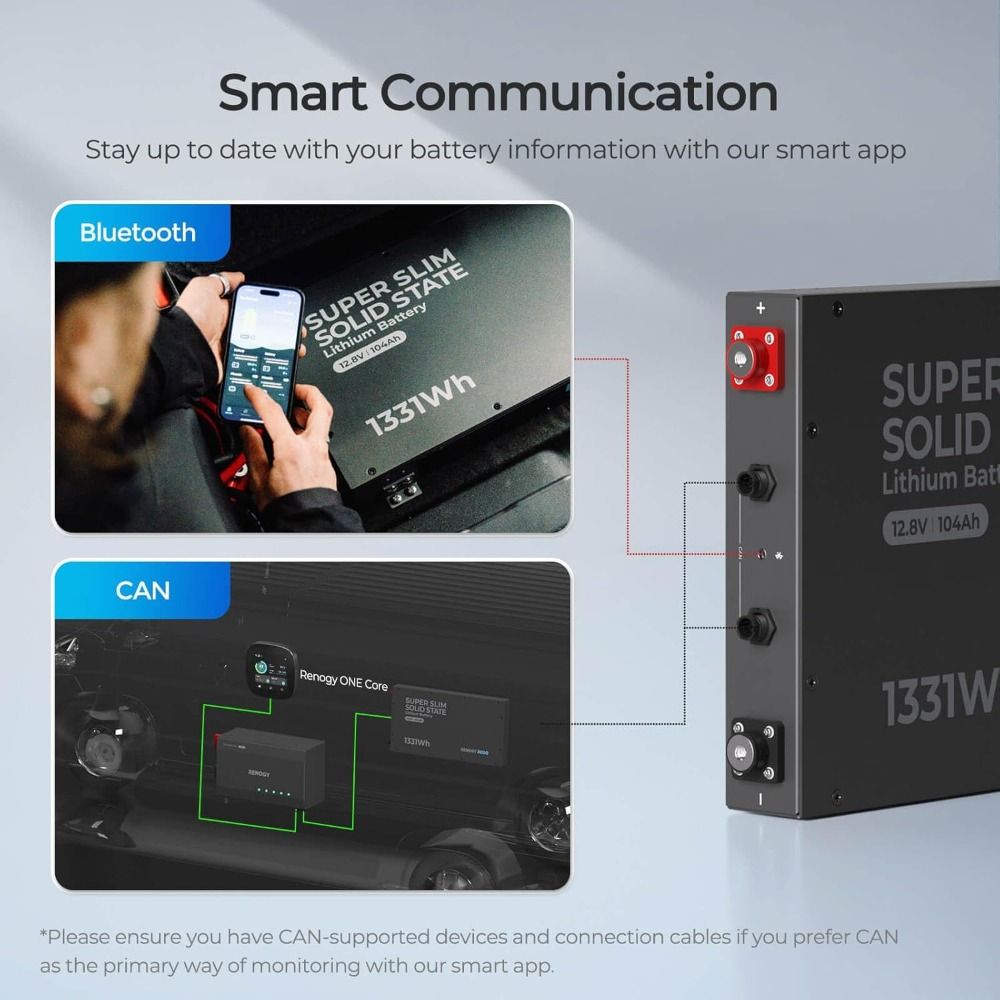

At just 61mm the Renogy super slim solid state battery can fit behind seats and more tight spaces that other batteries. Fully featured with Bluetooth and Canbus for full monitoring from the built in BMS. Its increased capacity, makes it the perfect choice for reliable, eco-friendly power for all adventures.
- Ultra-thin (61 mm) for canopies, behind seats and more tight spaces

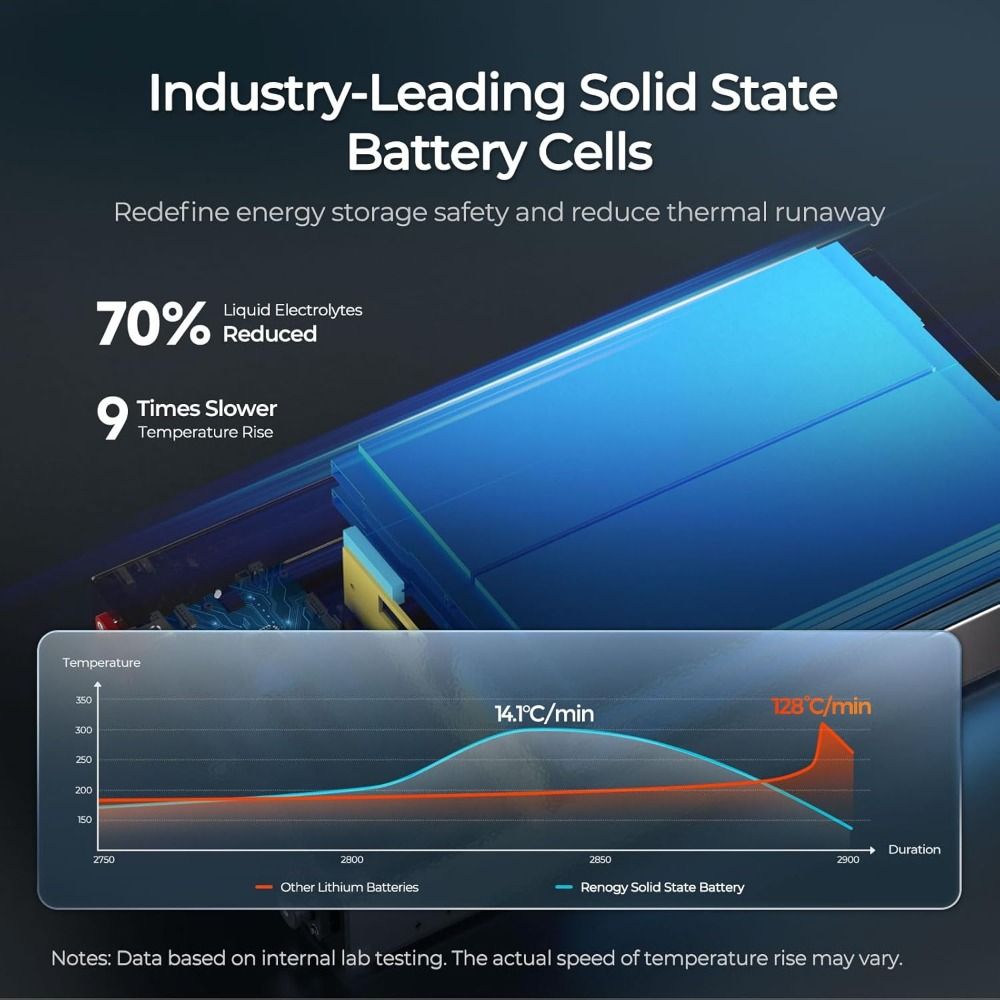

- 9x slower temperature rise enhances safety & reduces thermal runaway
- Versatile mounting with vibration-resistant bracket kits
- 10A reliable charging in freezing conditions down to 14°F/-10°C
- Powering a 2000W inverter with a single battery at 200A high output Current
Specifications
X| Specifications | |
|---|---|
| Battery Type | Lithium Iron Phosphate |
| Nominal Voltage | 12.8V |
| Rated Capacity | 104Ah (0.5C, 25℃) |
| Voltage Range | 10V to 14.8V |
| Maximum Charge Current | 100A |
| Maximum Discharge Current | 200A |
| Peak Discharge Current | 290A@30s |
| Cycle Life (0.5C, 25℃) | 6000 Cycles (80% DOD, 80% EOL) |
| Charge Temperature Range | -10°C to 55°C (14°F to 131°F) |
| Discharge Temperature Range | -20°C to 60°C (-4°F to 140°F) |
| Storage Temperature Range | -20°C to 60°C (-4°F to 140°F) |
| Operation Relative Humidity | 5% to 95% |
| Connection Method | Series & Parallel (max. 4P4S), Parallel (max. 16P), Series (max. 4S) |
| Terminal Bolt Size: Terminal Bolt | M8 x 1.25 x 12 mm; Long Terminal Bolt: M8 x 1.25 x 16 mm |
| Recommended Terminal Torque | 70.8 in-lb / 8 N·m |
| Protection Rating | IP67 |

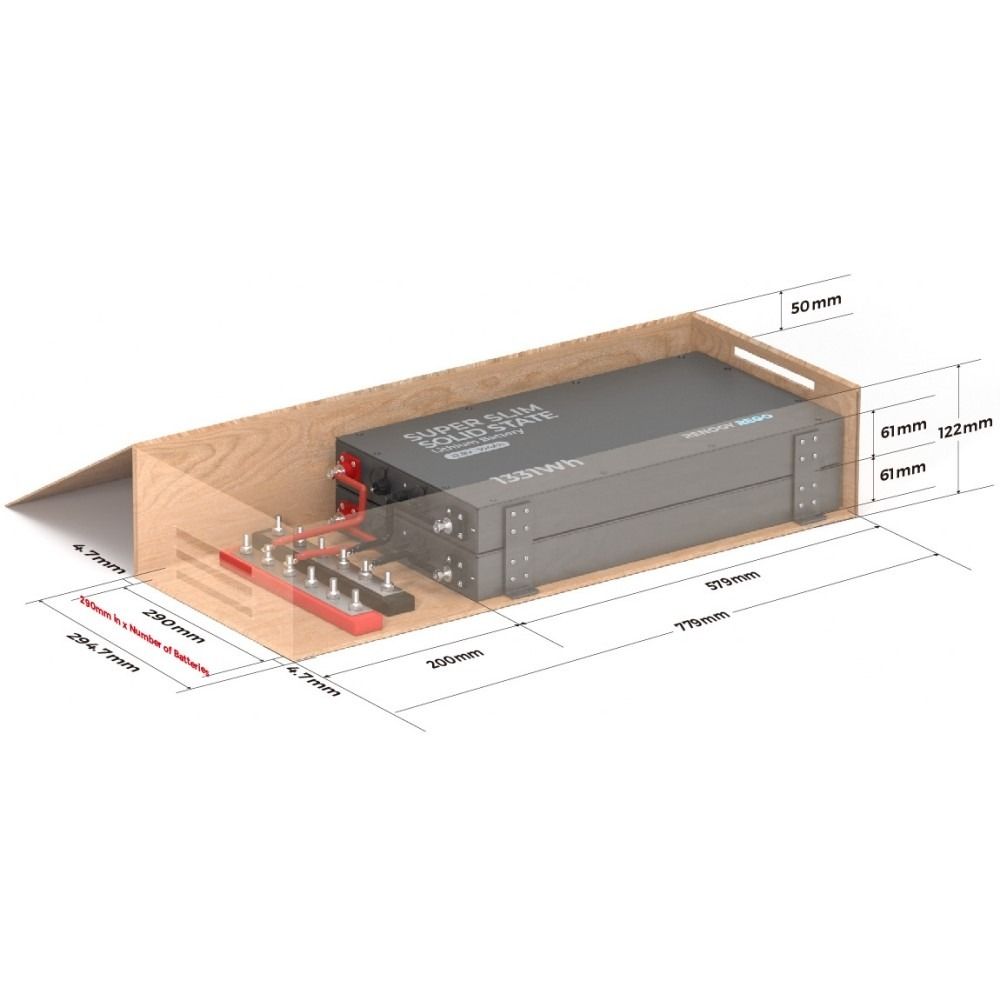

| Dimensions | 579 x 290 x 61mm (22.8" x 11.4" x 2.4") |
| Weight | 12.8kg (28.22lbs) |
| Certifications | MSDS, UN38.3, FCC, CE, PSE, RCM, IC, RoHS, and UKCA |
At just 61mm the Renogy super slim solid state battery can fit behind seats and more tight spaces that other batteries. Fully featured with Bluetooth and Canbus for full monitoring from the built in BMS. Its increased capacity, makes it the perfect choice for reliable, eco-friendly power for all adventures.
The Next-Gen LiFePO4 Cells - Renogy takes a step forward to introduce the solid state cells with 90% electrolytes in RV batteries (so far there is no solid state battery with 100% electrolytes on the market), bringing safety and lifespan to the next level.
Inherently Safe & Stable - The new Renogy slimline LiFePO4 battery introduces revolutionary solid electrolytes, ensuring that the battery does not swell or burn, even if punctured or crushed.
Safety At Its Heart - The Smart Active Safety Design helps this super slim lithium battery take a huge leap in sustained performance. The built-in battery management system (BMS) offers more than 60 protections against overvoltage, short circuits, extreme temperatures, and more. And with the self-control fuse in the Active Backup Protection, your battery will get an extra, more responsive protection when faced with overcurrent.

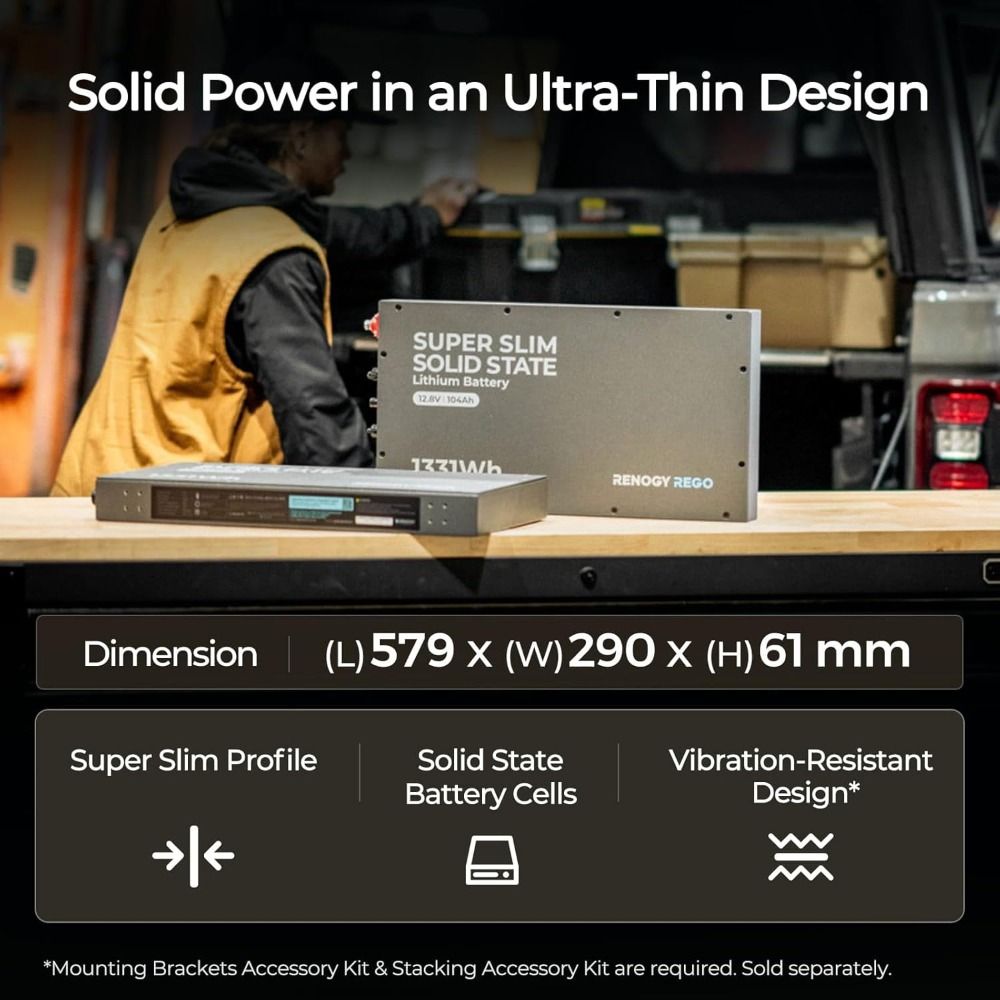

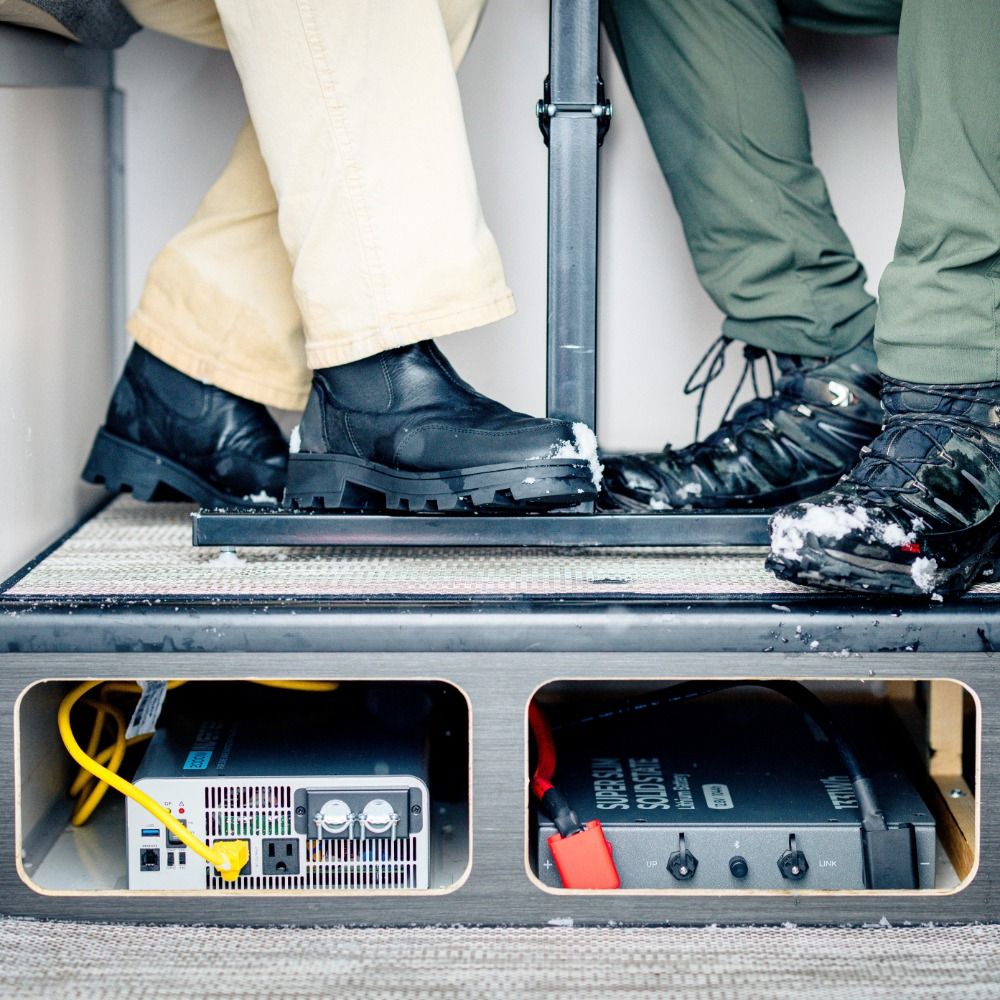

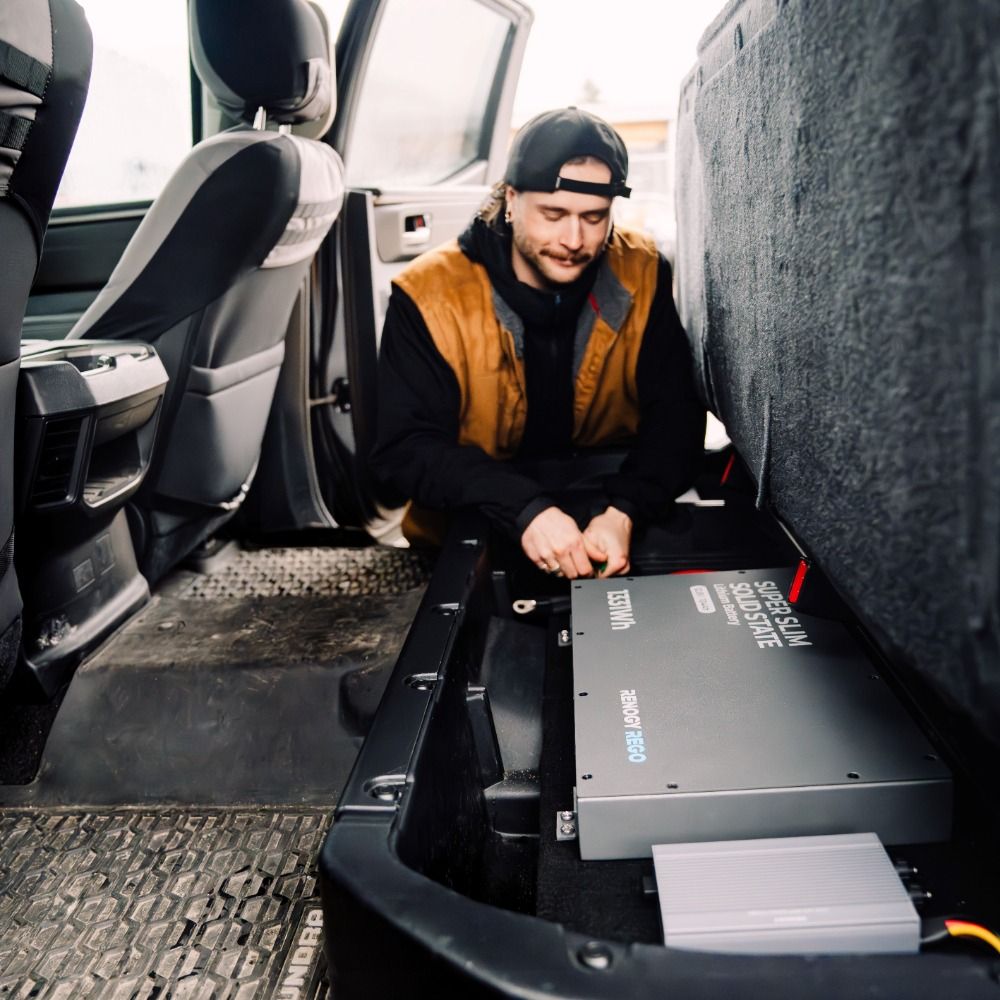

Super-Slim Design, Effortless Installation - At just 2.4 inches (61 mm) thin, this battery fits behind seats, under floors, and in tight spaces, perfect for overlanding setups.
Travel Light with Confidence - Stop overloading your 4x4 pickup trucks with lead-acid batteries and AC generators. This 12V 104Ah Solid-State LFP Battery frees up space so you can carry what really matters.

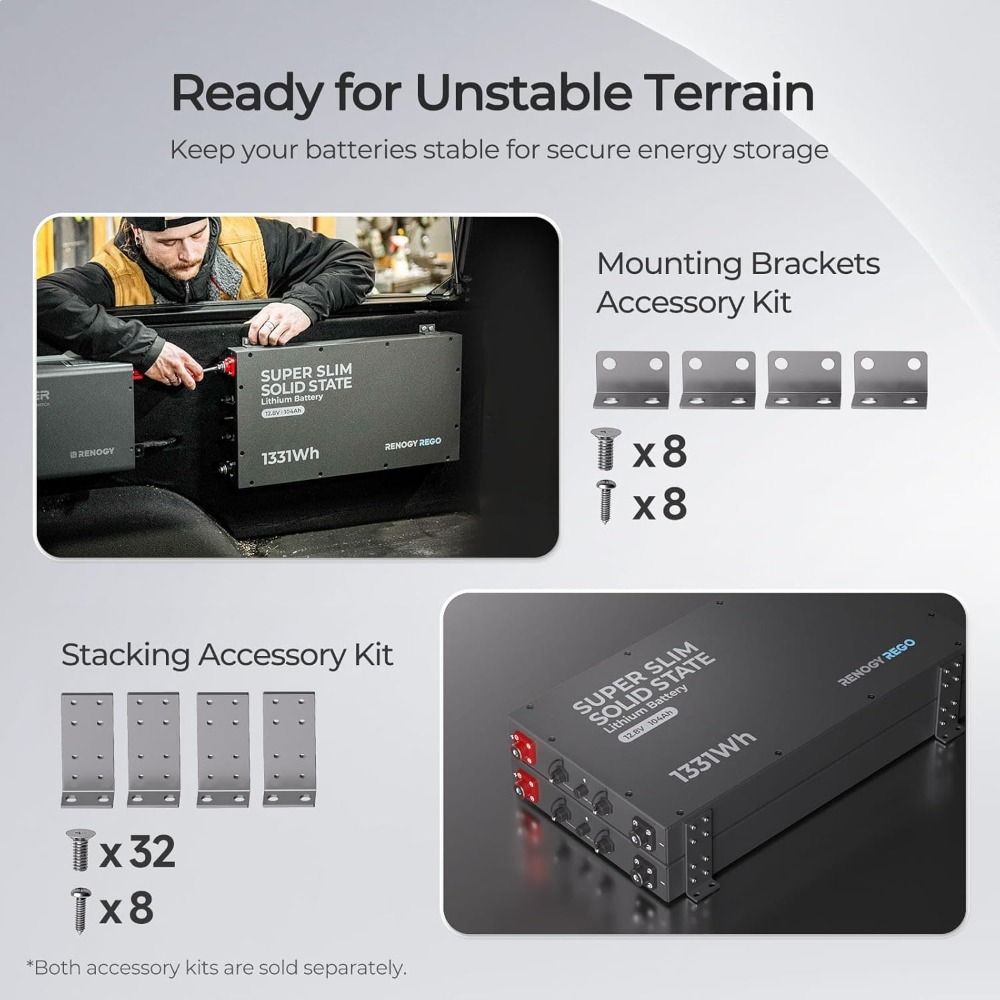

Easy to Mount in Any Setup - With versatile mounting kits, you can install this battery under seats, on canopy sides, or beneath the floor – secure and stable, no matter the terrain.
All-Season Performance - Whether in freezing cold or extreme heat, a single battery delivers 200A (2C) output while charging at temperatures as low as 14°F (-10°C). Keeping power steady through shifting temperatures.
Built Tough for the Wild - Built to handle the toughest conditions, this battery features an IP67-rated enclosure that shields against dust, water, and the elements. The UL94 V-0 fire-resistant rating adds an extra layer of safety, giving you the confidence to push further, no matter where the road takes you.
In The Box
- 12.8V 104Ah Super Slim Lithium Iron Phosphate Battery
- Terminal Bolts
- Long Terminal Bolts
- Insulation Sleeves
- Battery Bracket Kit
