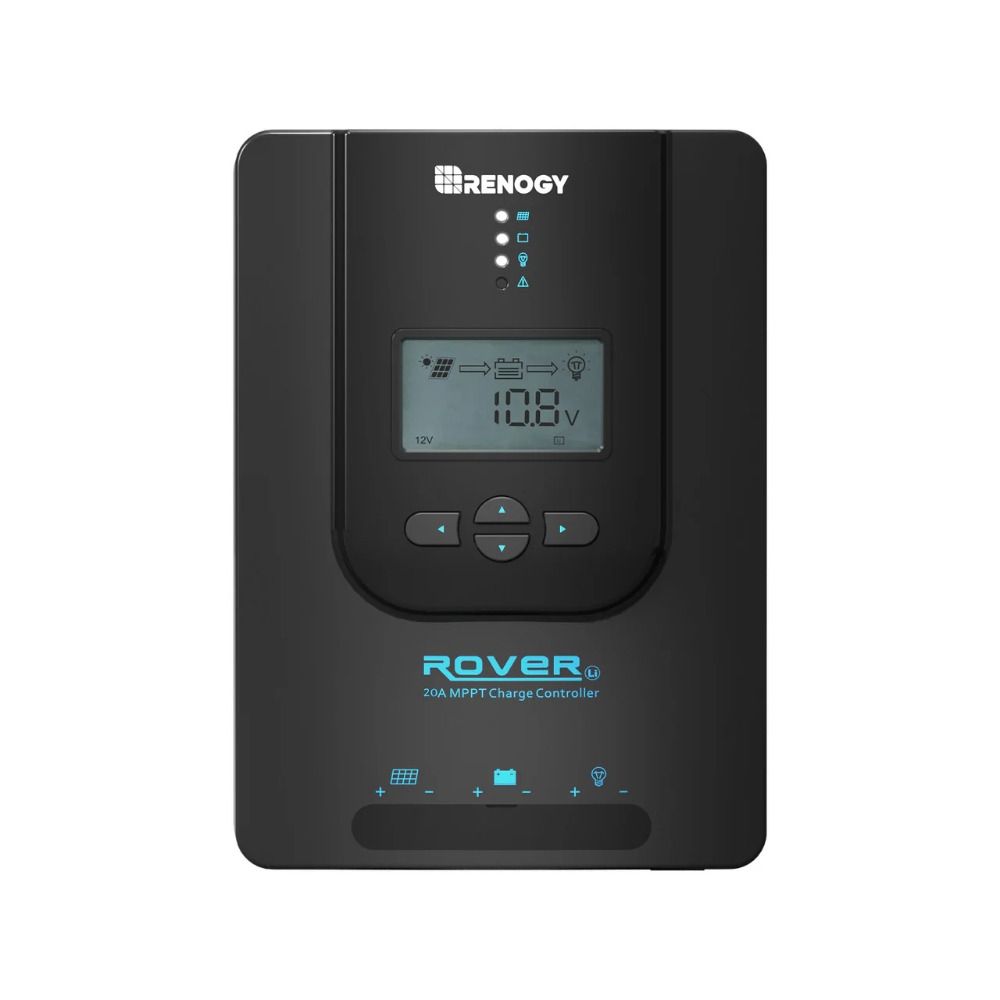

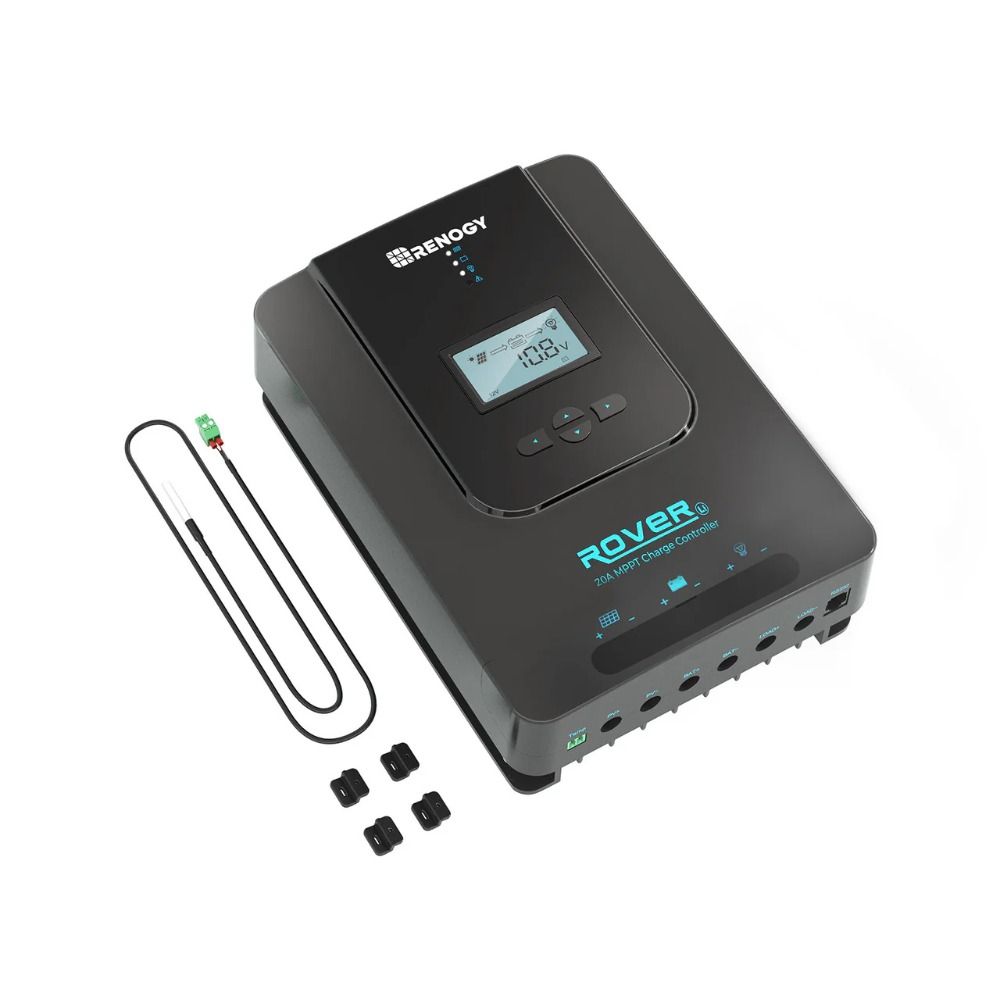

Renogy Rover Li MPPT Solar Charge Controller With Bluetooth - 20A
The Renogy Rover MPPT Charge Controller is an intelligent negative ground controller. Built with protections against reverse polarity, short-circuiting, overheating, and more, this MPPT controller is also capable of self-diagnosing itself in the event of an error.

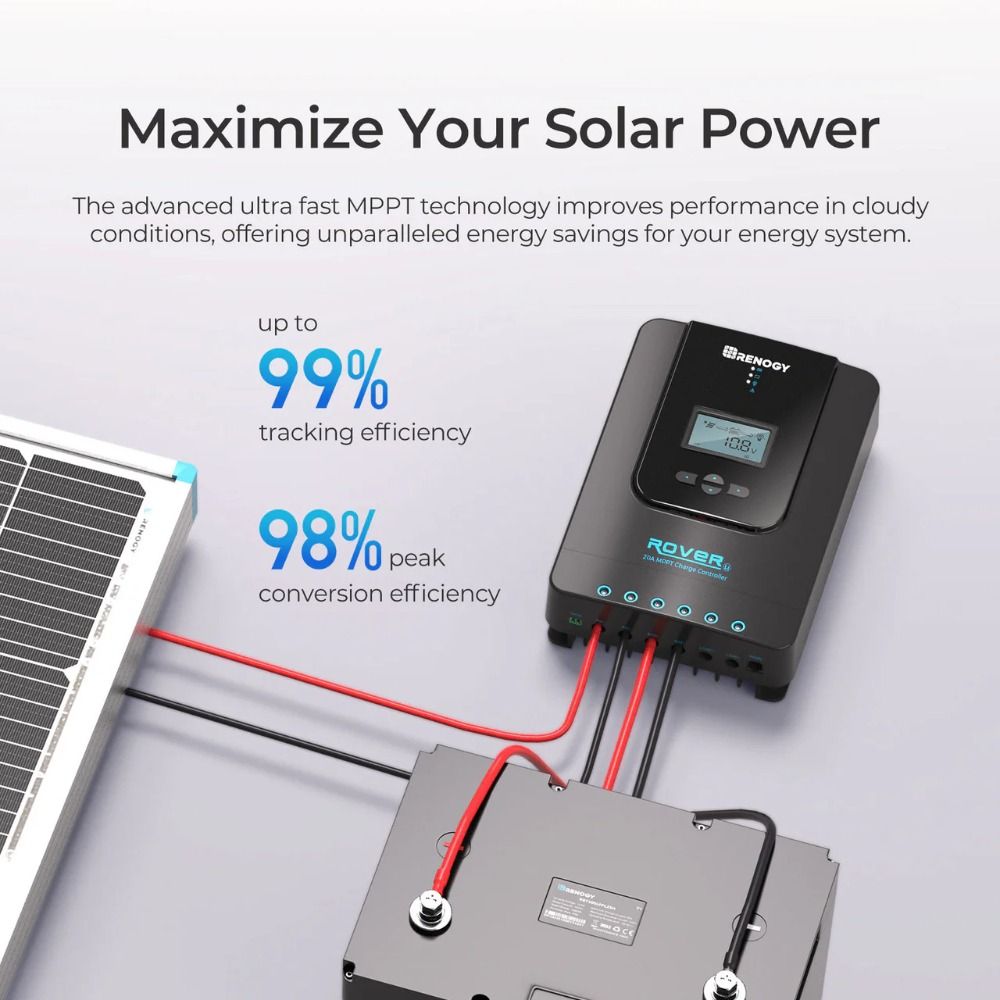

- Efficiency in tracking, conversion, and heat dissipation

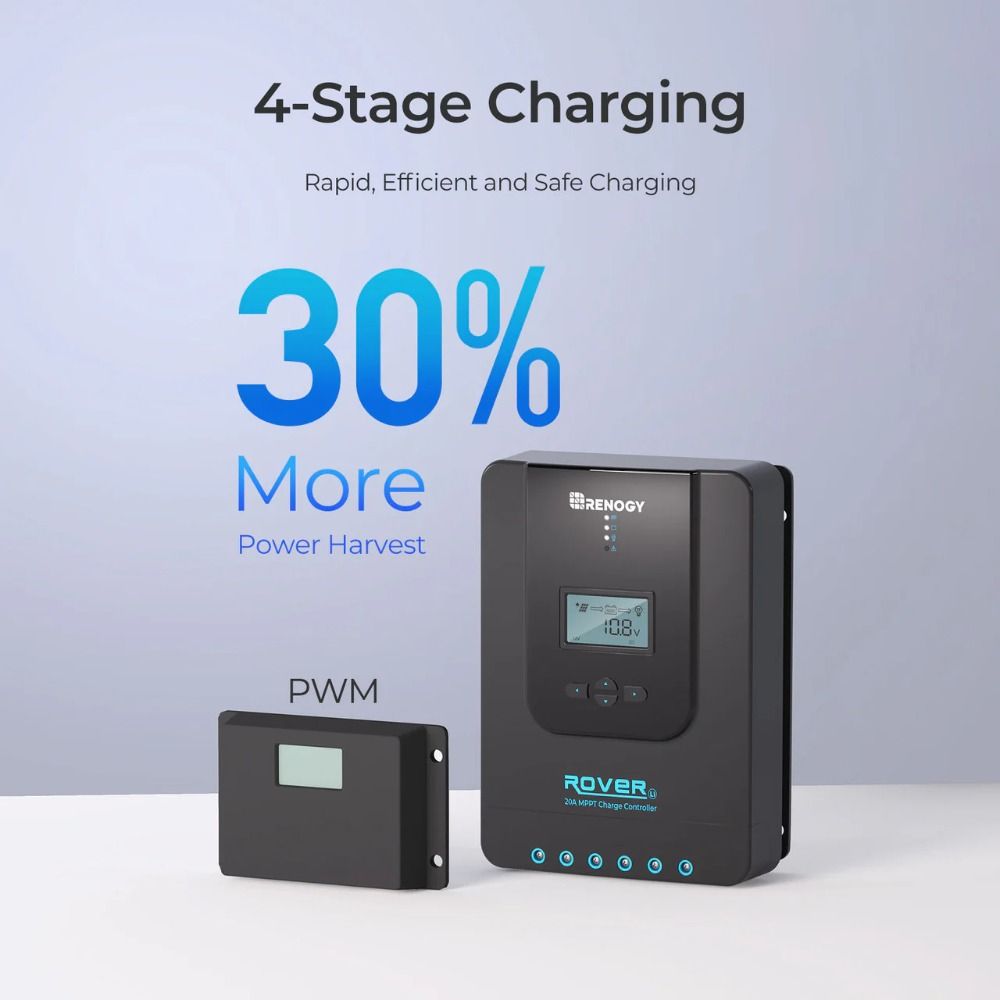

- 4-stage charging with auto 12V/24V voltage detection
- Multiple electronic protections ensure system safety
- Supports remote monitoring via RS485 communication port
- Remote monitoring with RS485 communication port
Specifications
X| Electrical Parameters | |
|---|---|

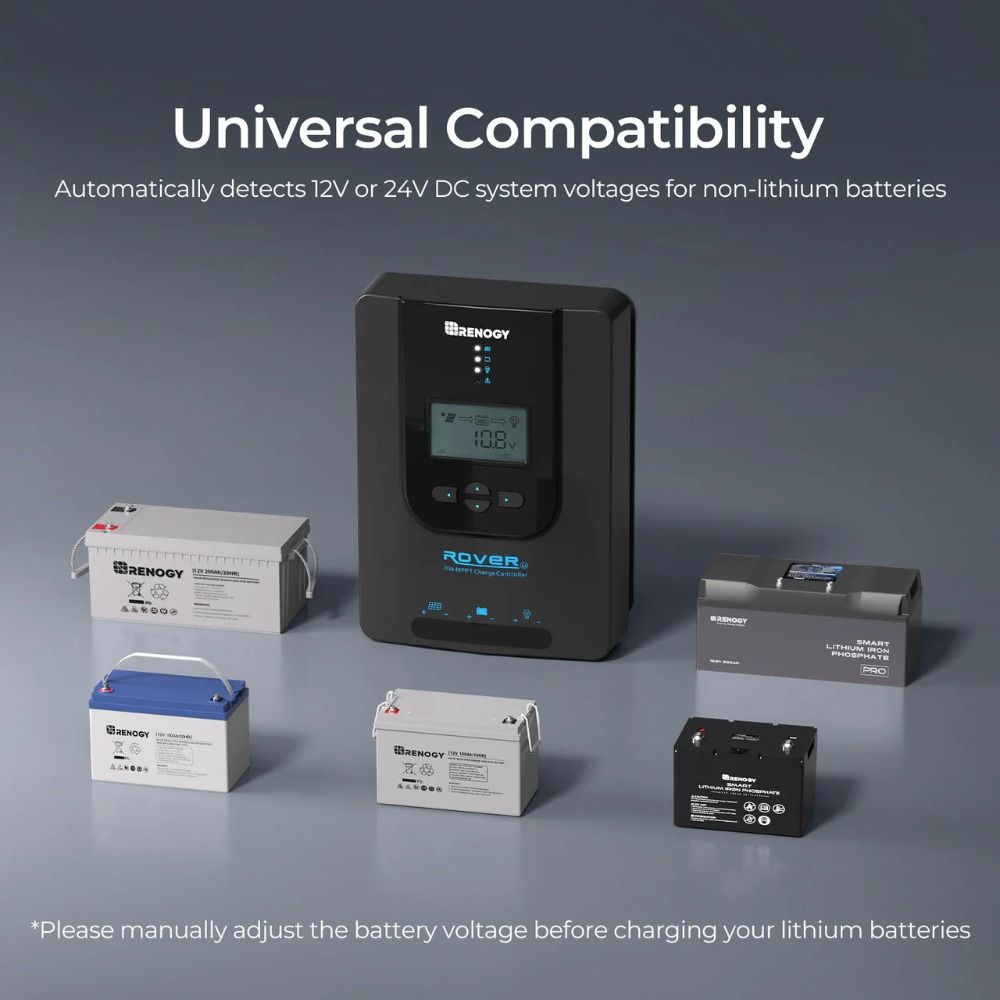

| Nominal System Voltage | 12/24V (Auto-Detect for Non-Lithium Batteries) |
| Rated Charge Current | 20A |
| Max. PV Input Voltage | 95 VDC |
| Max. PV Input Power | 12V/260W, 24V/520W |
| Power Consumption | ＜100mA/12V; ＜58mA/24V |
| Max Battery Voltage | 32V |
| Ground Type | Negative |

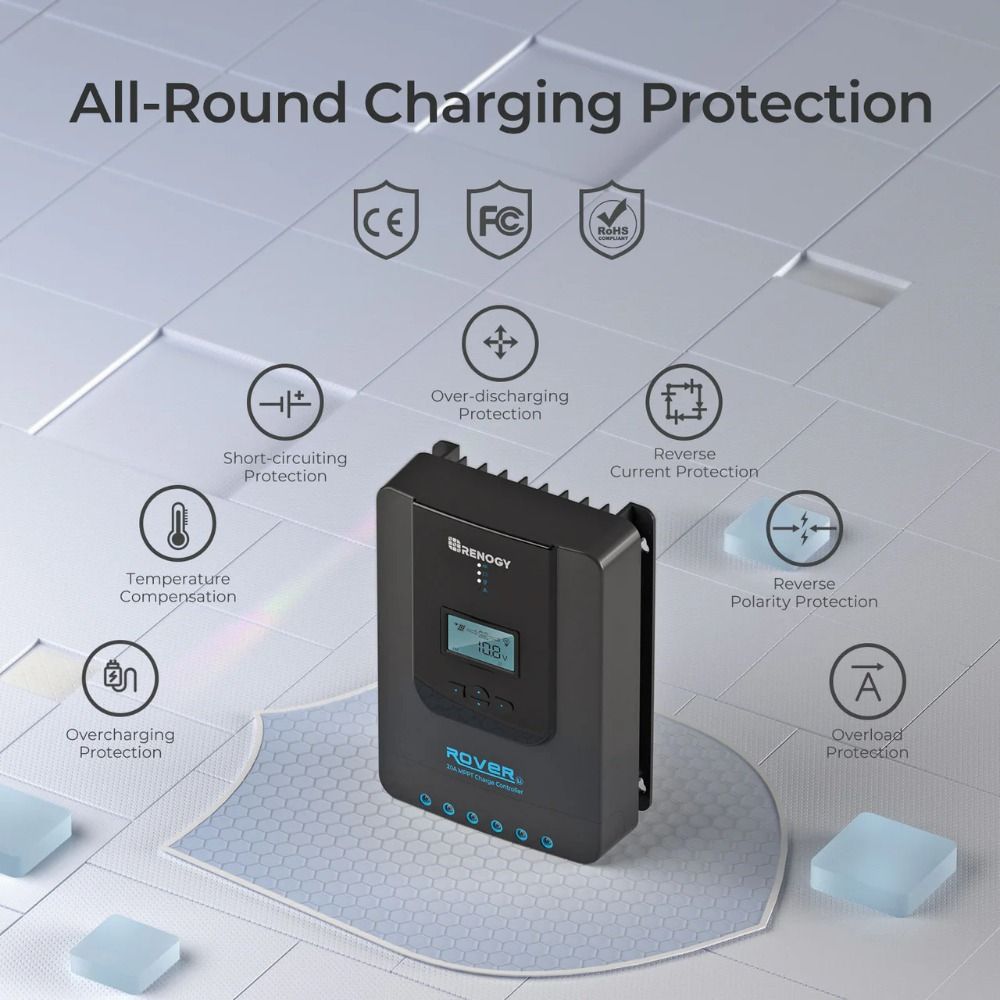

| Electrical Protection | Overcharging, over-discharging, overload, and short circuit.Capable of charging over-discharged lithium batteries. |
| Environmental Data | |
|---|---|
| Protection Level | IP32 |

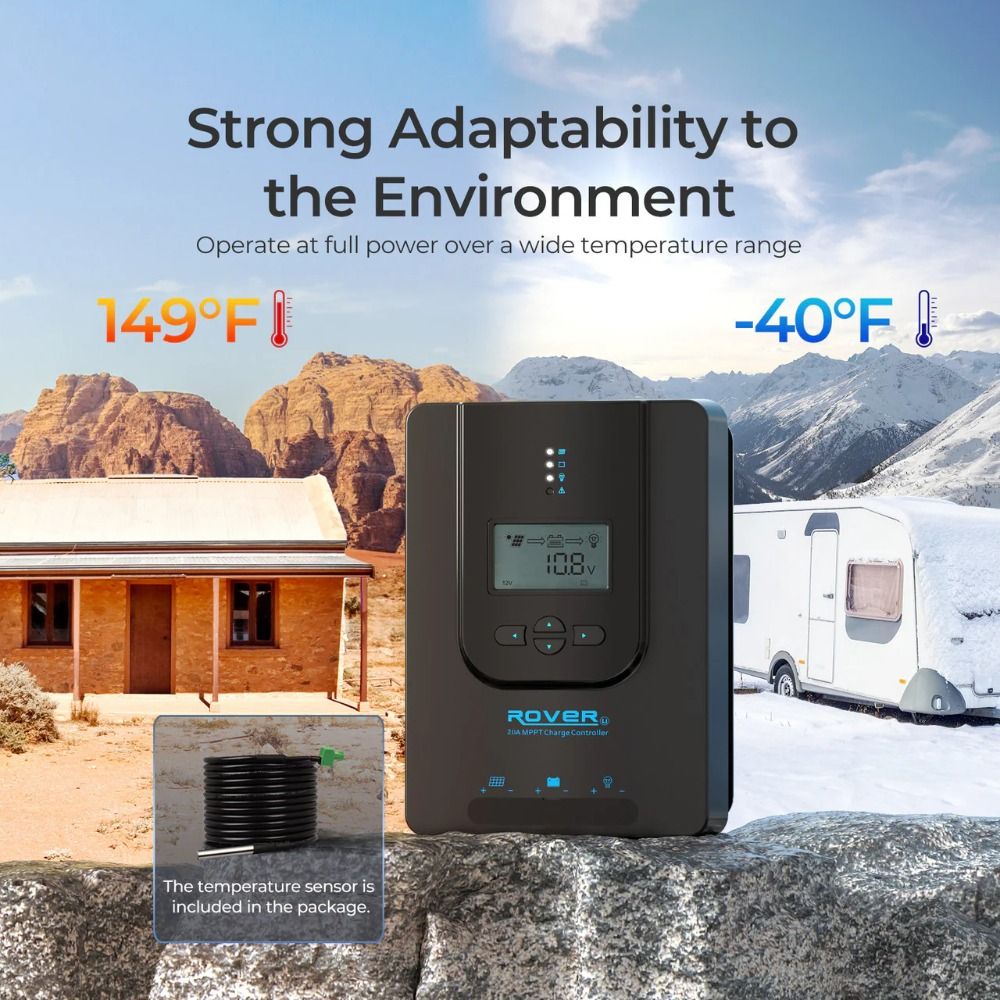

| Operating Temperature Range | -35°C to 45°C; -31°F to 113°F |
| Storage Temperature Range | -35°C to 75°C; -31°F to 167°F |
| Operating / Storage Humidity | ≤ 90%, No Condensation |
| Temperature Compensation | -3mV/°C/2V |
| Mechanical Specifications | |
|---|---|
| Dimensions | 210 x 151 x 68 mm; 8.27 x 5.95 x 2.69 in |
| Weight | 3.1 lbs / 1.4 kg |
| Max. Terminals Size | 8 AWG 10mm2) |
| Certifications | |
|---|---|
| CE | Yes |
| FCC Class B Part 15 Compliant | YES |
The Renogy Rover MPPT Charge Controller is an intelligent negative ground controller. Built with protections against reverse polarity, short-circuiting, overheating, and more, this MPPT controller is also capable of self-diagnosing itself in the event of an error.
Rapid Heat Dissipation - The Rover charge controller excels with its rapid heat dissipation, ensuring efficient performance in even the most demanding environments. Its ability to quickly release heat helps maintain peak performance, protecting your batteries and system components.

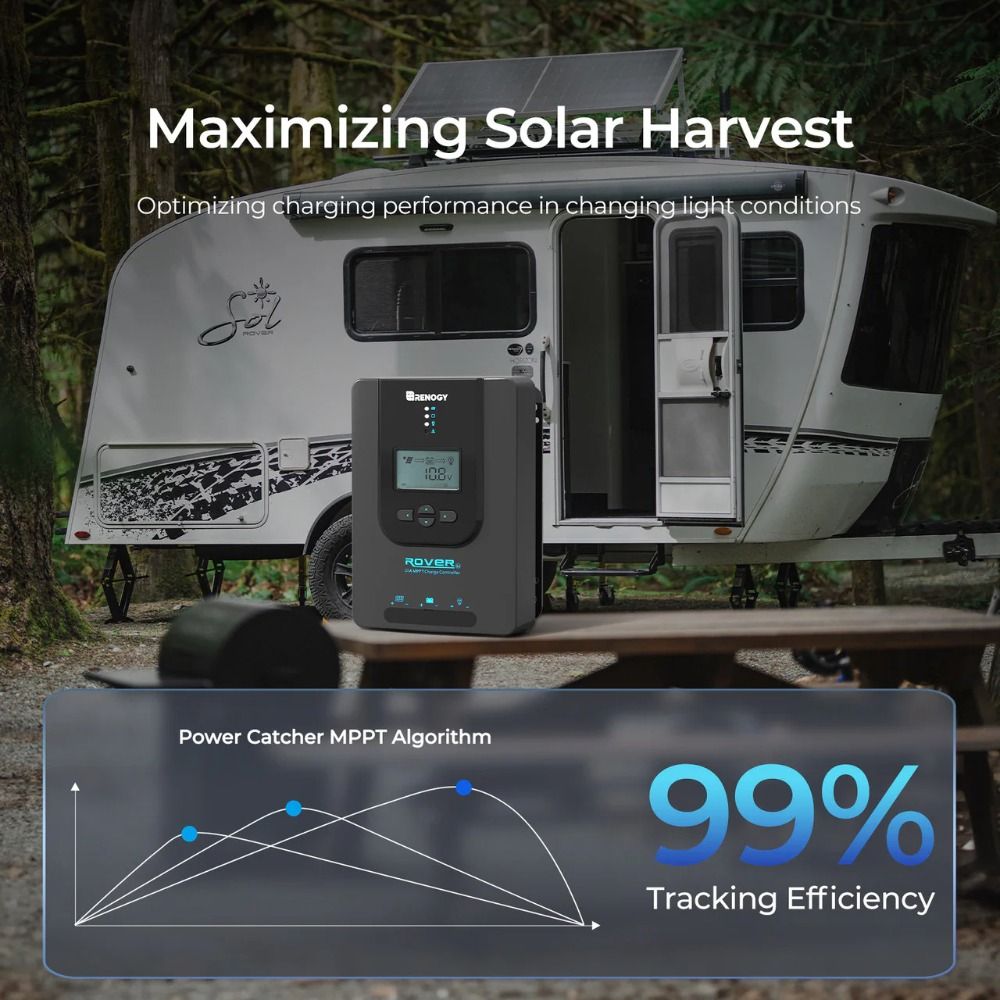

Powering Your Adventures Faster - Experience unmatched charging efficiency with our MPPT charge controller. It maximizes every bit of sunlight, ensuring optimal battery charging. In just 4.9 hours, it can fully charge a 12V 100Ah battery, making it the ideal companion for your off-grid adventures.
Versatile Load Control - Rover 20A Charge Controller features Auto-On/Off Mode, Timer Mode, Manual Mode, Test Mode, and Always-On Mode, further maximizing your system flexibility.
