Renogy Rover Li MPPT Solar Charge Controller With Bluetooth - 30A
The Renogy Rover MPPT Charge Controller is an intelligent negative ground controller. Built with protections against reverse polarity, short-circuiting, overheating, and more, this MPPT controller is also capable of self-diagnosing itself in the event of an error. Includes BT-2 Bluetooth Module for Real-time monitoring and custom charging parameters.

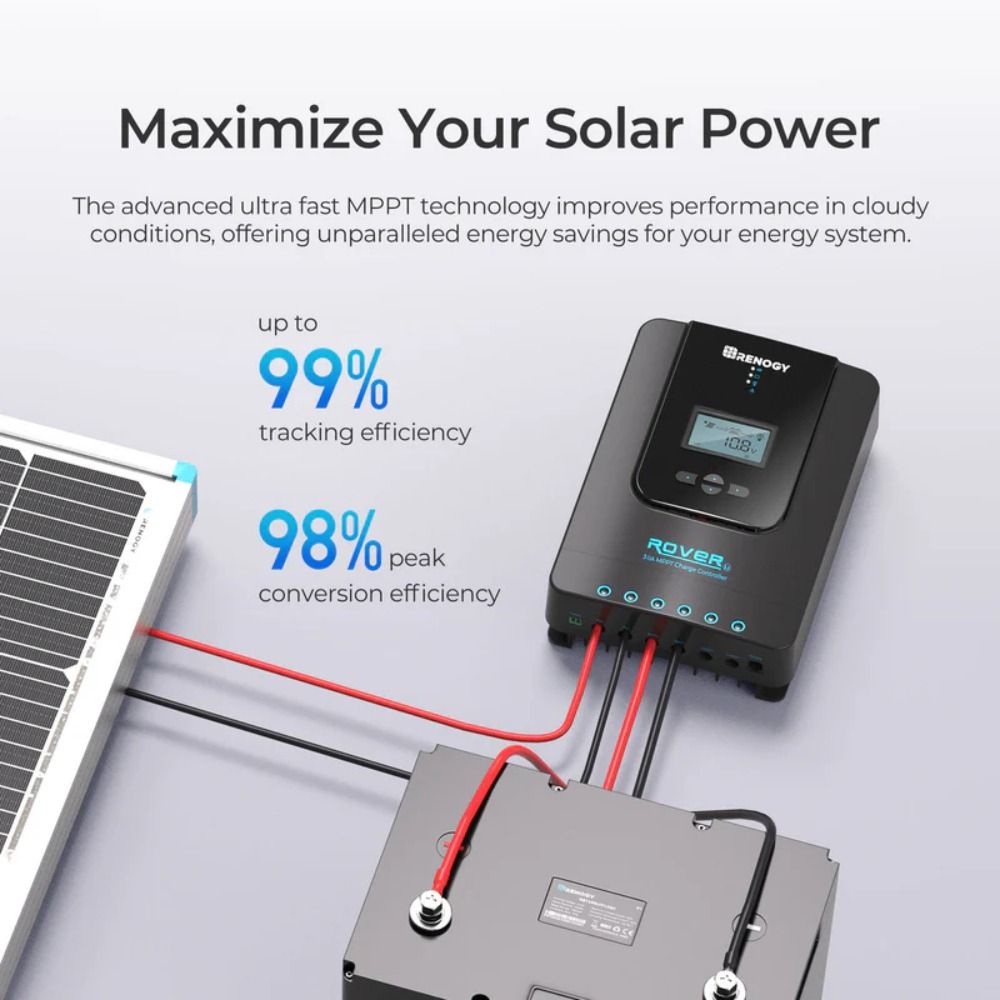

- Innovative MPPT Design: tracking efficiency of up to 99%

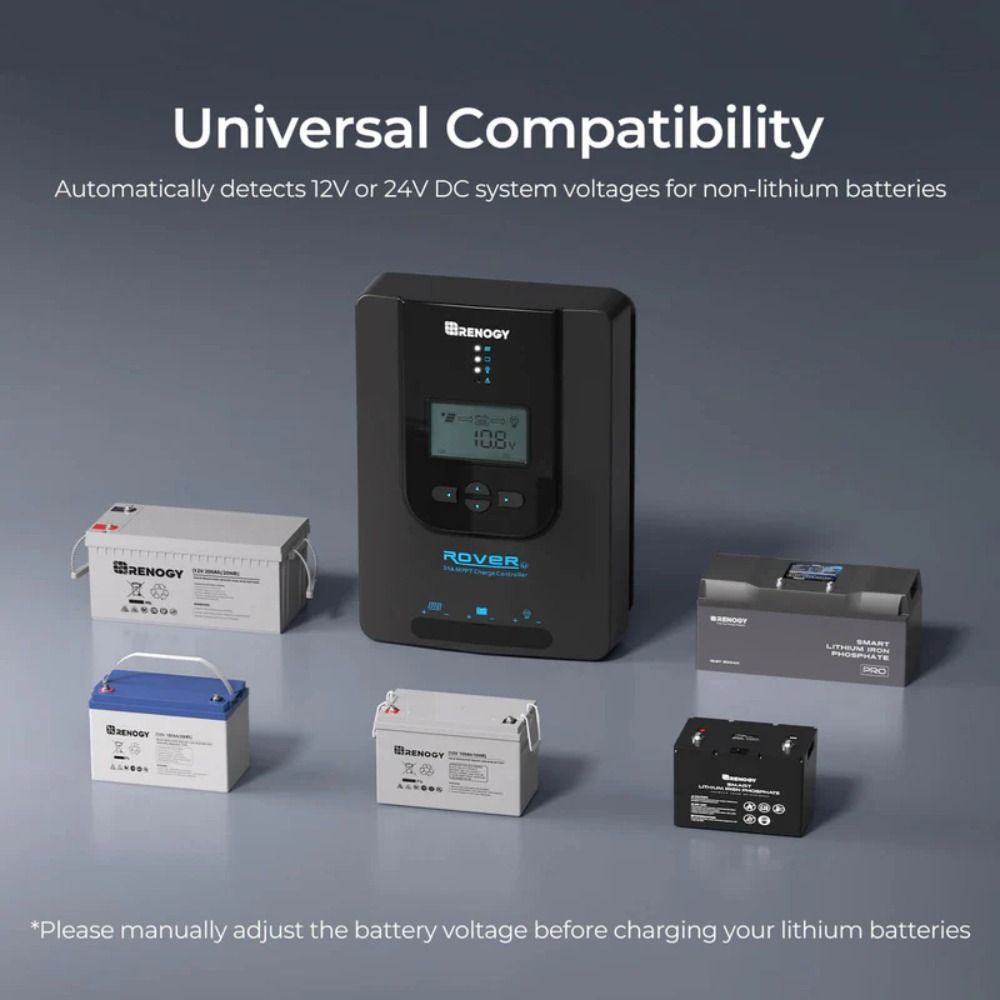

- Automatically detects 12V or 24V DC system voltages
- Multiple system protections

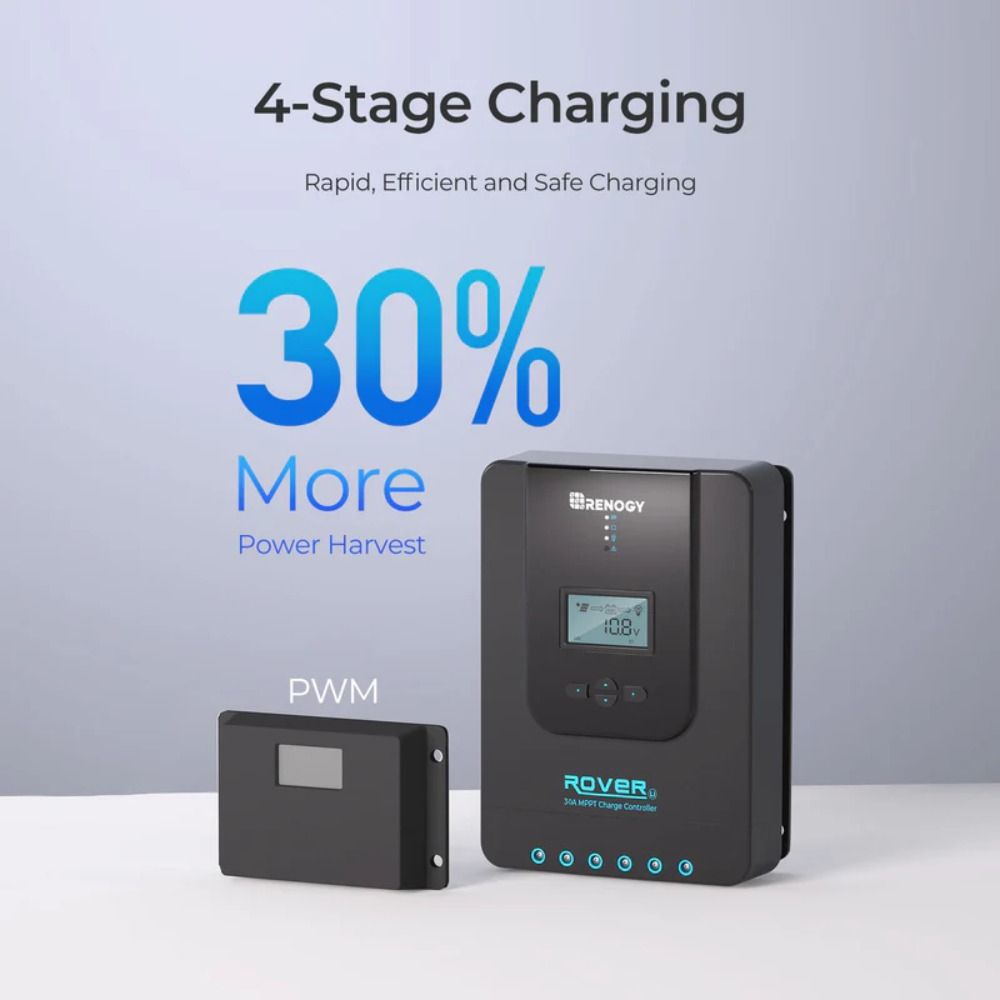

- 4-Stage safe charging
- Diverse load control & remote monitoring
- Include BT-2 Bluetooth module
Specifications
X| Electrical Parameters | |
|---|---|
| Nominal System Voltage | 12/24V (Auto-Detect for Non-Lithium types) |
| Rated Charge Current | 30A |
| Max. PV Input Voltage | 95 VDC |
| Max. PV Input Power | 12V/400W, 24V/800W |
| Power Consumption | ＜100mA/12V; ＜58mA/24V |
| Max Battery Voltage | 32V |
| Ground Type | Negative |
| Electrical Protection | Overcharging, over-discharging, overload, and short circuit.Capable of charging over-discharged lithium batteries. |
| Environmental Data | |
|---|---|
| Protection Level | IP32 |
| Operating Temperature Range | -35°C to 45°C; -31°F to 113°F |
| Storage Temperature Range | -35°C to 75°C (-31°F to 167°F) |
| Operating / Storage Humidity | ≤ 90%, No Condensation |
| Temperature Compensation | -3mV/°C/2V |
| Mechanical Specifications | |
|---|---|
| Dimensions | 238 x 172 x 77mm (9.38" x 6.78" x 3.05") |
| Weight | 2.0 Kg (4.4lbs) |
| Max. Terminals Size | 10mm² (8AWG) |
| Certifications | |
|---|---|
| CE | Yes |
| FCC Class B Part 15 Compliant | YES |
The Renogy Rover MPPT Charge Controller is an intelligent negative ground controller. Built with protections against reverse polarity, short-circuiting, overheating, and more, this MPPT controller is also capable of self-diagnosing itself in the event of an error. Includes BT-2 Bluetooth Module for Real-time monitoring and custom charging parameters.
Robust Charging. Serious Value - The Rover 30A MPPT Solar Charge Controller uses efficient MPPT technology and is compatible with LiFePO4 batteries.
Includes BT-2 Bluetooth Module - Real-time monitoring and custom charging parameters.
Maximize Your System Efficiency - The Rover 40A Solar Charge Controller is the ideal choice for both 12V and 24V systems, offering unparalleled versatility, superior performance, and peace of mind. By maximizing power from your solar panels, it ensures optimal charging efficiency, backed by smart features and the best warranty on the market. Perfect for customers who value top-class functionality and innovative design.
Prioritize Safety with Battery Voltage Setting - Setting the battery voltage before connecting the Rover Charge Controller is essential for ensuring enhanced safety and optimal performance.
Simple and Intuitive Programming - Customize settings and monitor charging parameters with ease.

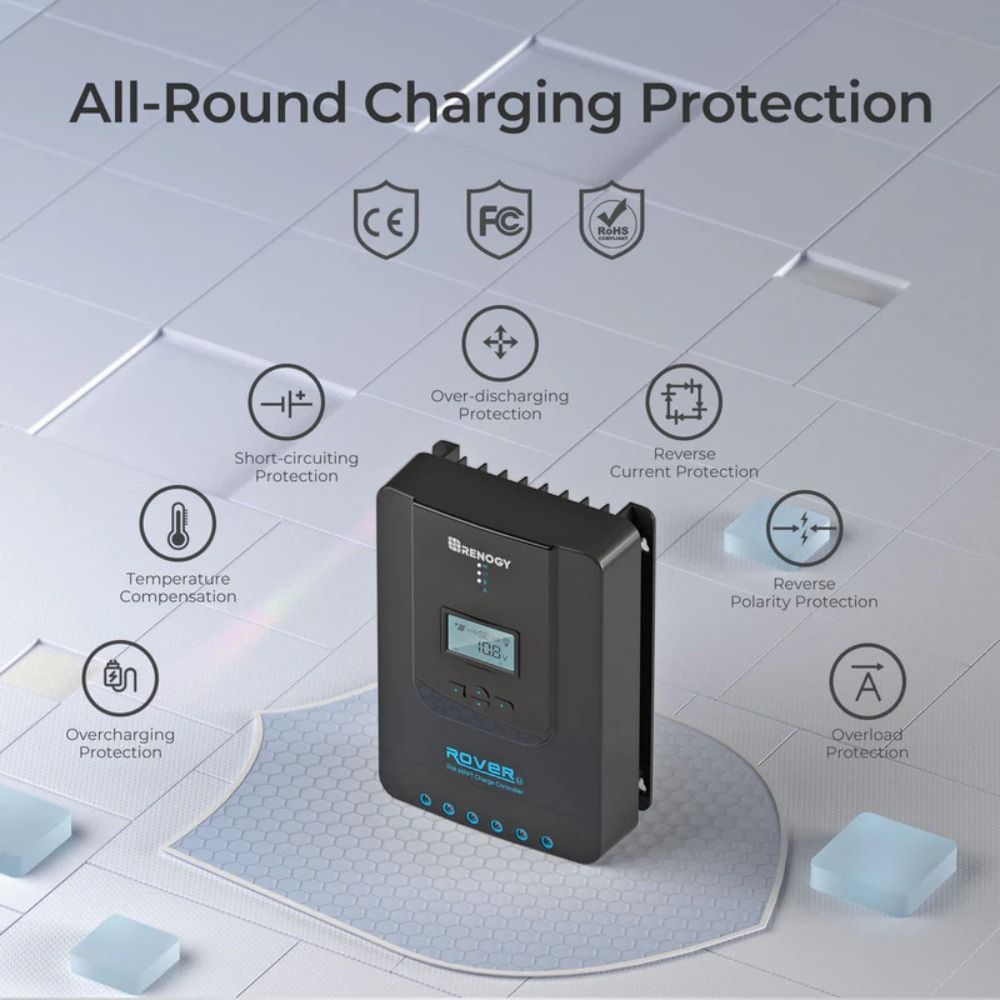

Multiple Protections for Various Battery Types - The Rover Charge Controller offers comprehensive protection for your batteries, guarding against overcharging, over-discharging, short-circuiting, overloading, reverse polarity, and reverse current, while also providing temperature compensation for enhanced efficiency and safety.

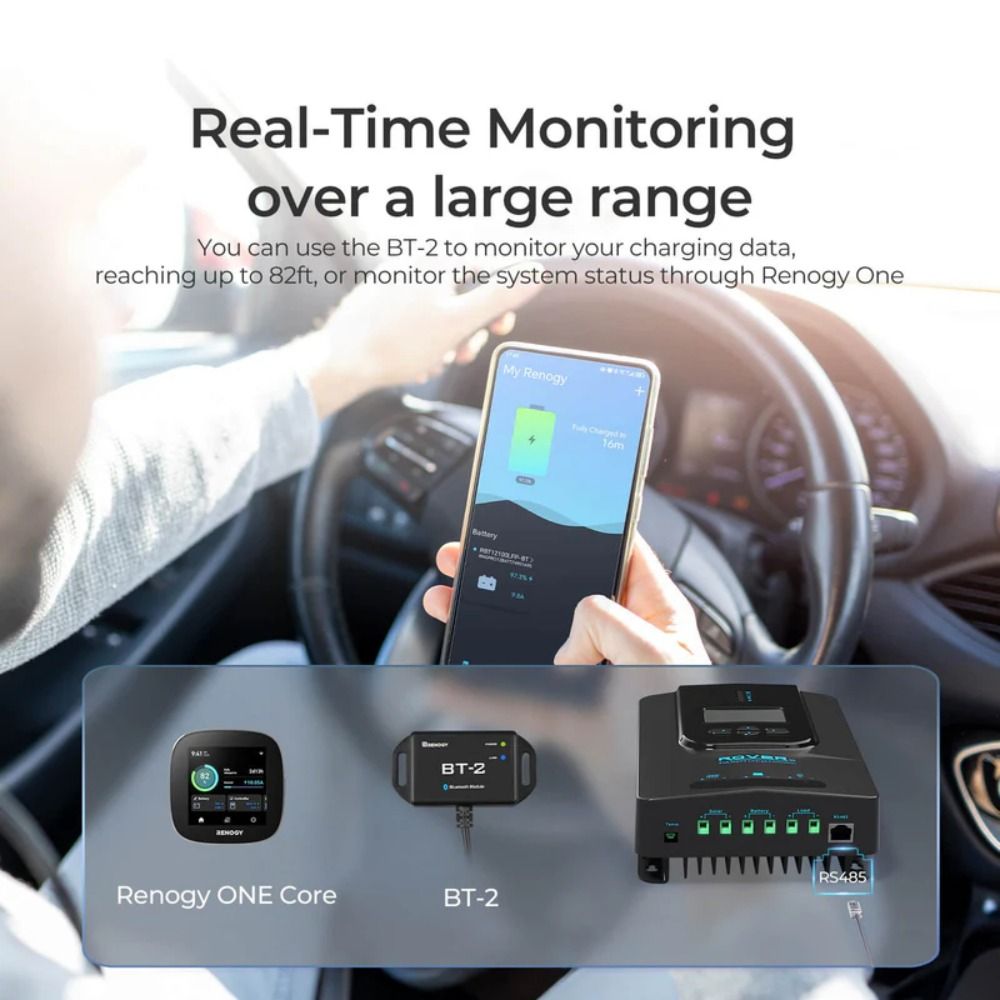

Enhanced Connectivity for a Superior Experience - Monitor, control, and optimize charging anywhere with Renogy Charge Controller's Bluetooth connectivity.

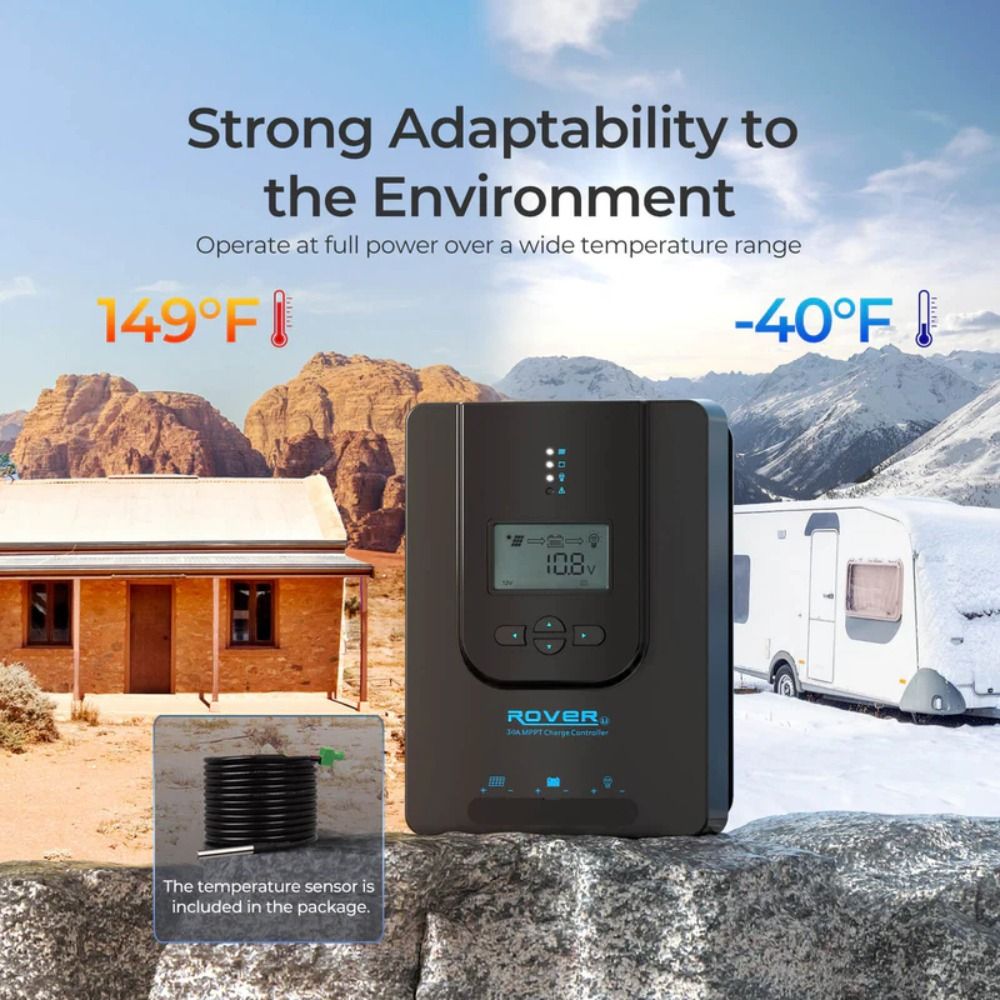

Powerful Heat Dissipation - Operates at peak performance even in extreme temperatures, ensuring your system is always running smoothly and efficiently.
Exceptional Resilience and Long-lasting Performance - Crafted with rust- and corrosion-resistant materials and coatings, the Rover Charge Controller ensures long-lasting durability and reliable performance for your solar energy system.

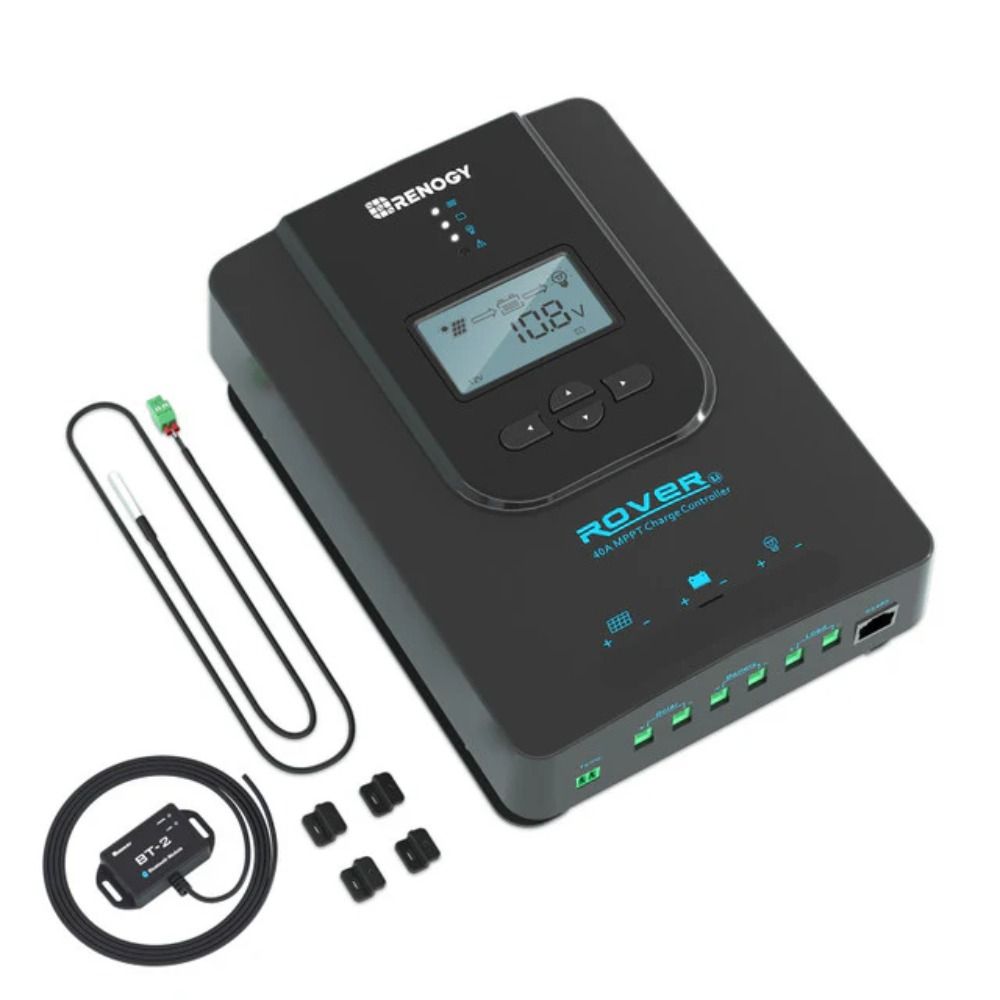

In The Box
- Renogy Rover Li MPPT Solar Charge Controller
- User Manual
- Remote Temperature Sensor
- Mounting Brackets
- BT-2 Bluetooth Module
