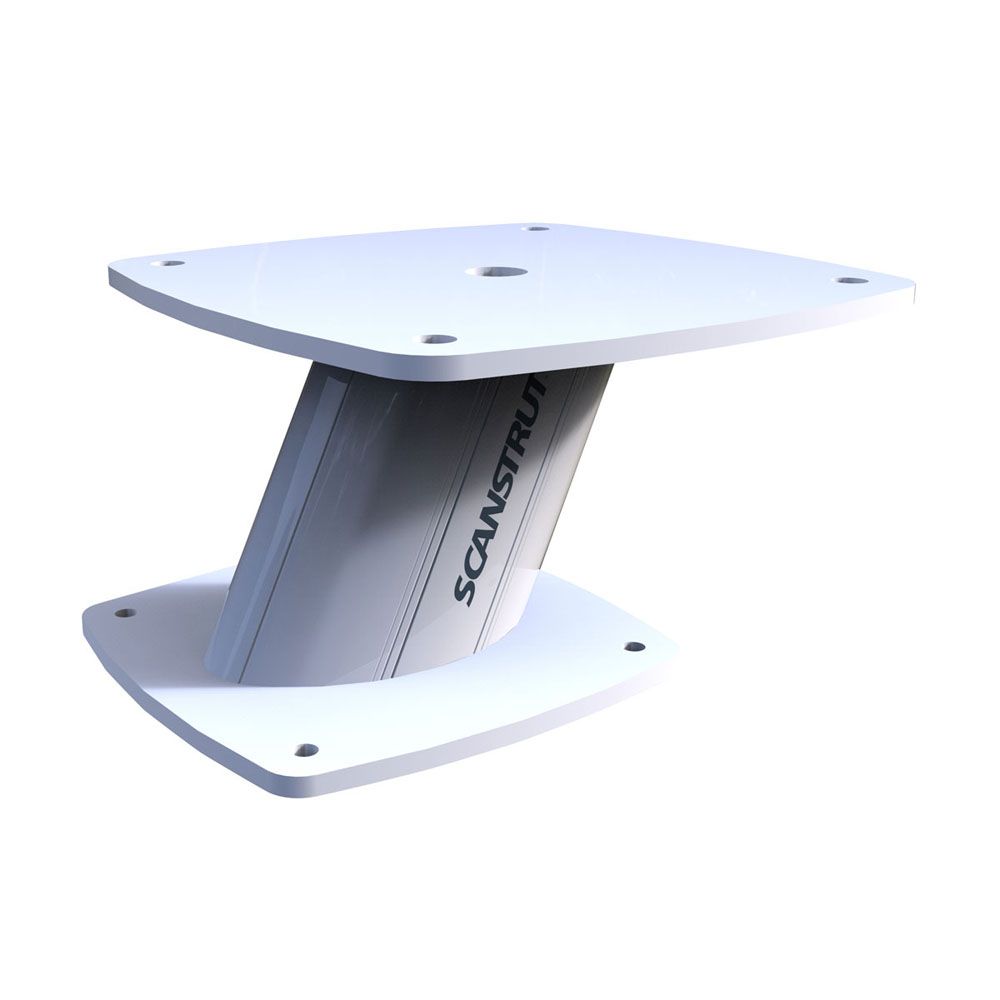

Scanstrut APT6003 Aluminium PowerTower

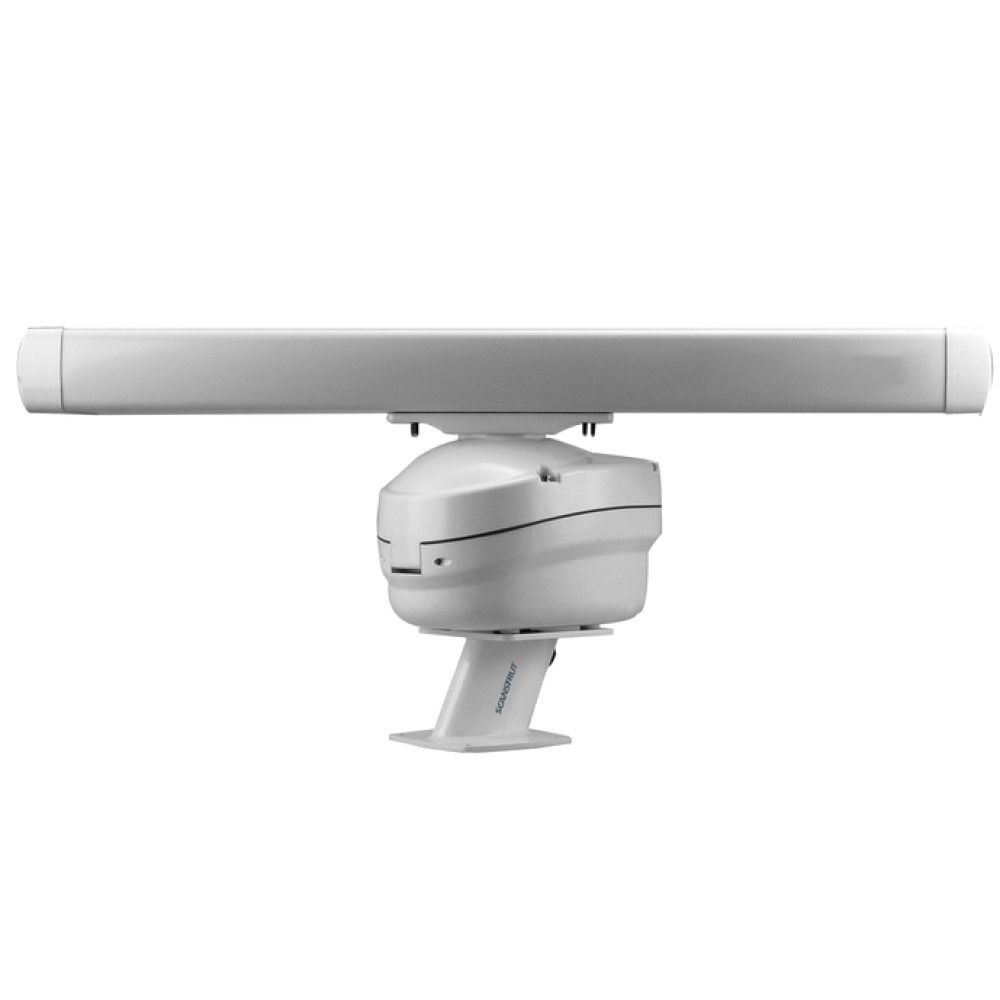

150mm (6") high and constructed from the best marine-grade aluminium, designed to fit the most up to date open array's from the world's biggest marine electronics brands.
- Marine Grade Aluminium - White
- 150mm (6") High
- Aft Leaning Model
- Fits Furuno, Garmin, & Raymarine Open Arrays
Compatible Devices
X| Brand | Models |
|---|---|
| Furuno | 1762, 1932, 1934, 1942, 1944, 1954, 851, DRS12A (6'), DRS12A (4'), DRS25A (4'), DRS25A (6'), DRS4A, DRS6A / DRS6A X CLASS, DRS6A-NXT |
| Garmin | GMR 1224 xHD2, GMR 1226 xHD2, GMR 2524 xHD2, GMR 2526 xHD2, GMR 404, GMR 406, GMR 424 xHD2, GMR 624 xHDS2, GMR 626 xHD2 |
| JRC | JMA 2344 / 5106 / 5206 (4'), JMA 2344 / 5106 / 5206 (6') |
| Navman | 8000 Series [8084/8120] 4' |
| Nobeltec | 4kW / 6kW |
| Lowrance | LRA 4000, LRA 5000 |
| Navman | 8000 Series [8084/8120] 4' |
| Nobeltec | 4kW / 6kW |
| Onwa | KRA-3002, KRA-4001 |
| Raymarine | 5S / 9S / RA1048HD / RA1048SHD, 7S / 11S / RA1072HD / RA1072SHD, Cyclone 3ft, Cyclone 4ft, Cyclone 6ft, Magnum 4ft 4kW/12kW, Magnum 6ft 4kW/12kW |
| Simrad | HALO-3 Pulse, HALO-4 Pulse, HALO-6 Pulse |
| Sitex | MDS -10 (4'), MDS -10 (5'), RADARpc - 3.5 or 4.5 |
150mm (6") high and constructed from the best marine-grade aluminium, designed to fit the most up to date open array's from the world's biggest marine electronics brands.

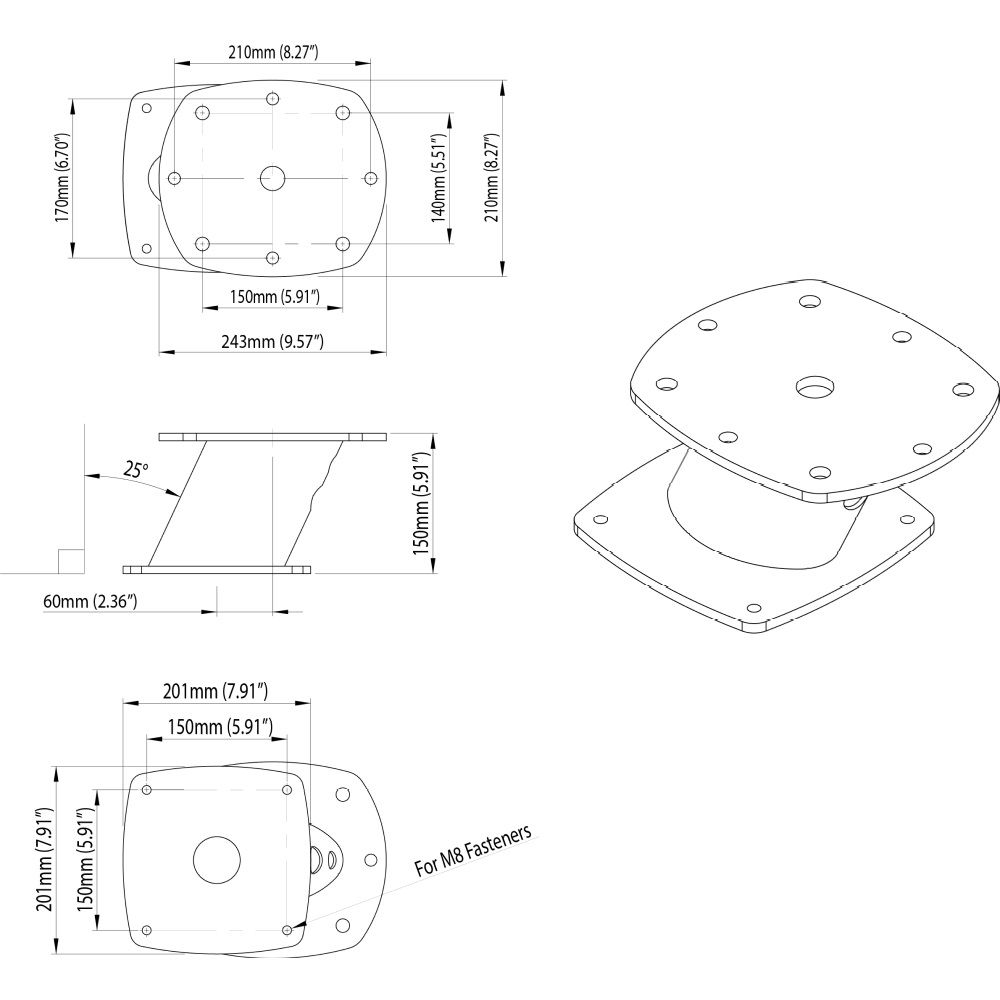

Pre-drilled mounting holes allow the radar to fasten straight to the PowerTower with it’s own mounting bolts. No need to cut the radar’s plugs off to install, simply use the Scanstrut DS30 Cable Seal to ensure a waterproof seal around the radars cables. Marine sealant not required
Paint finishes complies with Scanstrut's unique 4 step marine paint system. Aft leaning design with a 25-degree rake for the ultimate performance look.
An accessory PowerTower Wedge is available to improve the pitch of the Radar while the boat is up on the plane.
