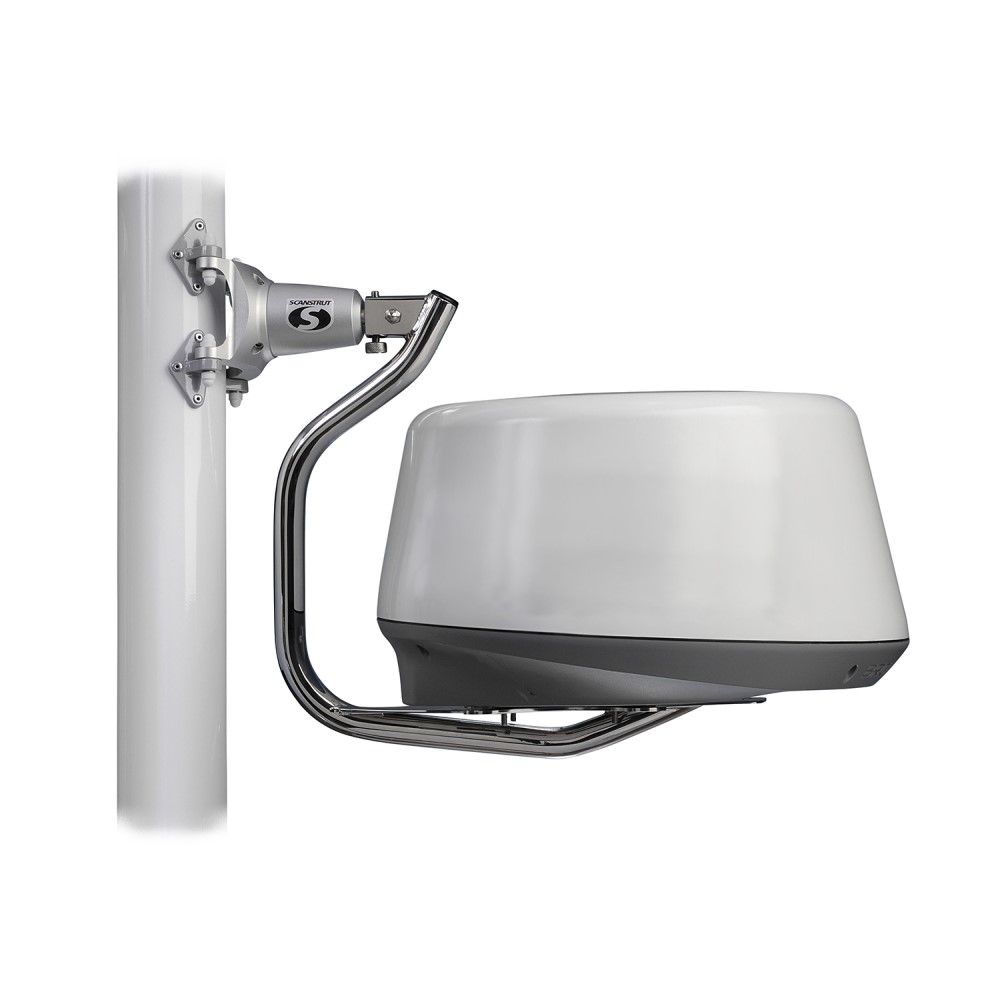

Scanstrut LMM-2 Self-Levelling Mast Mount
Scanstrut's Mast Leveller features a fine-tuned hydraulic damping system that reacts to major changes in the heel angle of the boat. No power is required. Designed to fit the most up-to-date radar from Furuno.
- Marine grade aluminium
- 4-step Marine paint system

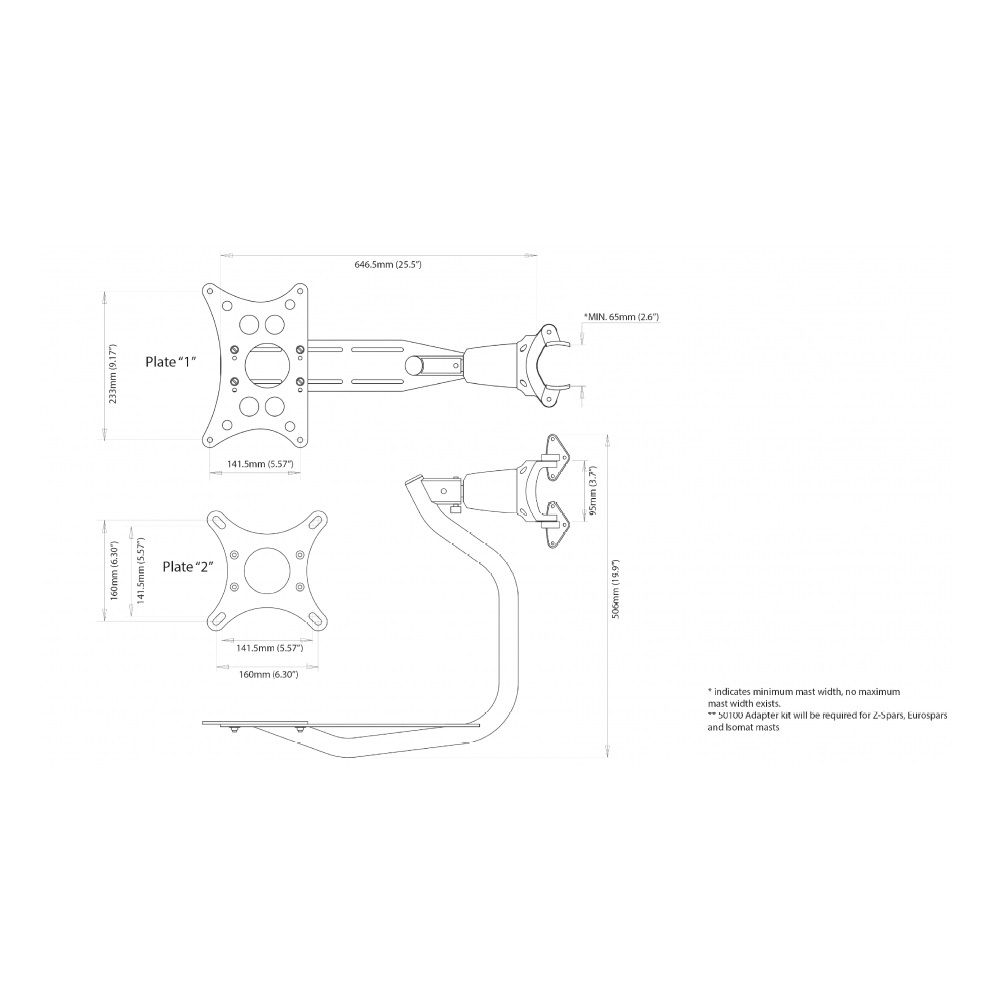

- Minimum Mast Diameter: 65mm (2.6") (No max diameter)
- Use 715-50100 Adapter kit with Z-Spars, Eurospars and Isomat masts
Compatible Devices
XBrand | Models |
---|---|
Furuno | 1621, 1622, 1623, 1715, 1724, 1734, 1815, 1824, 1832, 1834, 1835, DRS2D, DRS2D-NXT, DRS42DL, DRS42DL+, DRS4D / DRS4D-NXT, DRS4DL+, DRS4W, NavNet (18"), NavNet (24") |
Humminbird | AS 21RD4KW |
Interphase | Mini RE-1, RE-8, RE-9 |
JRC | 1000, 1000mk2, 1066, 1500, 1500mk2 |
Koden | 2kW 12", 4kW [RB715A] |
Lorenz | Lorenz 2kW |
Lowrance | LRA-1800 / RB714A / DX42 |
Navman | 8000 Series [8084/8120], 18" |
Nobeltec | 2kW (20") |
Northstar | M series/8000i (18") |
Seiwa | SWR-1, SWR-8, SWR-9 |
Simrad | GB40 / NX40/45 / NSE8/12 / RB712A / DX42S |
Sitex | MDS -1, MDS -8, MDS -9, MDS-12, NKE-1066 |
Techmarine | T-72.01, T-72.02, T-72.04 |
Scanstrut's Mast Leveller features a fine-tuned hydraulic damping system that reacts to major changes in the heel angle of the boat. No power is required. Designed to fit the most up-to-date radar from Furuno.

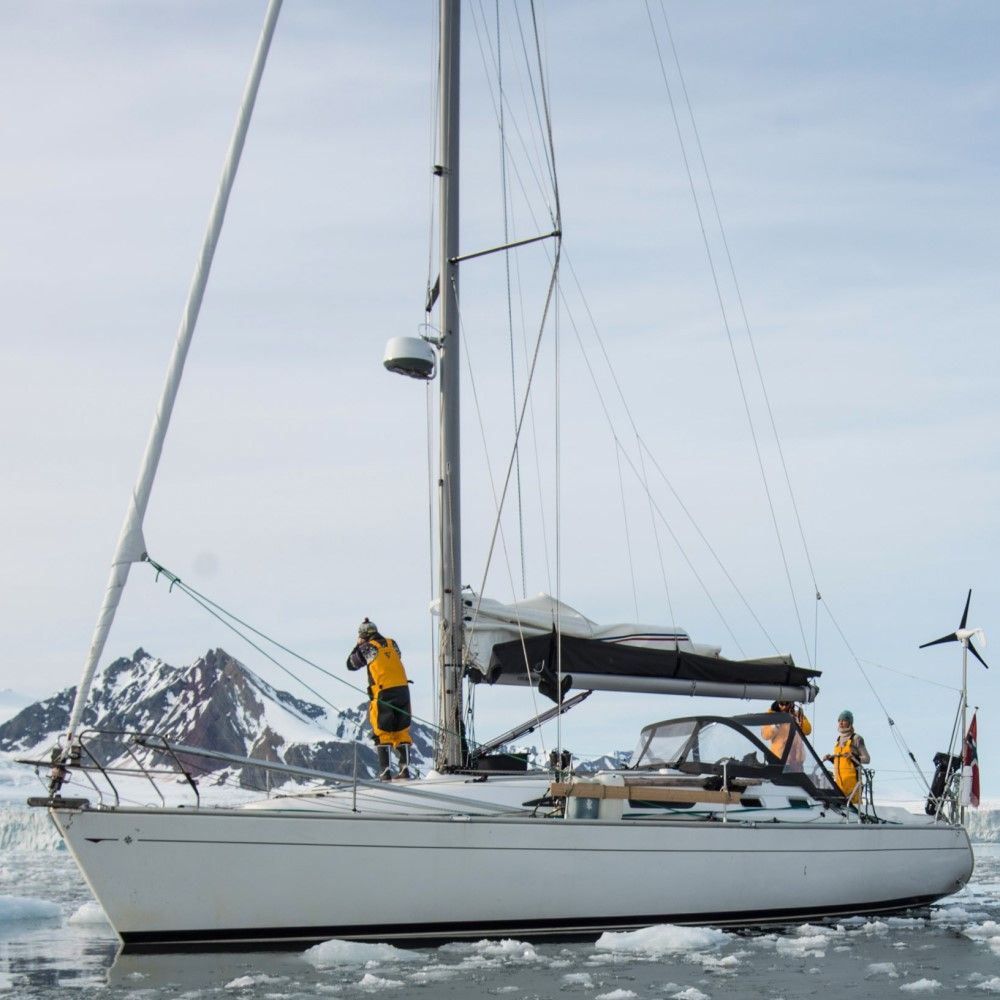

Scanstrut's mast-mounted leveller raises the antenna clear of the deck and any obstructions for increased radar horizon.
Hydraulic damping - The main levelling unit features a fine-tuned damping system which reacts to major changes in the heel angle of the boat. no power is required.
Lightweight head unit - The complete system weighs only 3.4 kg (8.1 lbs)

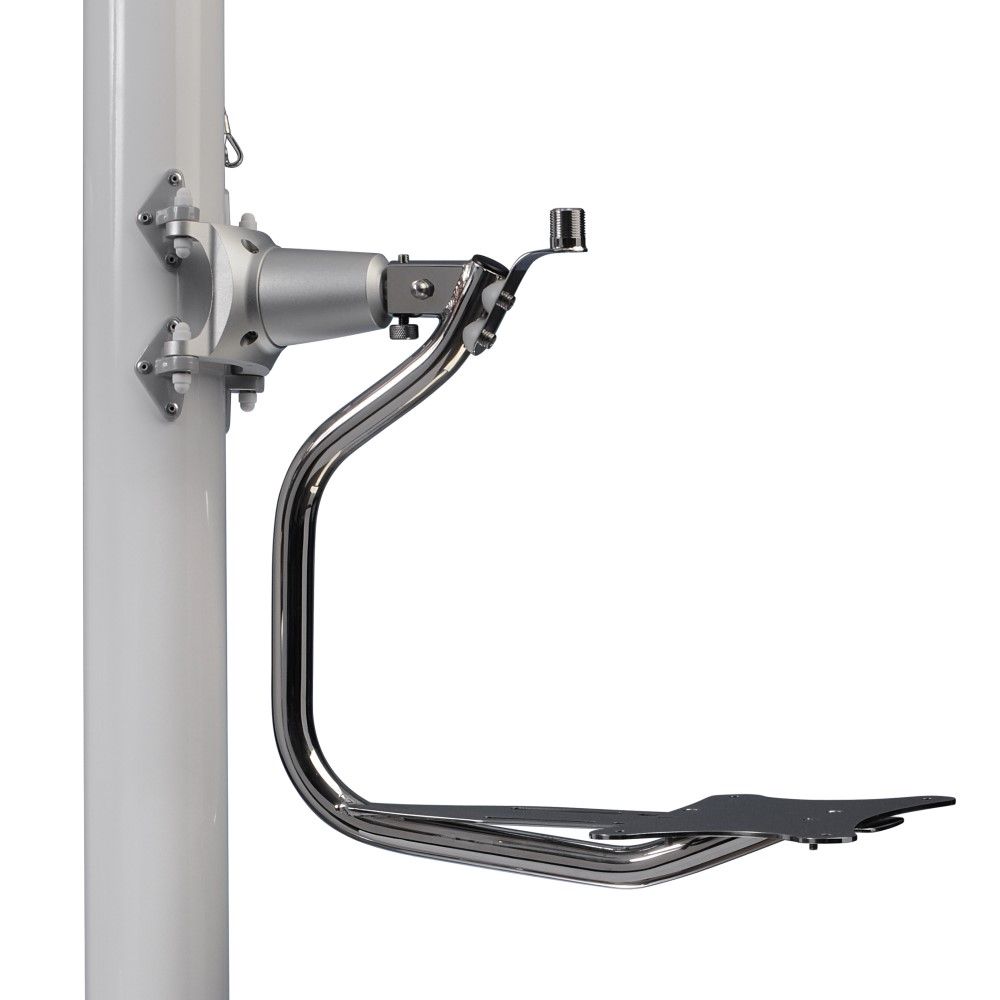

Secure installation - Attaches to the mast with four swivel feet, matching a variety of mast profiles. A 12-point fixing using monel rivets ensures a secure fixing.
Suitable for any yacht - Stainless radar cradle has a fine tune adjustment for different mast rake angles.
