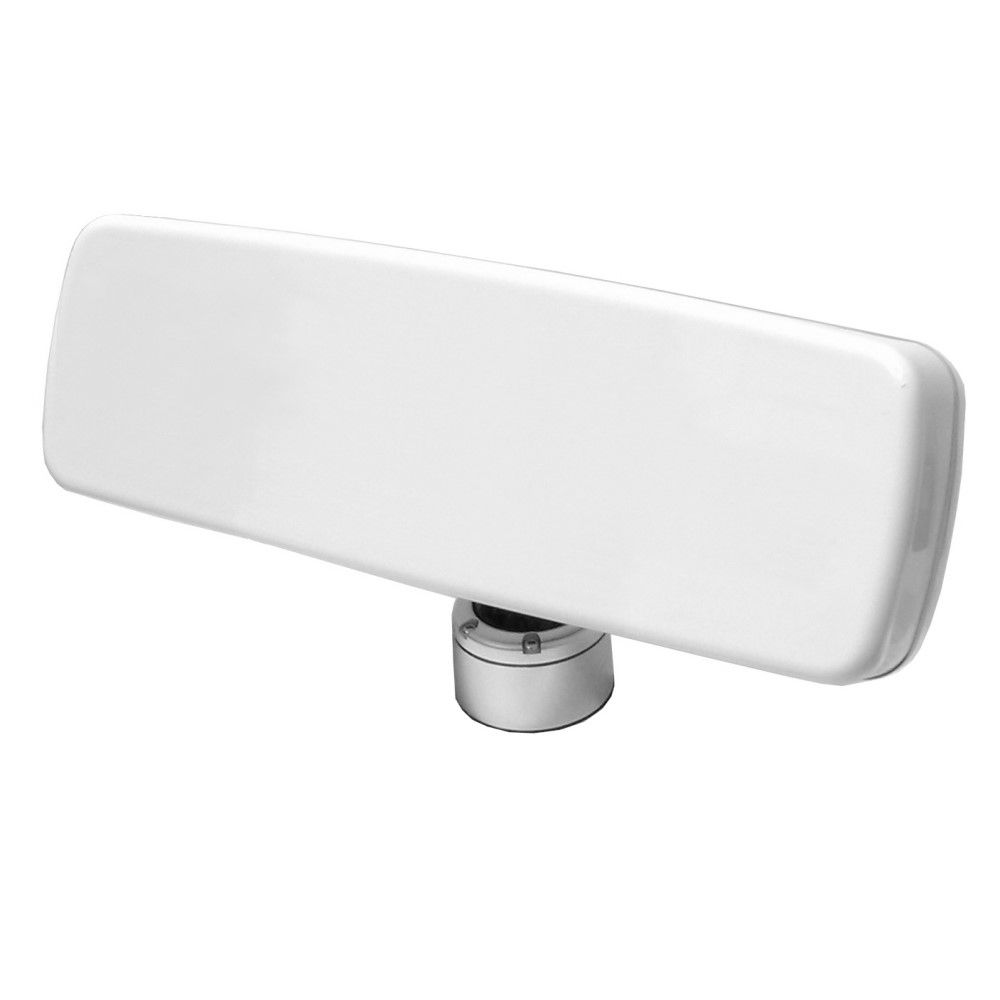

Scanstrut SPD-4XI-W Multi Instrument Deck Mount ScanPod
Scanstrut's SPD-4XI-W allows installation of multiple Instruments on virtually any flat surface on board. This allows the instruments to be in the prime position while out sailing on any powerboat or RIB. With the pull of a lever, the intuitive design gives a 360-degree viewing angle to make the most from what the instruments have to offer.
- Product Information
- Injection moulded ABS
- Fits almost any flat surface
- Adjustable Swivel & Tilt Ball joint
- Viewing angle can be adjusted at any time
- Internal cable routing
Compatible Devices
X| Brand | Models |
|---|---|
| B&G | 10 / 10 HV, Triton /Triton², Triton², Vulcan 7 (without flush mount), Zeus Touch 7, Zeus2 7 |
| Furuno | FI-50 STD Instruments, GP-1871F, NAVpilot-300, NAVpilot-711C |
| Garmin | EchoMap 7 Series, Echomap Plus 6, Echomap Plus 7, ECHOMAP UHD 6", ECHOMAP UHD 7", GMI 10, GMI 20, GNX, GNX 20, GNX 21, GPSMAP 720/720s, GPSMAP 722/722xs, GPSMAP 740/740s, GPSMAP 750/750s, Striker 5, Striker 7, Striker Plus 5 , Striker Plus 7, STRIKER Vivid 5cv, STRIKER Vivid 7cv, STRIKER Vivid 9sv |
| Lowrance | Elite 5/ Mark 5/Elite 5Ti, Elite 7, Elite 7 Ti / Ti2, HDS-5 / HDS-5m / HDS-5x, HDS-7 / HDS-7m, HDS-7 Carbon, HDS-7 Gen 3, HDS-7 LIVE, HDS-7(m) Gen2 Touch, HOOK 7 / 7x |
| Nexus | NX, NX2 Digital, NX2 Analogue |
| Raymarine | A65/A67/A68, A75 / A77 / A78, Axiom 7, Axiom 7+, E7/E7D, Element 7 HV, Element 7 S, i70, p70, p70r, ST290 Analogue, ST60+, ST70, T100 Series |
| Simrad | AP24, AP44, AP48, Cruise 5, Go5 XSE, Go7 (without flush mount), Go7 XSR, IS20, IS35 Digital Gauge, IS42 Digital Display, IS42J Digital Gauge, IS70/IS80, NSS-7, NSS-7 evo2 |
| Tacktick | Maxi Display T100 Series |
Scanstrut's SPD-4XI-W allows installation of multiple Instruments on virtually any flat surface on board. This allows the instruments to be in the prime position while out sailing on any powerboat or RIB. With the pull of a lever, the intuitive design gives a 360-degree viewing angle to make the most from what the instruments have to offer.
Swivel & Tilt Base - One-handed quick-release action. simply release the lever, swivel and tilt to suit any requirements before locking back into position.
Best Viewing Angle - An adjustable ball joint allows a range of movement and multiple mounting angles.
Added Strength - Inner bracing plate secures the deck pod base to the pod and gives increased rigidity to the assembly eliminating potential damaged from shock and vibration.
Overhead Mounting - Deck Pod models can be overhead mounted.
Hassle-Free Install & Service - Fixings fit from back to front cutting their threads into injection moulded abs inserts designed into the Pod front. this design allows for a quick and safe install and repeat servicing.
Increased Protection - Deck Pod seal is manufactured from a high tear strength silicone, it has a very high resistance to heat and UV so have confidence that it won’t deteriorate over time.
