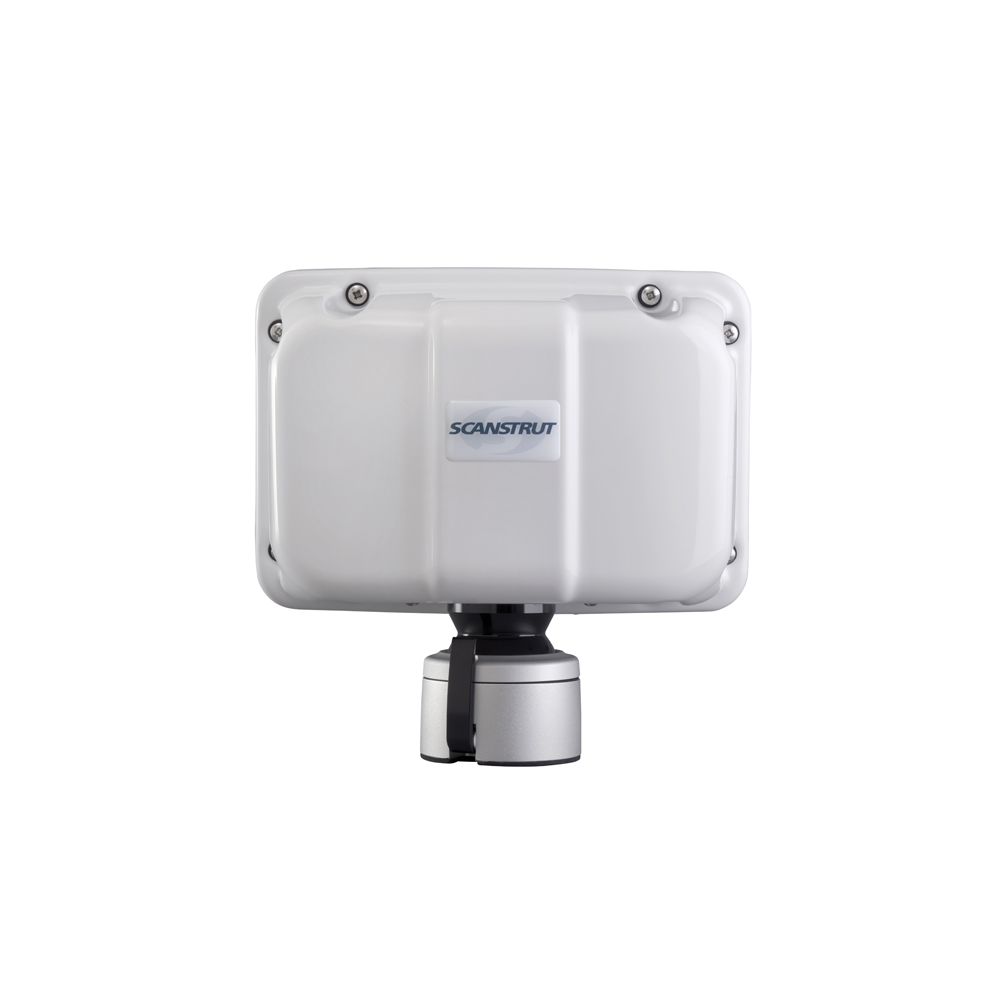

Scanstrut SPD-8-W 8" Deck Mount ScanPod
Scanstrut's Deck Pod allows the installation of a MFD on virtually any flat surface on board. This allows the display to be in the prime position while out sailing on any boat. With the pull of a lever, the intuitive design gives a 360-degree viewing angle to make the most from what the display has to offer.
- Injection moulded ABS
- Fits almost any flat surface
- Adjustable Swivel & Tilt Ball joint
- Viewing angle can be adjusted at any time
- Internal cable routing
Compatible Devices
X| Brand | Models |
|---|---|
| B&G | Nemesis 9, Vulcan 7 (with flush mount), Vulcan 9, Zeus Touch 8, Zeus3 7, Zeus3 9, Zeus3s 7, Zeus3s 9 |
| Furuno | GP-1870, GP-1971F, O-Chart 5/5F, O-Chart 7/7F |
| Garmin | EchoMAP 74sv, 73sv, 74dv, 73dv, EchoMap 9 Series, EchoMap CHIRP 75dv / 75sv, EchoMap CHIRP 95sv, Echomap Plus 9, ECHOMAP UHD 9", GPSMAP 7408/7608, GPSMAP 820/820xs, GPSMAP 840/840xs, GPSMAP 922/922xs, GPSMAP 923, GPSMAP 943xsv, Striker Plus 9, STRIKER Vivid 9sv |
| Humminbird | 800 series, 900 series, Helix 7 |
| Lowrance | Elite 9 Ti / Ti2, Elite FS 7, HDS-8 / HDS-8m / Gen 2, HDS-9 Carbon, HDS-9 Gen3, HDS-9 LIVE, HOOK 9 / 9x, HOOK Reveal 9" |
| Maretron | TSM810C1 |
| Northstar | 6100i - 6.4", 6100i - 8.4", Explorer 6, Explorer AP380, M84 |
| Raymarine | A50/50d, A57d, A70/70d, Axiom 9, Axiom 9+, C Series - C70, C95/C97, E95/E97, Element 9 HV, Element 9 S, ES 75/77/78 |
| Simrad | Cruise 7, Cruise 9, GB40 10" Monitor, Go7 (with flush mount), Go9, Go9 XSE, NSS-8, NSS7 evo3, NSS9 evo3, NSX 3009, NX40, R2009/S2009 |
Scanstrut's Deck Pod allows the installation of a MFD on virtually any flat surface on board. This allows the display to be in the prime position while out sailing on any boat. With the pull of a lever, the intuitive design gives a 360-degree viewing angle to make the most from what the display has to offer.
Swivel & Tilt Base - One-handed quick-release action. simply release the lever, swivel and tilt to suit any requirements before locking back into position.
Best Viewing Angle - An adjustable ball joint allows a range of movement and multiple mounting angles.
Added Strength - Inner bracing plate secures the deck pod base to the pod and gives increased rigidity to the assembly eliminating potential damaged from shock and vibration.
Overhead Mounting - Deck Pod models can be overhead mounted.
Hassle-Free Install & Service - Fixings fit from back to front cutting their threads into injection moulded abs inserts designed into the Pod front. this design allows for a quick and safe install and repeat servicing.
Increased Protection - Deck Pod seal is manufactured from a high tear strength silicone, it has a very high resistance to heat and UV so have confidence that it won’t deteriorate over time.
