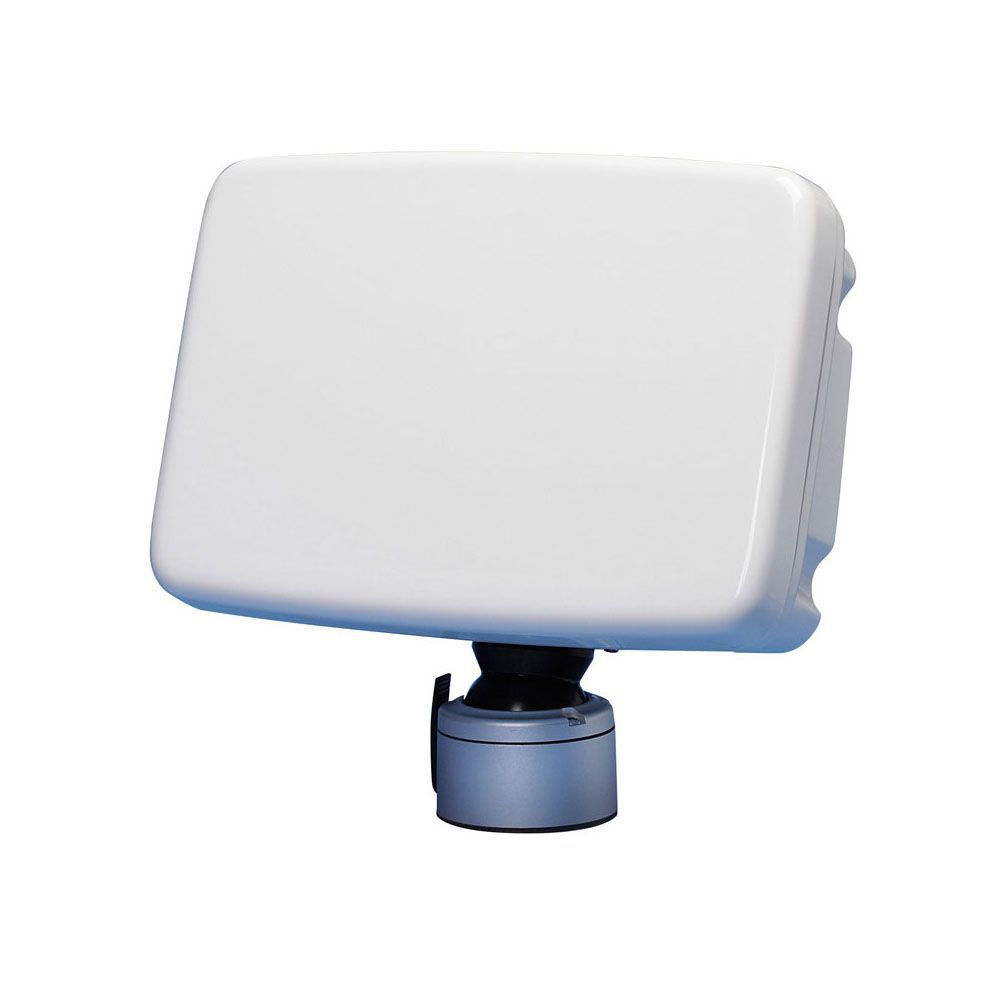

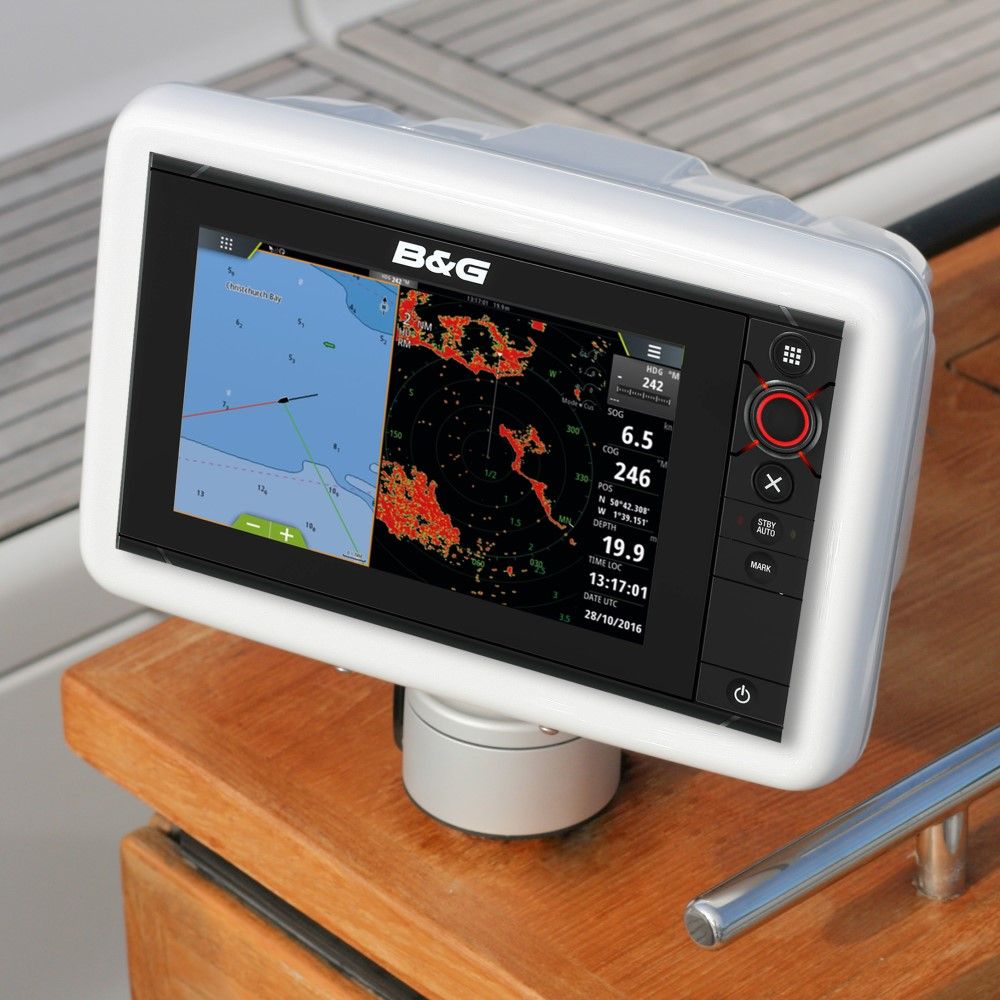

Scanstrut SPD-9-W 9" Deck Mount ScanPod
Scanstrut's Deck Pod allows the installation of a MFD on virtually any flat surface on board. This allows the display to be in the prime position while out sailing on any boat. With the pull of a lever, the intuitive design gives a 360-degree viewing angle to make the most from what the display has to offer.
- Injection moulded ABS
- Fits almost any flat surface
- Adjustable Swivel & Tilt Ball joint
- Viewing angle can be adjusted at any time
- Internal cable routing
Compatible Devices
X| Brand | Models |
|---|---|
| B&G | Zeus 8, Zeus2 9 |
| Furuno | 1724C / 1734C, GD-1720C, MFD8 |
| Garmin | ECHOMAP Ultra 10", GPSMAP 1022/1022xs, GPSMAP 1042xsv, GPSMAP 4008/5008/6008, GPSMAP 7410/ 7610, GPSMAP 8410 |
| Humminbird | 998cx SI, Helix 8 G3, Helix 9 G3, ONIX 10, ONIX 8, SOLIX 10 CHIRP MEGA SI+ G3 |
| Lowrance | Elite 12 Ti / Ti2, Elite FS 9 |
| Poseidon | 10.1" Display |
| Raymarine | a95, a97, a98 MFD, Axiom 2 Pro 9 S, Axiom Pro 9S / 9RVX, C Series - C80, C Series - C90W, E Series - E80, E90W, E90W/A95, ES 95/97/98, Raychart 620, RL70 |
| Simrad | NSE-8, NSS-9, NSS-9 evo2, NSS-9 evo3s, NSS7 evo4 |
Scanstrut's Deck Pod allows the installation of a MFD on virtually any flat surface on board. This allows the display to be in the prime position while out sailing on any boat. With the pull of a lever, the intuitive design gives a 360-degree viewing angle to make the most from what the display has to offer.
Swivel & Tilt Base - One-handed quick-release action. simply release the lever, swivel and tilt to suit any requirements before locking back into position.
Best Viewing Angle - An adjustable ball joint allows a range of movement and multiple mounting angles.

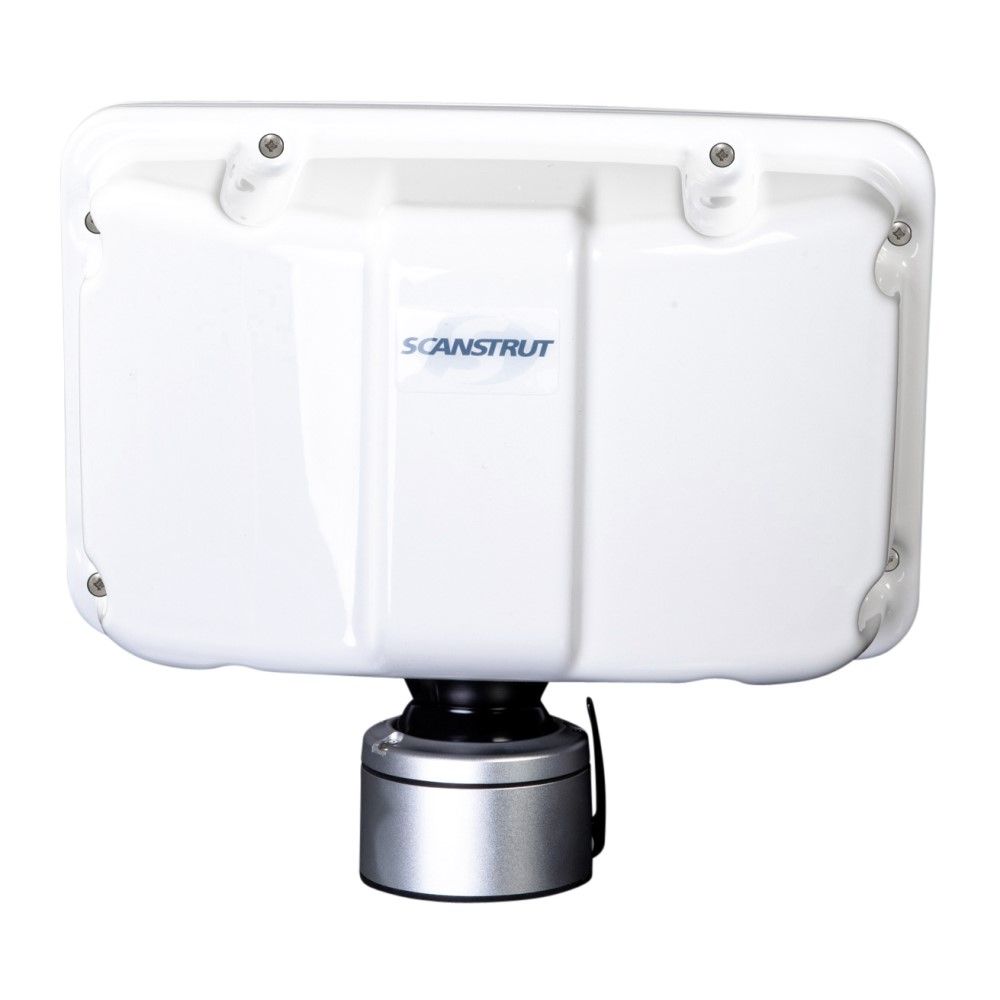

Added Strength - Inner bracing plate secures the deck pod base to the pod and gives increased rigidity to the assembly eliminating potential damaged from shock and vibration.
Overhead Mounting - Deck Pod models can be overhead mounted.
Hassle-Free Install & Service - Fixings fit from back to front cutting their threads into injection moulded abs inserts designed into the Pod front. this design allows for a quick and safe install and repeat servicing.
Increased Protection - Deck Pod seal is manufactured from a high tear strength silicone, it has a very high resistance to heat and UV so have confidence that it won’t deteriorate over time.
