Scanstrut SPH-13-W 13" Helm Pedestal ScanPod
With great new design features, Scanstrut's Helm ScanPod is a perfect choice for all cockpit configurations. With options to fit radar displays, chartplotters and standard navigation instruments right where they are needed. Fits pedestal rails from 25mm to 33.7mm (0.98″ – 1.33″) diameter.
- Fits pedestal rails from 25mm to 33.7mm (0.98″ – 1.33″) diameter.
- Universal helm fixing.
- Watertight seal at cable entry.

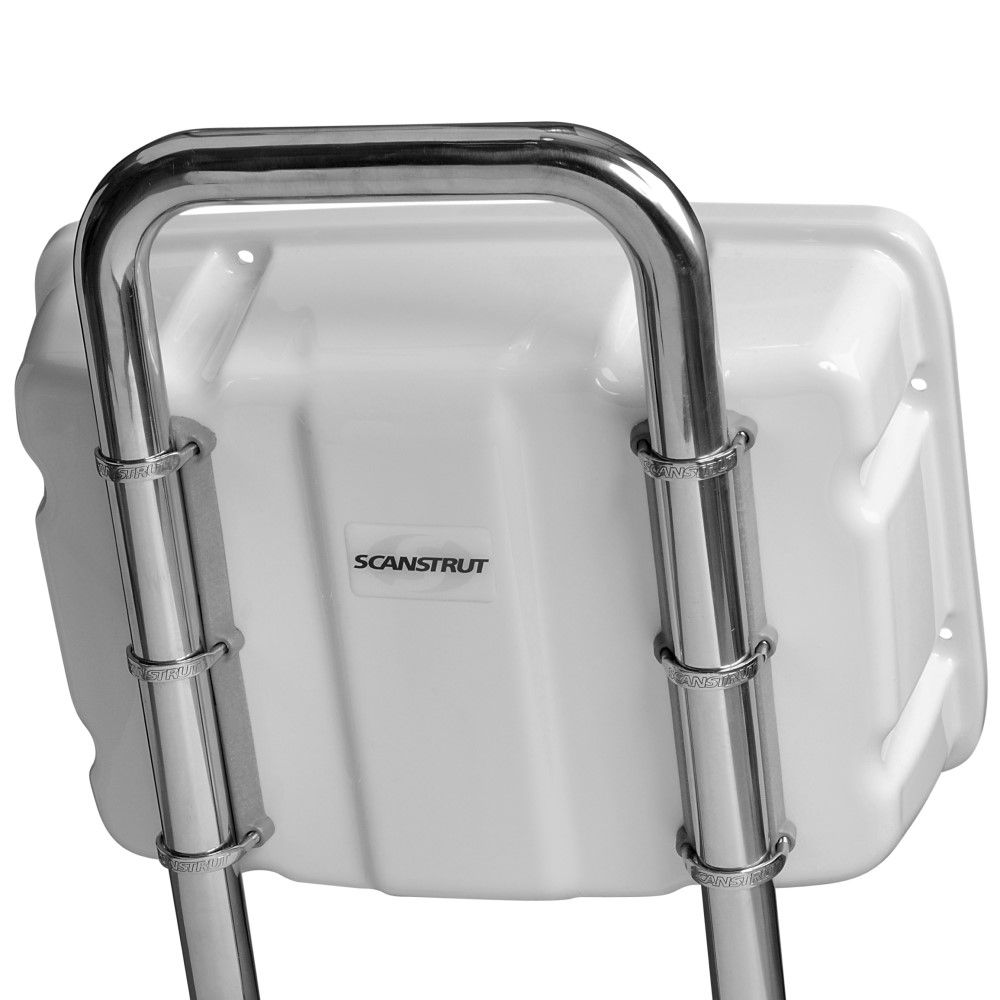

- Saddle system supports the stainless tubing enabling a secure and rigid fit onto any pedestal.
Compatible Devices
X| Brand | Models |
|---|---|
| B&G | Zeus2 12, Zeus3 12, Zeus3s 12 |
| Furuno | Zeus2 12, Zeus3 12, Zeus3s 12 |
| Garmin | GPSMAP 1020/1020xs, GPSMAP 1040/1040xs, GPSMAP 1222/1222xs, GPSMAP 1242xsv, GPSMAP 3012/4012/5012, GPSMAP 7012/7212, GPSMAP 8012/8212 |
| Humminbird | Helix 12, ION 12, Solix 10, SOLIX 12 CHIRP MEGA SI+ G3 |
| Raymarine | Axiom 2 Pro 12 S, Axiom Pro 12S / 12RVX, C Series - C120W, E120W, ES 125/127/128, G Series - G120 |
| Simrad | CP42, Go12 XSE, NSE-12, NSS-12, NSS12 evo2, NSS12 evo3, NX45 |
With great new design features, Scanstrut's Helm ScanPod is a perfect choice for all cockpit configurations. With options to fit radar displays, chartplotters and standard navigation instruments right where they are needed. Fits pedestal rails from 25mm to 33.7mm (0.98″ – 1.33″) diameter.
Universal helm fixing - Fits pedestal rails from 25mm to 33.7mm (0.98″ – 1.33″) diameter.
Secure & watertight install - Saddle system supports the stainless tubing enabling a secure and rigid fit onto any pedestal and also ensures a watertight seal at cable entry.
No drill fixing kit - Customised u-bolts fit around the rail and through the saddles into the back of the pod eliminating the need for time consuming and awkward drilling of the stainless rail.

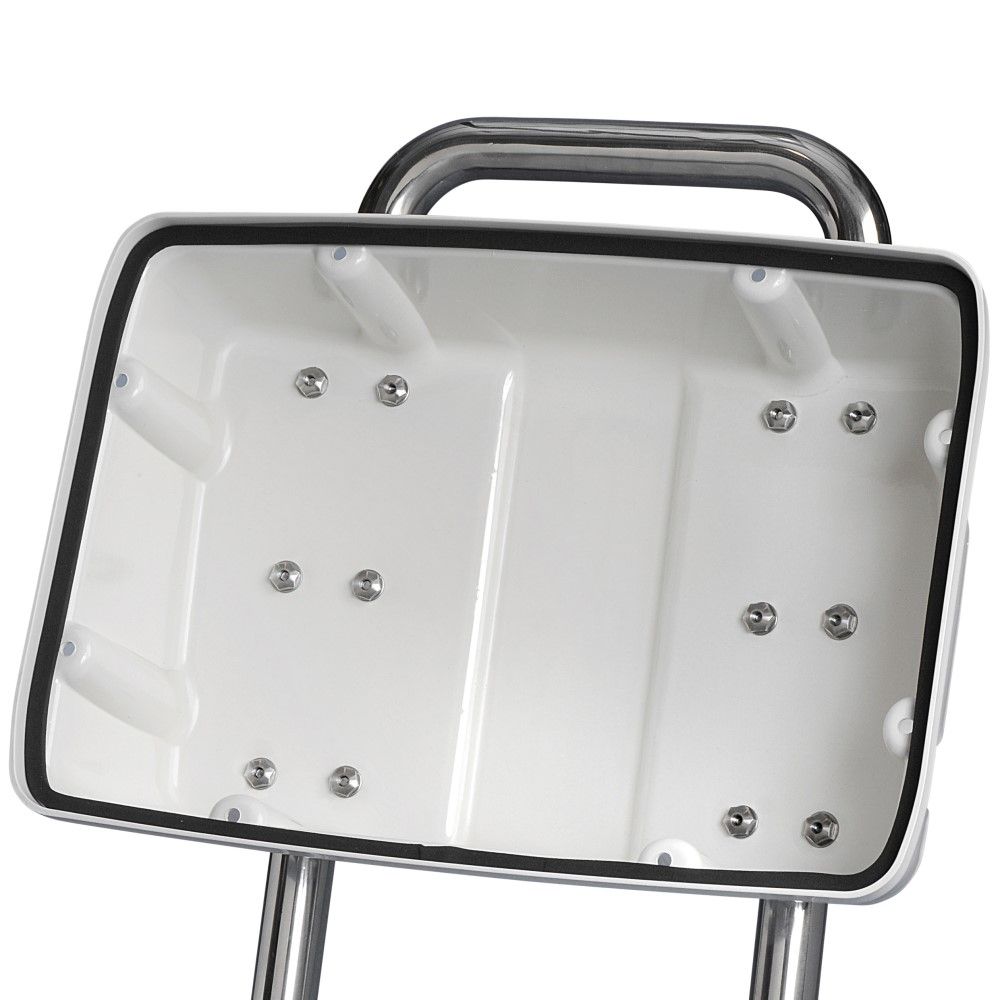

Hassle-free install & service - Fixings fit from back to front cutting their threads into injection moulded ABS inserts designed into the Pod front. This design allows for a quick and safe install and repeat servicing.
Increased protection - Pod seal is manufactured from a high tear strength silicone, it has a very high resistance to heat and uv so won’t deteriorate over time.
