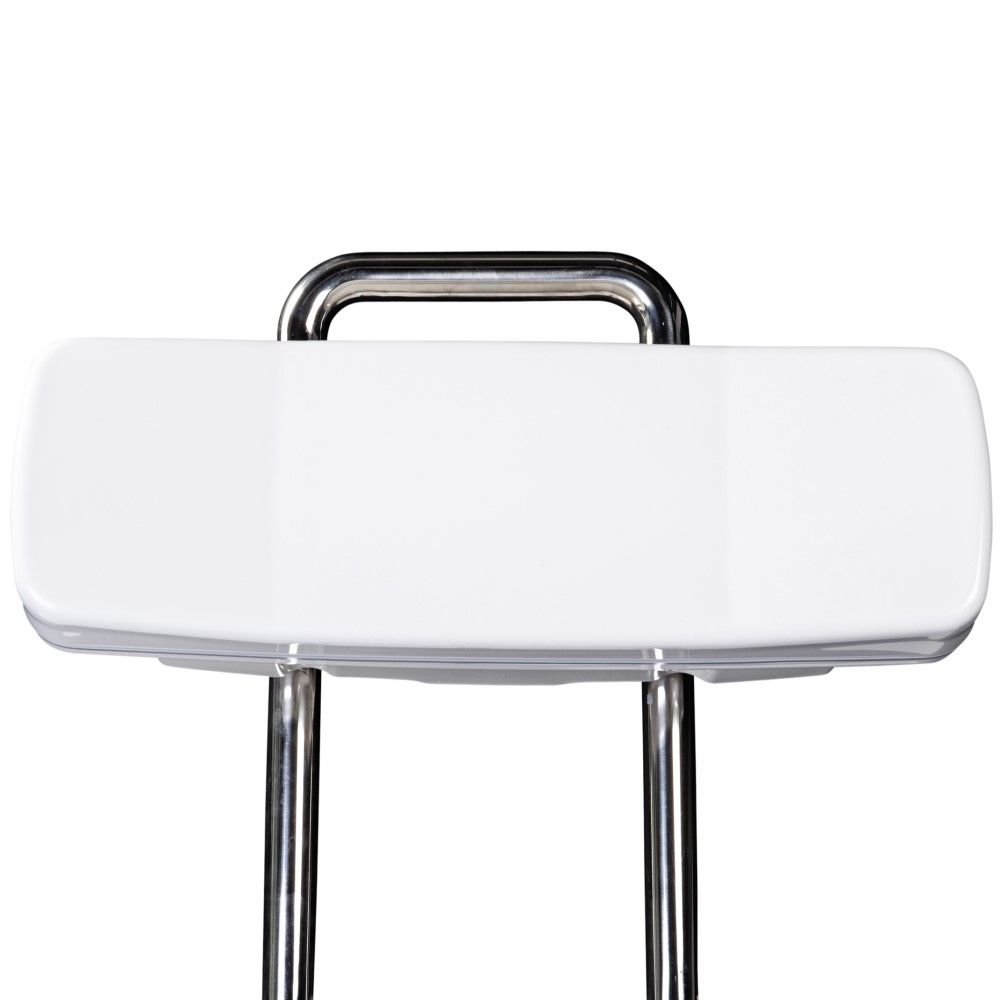

Scanstrut SPH-4XI-W Multi Instrument Helm Pedestal ScanPod

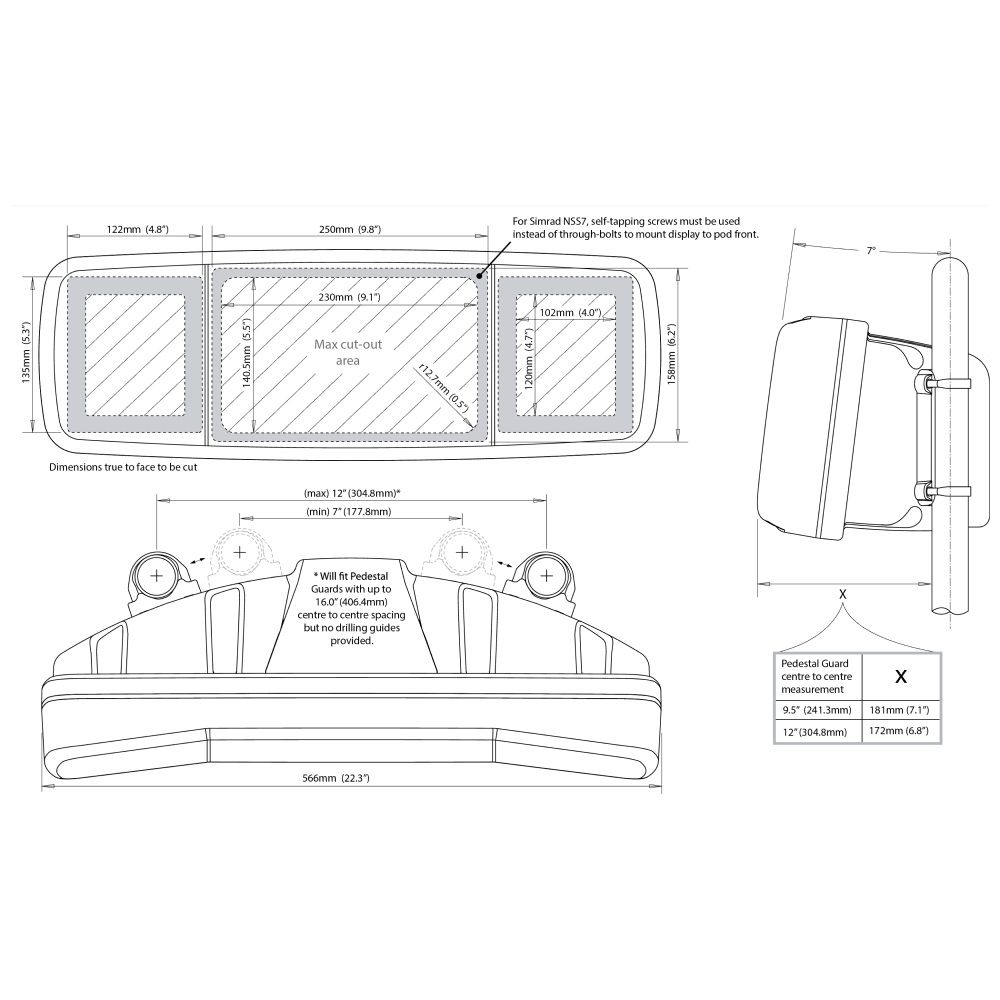

With great new design features, Scanstrut's Helm ScanPod is a perfect choice for all cockpit configurations. Designed for mounting multiple instruments together in one place, right where they are needed. Fits pedestal rails from 25mm to 33.7mm (0.98″ – 1.33″) diameter.
- Fits pedestal rails from 25mm to 33.7mm (0.98″ – 1.33″) diameter.
- Universal helm fixing.
- Watertight seal at cable entry.
- Saddle system supports the stainless tubing enabling a secure and rigid fit onto any pedestal.
Compatible Devices
X| Brand | Models |
|---|---|
| B&G | 10 / 10 HV, Triton /Triton², Triton², Vulcan 7 (without flush mount), Zeus Touch 7, Zeus2 7 |
| Furuno | FI-50 STD Instruments, GP-1871F, NAVpilot-300, NAVpilot-711C |
| Garmin | EchoMap 7 Series, Echomap Plus 6, Echomap Plus 7, ECHOMAP UHD 6", ECHOMAP UHD 7", GMI 10, GMI 20, GNX, GNX 20, GNX 21, GPSMAP 720/720s, GPSMAP 722/722xs, GPSMAP 740/740s, GPSMAP 750/750s, Striker 5, Striker 7, Striker Plus 5 , Striker Plus 7, STRIKER Vivid 5cv, STRIKER Vivid 7cv, STRIKER Vivid 9sv |
| Lowrance | Elite 5/ Mark 5/Elite 5Ti, Elite 7, Elite 7 Ti / Ti2, HDS-5 / HDS-5m / HDS-5x, HDS-7 / HDS-7m, HDS-7 Carbon, HDS-7 Gen 3, HDS-7 LIVE, HDS-7(m) Gen2 Touch, HOOK 7 / 7x |
| Nexus | NX, NX2 Digital, NX2 Analogue |
| Raymarine | A65/A67/A68, A75 / A77 / A78, Axiom 7, Axiom 7+, E7/E7D, Element 7 HV, Element 7 S, i70, p70, p70r, ST290 Analogue, ST60+, ST70, T100 Series |
| Simrad | AP24, AP44, AP48, Cruise 5, Go5 XSE, Go7 (without flush mount), Go7 XSR, IS20, IS35 Digital Gauge, IS42 Digital Display, IS42J Digital Gauge, IS70/IS80, NSS-7, NSS-7 evo2 |
| Tacktick | Maxi Display T100 Series |
With great new design features, Scanstrut's Helm ScanPod is a perfect choice for all cockpit configurations. Designed for mounting multiple instruments together in one place, right where they are needed. Fits pedestal rails from 25mm to 33.7mm (0.98″ – 1.33″) diameter.
Universal helm fixing - Fits pedestal rails from 25mm to 33.7mm (0.98″ – 1.33″) diameter.
Secure & watertight install - Saddle system supports the stainless tubing enabling a secure and rigid fit onto any pedestal and also ensures a watertight seal at cable entry.
No drill fixing kit - Customised u-bolts fit around the rail and through the saddles into the back of the pod eliminating the need for time consuming and awkward drilling of the stainless rail.
Hassle-free install & service - Fixings fit from back to front cutting their threads into injection moulded ABS inserts designed into the Pod front. This design allows for a quick and safe install and repeat servicing.
Increased protection - Pod seal is manufactured from a high tear strength silicone, it has a very high resistance to heat and uv so won’t deteriorate over time.
