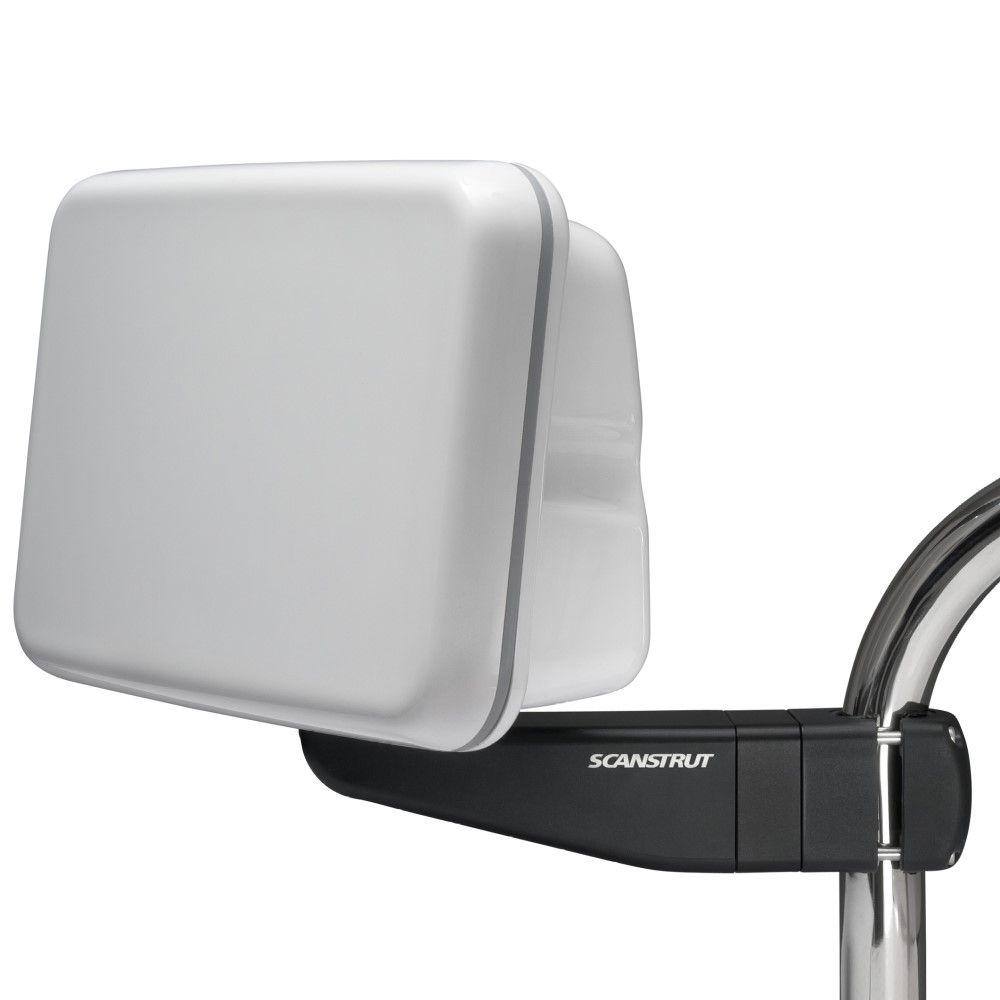

Scanstrut SPR-7S-AM 7" Compact Arm Mounted ScanPod
Designed with the latest generation screens in mind, The SPR-7S-AM is as low profile file as it can get. Achieve a neat and streamlined look overall, perfect for installations where there is limited space available.
- Injection moulded ABS
- Fits pedestal rails from 25 - 33.7mm (0.98" - 1.33")
- Viewing angle can be set upon installation
- Internal cable routing
Compatible Devices
X| Brand | Models |
|---|---|
| B&G | Vulcan 7 (without flush mount), Zeus Touch 7, Zeus2 7 |
| Furuno | GP-1871F |
| Garmin | Echomap Plus 6, Echomap Plus 7, ECHOMAP UHD 6", ECHOMAP UHD 7", GPSMAP 720/720s, GPSMAP 722/722xs, GPSMAP 740/740s, GPSMAP 7407/7607, GPSMAP 750/750s, GPSMAP 751xs/721xs, Striker 5, Striker 7, Striker Plus 5 , Striker Plus 7, STRIKER Vivid 5cv, STRIKER Vivid 7cv |
| Lowrance | Elite 5/ Mark 5/Elite 5Ti, Elite 7, Elite 7 Ti / Ti2, HDS-5 / HDS-5m / HDS-5x, HDS-7 / HDS-7m, HDS-7 Carbon, HDS-7 Gen 3, HDS-7 LIVE, HDS-7(m) Gen2 Touch, HOOK 7 / 7x, HOOK Reveal 7" |
| Simrad | AP48, Cruise 5, Go5 XSE, Go7 (without flush mount), NSS-7, NSS-7 evo2 |
Designed with the latest generation screens in mind, The SPR-7S-AM is as low profile file as it can get. Achieve a neat and streamlined look overall, perfect for installations where there is limited space available.

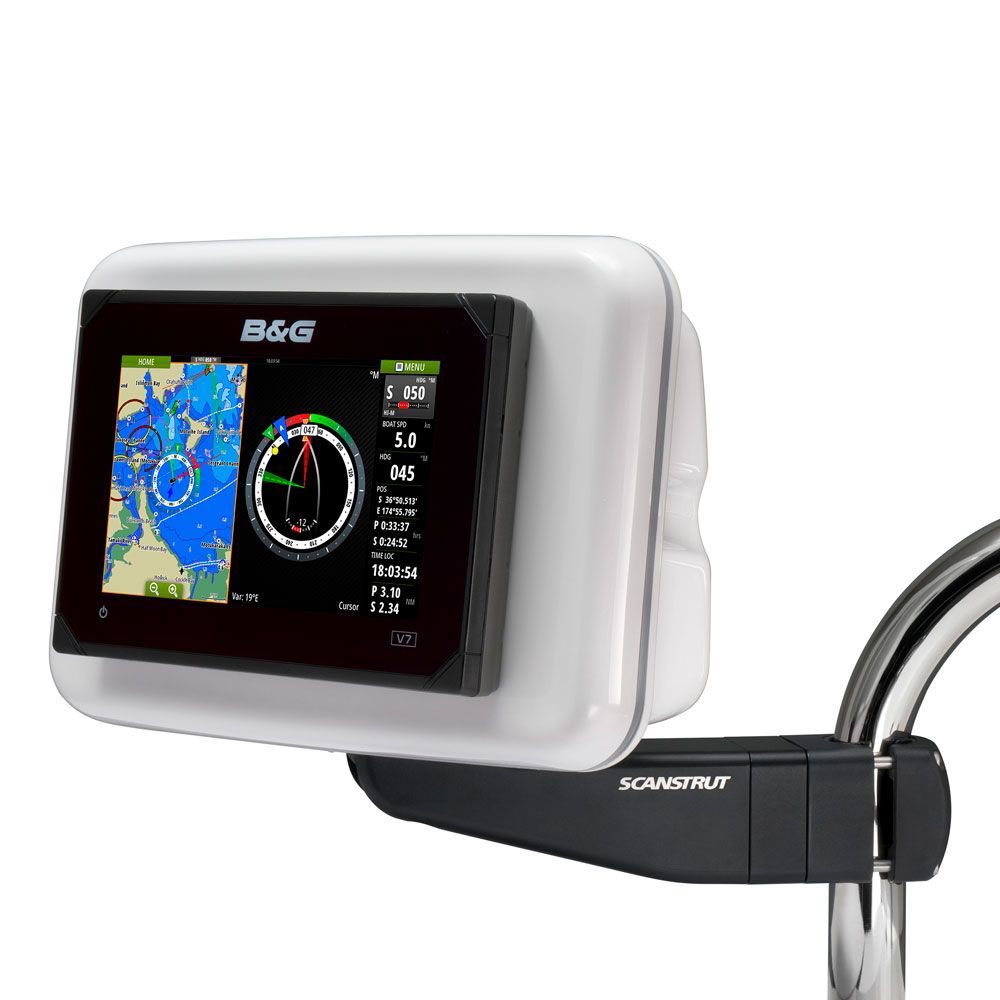

Scanstrut's Arm Pod allows the installation of a MFD onto any standard or curved rail. Waterproof internal cable routing allows seamlessly running cables through the bottom of the pod, the machined aluminium clamp and into the rail. This gives the cleanest and most user-friendly way to mount an MDF right where it is most needed.
Fixings fit from back to front cutting their threads into injection moulded ABS inserts designed into the Pod front. This design allows for a quick and safe install and repeat servicing. The Pod seal is manufactured from a high tear strength silicone; it has a very high resistance to heat and UV so have confidence that it won’t deteriorate over time.

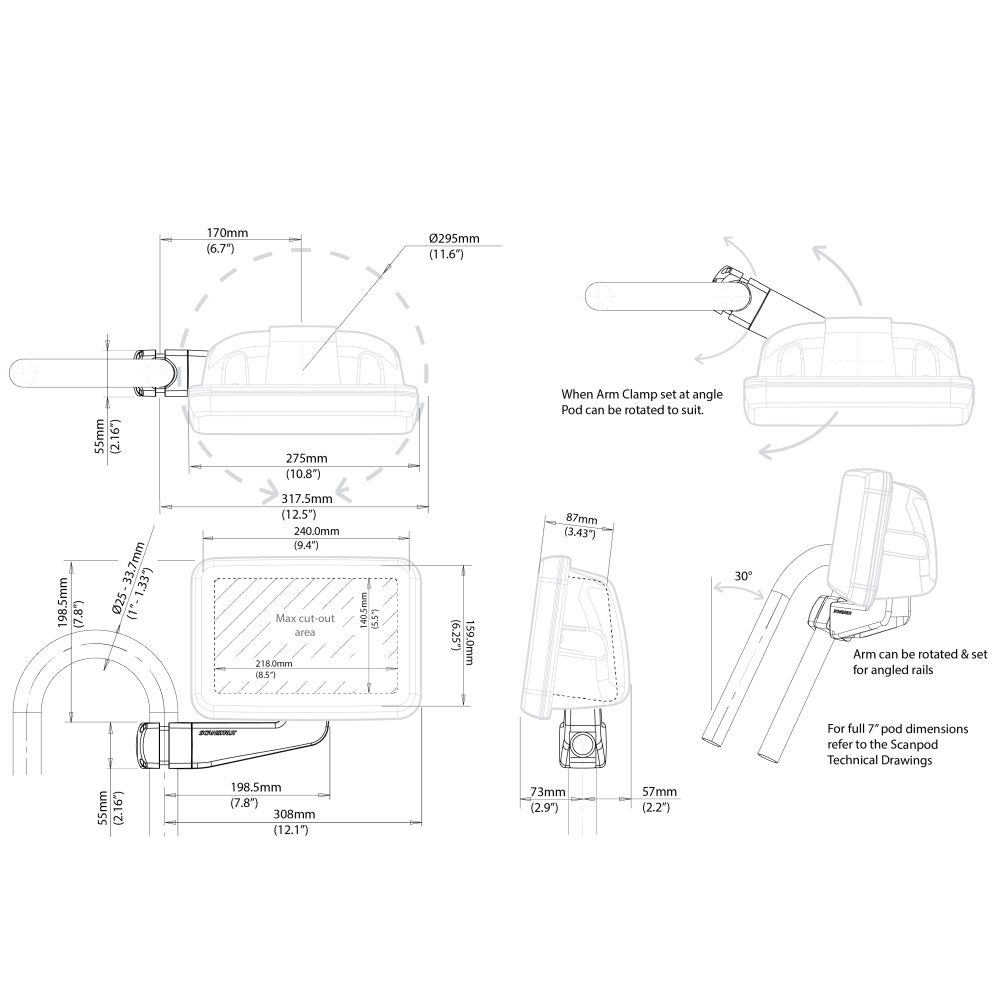

Fits pedestal rails from 25mm to 33.7mm (0.98” to 1.33”). Fits display onto standard and curved rails. Viewing angle can be set upon installation. Cables are routed internally through the clamp and onto the rail.
