Scanstrut SPR-8-AM 8" Arm Mounted ScanPod
Designed with the latest generation screens in mind, The SPR-8-AM is as low profile file as it can get. Achieve a neat and streamlined look overall, perfect for installations where there is limited space available.
- Injection moulded ABS
- Fits pedestal rails from 25 - 33.7mm (0.98" - 1.33")
- Viewing angle can be set upon installation
- Internal cable routing
Compatible Devices
XBrand | Models |
---|---|
B&G | Nemesis 9, Vulcan 7 (with flush mount), Vulcan 9, Zeus Touch 8, Zeus3 7, Zeus3 9, Zeus3s 7, Zeus3s 9 |
Furuno | GP-1870, GP-1971F, O-Chart 5/5F,O-Chart 7/7F |
Garmin | EchoMAP 74sv, 73sv, 74dv, 73dv, EchoMap 9 Series, EchoMap CHIRP 75dv / 75sv, EchoMap CHIRP 95sv, Echomap Plus 9, ECHOMAP UHD 9", GPSMAP 7408/7608, GPSMAP 820/820xs, GPSMAP 840/840xs, GPSMAP 922/922xs, GPSMAP 923, GPSMAP 943xsv, Striker Plus 9, STRIKER Vivid 9sv |
Humminbird | 800 series, 900 series, Helix 7 |
Lowrance | Elite 9 Ti / Ti2, Elite FS 7, HDS-8 / HDS-8m / Gen 2, HDS-9 Gen3, HDS-9 LIVE, HOOK 9 / 9x, HOOK Reveal 9" |
Lorenz | Lorenz 2kW |
Lowrance | LRA-1800 / RB714A / DX42 |
Maretron | TSM810C |
Northstar | Explorer 6, Explorer AP380, M84 |
Raymarine | A50/50d, A57d, A70/70d, Axiom 9, Axiom 9+, C Series - C70, C95/C97, E95/E97, Element 9 HV, Element 9 S, ES 75/77/78 |
Simrad | Cruise 7, Cruise 9,GB40 10" Monitor, Go7 (with flush mount), Go9, Go9 XSE, NSS-8, NSS7 evo3, NSX 3009, NX40 |
Designed with the latest generation screens in mind, The SPR-8-AM is as low profile file as it can get. Achieve a neat and streamlined look overall, perfect for installations where there is limited space available.
Scanstrut's Arm Pod allows the installation of a MFD onto any standard or curved rail. Waterproof internal cable routing allows seamlessly running cables through the bottom of the pod, the machined aluminium clamp and into the rail. This gives the cleanest and most user-friendly way to mount an MDF right where it is most needed.
Fixings fit from back to front cutting their threads into injection moulded ABS inserts designed into the Pod front. This design allows for a quick and safe install and repeat servicing. The Pod seal is manufactured from a high tear strength silicone; it has a very high resistance to heat and UV so have confidence that it won’t deteriorate over time.

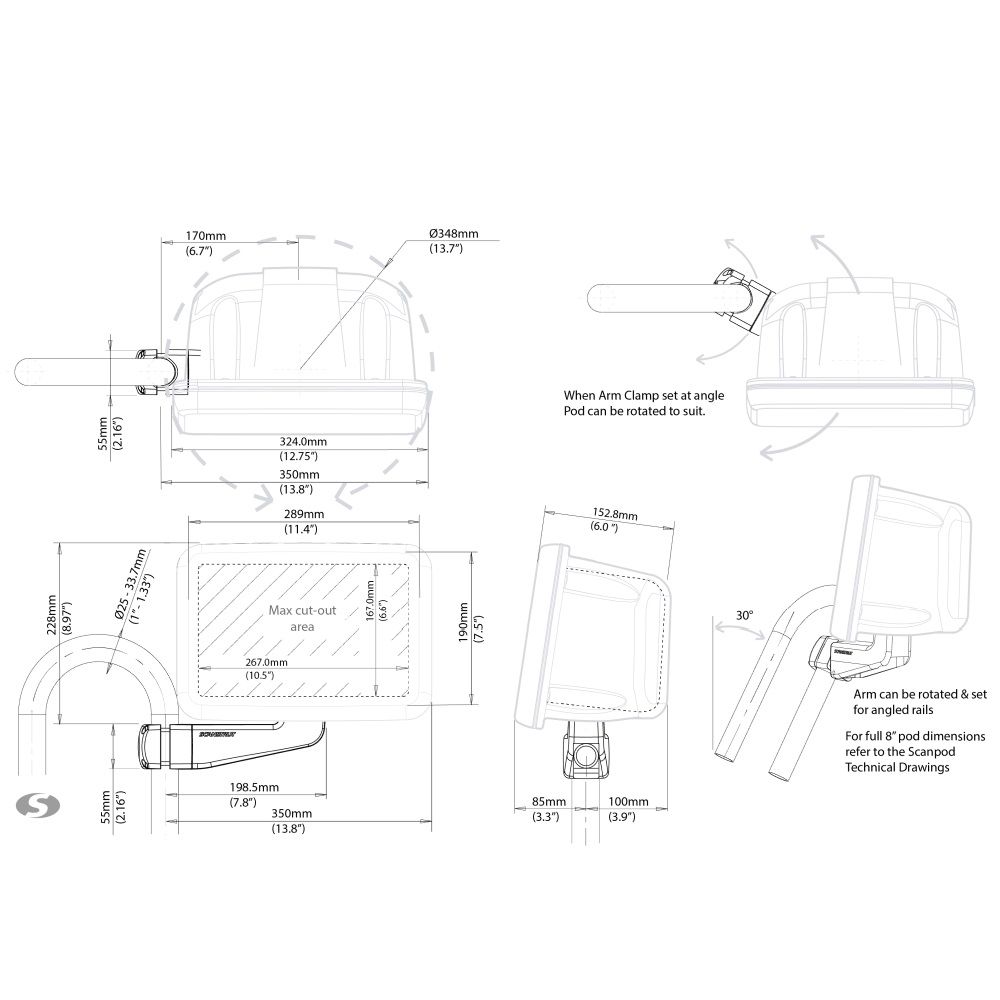

Fits pedestal rails from 25mm to 33.7mm (0.98” to 1.33”). Fits display onto standard and curved rails. Viewing angle can be set upon installation. Cables are routed internally through the clamp and onto the rail.
