Solar Technology 125W Double ETFE Flexi Solar Panel Glue & 20A PWM

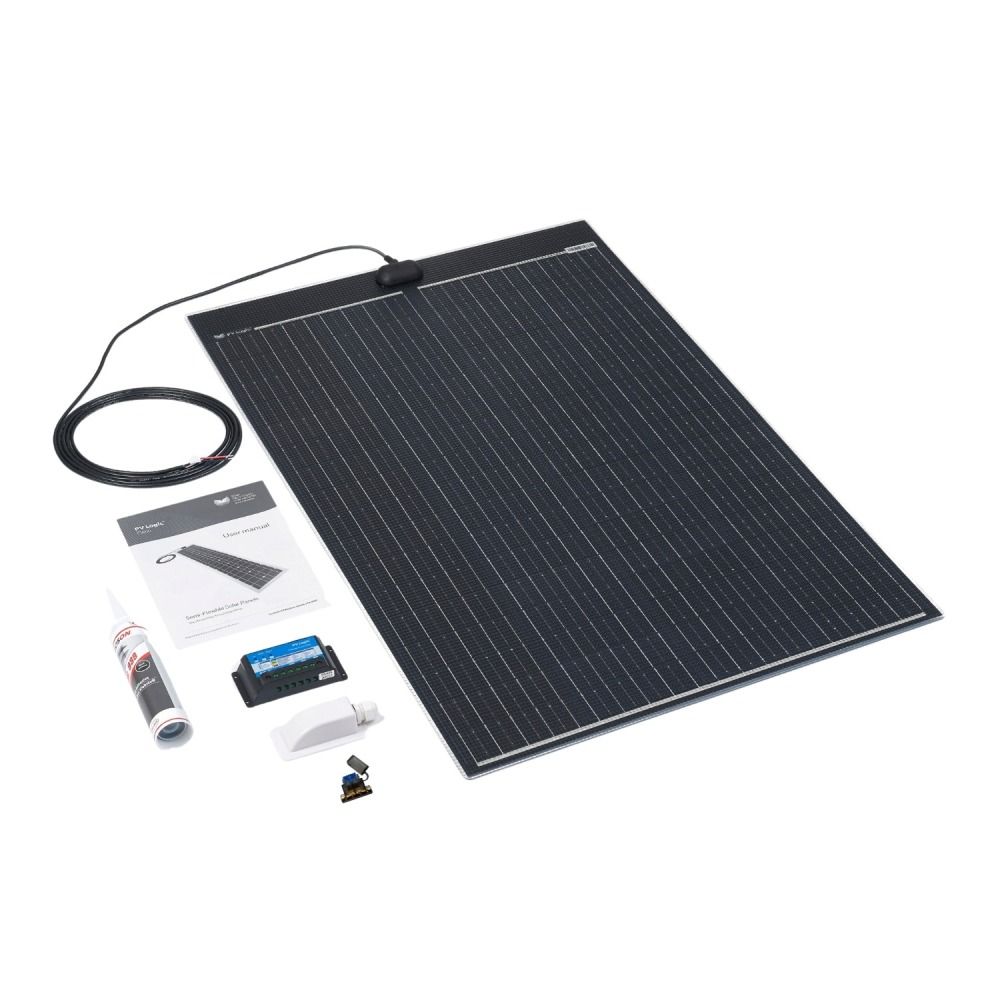

125W Double ETFE Flexible Top Exit Solar Panel Roof & Deck Top Kit Comprising of:
- 125W Double ETFE Flexi Top Exit Solar Panel
- 20A PWM Charge Controller
- 4m cable, cable gland, fuse and fuse holder
- Tube of Bonding agent
- Power: 125W
- Size: 665 x 1035 x 4mm
- Weight: 4.6Kg
- Amp hours per day: 38.7A
- Vmp: 19.4V
- Voc: 22.1V
- Isc: 6.77A
- Includes 20A PWM Charge Controller
- 4m cable, cable gland, fuse and fuse holder
- Includes Tube of Bonding agent
The 125W flexi double ETFE panel roof and deck top kit provides all you need to install the panel on the roof of a vehicle or the deck top of a boat. With a robust ETFE surface on both the top and bottom for resilience and longevity, the panel's efficient solar generation delivers up to 750W a day to ensure the leisure battery is charged and ready for use. Benefiting from a two year modue warranty, the fitting kit is supplied with a 4m cable, cable gland, fuse and fuse holder, 20A charge controller, elastic adhesive and detailed installation instructions.
The benefits of ETFE
Featuring a tough, double-sided, laminated outer layer, the 125W Flexi Double ETFE solar panel is designed and built for durability. High weather and corrosion resistant, the panel is IP67 rated and tested to ASTM B117 - ISO9227. That’s proven exposure to saltwater spray for more than 1000 hours as well as accelerated Ultraviolet (UV) testing to ISO 4892.
The dimpled surface pattern in our Flexi double ETFE panels deliver excellent light transmission to the high efficiency monocrystalline solar cells maximising solar power generation.
The panels are suitable for flat and slightly curved surfaces and perfect for campervans and leisure vehicle roofs where panel weight needs to be minimised.
Completely waterproof
Each panel is assembled to ensure complete encapsulation. This ensures the six layer heavy duty laminate protects the solar cell circuit from extreme conditions. The junction box is also injected with special silicone, guaranteeing no water ingress.
Superior design
There are no square edges on a PV Logic flexi solar panel! Rounded panel corners and a unique curved junction box provide superior adhesion, no snag lamination and no sharp edges. The junction box is mechanically fixed in addition to being bonded to the panel. Strain relief is provided for the fitted 4m UV stabilised PV cable ensuring it cannot be accidentally pulled from the junction box.
Easy fix
The flexi range can be bonded to flat or slight curved surfaces (3cm curve per metre) such as painted aluminium, metal, GRP and fibreglass using Henkel MS939 elastic adhesive, or similar.
Installation method
Please only use the glue pattern below for land based vehicles (this is covered in more detail in the instructions), which ensures air flow under the panel is achieved preventing heat build-up and potential warping under extreme heat.
