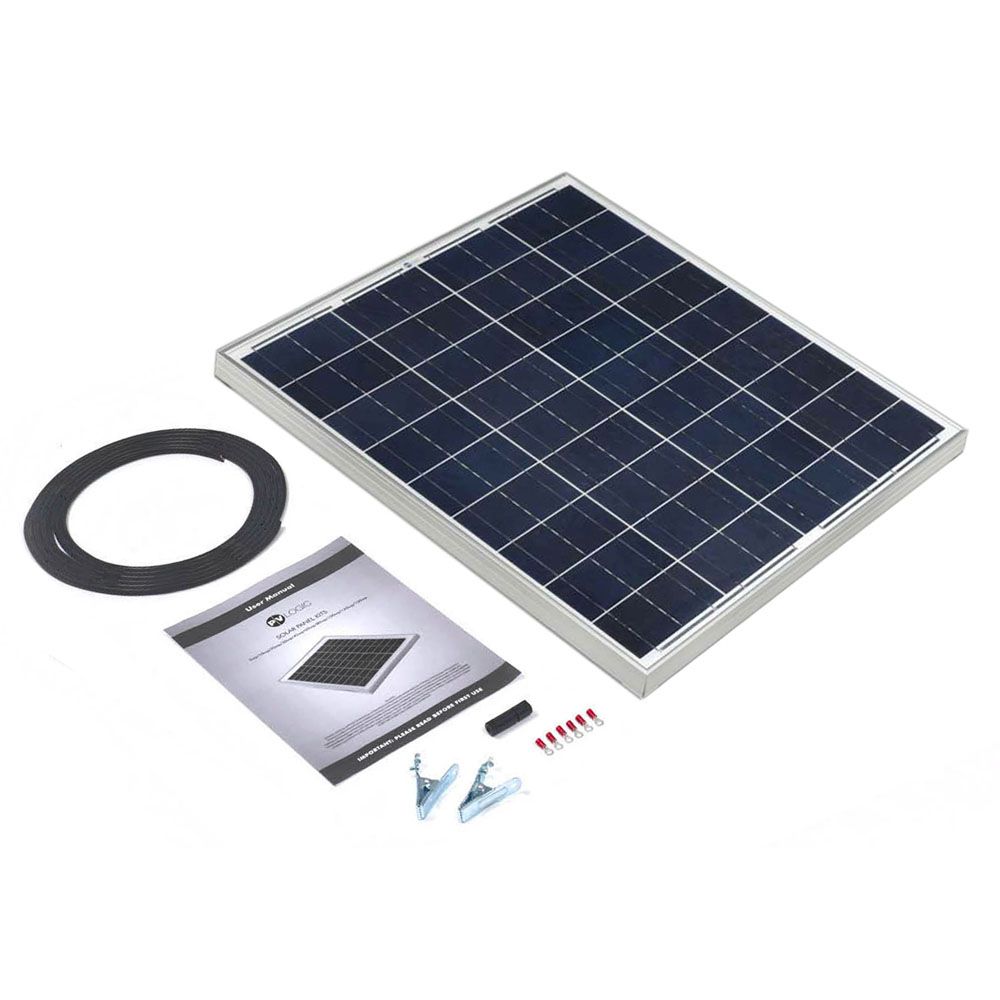

Solar Technology 60W Rigid Solar Panel Kit
The 60w PV Logic solar panel if often seen on roads powering illuminated street signage and belisha beacons and is often a standard fit for caravan and campervan manufacturers alike. Delivering up to 390wh per day, the 60w panel is suitable for powering most DC and some AC appliances via a separately purchased inverter.
- Power: 60W
- Size: 670 x 640 x 35mm
- Weight: 4.5Kg
- Amp hours per day (A): 20.94
- Charge Controller: 10Ah
- Vmp (VDC): 17.5
- Imp (A): 3.49
- Voc (V): 22
- Isc (A): 3.97
Build your perfect kit starting with a premium solar panel
With power ratings from 5W to 200W, our rigid solar panels fulfil a variety of energy needs ranging from a continuous trickle feed of power to prevent battery drain in caravans, motorhomes and boats to creating energy self-sufficiency for off-grid travel.
Our rigid panels also deliver energy to remote power systems, such as electric fences and gates as well as pumps in garden ponds.
Rigid solar panels rated 80w and above include bypass diodes to minimise the effect of shadows so that energy generation is maximised.
A charge controller should be used for rigid solar panels of 20w and above to protect the battery from being overcharged and to prevent reverse current drain.
Put yourself in control
All our charge controllers are capable of charging 12V and 24V single or dual batteries.
The MPPT Pro charge controller increases solar yield by up to 20% over a standard charge controller by artificially modifying the voltage from s solar panel system to actively match any battery's requirements. This means that whatever the weather conditions your panels will deliver maximum power with minimum electrical loss.
The MPPT charge controller comes with its very own free-to-download Bluetooth app (Apple and Android) to display how the solar system is performing. The app software links your smartphone to the MPPT Pro and shows performance figures for a single or dual battery/batteries - very useful in a motorhome where the system can intelligently charge the leisure and starter batteries.
An optional Activity Monitor is also available with the MPPT Pro to provide all performance data on a LCD display.
