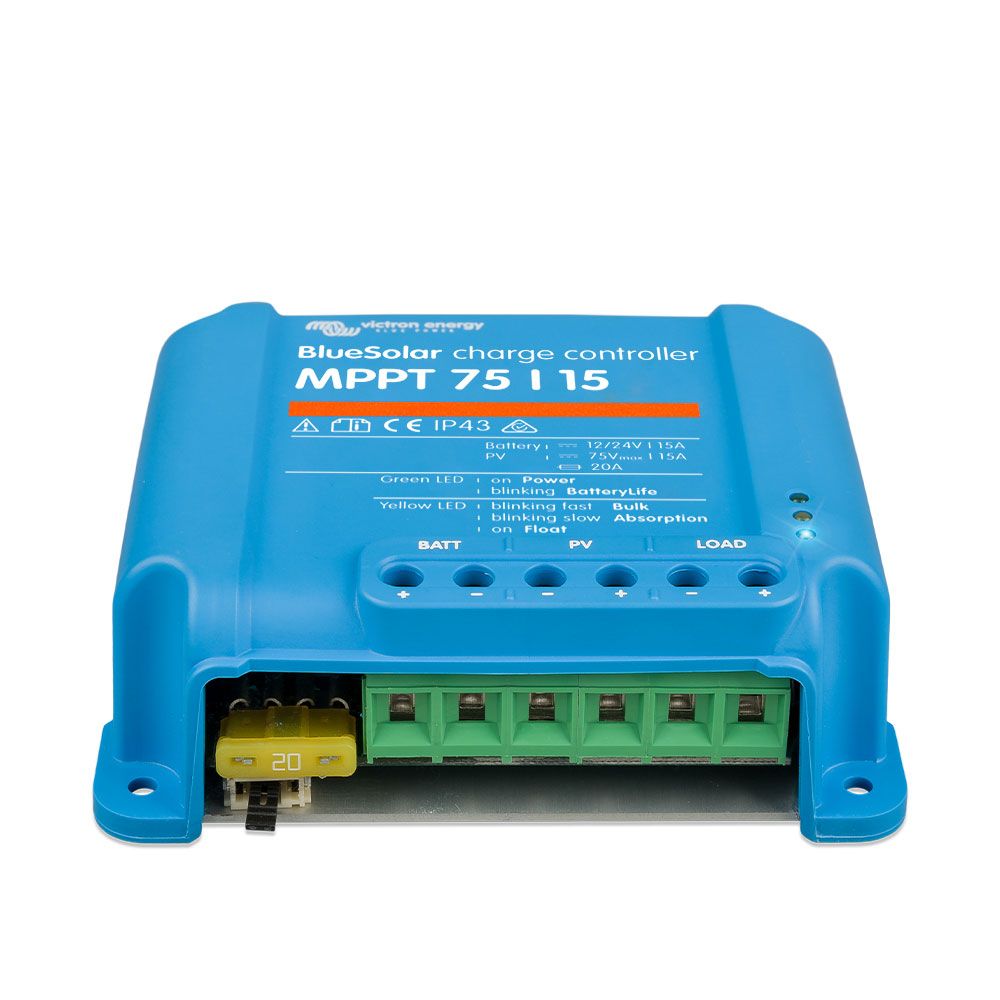

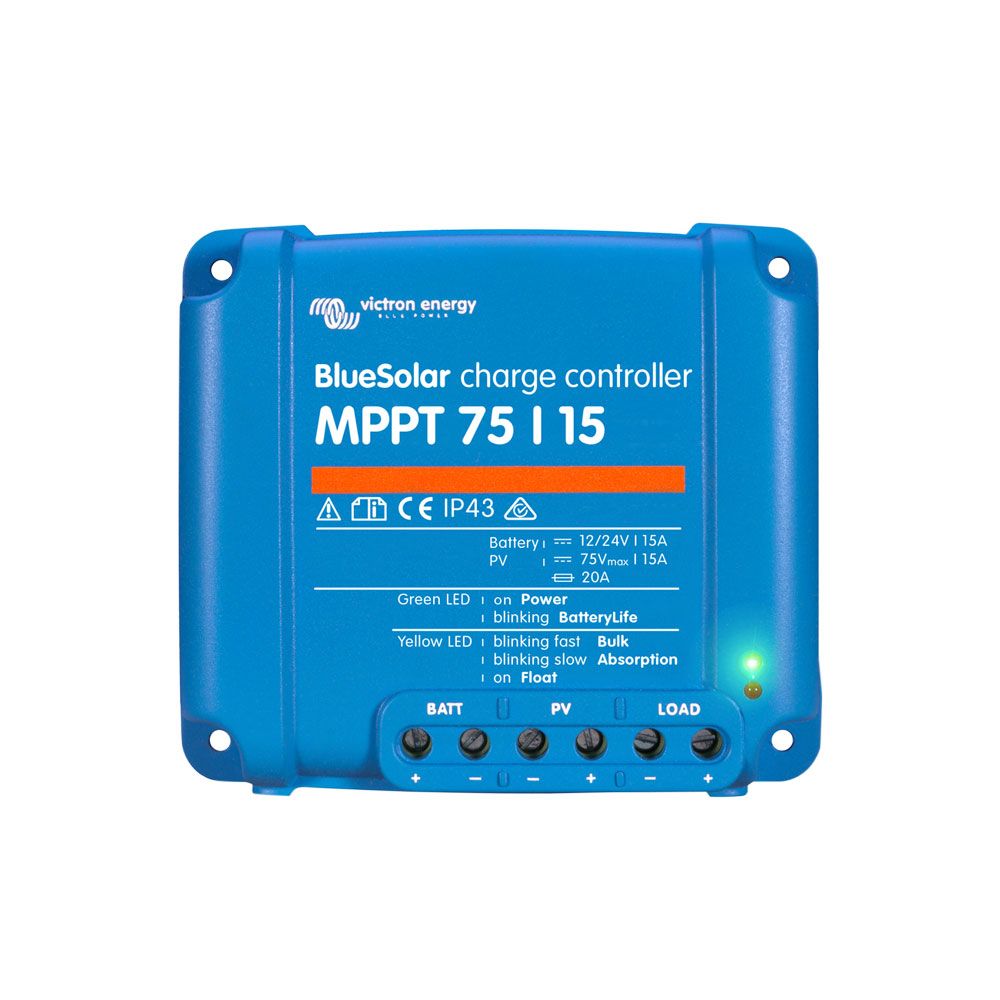

Victron Blue Solar MPPT75/15 12/24-15A
A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, BlueSolar maximises this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. BlueSolar maintains battery health, extending its life.
- Voltage: 12/24V
- Rated Charge Current: 15A
- Nominal PV Power, 12V: 220W
- Max. PV Short Circuit Current: 15A
- Max. PV Open Circuit Voltage: 75V
- Protection Category: IP43 (electronic components), IP22 (connection area)
- Efficiency: 98%
- Bluetooth Enabled: No
- Dimensions: 100 x 113 x 40mm
- Weight: 0.5Kg
A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, BlueSolar maximises this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. BlueSolar maintains battery health, extending its life.
Features of the BlueSolar MPPT 75/15
MPPT: Ultra Fast Maximum Power Point Tracking - By constantly monitoring the voltage and current output of your solar (PV) panels, MPPT technology ensures that every drop of available power is rinsed out of your panels, and harvested for storage. The advantage of this is most noticeable when the sky is partially clouded, and light intensity is constantly changing.
Remote Monitoring and Control - Remotely control and monitor the extensive features of your BlueSolar MPPT charger by attaching a Bluetooth dongle and pairing it with your smartphone or other device via VictronConnect. If your installation is connected to the internet with a GX device, the Victron Remote Management Portal (VRM) provides access to the full power of your MPPT, anytime, anywhere; both VictronConnect and VRM are free to use.For remote installations – even when there is no internet connection nearby – you may be able to monitor your MPPT by connecting the GlobalLink 520.
Load output - The intelligent Load output function prevents damage caused by running batteries ‘flat’. You can configure the voltage at which BlueSolar disconnects a load – thereby preventing excessive drain on your batteries. And here’s the clever bit: BlueSolar will attempt a 100% recharge every day. If it can’t – during periods of poor weather – it raises the disconnect voltage, daily, until it achieves success. We call this feature BatteryLife because it maintains the health, and extends the life of your battery.
Using the VE.Direct to Bluetooth Smart dongle with the BlueSolar MPPT 75/15 will allow you to see your MPPT information on iOS and Android devices, using the VictronConnect App. View information wirelessly such as battery status and solar panel power, plus other useful data.
