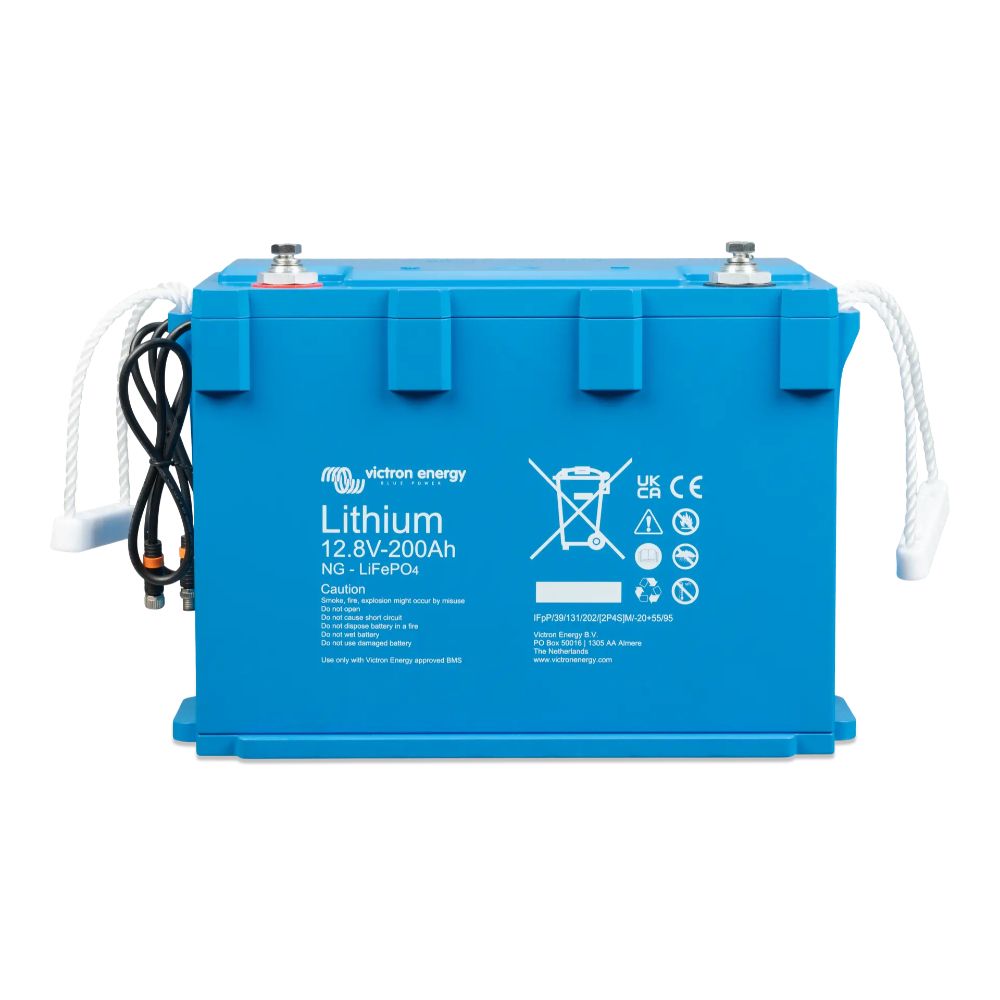

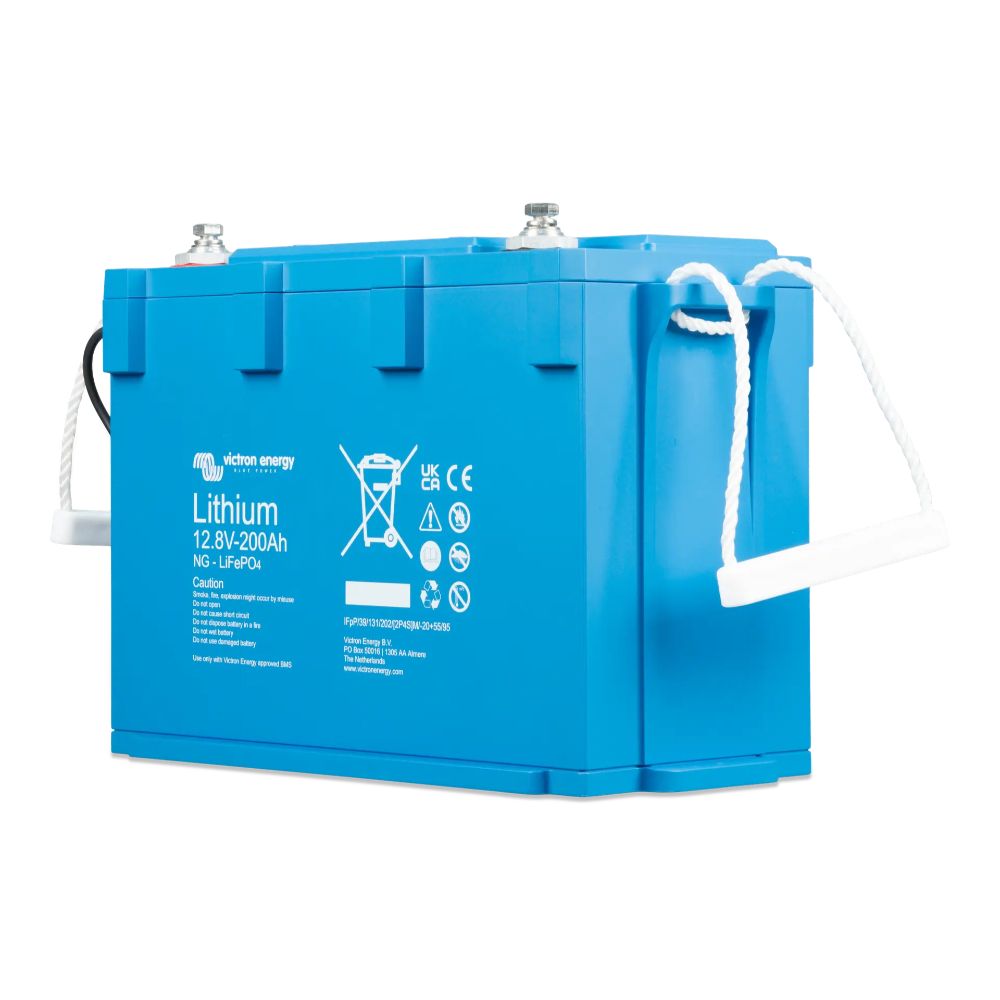

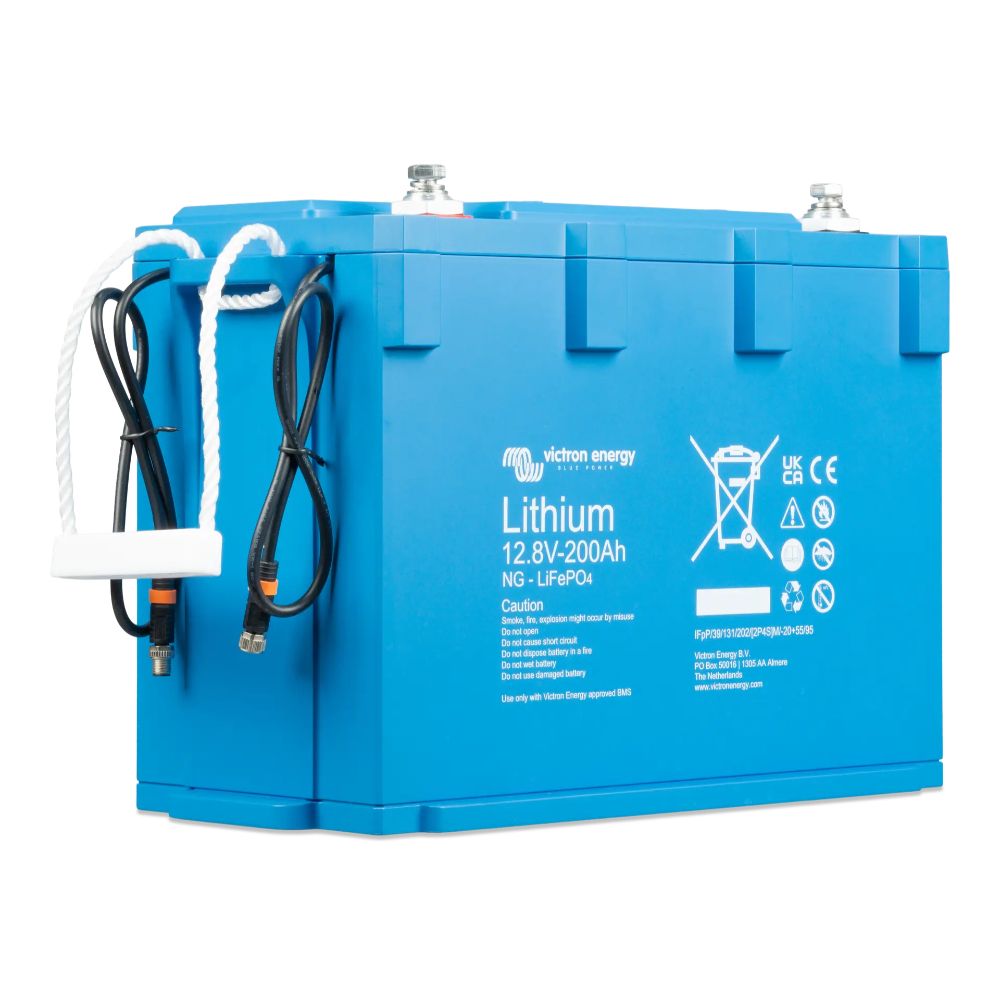

Victron Lithium NG Battery LiFePO4 - 12.8V - 200Ah
Building upon the success of Victron's Lithium Smart Series, the NG (Next Generation) series incorporates significant enhancements. Victron Energy Lithium NG batteries are Lithium Iron Phosphate (LiFePO₄ or LFP) batteries available in various capacities with nominal voltages of 12.8 V, 25.6V and 51.2V.
- Multiple improvements including added read-out of cell voltages and temperatures
- Maximum single bank size increased to 385kWh
- Bracket mounting and strap mounting
- Protection class: IP65
- Nominal Voltage: 12.8V
- Nominal Capacity: 200Ah
- Nominal Energy: 2560Wh
- Power Connection: M8 (Threaded inserts and bolts)
- Dimensions: 235 x 341 x 160mm
- Weight: 19Kg
Building upon the success of Victron's Lithium Smart Series, the NG (Next Generation) series incorporates significant enhancements. Victron Energy Lithium NG batteries are Lithium Iron Phosphate ( LiFePO₄ or LFP) batteries available in various capacities with nominal voltages of 12.8 V, 25.6V and 51.2V.
Integrated shunt - The battery data (battery voltage , current and temperature) are transmitted to the BMS and evaluated there, i.e. to calculate the state of charge, which can then be read out via VictronConnect or a GX communication centre, or to create and issue specific warnings and alarms.
Automatic s etup, monitoring and control via VictronConnect App or a GX device and the VRM Portal - All battery parameters are managed by the BMS automatically . The BMS automatically detects the system voltage and the number of batteries in parallel, series and series/parallel connection. The BMS (from now on Lynx Smart BMS NG 500 A/1000 A, further models to follow ) is mandatory and must be purchased separately.
Monitoring and control take place via VictronConnect (every BMS model has Bluetooth) , a GX communication centre or the VRM Portal. You can view battery parameters such as cell status, cell voltages, battery current and temperatures in real-time. The battery firmware is automatically updated by the BMS.

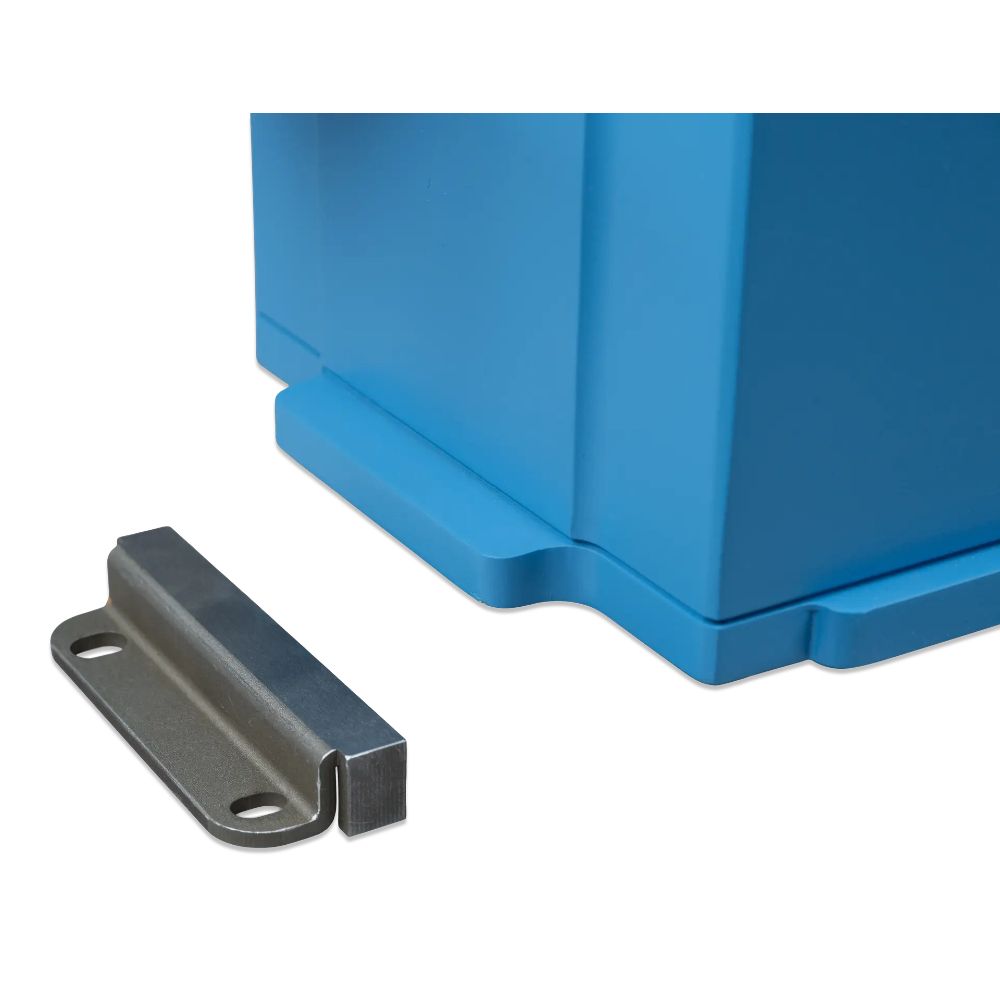

Easy bracket mounting - Mounting brackets make the installation easier and ensure that the battery is optimally secured against slipping and tipping over.
Increased ingress protection (IP-rating) - The Lithium NG batteries are effectively sealed against dust and can withstand low -pressure water jets, making them suitable for environments where exposure to dust and water is a concern.
Low self-discharge rate - The self-discharge rate has been significantly improved and is now a maximum of 2 % of the battery capacity per month. A low self-discharge rate contributes to the overall performance, longevity, and reliability of the NG batteries.
