Garmin Onboard System - MOB GOS 10 Hub & Tag

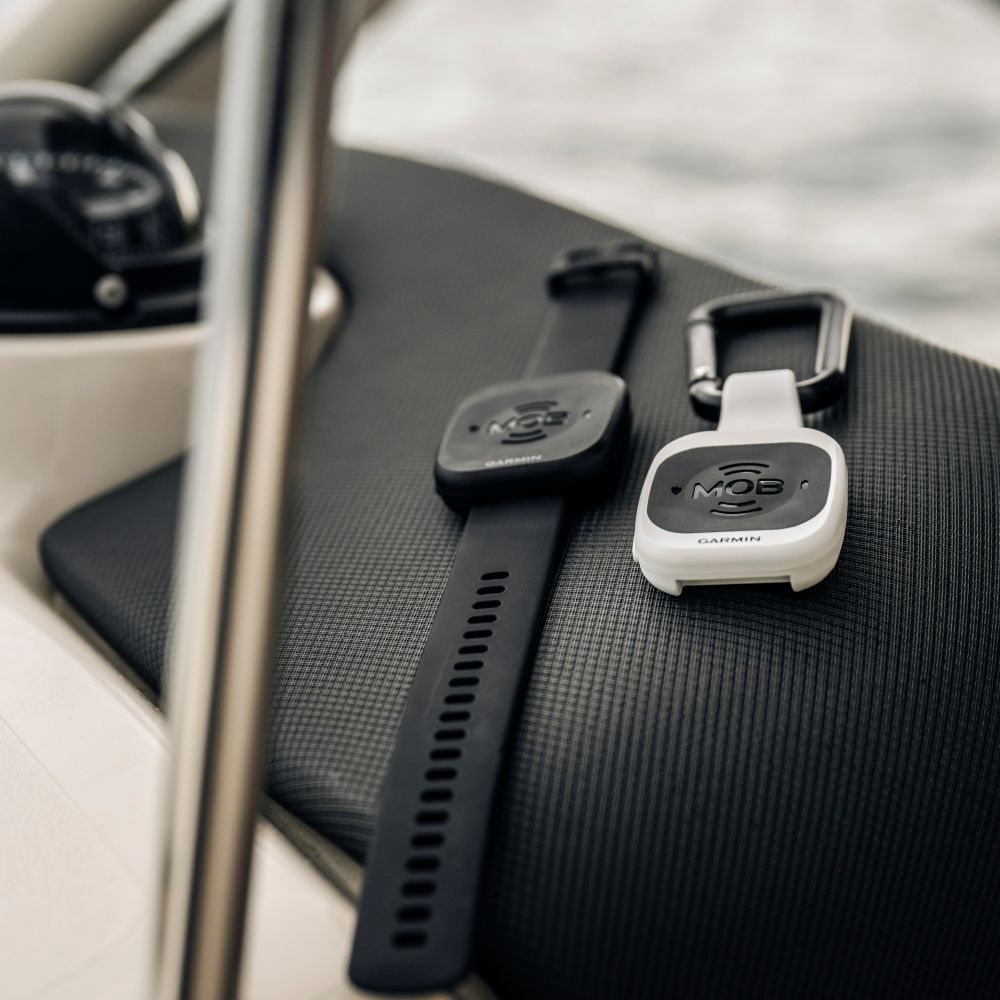

- Tags can be worn on the wrist, carabiner or key ring float
- Tags can be designated as either Captain or Passenger
- MOB Tags set as Captain enable engine cutoff
- Temporarily unprotect Tags with ease
- The GOS 10 Hub fetures a loud external alarm
- Tag battry life exceeds a typical seasons use
Technical Specifications
X| General | |
|---|---|
| Number of tags supported | 8 simultaneous passengers and captains |
| User Interface | Compatible Garmin chartplotter |
| MOB Alarm | External beeper and MFD alert |
| Engine Cutoff | Yes |
| View MOB Details on MFD | Yes |
| View Tag Status on MFD | Yes (battery life, signal strength, protection status) |
| Manage Tags on MFD | Yes (arm/disarm, captain/passenger) |
| Wireless Engine Kill | Yes |
| GOS 10 Hub | |
|---|---|
| Dimensions | 91.55 x 155.12 x 48.47mm |
| Weight | 171.7g |
| Wireless range | Up to 20m (66 ft) |
| Supply voltage range | 10-32 V |
| Operating temperature range | -15@deg;C to 70@deg;C |
| Typical power consumption | 50mA @ 12V or 0.6W |
| NMEA 2000 LEN | 1 |
| Engine compatibility | Inboard, outboard, sterndrive from all major manufacturers |
| Engine interface | Hardwired, in-line connection to ignition harness |
| Number of engines supported | Up to 4 close-to-stop or 2 open-to-stop engines |
| Water rating | IPX6 and IPX7 |
| Compass-safe distance | 5 cm |
| MOB Tag | |
|---|---|
| Dimensions | 43.94 x 38.60 x 11.96mm |
| Weight | 21.5g |
| Wireless range | Up to 20m (66 ft) |
| Battery type | CR 2032 coin cell |
| Battery life | >1200 hours of connected time |
| Water rating | IEC 60529 IPX8 (5 ATM) |
| Attachment | Wrist strap or carabiner |
Tag what matters, Built so everyone can move freely and boat confidently, the Garmin OnBoard system uses wireless tags instead of traditional tethered cords integrating with any compatible Garmin chartplotter.
What To Love
Captain Tag - Captain MOB detection will trigger engine cutoff, a MOB waypoint on the chartplotter and an audible alarm on the MFD and hub.
Wireless: No Strings Attached - The wearable MOB tags are part of a wireless MOB system - letting wearers move untethered while still being monitored.
Passenger Tag - Passenger MOB detection will trigger a MOB waypoint on MFDs plus an audible alarm on the MFD and hub.
Engine Cutoff System - Should a captain tag trigger an MOB event, the system will cut power to the engines - letting the captain return to the vessel.
Captain or Passenger Tags - Through the Garmin chartplotter interface, you can designate each tag as either captain or passenger - changing their MOB action.
Waypoints - When paired to a compatible Garmin chartplotter, a waypoint will be marked at the location where the MOB tag lost connection with the vessel.
Boat With Confidence
Audio Alarm - The GOS 10 hub includes a loud external alarm - alerting all onboard to a MOB event.
Pair Multiple Tags - Provide peace of mind for up to 8 tags at a time.
Vast Compatibility - This product will work with any boat that has an engine cutoff switch.
In The Box

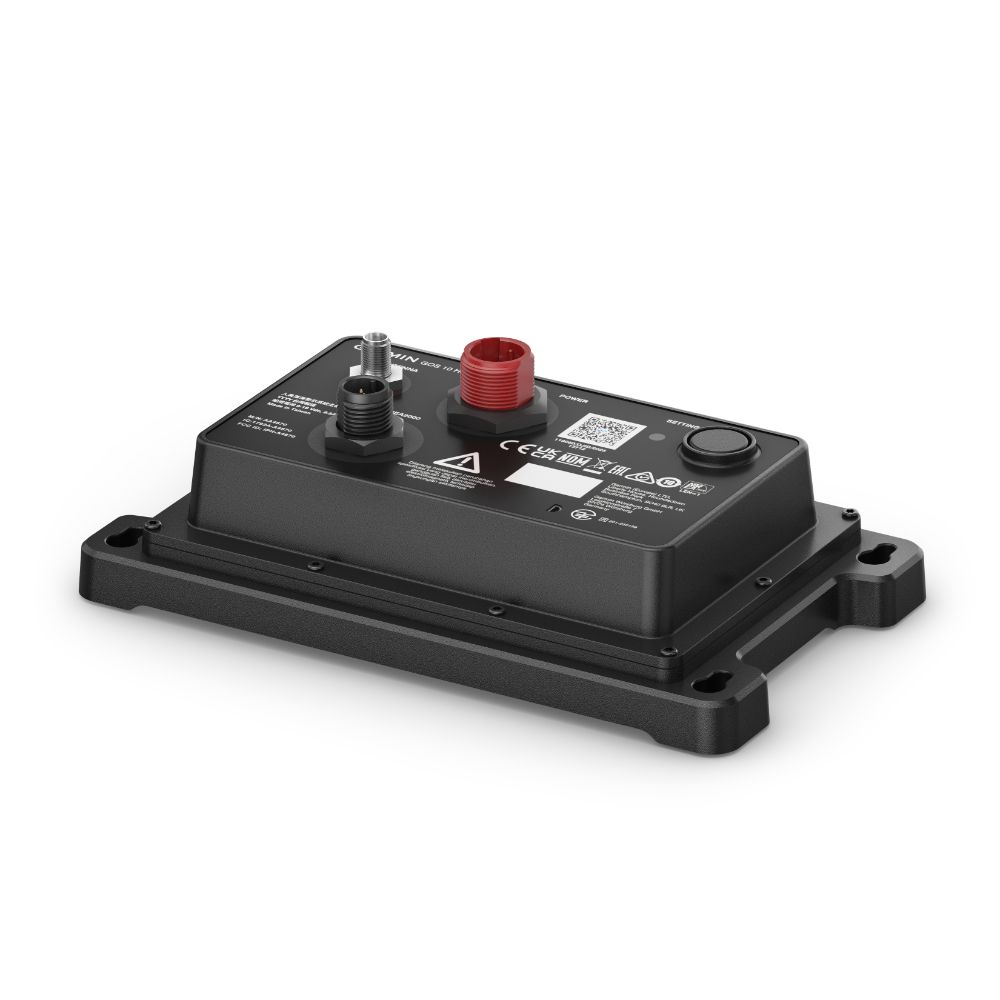

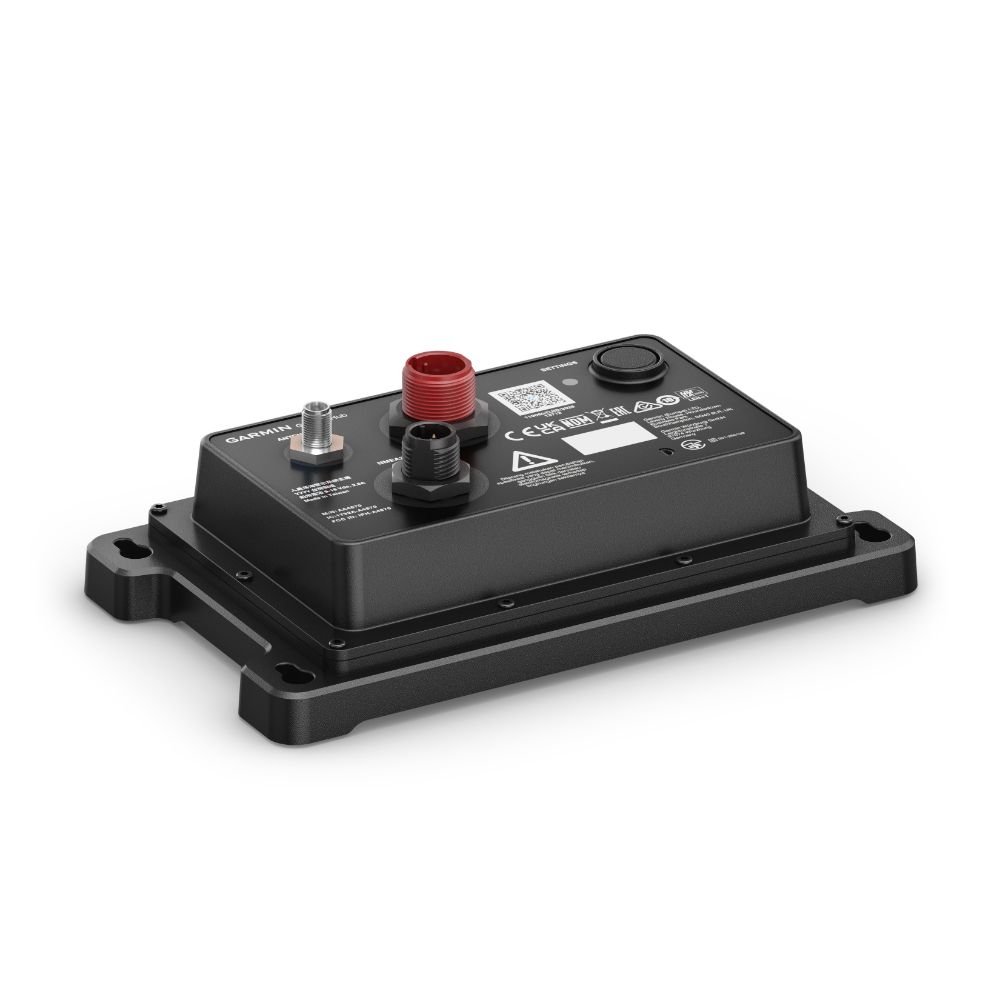

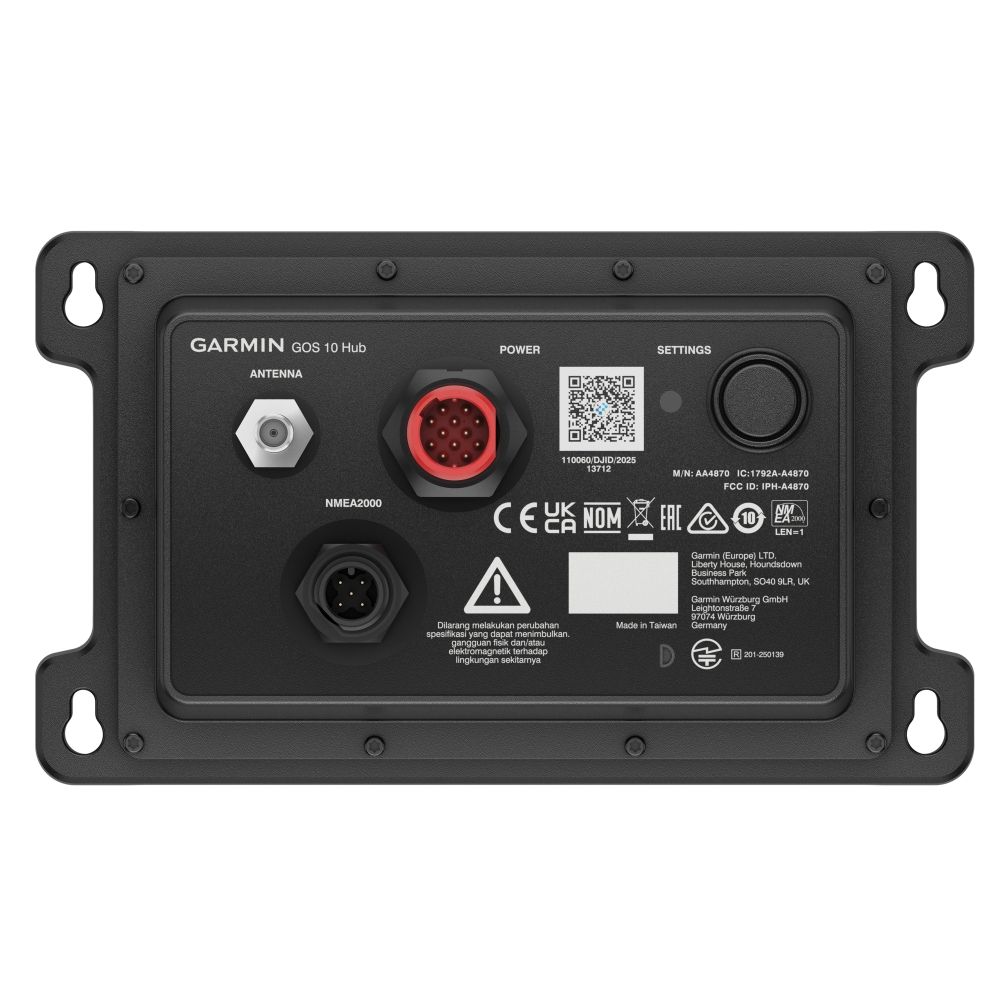

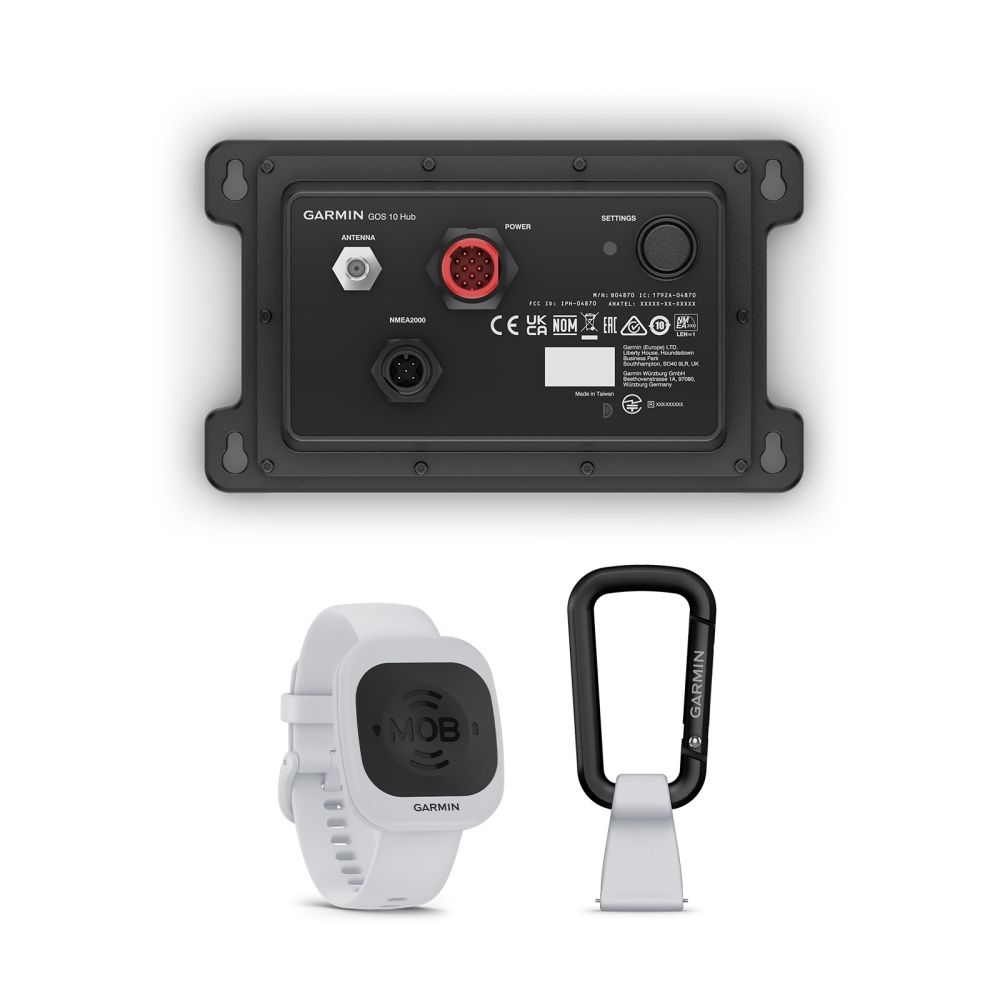

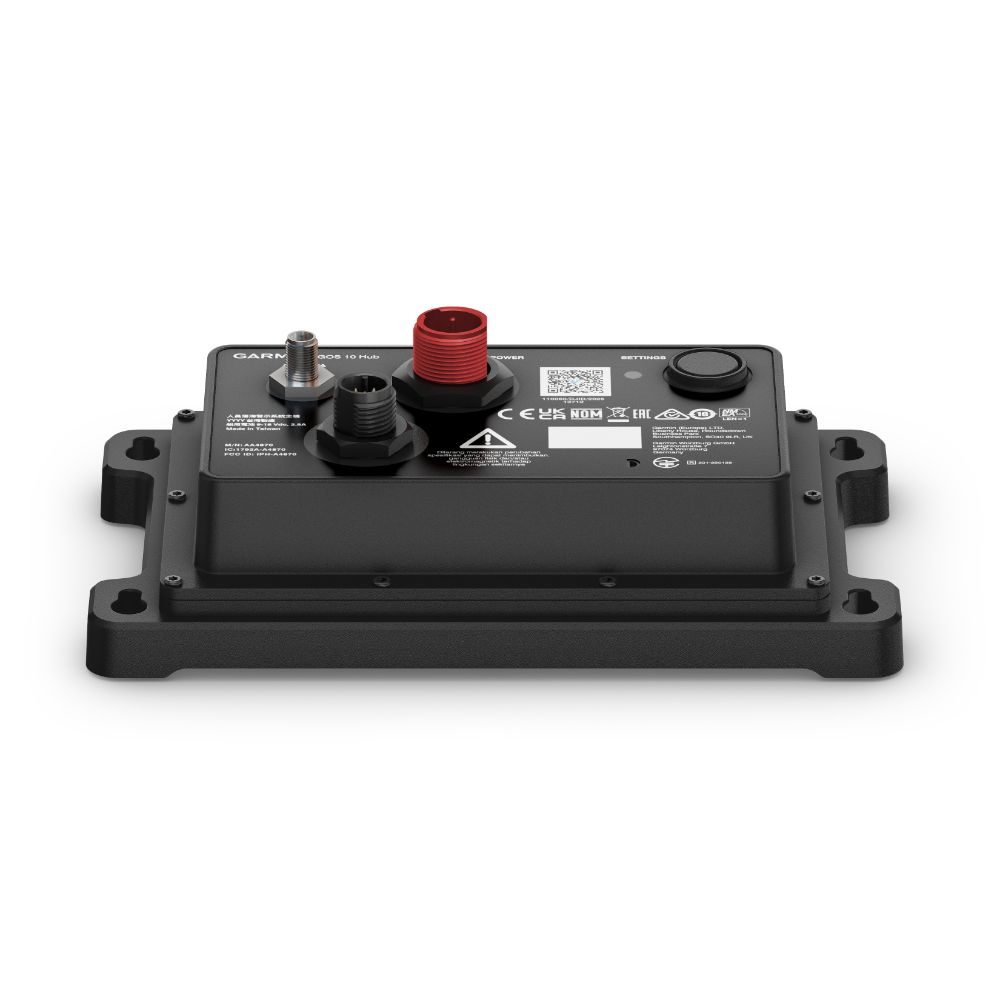

- GOS 10 hub

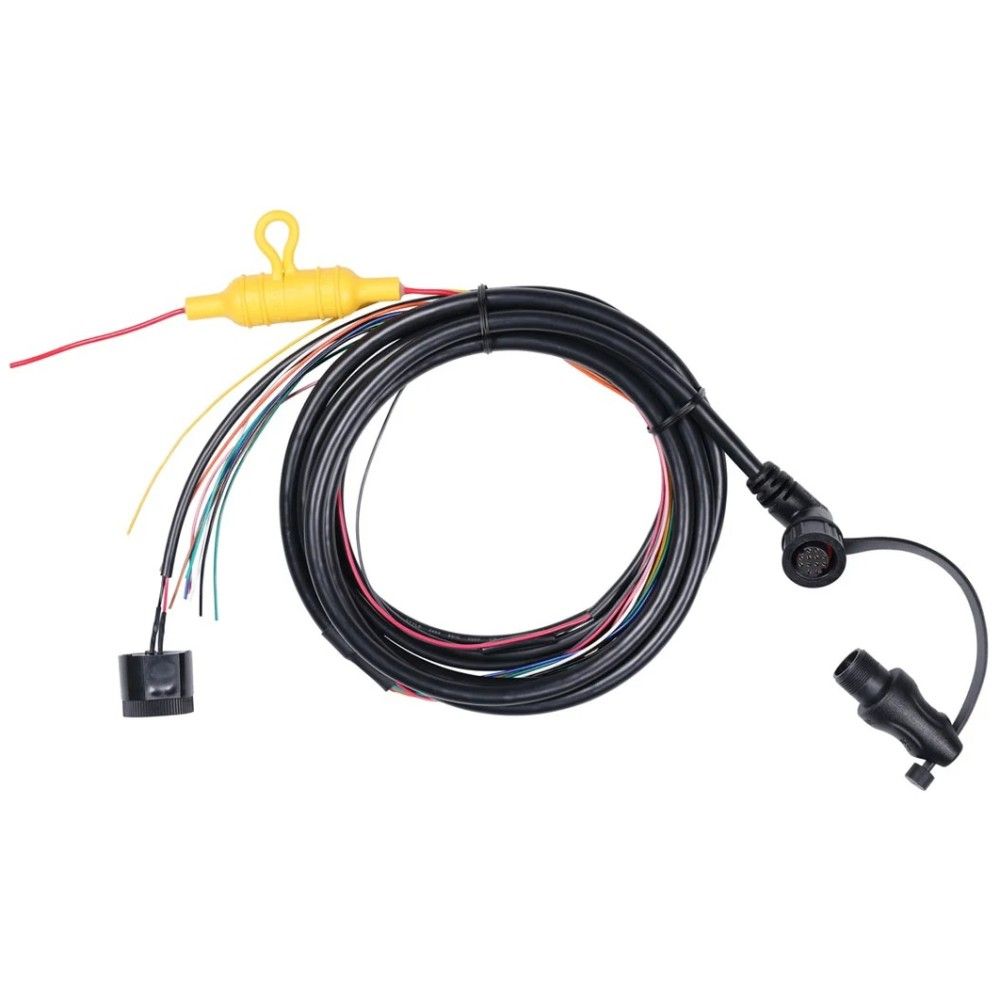

- 12-pin fused power and engine cut-off harness with external buzzer

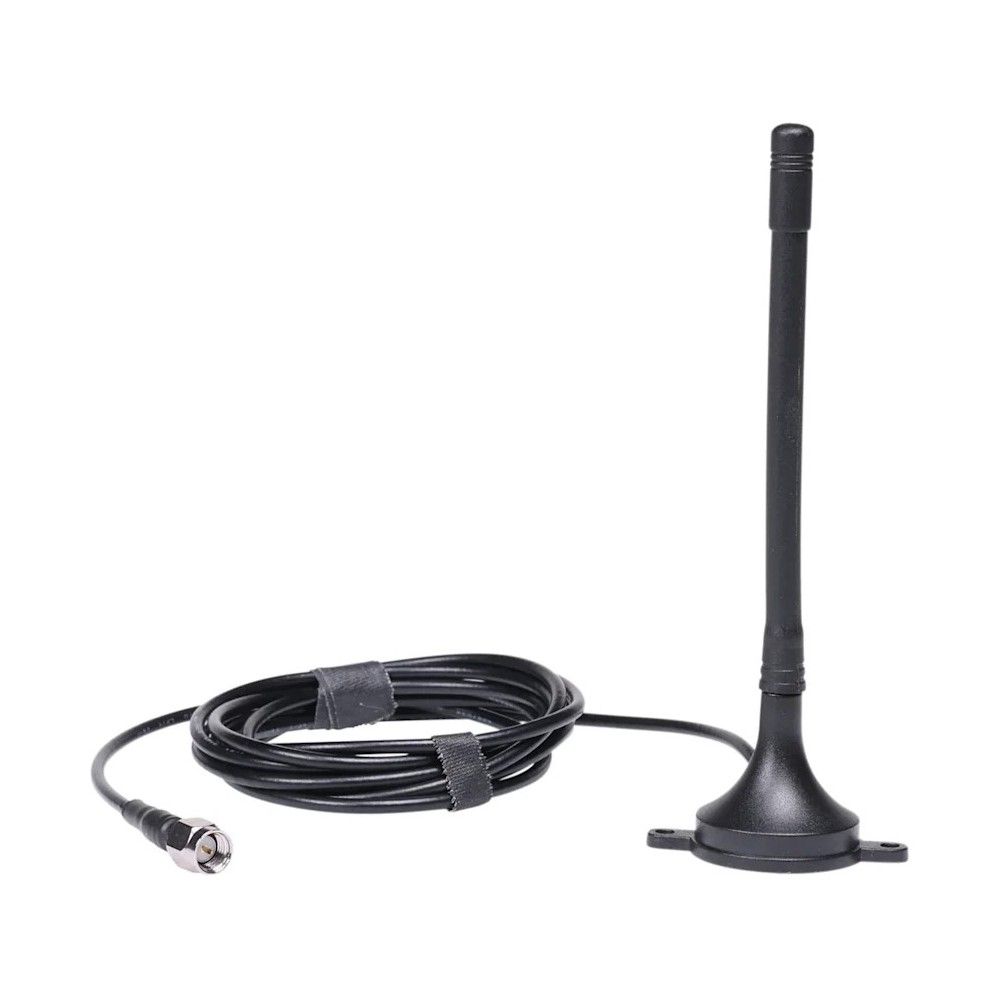

- External antenna for wireless connection to MOB tags
- NMEA 2000 tee and 6 ft drop cable
- White wireless MOB tag
- CR2032 coin cell battery

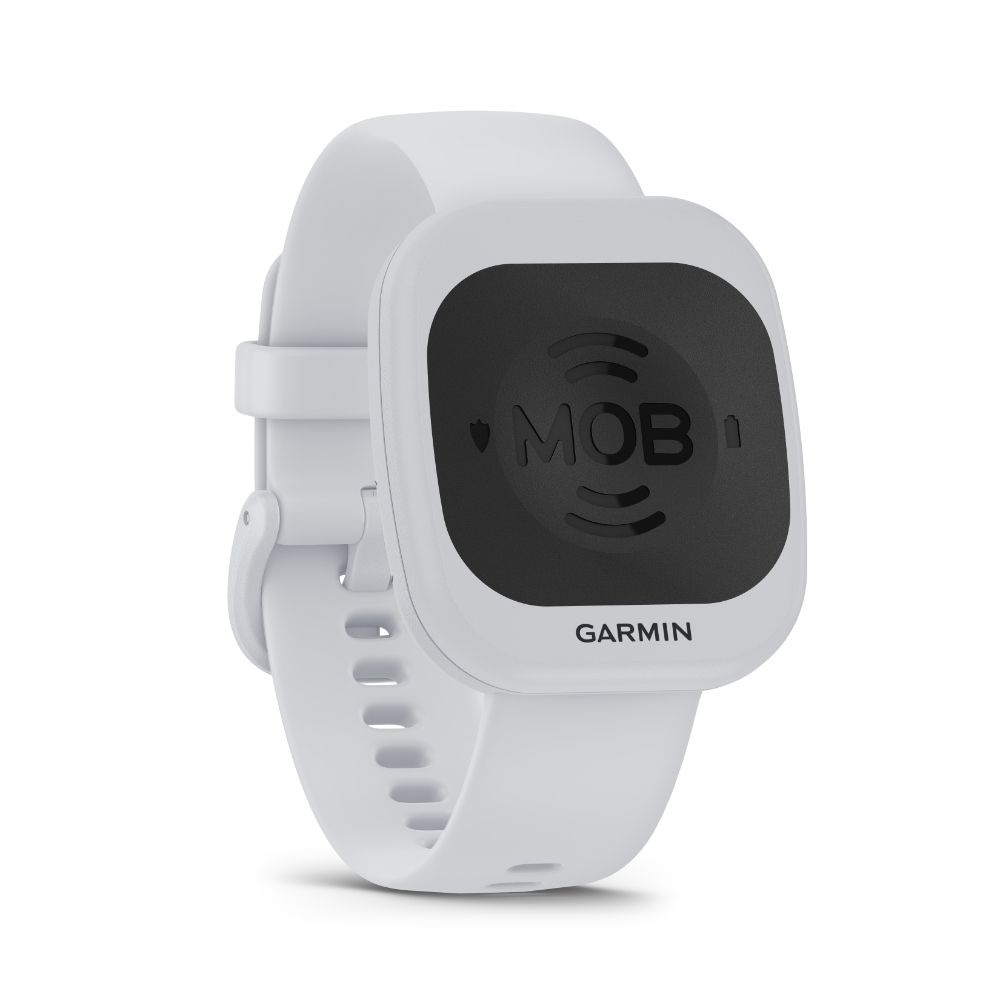

- White 20 mm quick release band

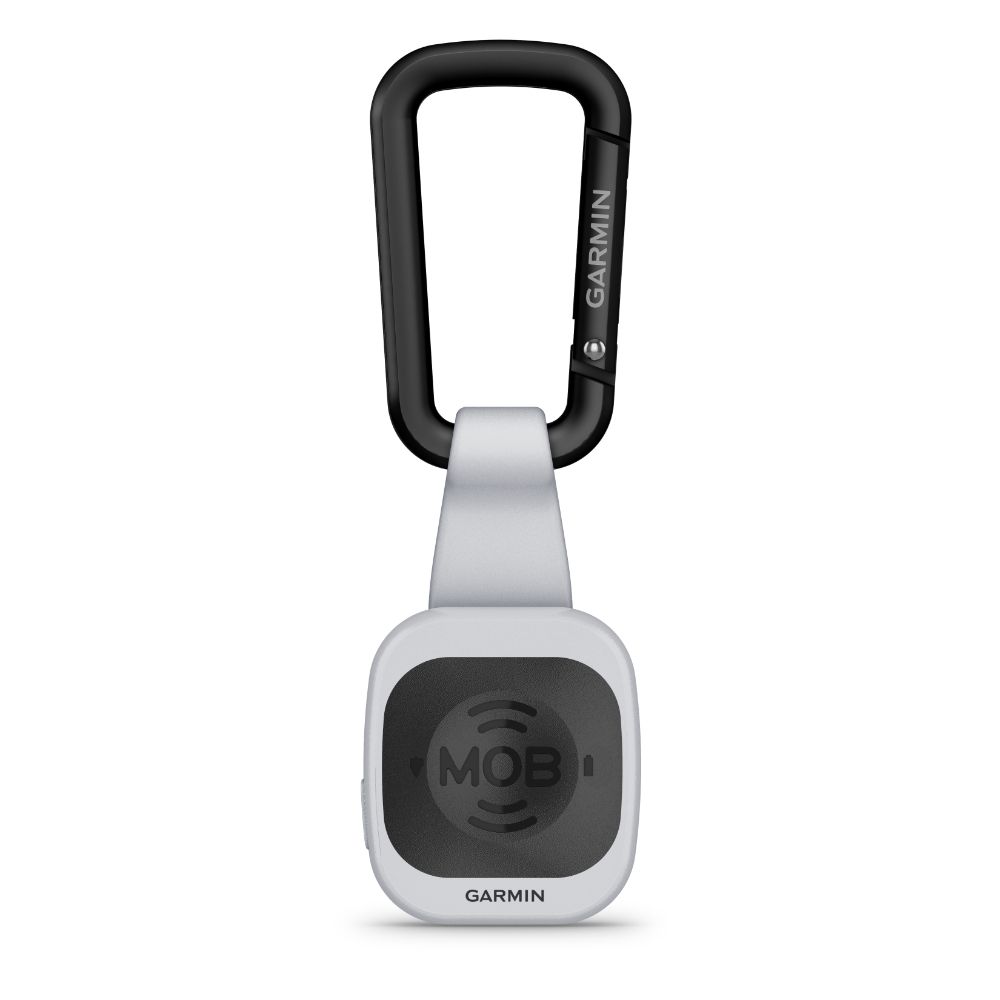

- Carabiner with 20 mm quick release attachment

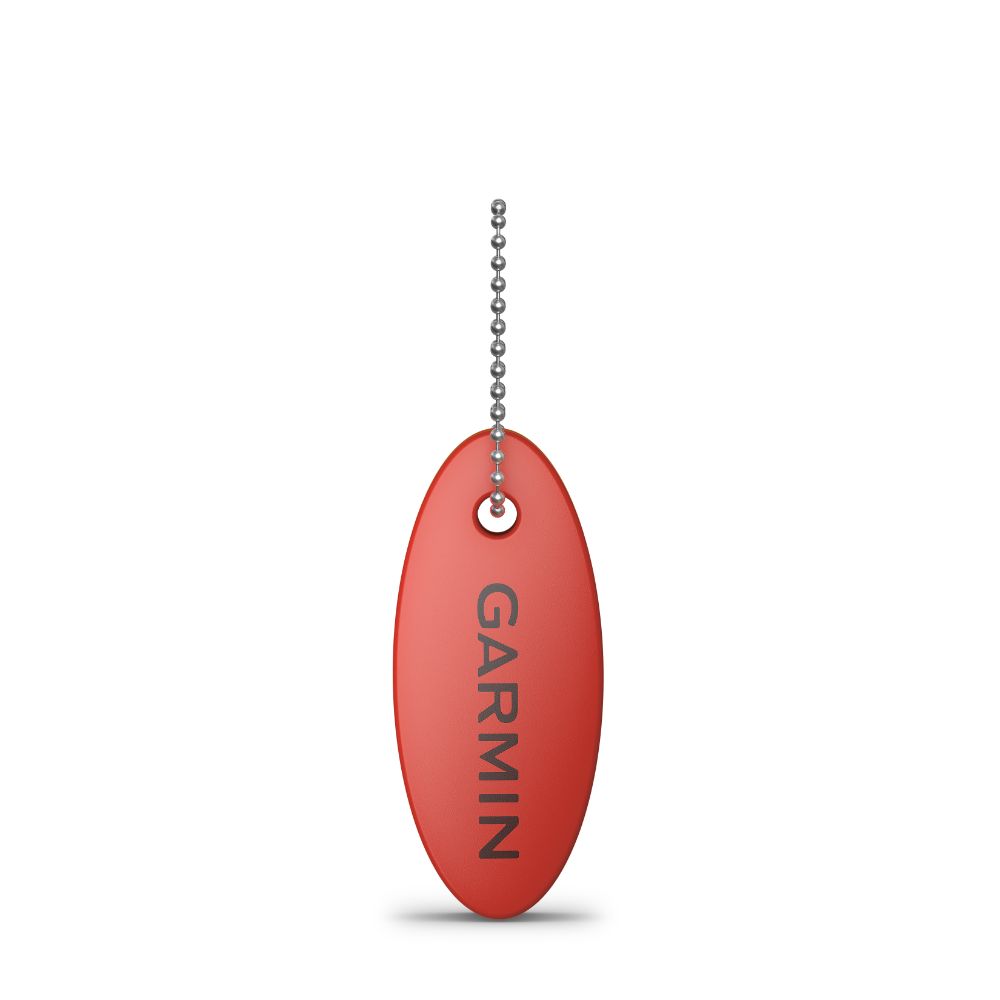

- Floating foam keychain
- Installation hardware
- Documentation
