Zipwake Series E Distribution Unit with 6m Power Cable
SKU
301-2012033
The Distribution Unit (DU-E) supplies the system with power and can accommodate up to three Series E dual-servo interceptors.
SRP ex vat:
£420.92
Reserve - Stock Pending. Please call
- Supply Voltage: 12 - 32 V DC
- Power Consumption: 0.1 W max
- Protection Fuse: 10 A ATO
- Power Cable Length: Length 6 m (19.7 ft), Diameter 9 mm (0.35 in), 12 AWG
- Operating Temperature: -20° to +85°C (-4° to +185°F)
- Storage Temperature: -40° to +90°C (-40° to +194°F)
- Waterproof Rating: IP67 with cables and/or protective caps mounted
- Oil resistance: Common engine fluids
- Compliance: CE, FCC, SAE J1171 Ignition Protected
- Weight: 1.1 kg (2.4 lbs) including power cable
The unit is connected to the main control panel or integrator module. It is robust, waterproof, oil resistant and ignition protected for mounting in an engine room.
The power cable is included for easy connection to a battery. The distribution unit has built-in electrical protection, including its own protection fuse.

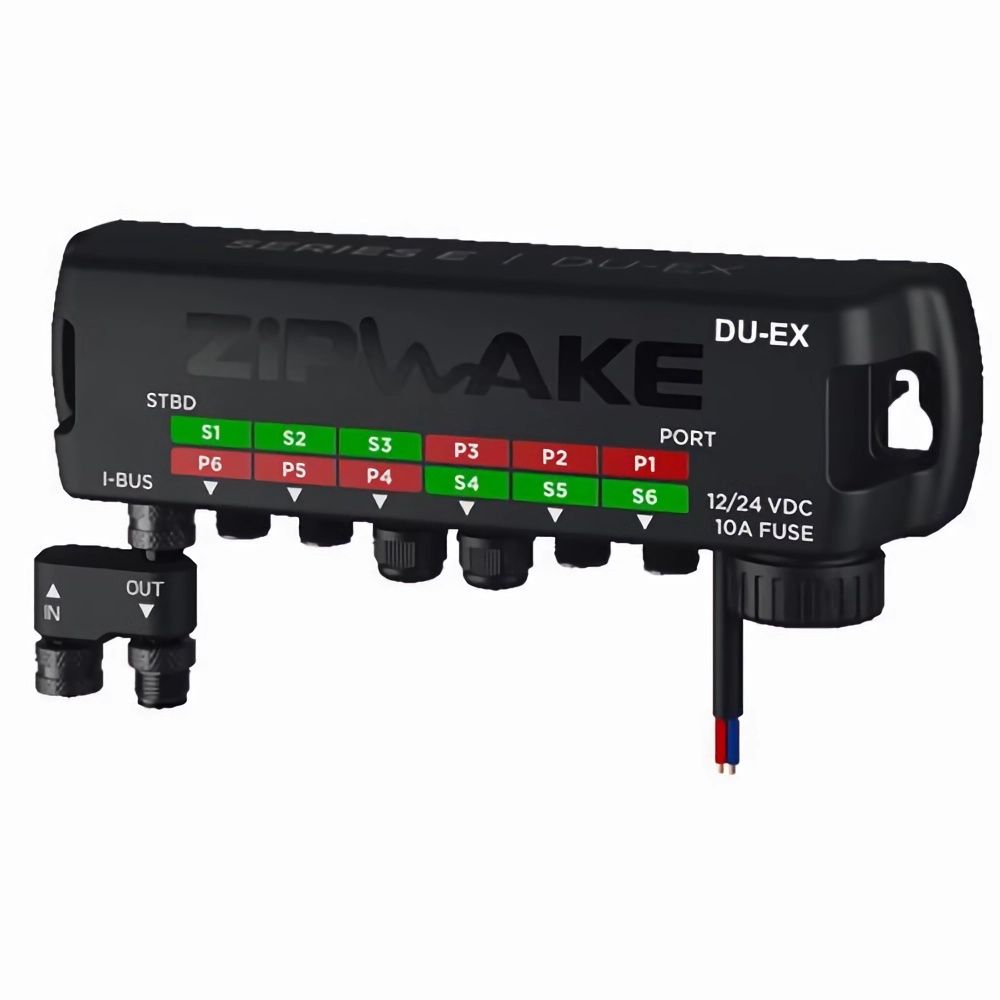

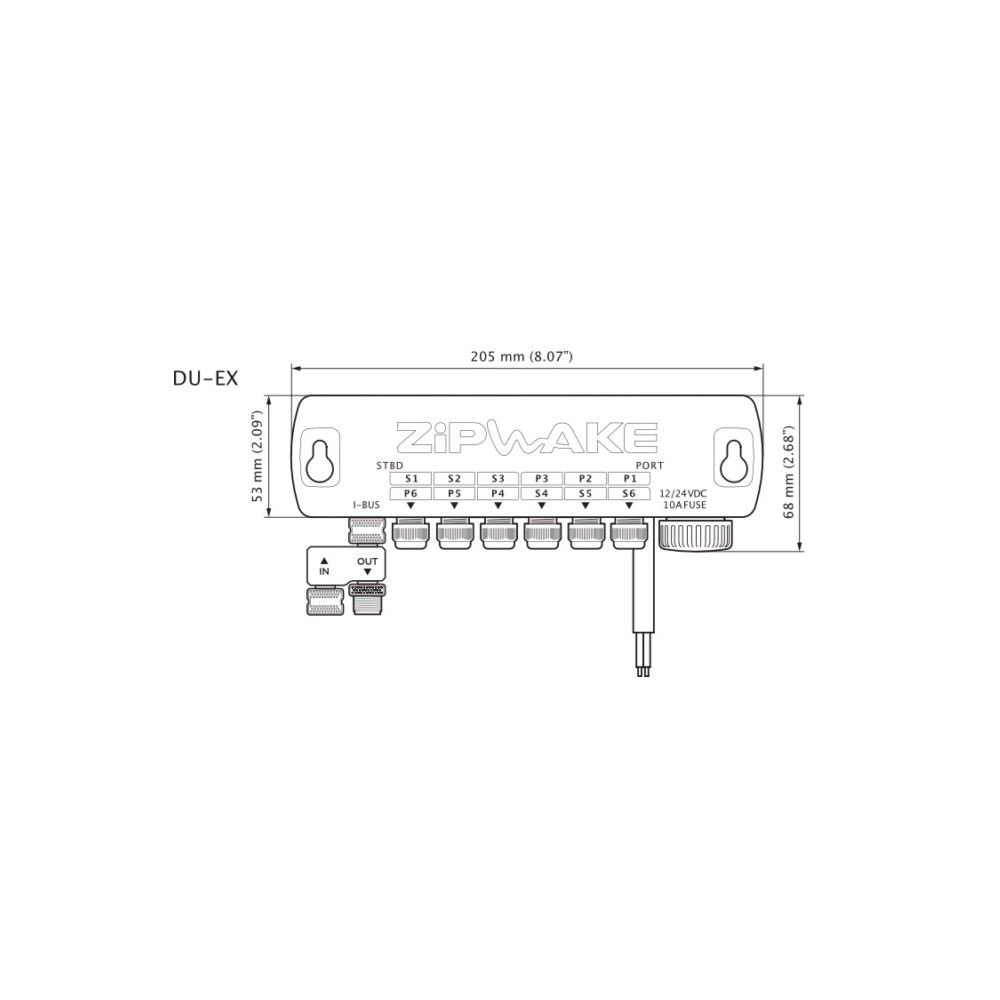

The system can be expanded with the Distribution Expansion Unit (DU-EX) in order to accomodate up to six Series E interceptors or any mix with Series S interceptors.
