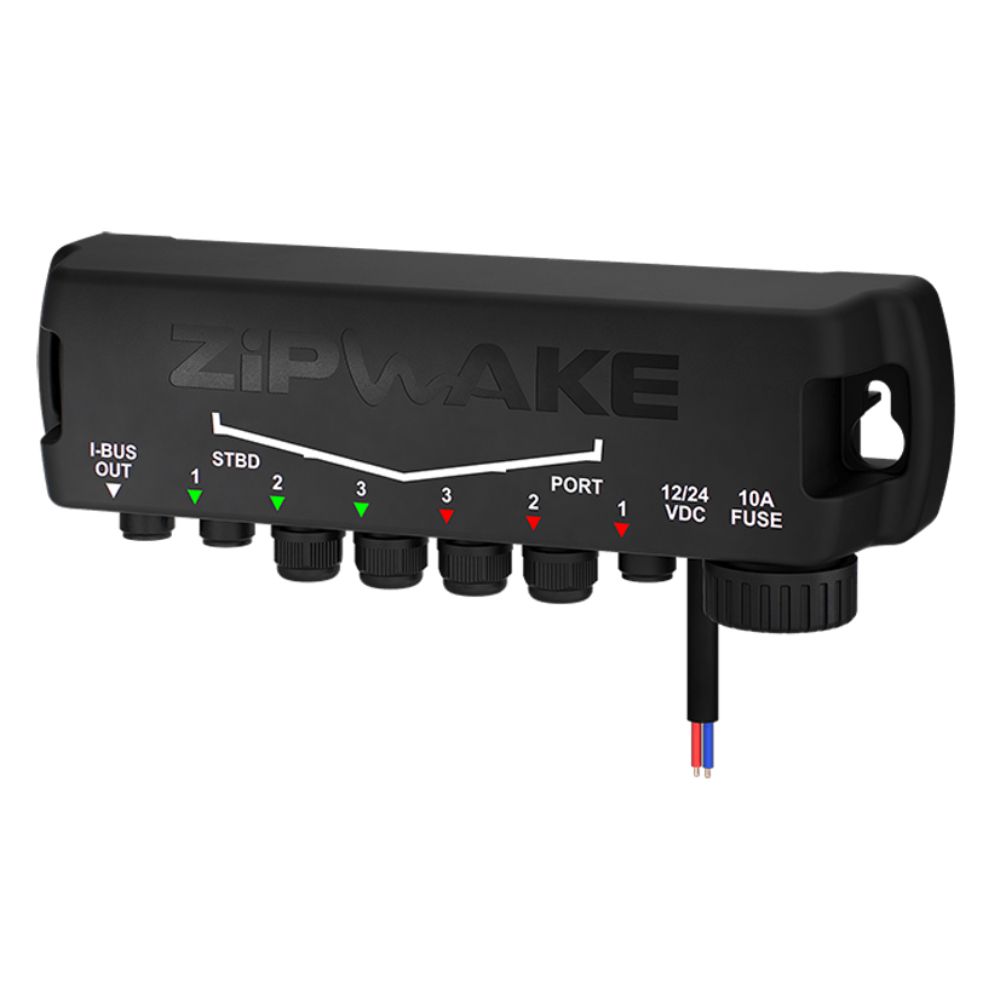

Zipwake Series S Distribution Unit with 4m Power Cable

• Supply Voltage: 12 - 32 V DC
• Power Consumption: 0.1 W max
• Protection Fuse: 10 A ATO
• Power Cable Length: 4 m (13 ft), Diameter 9 mm (0.35 in), 12 AWG
• Operating Temperature: -20° to +85°C (-4° to +185°F)
• Storage Temperature: -40° to +90°C (-40° to +194°F)
• Waterproof Rating: IP67 with cables and/or protective caps mounted
• Oil resistance: Common engine fluids
• Compliance: CE, FCC, SAEJ1171 Ignition Protected
• Weight: 1.0 kg (2.2 lbs) including the power cable

The Distribution Unit supplies the system with power and can accommodate up to six Series S interceptors. The unit is connected to the main control panel or integrator module. It is robust, waterproof, oil resistant and ignition protected for mounting in an engine room. The power cable is included for easy connection to a battery. The distribution unit has built-in electrical protection, including its own protection fuse.
