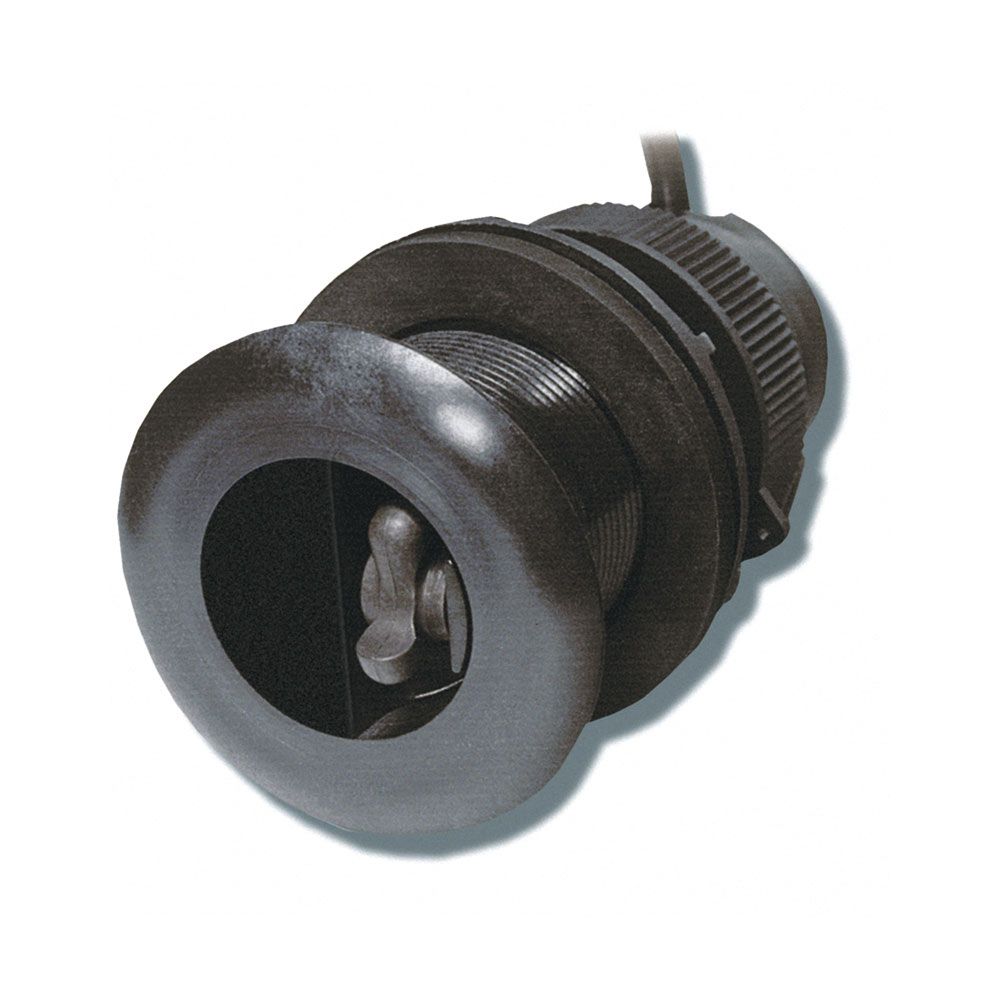

Airmar DST800 P17 Smart Sensor 235kHZ NMEA 0183
Airmar 44-072-2-41 DST800 P17 Smart Sensor NMEA 0183 With Bare Cable Ends
The DST800 is a Smart, TRIDUCER® Multisensor that offers depth, speed, and temperature functions in one compact thru-hull fitting. The DST800 is a low-profile, retractable, thru-hull sensor that computes accurate depth and temperature data and sends it to any NMEA 0183 or NMEA2000® display or network. Airmar's Smart Sensors have embedded microelectronics—the transducer element and signal processor are only millimeters apart. The signal from the depth transducer is processed right inside the sensor itself. All that is needed to receive depth and temperature data is a single cable into a compatible network or display.
The wide port-starboard, fan shaped beam is able to find bottom even when installed on high-deadrise hulls or on sailboats when heeled.
- Depth, speed, and temperature in one compact housing
- 235 kHz frequency prevents mutual interference with other echosounders on the vessel
- Depth performance from 500 mm (1.6') to 185 m (600')
- A wide port-starboard, fan shaped beam is able to find bottom even when installed on high-deadrise hulls or on sailboats when heeled
- Plastic, bronze, or stainless steel housings available
- Fast-response temperature sensor provides ±0.2°C (±0.1°F) accuracy
- Available as a Smart™ Sensor at 235 kHz or an analog output sensor operating at 200 kHz or 235 kHz
- Available in low-profile, countersunk, or beveled-edge housings
