Airmar DT800 P17 Smart Sensor 235kHz NMEA 0183

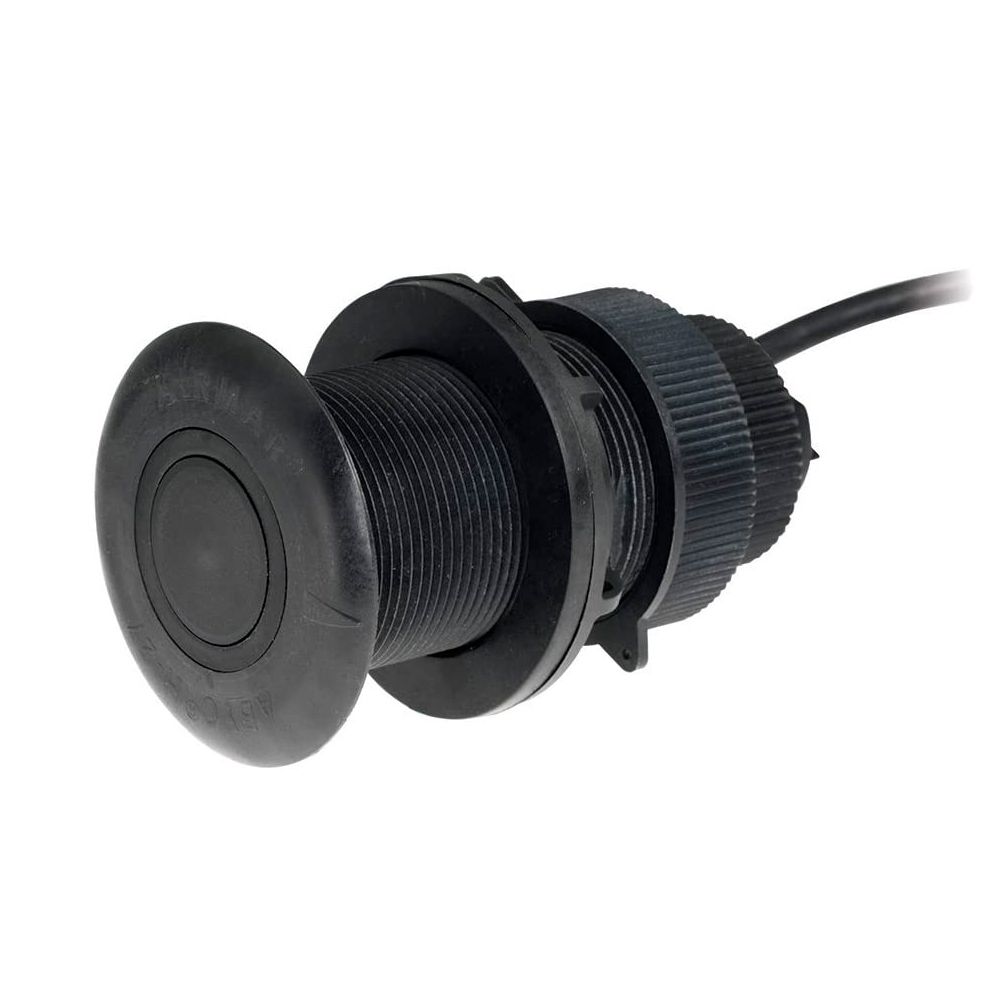

Airmar 44-084-1-01 DT800 P17 NMEA 0183 Smart Sensor with bare ends cable
The DT800 utilizes Airmar’s proven Tilted Element™ and broadband technologies in this thru-hull depth and temperature Smart™ Sensor. The DT800 is a low-profile, retractable, thru-hull sensor that computes accurate depth and temperature data and sends it to any NMEA 0183 o display or network. Airmar's Smart Sensors have embedded microelectronics—the transducer element and signal processor are only millimeters apart. The signal from the depth transducer is processed right inside the sensor itself. All that is needed to receive depth and temperature data is a single cable into a compatible network or display.
- Depth and temperature
- 235 kHz frequency prevents mutual interference with other echosounders on the vessel
- Depth performance from 500 mm (1.6') to 183 m (600')
- NMEA 0183 version
- Cable lengths up to 100 m (330') are possible with no loss of performance
- Plastic, bronze, or stainless steel housings available
- Retractable insert in plastic, bronze, or stainless steel housing with a water valve
- Available in low-profile, countersunk, or beveled-edge housings
