Raymarine Axiom 2 - 12RV Chartplotter with Sonar
Axiom 2 chartplotters deliver faster performance and upgraded processing power in 7, 9, or 12‑inch sizes. Available as chartplotter‑only or with built‑in RealVision sonar.
12RV Chartplotter & built-in sonar with SideVision, DownVision, RealVision 3D, and 600W CHIRP sonar.
- 12" IPS Display with HydroTough Oleophobic coating
- Resolution: WXGA 1280 x 800
- Nominal supply voltage: 12V dc
- Rugged IPX6 waterproof construction
- Built-in sonar with SideVision, DownVision, RealVision 3D, and 600W CHIRP sonar
Technical Specifications
X| Physical | |
|---|---|
| Dimensions (Trunnion Mounted) |
314 x 217 x 178mm 12.36" x 8.54" x 7.01" |
| Dimensions (Surface/Flush Mounted) |
314 x 226.72 x 178mm 12.36" x 8.93" x 7.01" |
| Accessory connection | USB Micro B |
| Ethernet connection | RayNet (10 / 100 / 1000 Mbit/sec Ethernet) |
| External storage | MicroSDXC card slot x 1 |
| NMEA 2000 connection | DeviceNet (male connector built into power cable) |
| Wireless connections | Bluetooth: V4.0, Wi-Fi: 802.11/b/g/n |
| Internal storage | 64 GB |
| Transducer connection | 25 pin RealVision type connector. Requires the A80490 adaptor cable for CPT-S style transducers |
| Enviromental | |
|---|---|
| Operating temperature | -25°C to +55°C (-13°F to 131°F) |
| Storage temperature | -30°C to +70°C (-22°F to 158°F) |
| Relative humidity | Up to 93% @ 40°C (104°F) |
| Waterproof rating | IPx6, IPx7 |
| Power | |
|---|---|
| Power consumption | 18.96W |
| Operating Voltage Range | 8 - 16 V dc |
| Fuse rating | 7A |
| Nominal supply voltage | 12V dc |
| NMEA 2000 LEN | 1 |
| LCD | |
|---|---|
| Resolution | WXGA 1280 x 800 |
| Display Brightness | 1800 nits 1800 cd/m2 |
| Protective Coating | HydroTough Oleophobic |
| LCD Type | IPS (In-Plane Switching) |
| GPS | |
|---|---|
| Position Accuracy | Without SBAS: ≤ 15 metres 95% of the time, With SBAS: ≤ 5 metres 95% of the time |
| Geodetic Datum | WGS-84 (alternatives can be selected on the MFD) |
| Satellite Differential Type (SBAS) | WAAS (United States), EGNOS (Europe), MSAS (Japan), GAGAN (India), QZSS (Japan) |
| Channels | Track up to 28 satellites simultaneously |
| Antenna | Internal - Ceramic chip mounted near top of unit |
| GNSS compatibility | GPS, GLONASS, Beidou |
| Almanac Update | Automatic |
| Signal Acquisition | Automatic |
| Receiver IC Sensitivity | 165 dBm (Tracking), 160 dBm (Acquisition), 148 dBm (Cold start) |
| Operating frequency | 1574 MHz to 1605 MHz |
| Refresh rate | 10 Hz (10 times per second) |
| Time to first fix from cold start | < 2 minutes |
| Sonar (RV Models) | |
|---|---|
| CHIRP Sonar Channels | RealVision 3D: (70 W / 350 kHz )
SideVision: (70 W / 350 kHz ) DownVision: (35 W / 350 kHz ) CHIRP High: (100 W / 200 kHz ) |
| Conventional Sonar Channels | 50/200 kHz (600 W) Note: A 600 Watt conventional sonar transducer and adapter cable is required |
| Chartplotter | |
|---|---|
| Waypoints | Up to 10,000 waypoints can be stored in up to 200 waypoint groups |
| Routes | Up to 250 routes can be stored, each route can contain up to 500 waypoints. The route capacity limit is subject to your chartplotter’s 10,000 waypoint limit (for example, 20 routes can be stored each containing 500 waypoints). |
| Automatic Route Planning | Yes with Navionics charts or via the Orca mobile app |
| Tracks | Up to 15 tracks can be stored, each track can contain up to 10,000 track points. |
| Compatible Charts | Raymarine LightHouse Charts
Navionics C-MAP Florida Marine Tracks CMOR Mapping Standard Mapping StrikeLines Imray Digital Charts S-63 encrypted charts |
The Marine Chartplotter You Trust. Now Even Better
Raymarine's most popular marine chartplotters, now faster, more connected and built for the future. Axiom 2 unifies navigation, sonar, radar, video and NMEA 2000 networks into one powerful display. Choose Axiom 2 as a dedicated chartplotter for confident navigation, or step up to Axiom 2 RV for the ultimate all‑in‑one chartplotter and fish finder combo.

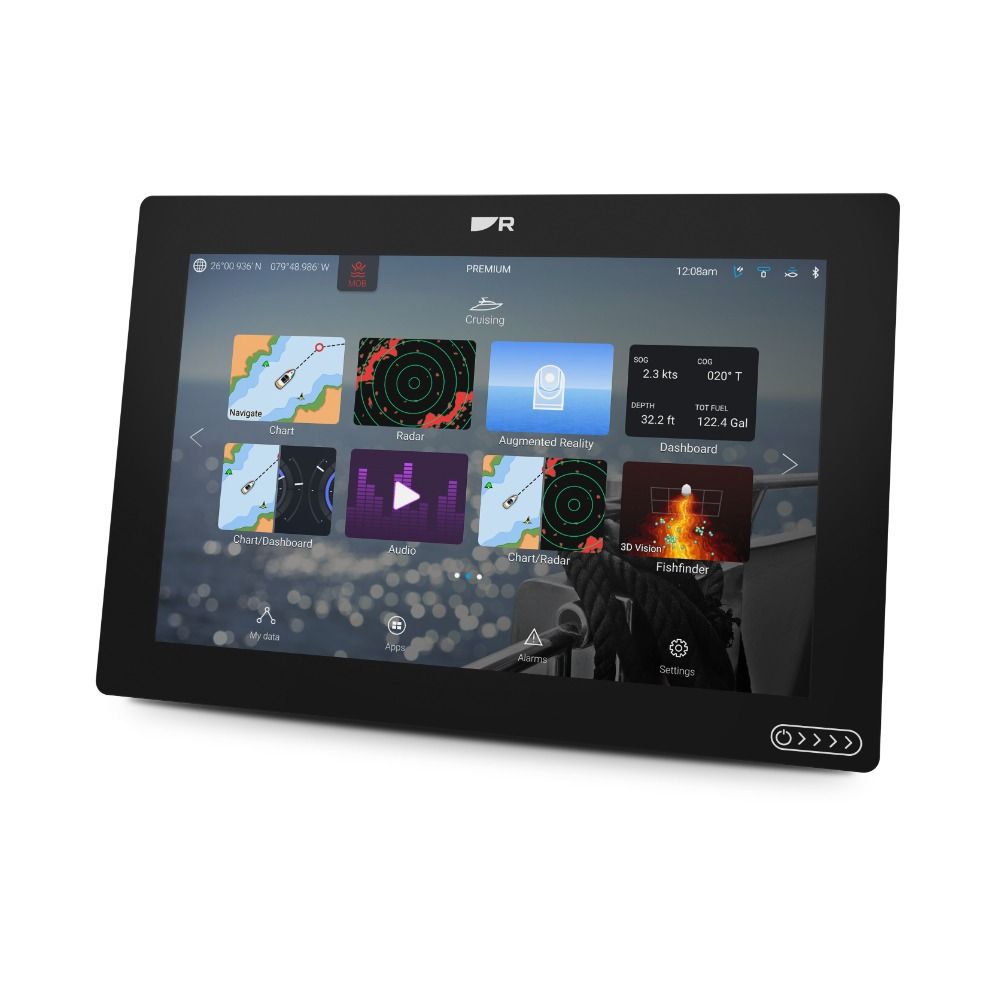

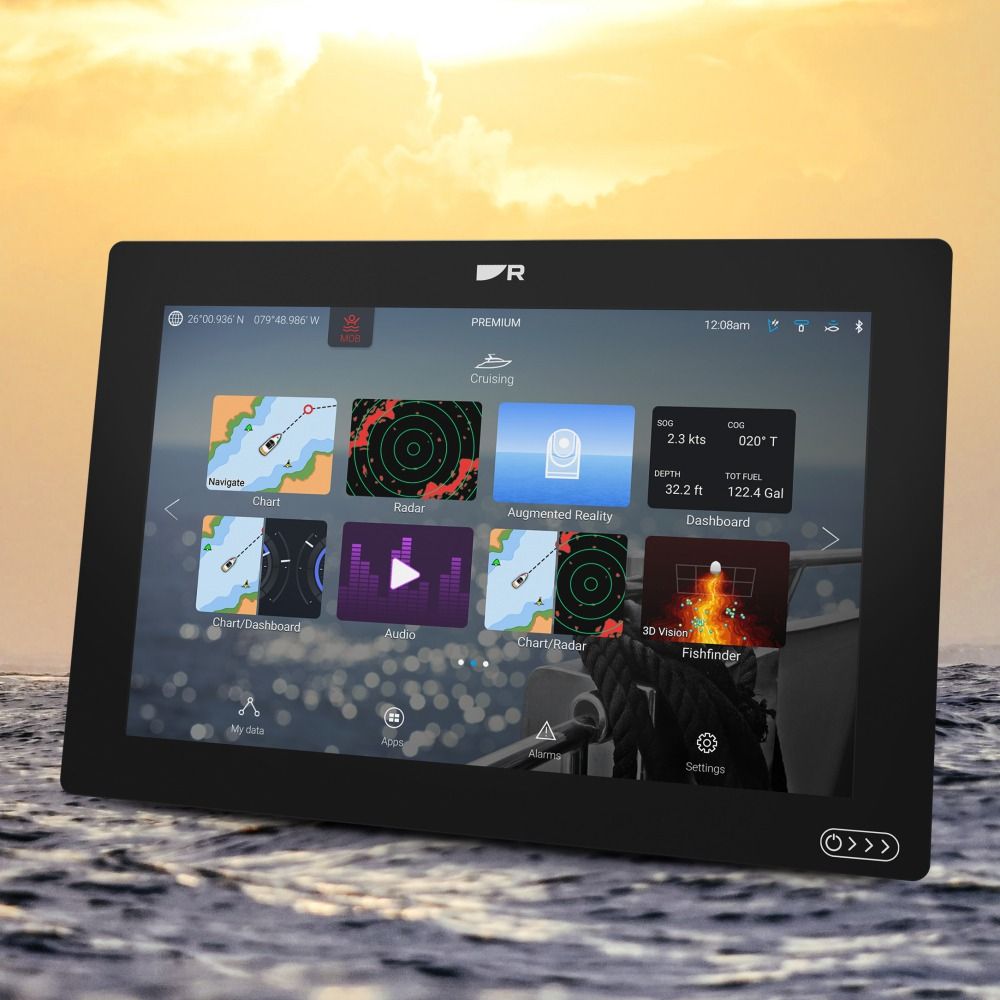

One Display. Total Control - Axiom 2's LightHouse operating system is a single, simple-to-use interface for complete situational awareness. Make Axiom 2 your all-in-one multifunction display or connect additional Axiom 2 displays at your helm or a remote station.

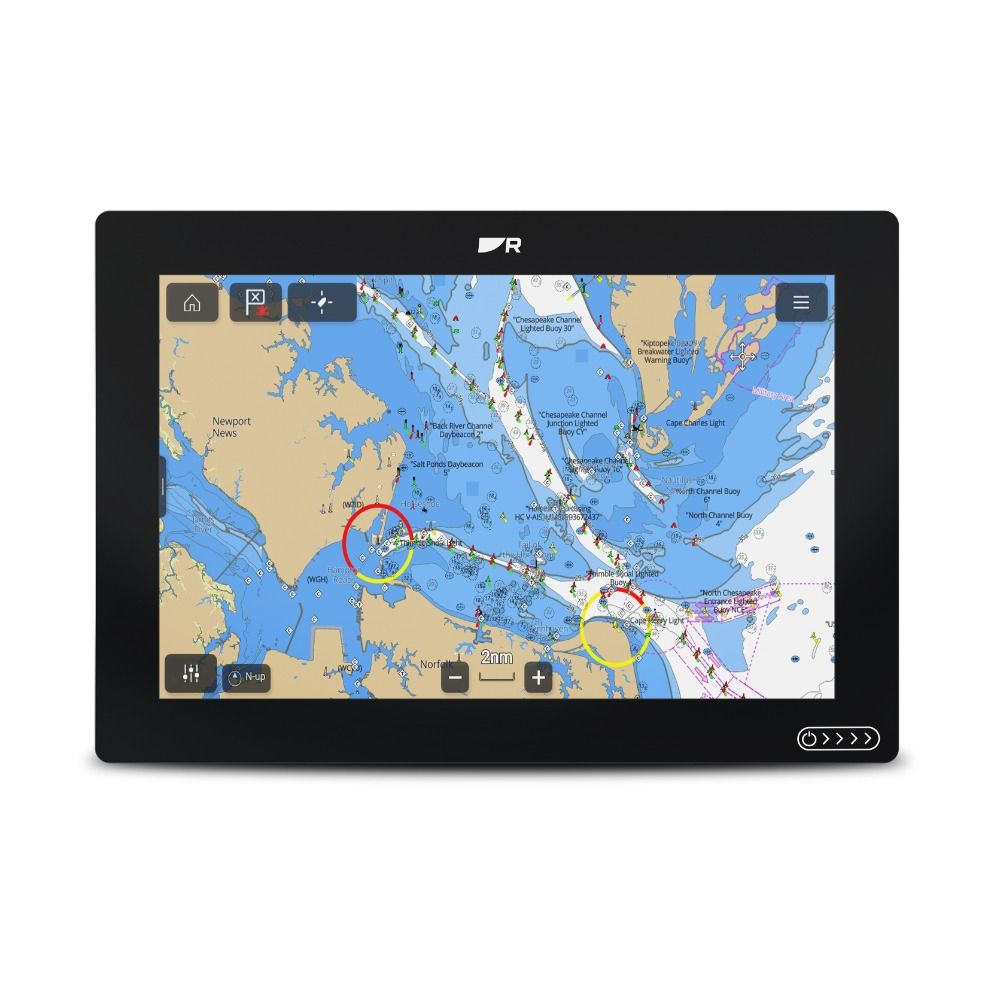

Navigate Smarter with Optional LightHouse Charts GEN 2 - Up to 30% faster chart rendering with a new 6‑core processor and LightHouse OS. Choose Axiom 2 bundled with LightHouse Charts GEN 2 for smoother panning, faster redraws and expanded coverage.

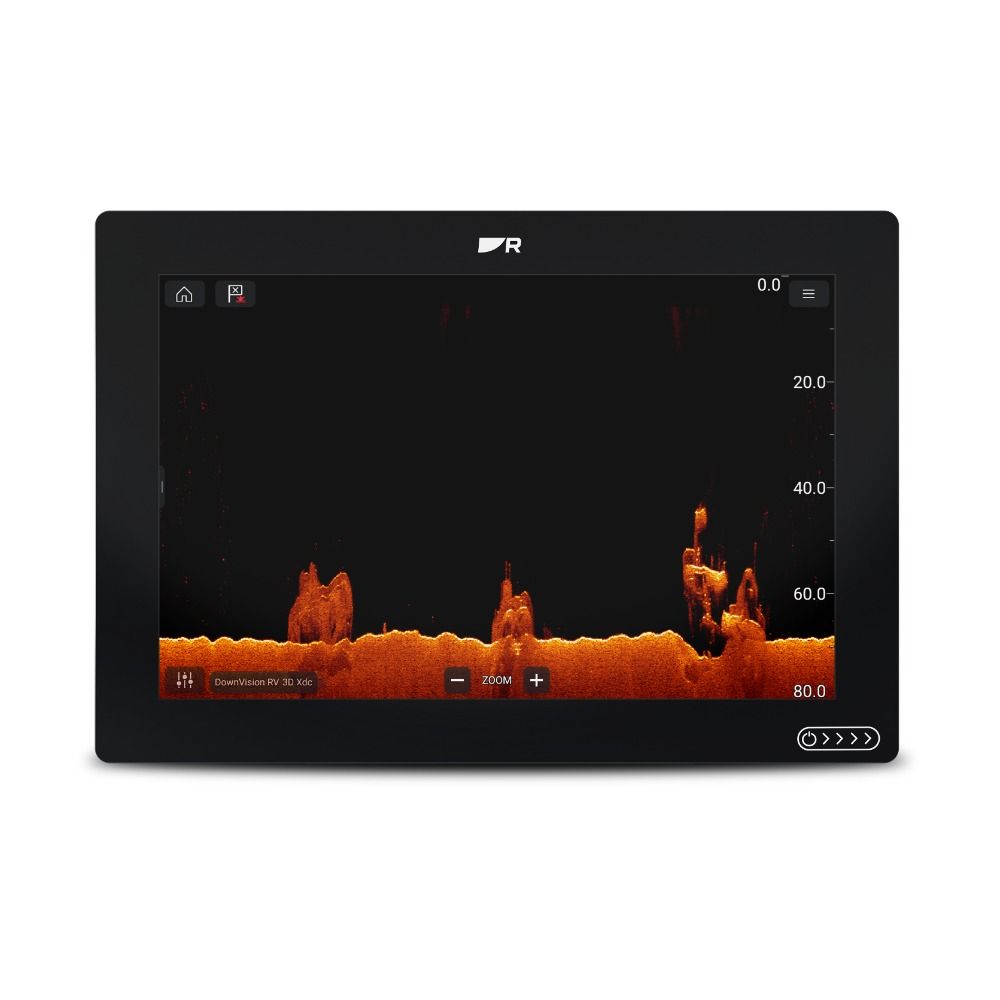

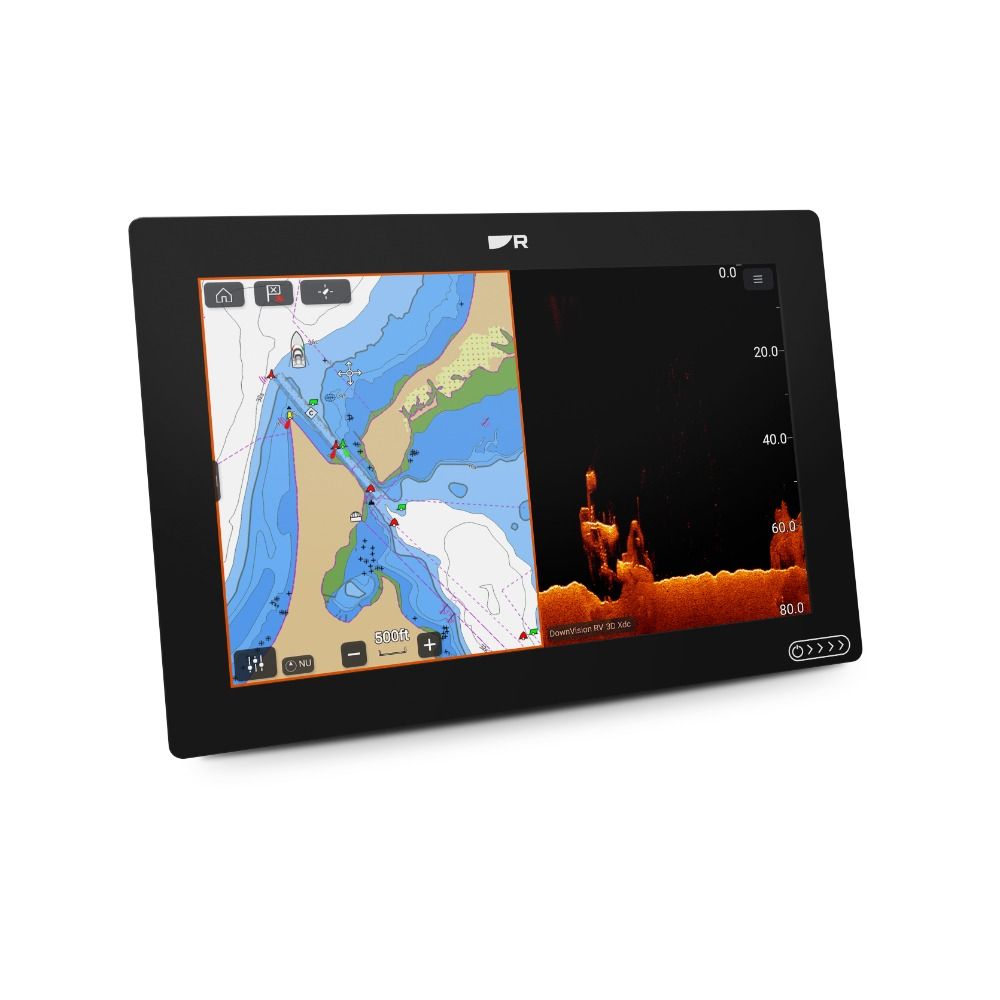

See More Below the Surface with RealVision Fish Finder - Scan wider, see deeper and understand the bottom instantly with SideVision, DownVision, RealVision 3D, and 600W CHIRP sonar - all built in. With an all‑in‑one GPS chartplotter with fish finder, you can spot fish faster, view underwater structure clearly, and fish confidently from every angle.
Built for Speed and Expansion - Gigabit RayNet Ethernet enables faster networking between displays and sensors. Experience smoother radar, sonar and video performance across the system.
Engine Monitoring - Connect with leading engines including Mercury, Yamaha Suzuki and more. Monitor performance, fuel, and propulsion data directly from the helm.
More capability, built in - Expand your Axiom 2 with access to 30+ marine apps. Take control of lighting, audio, energy monitoring and weather systems. Or stream entertainment from Netflix, YouTube and Spotify.

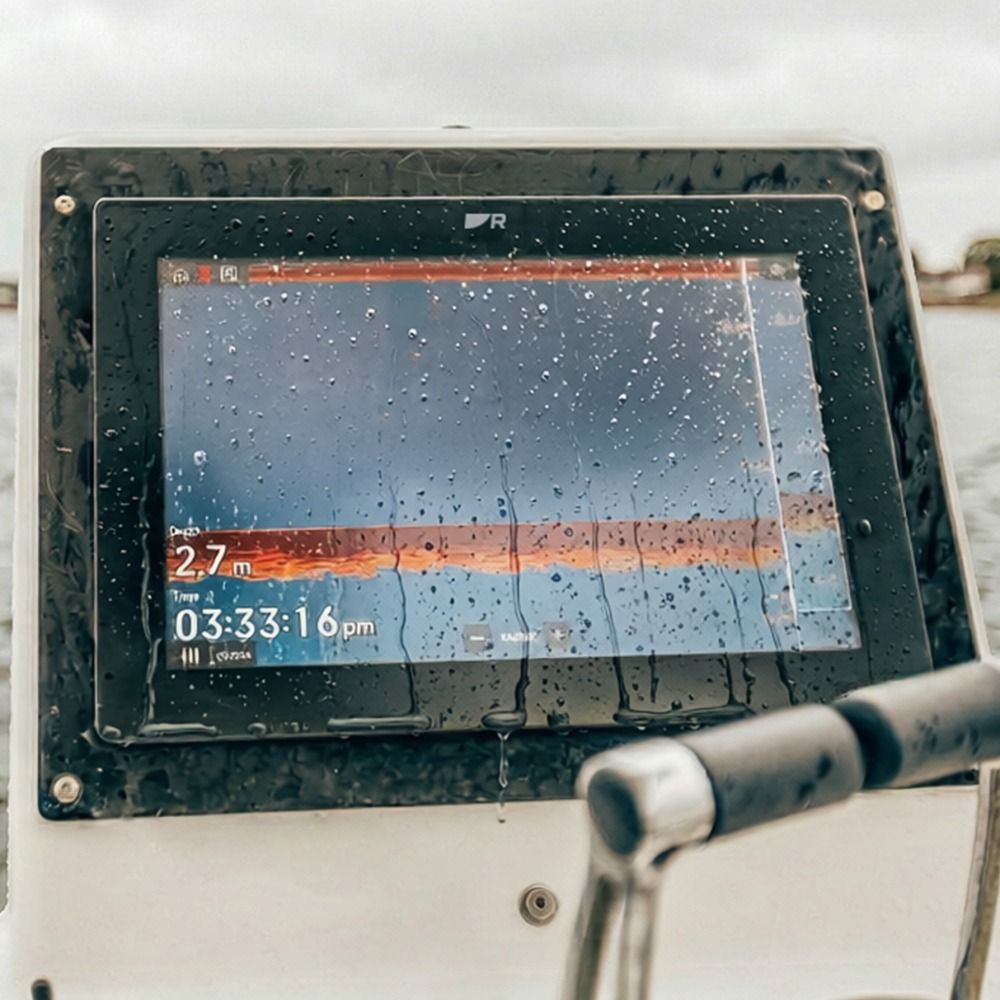

All-Weather Performance - Rugged IPX6 waterproof construction and bright HydroTough displays repel water for reliable touchscreen control in all conditions.
Plan Routes with the Orca App - Share a route from the Orca mobile app to Axiom 2 via Wi-Fi. Simply identify your starting point, your destination, and Orca’s advanced navigational algorithms will find the best route for your vessel.
Advanced Sailing Tools - Optimize your performance under sail with Axiom 2's suite of powerful sailing features including polar profiles, dynamic laylines, race timers and tactical sailing displays
In The Box
- Axiom 2 MFD
- Suncover
- Trunnion bracket
- Panel mount gasket for surface/flush mounting
- Mounting hardware
- Documentation pack
- Power/NMEA 2000 cable (with 1.5 m (4.92 ft) power lead and 0.5 m (1.64 ft) NMEA 2000 lead).
