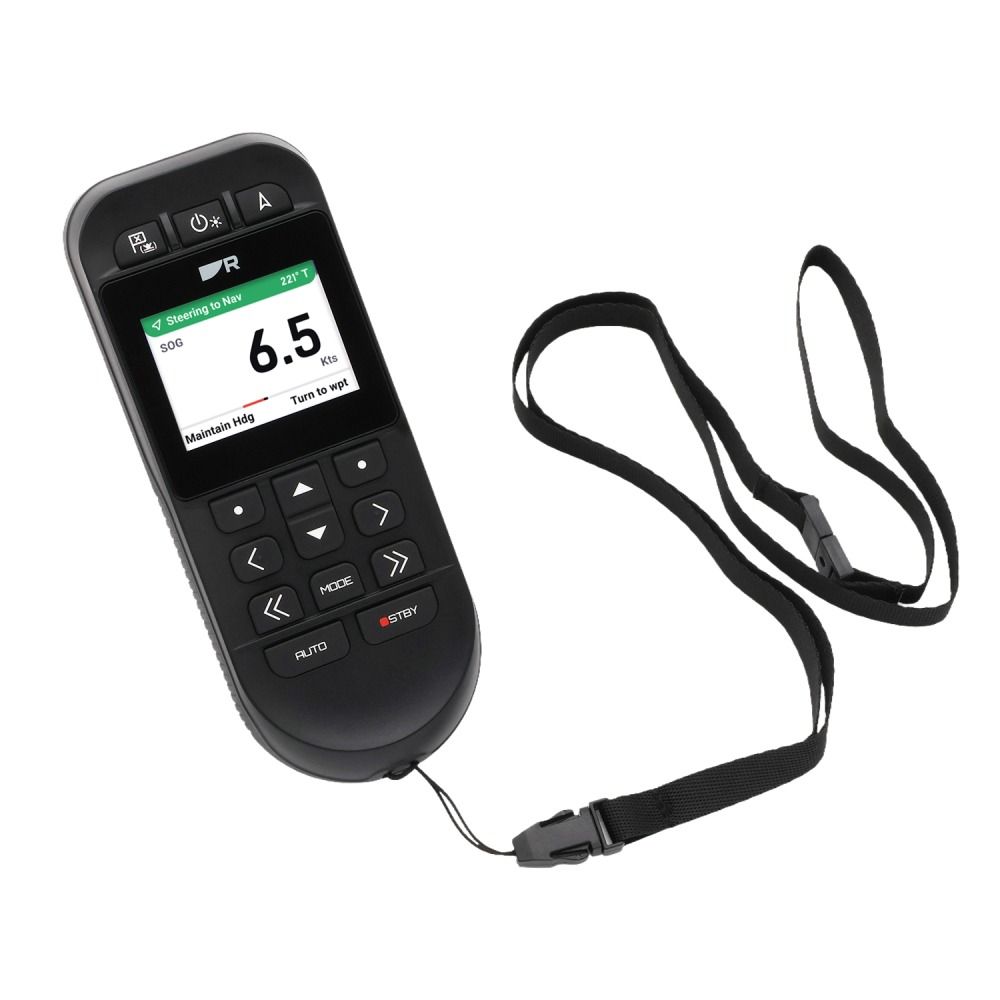

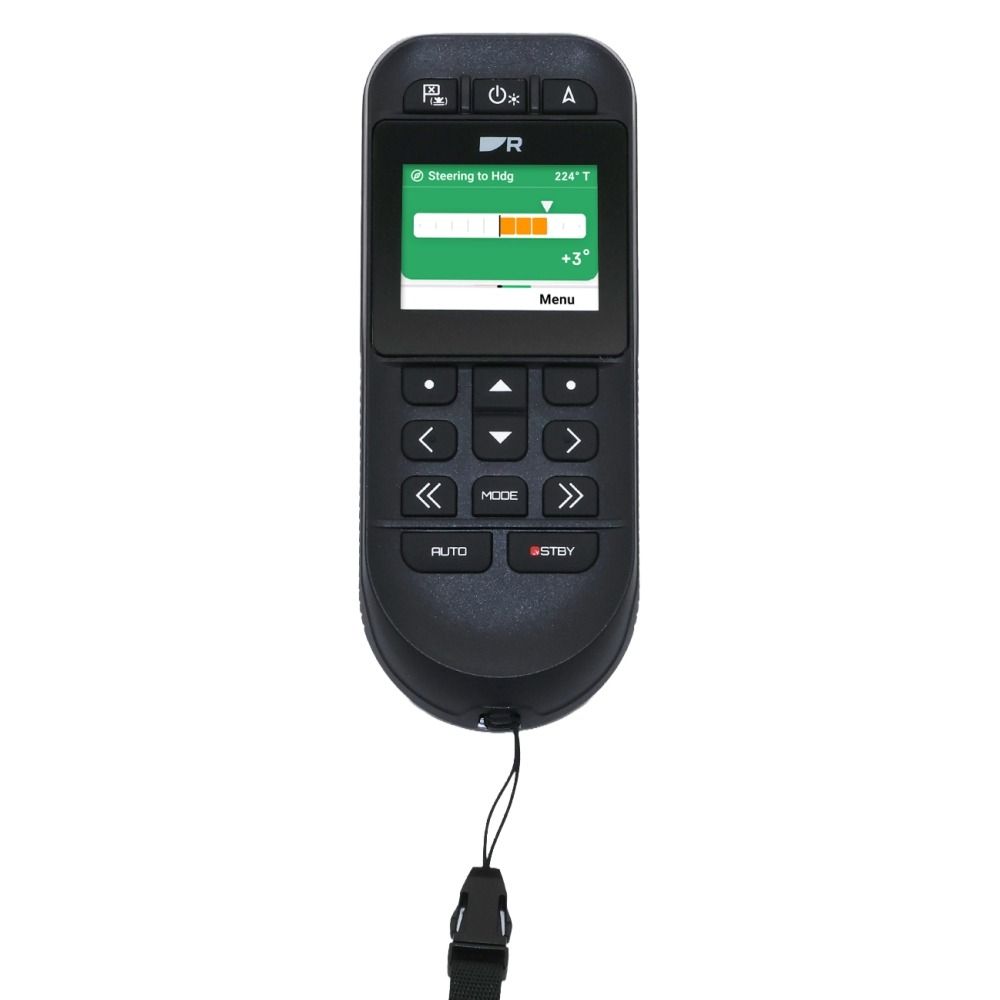

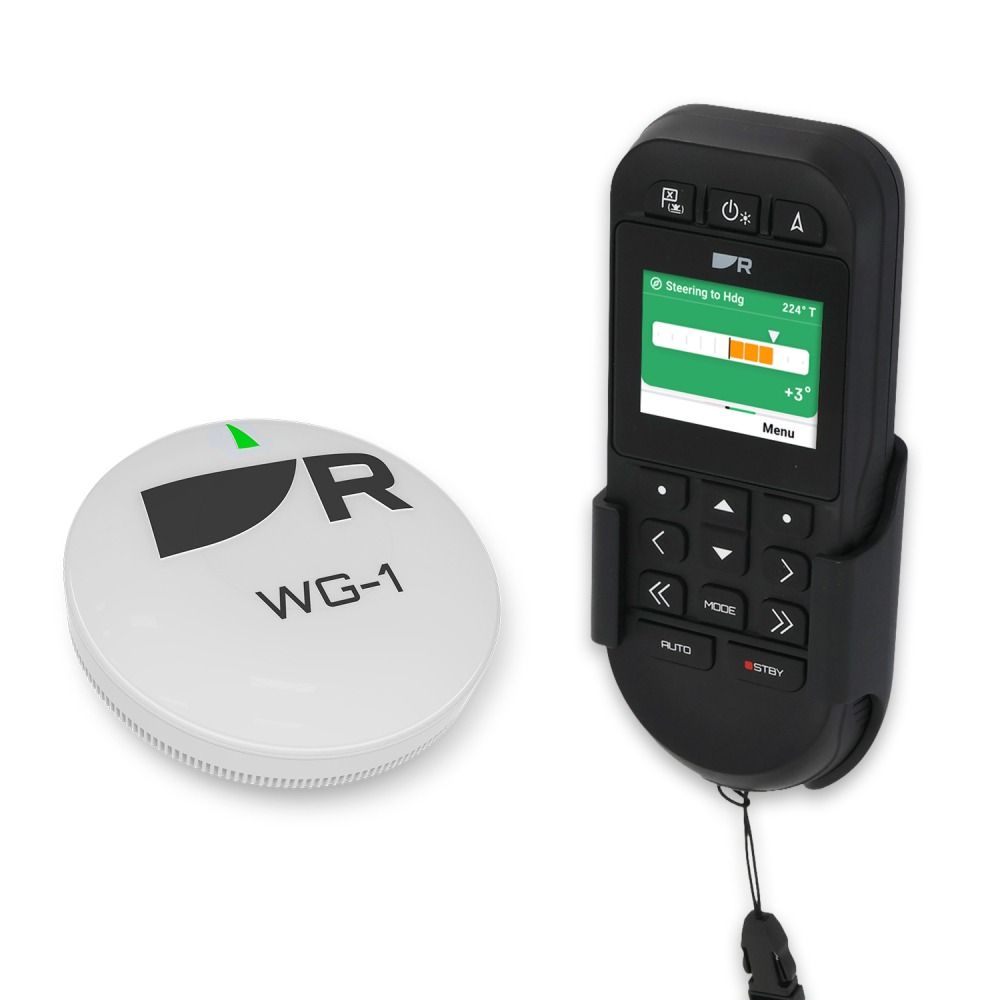

Raymarine RCU-1 Autopilot Remote & WG-1 Wireless Gateway Kit
A wireless autopilot remote controller and gateway designed for both powerboats and sailboats. With a bright color display, intuitive Point-and-Go navigation, and Solo Sailor safety mode, it puts full autopilot control in your hand.
- Engage, adjust or disengage the autopilot from anywhere onboard using the dedicated keypad
- View live data from connected instruments and Axiom chartplotters
- Bright color display for clear data visibility
- Solo Sailor safety mode for Man Overboard (MOB) protection
- Point-and-Go heading control for quick course changes
- Simple power solution using standard AA batteries (supplied)
- Wireless range up to 30 m (98 ft.)
- Built-in alarm buzzer for Man Overboard (MOB) situations
- Includes lanyard and fixed mounting cradle for convenience
- Compatible with Raymarine Evolution series pilots

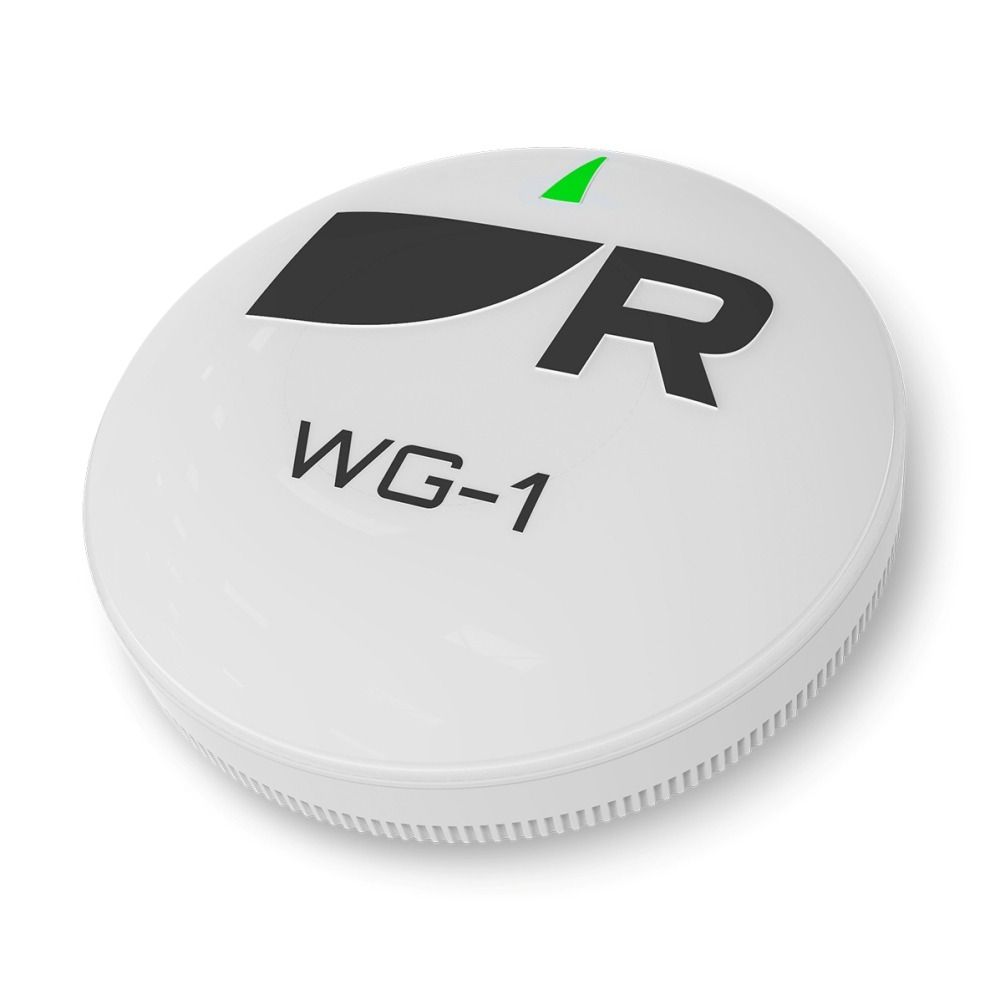

- Includes WG-1 Gateway
RCU-1 Technical Specifications
X| Physical | RCU-1 Remote | WF-1 Wireless Gateway |
|---|---|---|
| Height | 150.87mm (5.94 in) | 26.61mm (1.05 in) |
| Width | 59.83mm (2.36 in) | 108.48mm (4.27 in) |
| Depth | 31.51mm (1.24 in) | N/A |
| Product weight | 190g (6.70 oz) | 129g (4.55 oz) |
| Power | RCU-1 Remote | WF-1 Wireless Gateway |
|---|---|---|
| Nominal supply voltage | 3V DC (2 x AA batteries) | 12V DC (Via SeaTalk NG network) |
| Operating voltage range | N/A | 9 - 16V DC |
| Power consumption | N/A | 30mA |
| LEN | N/A | 1 |
| Batteries | RCU-1 Remote | WF-1 Wireless Gateway |
|---|---|---|
| Size | AA | N/A |
| Types | Alkaline, Lithium, Rechargeable | N/A |
| Battery life expectancy | in use: 30 days
storage: 365 days |
N/A |
| Enviromental | RCU-1 Remote | WF-1 Wireless Gateway |
|---|---|---|
| Operating temperature range | -25°C (-13°F) to + 55°C (131°F) | -25°C (-13°F) to + 55°C (131°F) |
| Storage temperature range | -30°C (-22°F) to + 70°C (158°F) | -25°C (-13°F) to + 70°C (158°F) |
| Humidity | up to 95% @ 40 C (104°F) | 93% |
| Water ingress protection | IP67 | IPx6, IPx7 |
| Installation location | Above decks, Below decks | Above decks, Below decks |
| AHRS | |
|---|---|
| AHRS | 3–Axis Accelerometer, 3–Axis Magnetometer, 3–Axis Gyroscope |
| Magnetic compass accuracy | Static = ±1° RMS, Dynamic = ±5° RMS |
| Pitch, Roll and Yaw accuracy | ±1° |
| Heading, Pitch, Roll and Rate of Turn update rate | 10 Hz |
| Bluetooth | |
|---|---|
| Bluetooth Version | 5.1 |
| Connection range | Up to 30m (98.43ft) with clear line of sight |
| Conformance | |
|---|---|
| UK | SI 2016:1091: Electromagnetic Compatibility (EMC) Regulations 2016
SI 2017:1206: The Radio Equipment Regulations 2017 SI 2023:1542: Battery Regulations SI 2014:1638: The Restriction of the Use of Certain Hazardous Substances (RoHS) in Electrical and Electronic Equipment Regulations 2012 SI 2013:3113 The Waste Electrical and Electronic Equipment (WEEE) Regulations 2013 Product Security And Telecommunications Infrastructure (PSTI) Act 2022 |
| EU & EFTA | Directive 2014/30/EC: Electromagnetic Compatibility (EMC) directive
Directive 2014/53/EU: Radio Equipment Directive (RED) Directive 2023/66/EC: Batteries Directive Directive 2002/95/EC: Restriction of the use of certain hazardous substances (RoHS) in electrical and electronic equipment directive Directive 2002/96/EC: Waste Electrical and Electronic Equipment (WEEE) directive |
| USA | CFR 47 Part 2. 1093: Radio frequency radiation exposure evaluation: portable devices |
| Canada | ISED RSS-Gen: General Requirements for Compliance of Radio Apparatus |
| China | SRRC |
| Taiwan | NCC |
| Product markings | |
|---|---|
| UK | UKCA |
| EU/EFTA | CE
WEEE |
| USA | FCC |
| Canada | ISED |
| Australia / New Zealand | Compliance tick mark |
Effortless navigation, enhanced safety
Instant, handheld control of your boat's autopilot when precision and safety matter most.

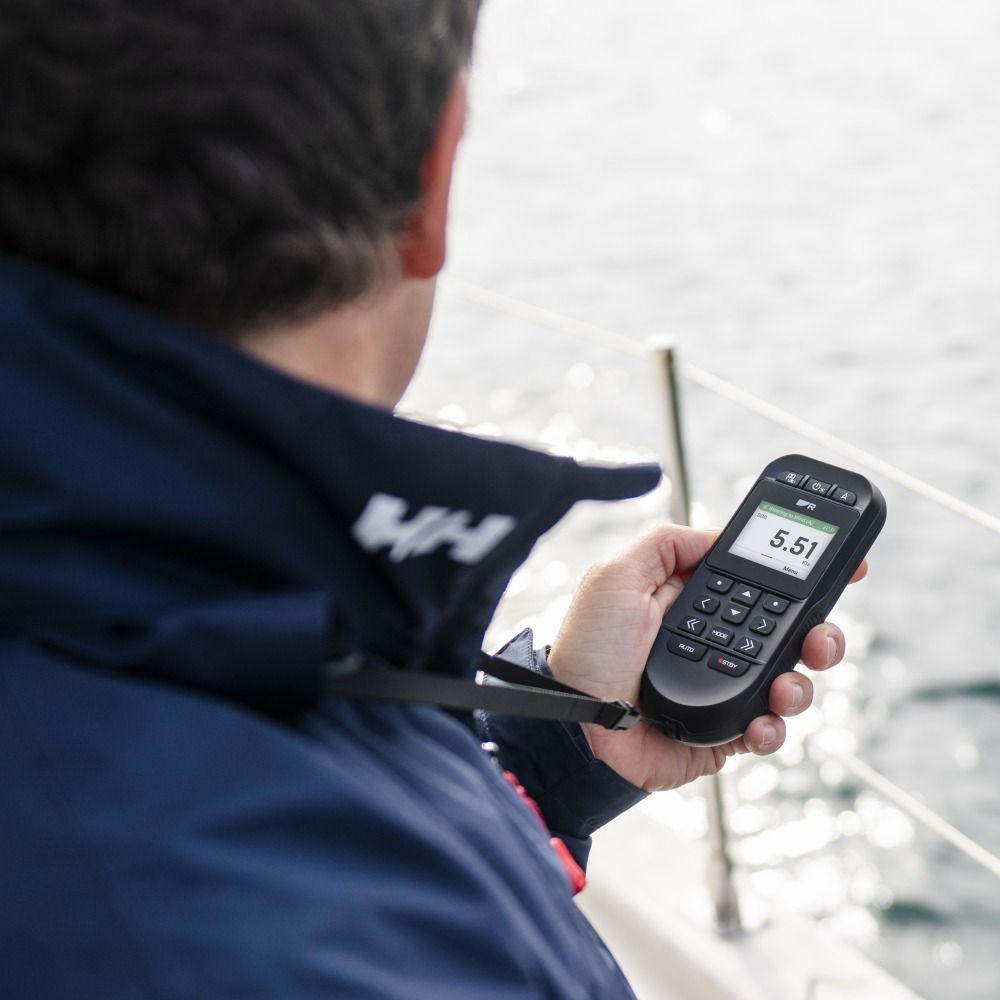

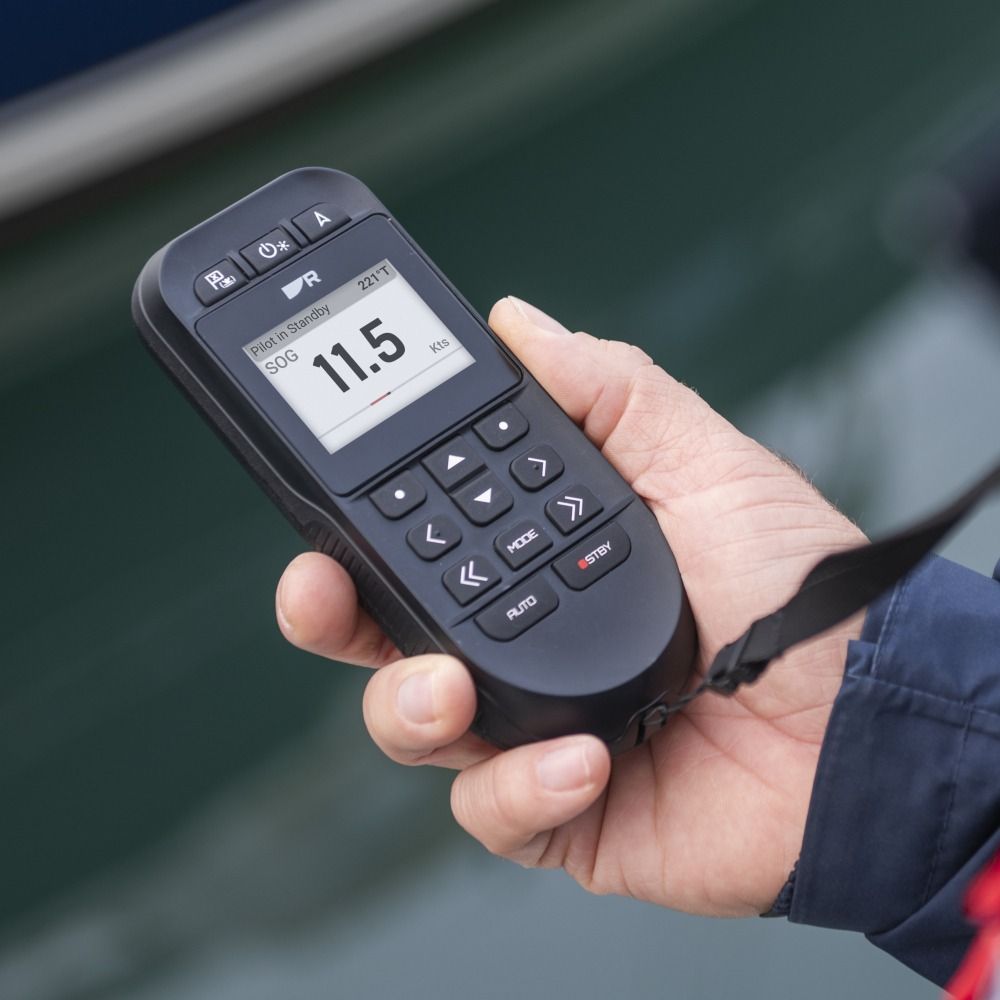

Control in the palm of your hands - Featuring a bright color display and ergonomic design for single hand operation, the RCU‑1 wireless marine autopilot remote puts the power of Raymarine Evolution in the palm of your hand. Whether trimming sails, managing fishing gear, or simply moving around the deck, boaters can stay in command from virtually anywhere on board.
Wireless Autopilot Control - Enjoy the freedom of engaging and disengaging your boat's Evolution autopilot from anywhere onboard.
Intuitive Control - Set a new course with Point-and-Go mode. Simply aim the RCU-1 in direction you want the autopilot to follow.
Enhanced Safety - Solo Sailor Mode automatically points the boat into the wind when a wearer-overboard situation is detected.
Long Battery Life - Powered by two AA batteries for up to 30 days of continuous use.

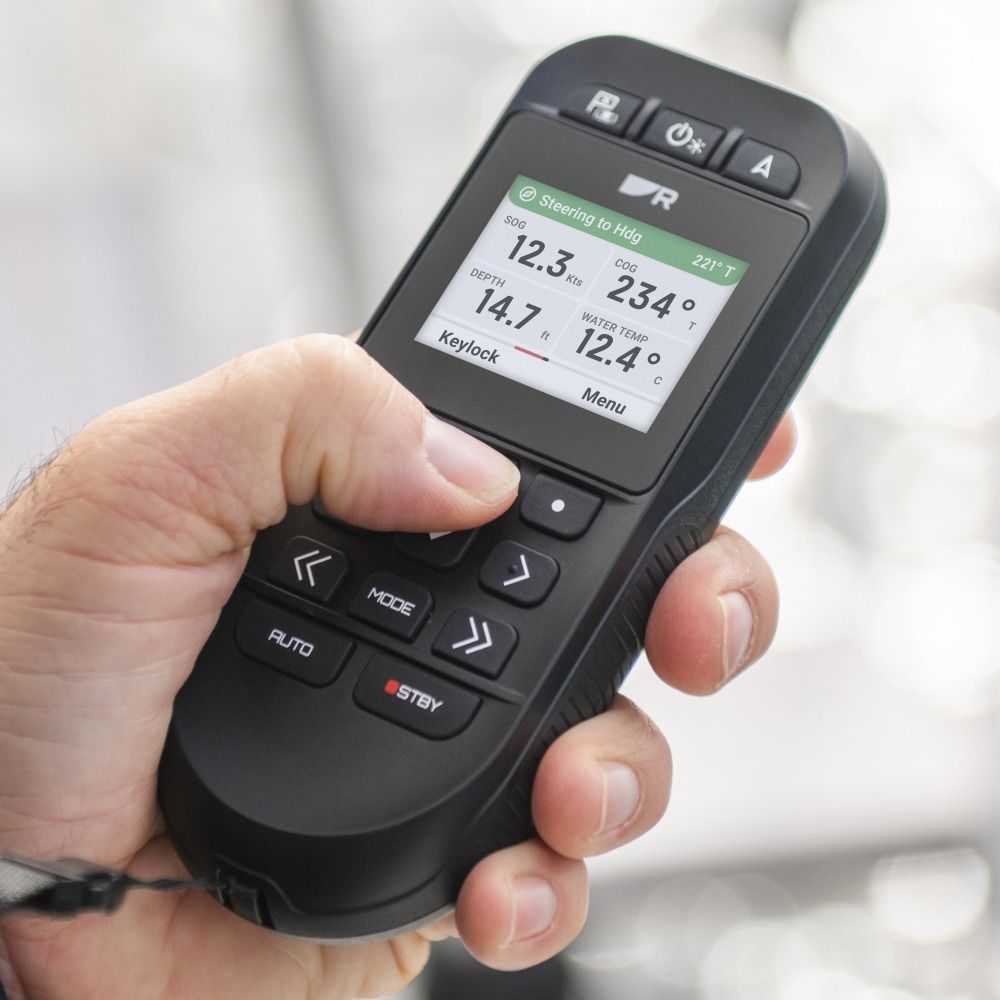

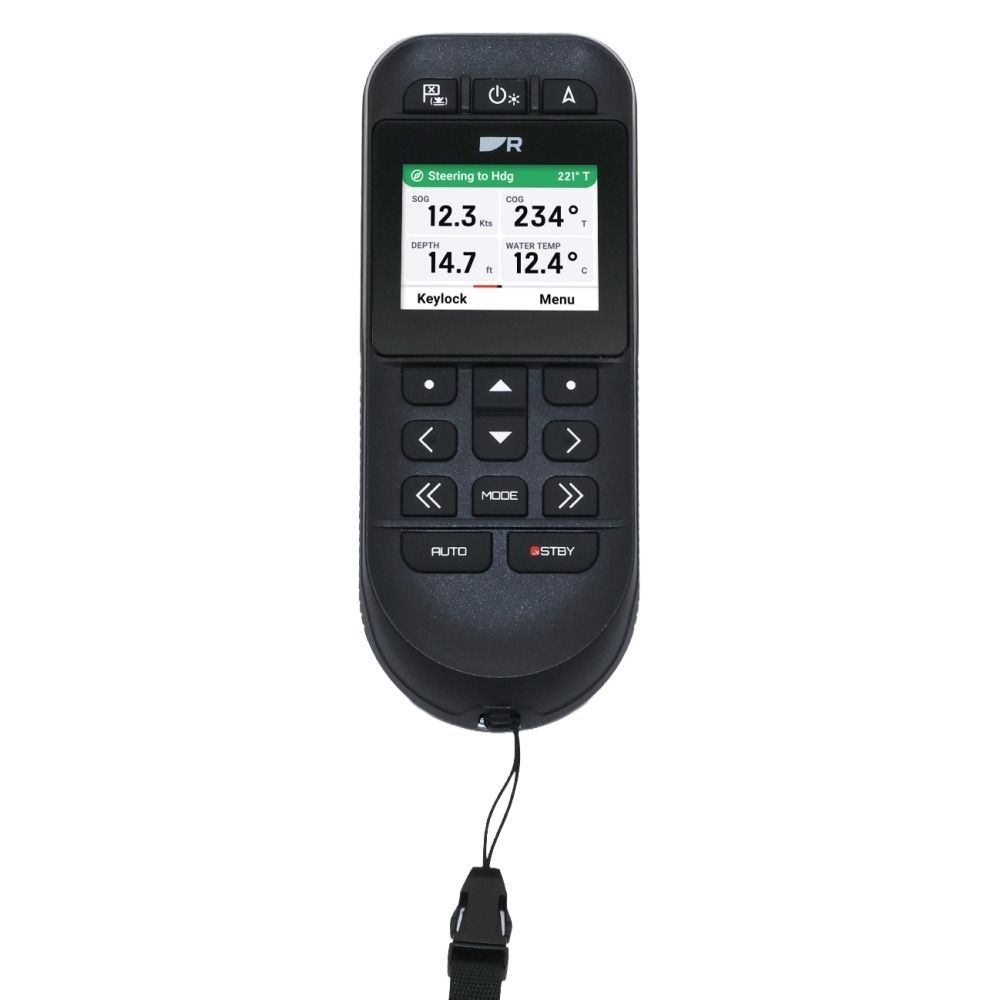

Live Navigation Data - View heading, speed, depth, wind, and waypoint info on a bright handheld display.
Built for the Marine Environment - Rugged, waterproof design and a bright sunlight viewable display.
In The Box
- RCU-1 Autopilot Remote Control
- Cradle
- 2 x AA batteries
- 2 x self tapping screws
- Documentation pack
- Lanyard
