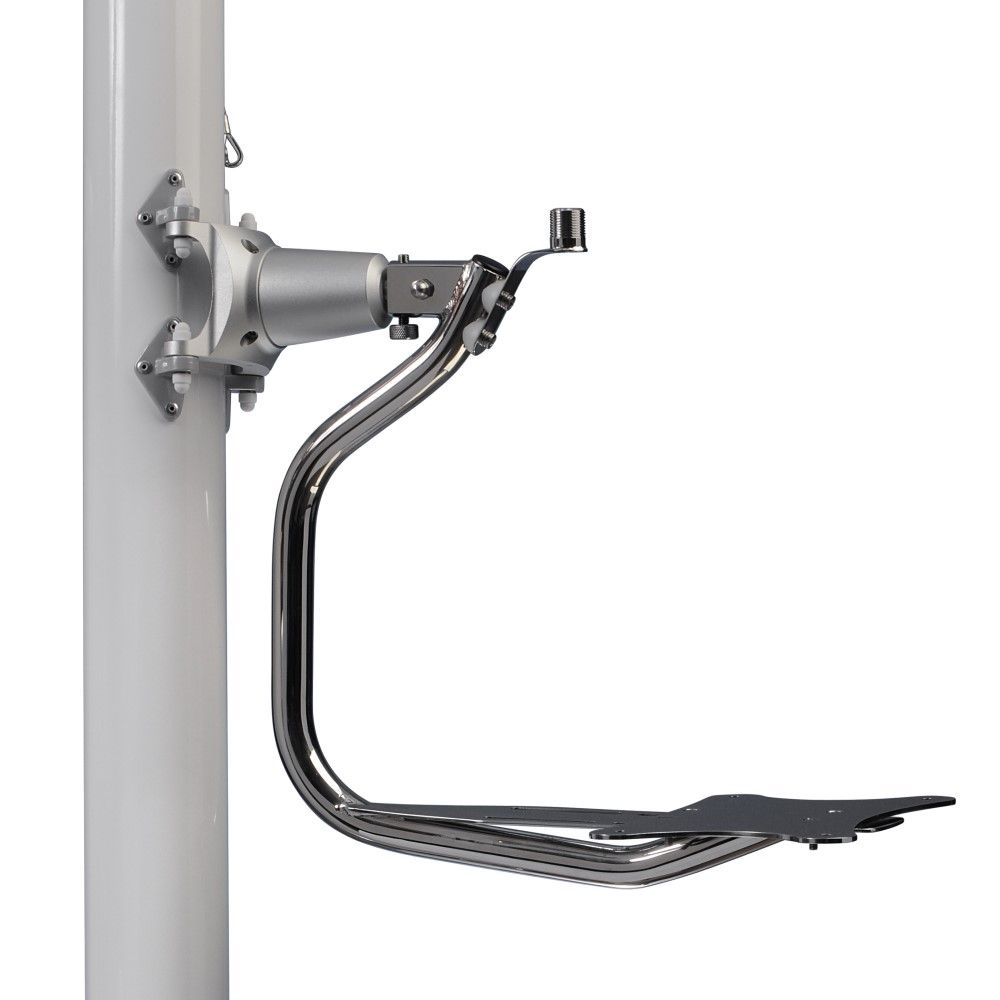

Scanstrut LMM-1 Self Levelling Mast Mount
Scanstrut's Mast Leveller features a fine-tuned hydraulic damping system that reacts to major changes in the heel angle of the boat. No power is required. Designed to fit the most up-to-date radar from Garmin, Raymarine Lowrance and B&G.
- Marine grade aluminium
- 4-step Marine paint system

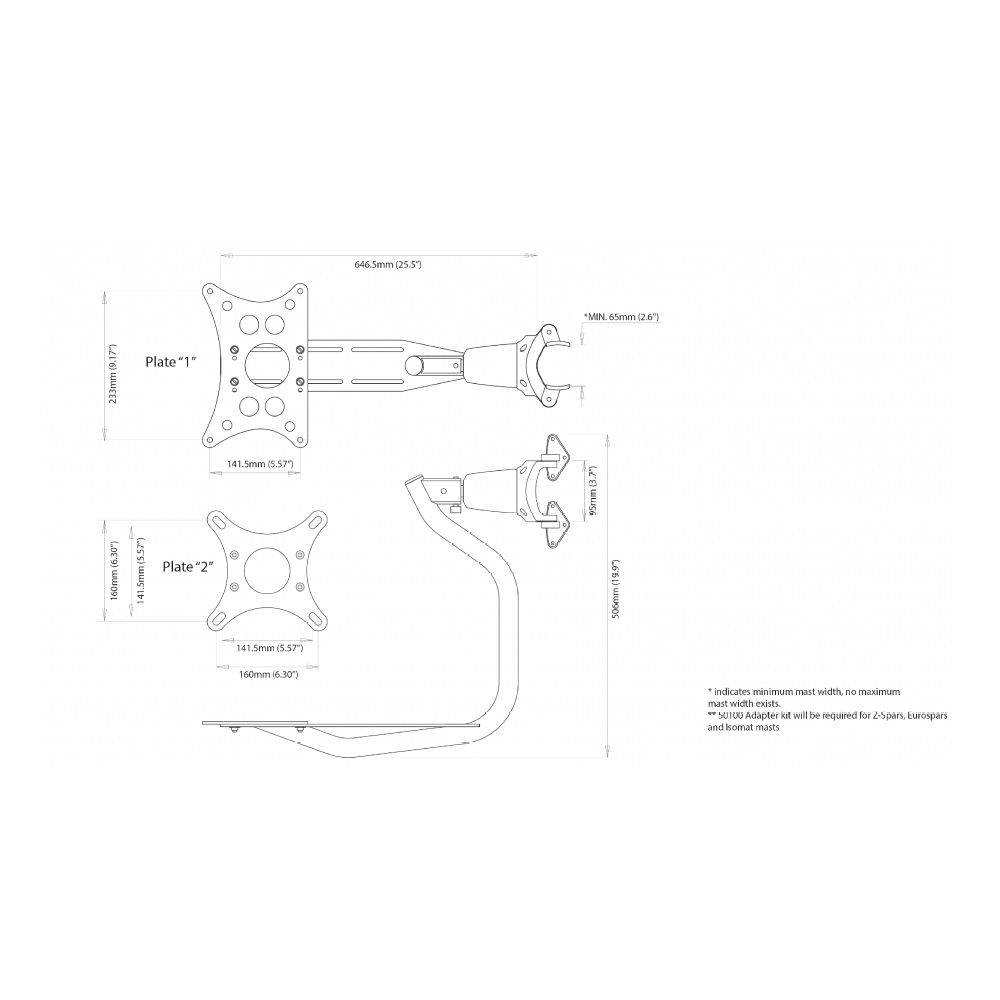

- Minimum Mast Diameter: 65mm (2.6") (No max diameter)
- Use 715-50100 Adapter kit with Z-Spars, Eurospars and Isomat masts
Compatible Devices
X| Brand | Models |
|---|---|
| B&G | 3G/4G, HALO20, HALO20+, HALO24 |
| Garmin | Fantom 18, Fantom 24, GMR18HD / 18xHD / 18HD+, GMR24HD / 24xHD, GMR40 |
| Humminbird | HB 2124 CHIRP |
| Lowrance | 3G/4G, HALO20, HALO20+, HALO24 |
| Nobeltec | 4kW [IR2-4D 25" 4Kw] |
| Raymarine | QUANTUM, QUANTUM 2, RD218, RD418/RD418HD, RD424/RD424HD |
| Simrad | 3G/4G, DX45, DX60 / DX64-S, GB40 / NX40/45 / NSE8/12, HALO20, HALO20+, HALO24 |
| Sitex | RADARpc - 4D |
Scanstrut's Mast Leveller features a fine-tuned hydraulic damping system that reacts to major changes in the heel angle of the boat. No power is required. Designed to fit the most up-to-date radar fromGarmin, Raymarine Lowrance and B&G.

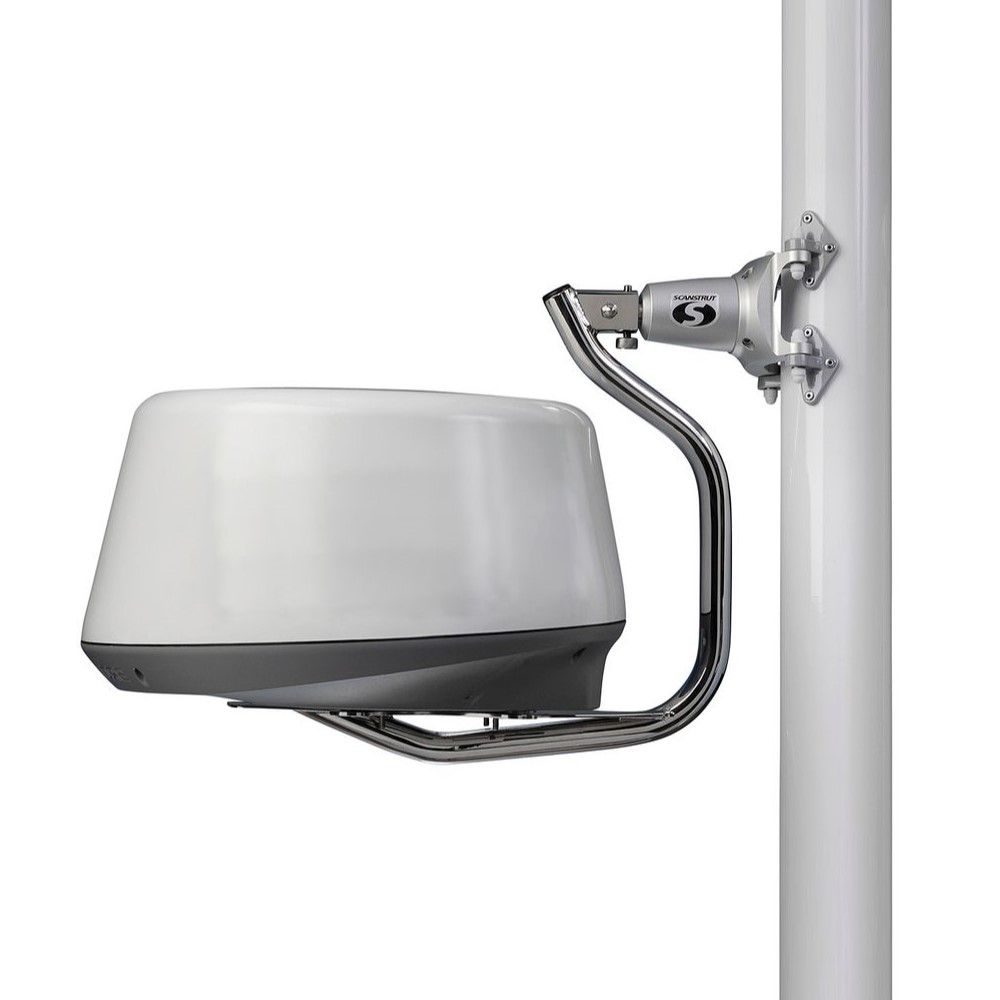

Scanstrut's mast-mounted leveller raises the antenna clear of the deck and any obstructions for increased radar horizon.
Hydraulic damping - The main levelling unit features a fine-tuned damping system which reacts to major changes in the heel angle of the boat. no power is required.
Lightweight head unit - The complete system weighs only 3.4 kg (8.1 lbs)
Secure installation - Attaches to the mast with four swivel feet, matching a variety of mast profiles. A 12-point fixing using monel rivets ensures a secure fixing.
Suitable for any yacht - Stainless radar cradle has a fine tune adjustment for different mast rake angles.
