Garmin Spy Pole - Motorised Pole Mount - 49"
Take full command of the underwater view by mounting LiveScope or GT360UHD transducers to a Garmin Spy Pole to precisely and wirelessly maneuver them for revolutionary motoried sonar control.
- Independently control your sonar with wireless remote or foot control
- Mount it to your trolling motor or your gunnel
- Integrates with your chartplotter and select force trolling motors
- Built to hold both livescope and 360 transducers
- Initiate multiple livescope control modes wirelessly
Technical Specifications
X| General | |
|---|---|
| For use in | Freshwater, brackish water and saltwater |
| Mount style | Quick-release, Reversible |
| Voltage | 10 V-45 V |
| Electric steering | ✓ |
| Shaft Length (From Shaft Cap to Shaft End) | 49″ |
| Adjustable Shaft Depth | ✓ |
| Water Rating (components ABOVE WATER) | IPX7 |
| Mounting location | Force, Force Pro (included); Deck and Gunnel |
| Deck stabiliser | Yes (included) |
| Dogbone Stabiliser | Compatible, required with 2 or more transducers (not included) |
| Electrical Features | |
|---|---|
| POWER INPUT | Wired 2 m (6.5 ft) cable |
| Power usage | 18 W typical; 70 W max |
| Fuse | 8 A |
| Transducer Support | |
|---|---|

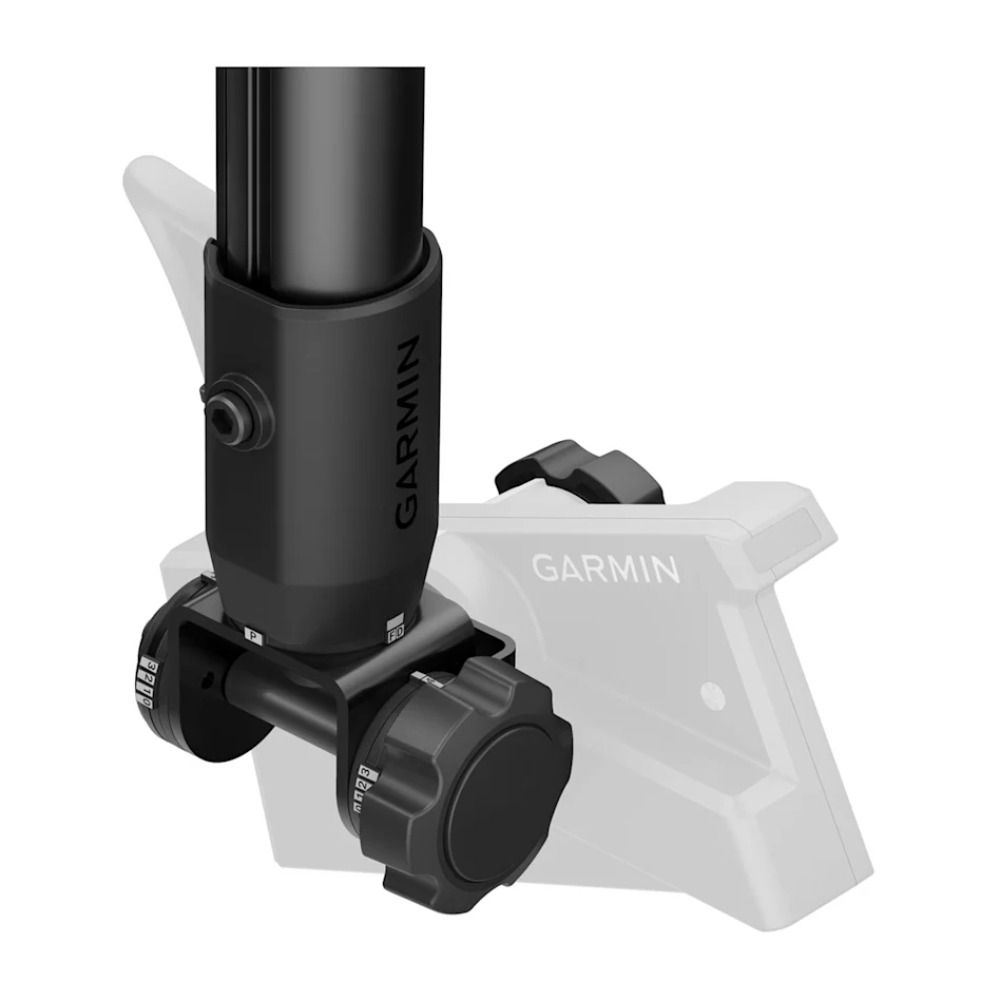

| LiveScope™ Adjustable Perspective Bottom Mount | Included: Forward, Down and Perspective at 0° , 7.5°, 15°, 22.5° |
| Supported LiveScope Transducers | LVS32, LVS34, LVS62 (max of one with internal cable routing) |
| OneVü Scanning Transducer Support | ✓ |
| Internal Cable Routing | ✓ |
| Quick-release Cable Kit | ✓ |
| Networking & Connections | |
|---|---|
| Compatible Chartplotters | Wireless |
| Compatible Force Trolling Motors | Wireless |
| Control Accessories | Wireless |
| Maximum Connections | 5 gesture remotes
1 foot control 1 heading sensor 1 trolling motor 1 chartplotter network |
| Foot Control | |
|---|---|
| Dimensions | 7.8″ x 5.8″ x 1.8″ |
| Wireless Communication | ✓ |
| Power Supply | 2 AA batteries (not included) |
| Battery Life (Typical Use) | 1 full season |
| Water Rating | IPX7 |
| Programmable Buttons | Yes (2) |
| Status Indication | LED Light |
| Quick-release Mount | ✓ |

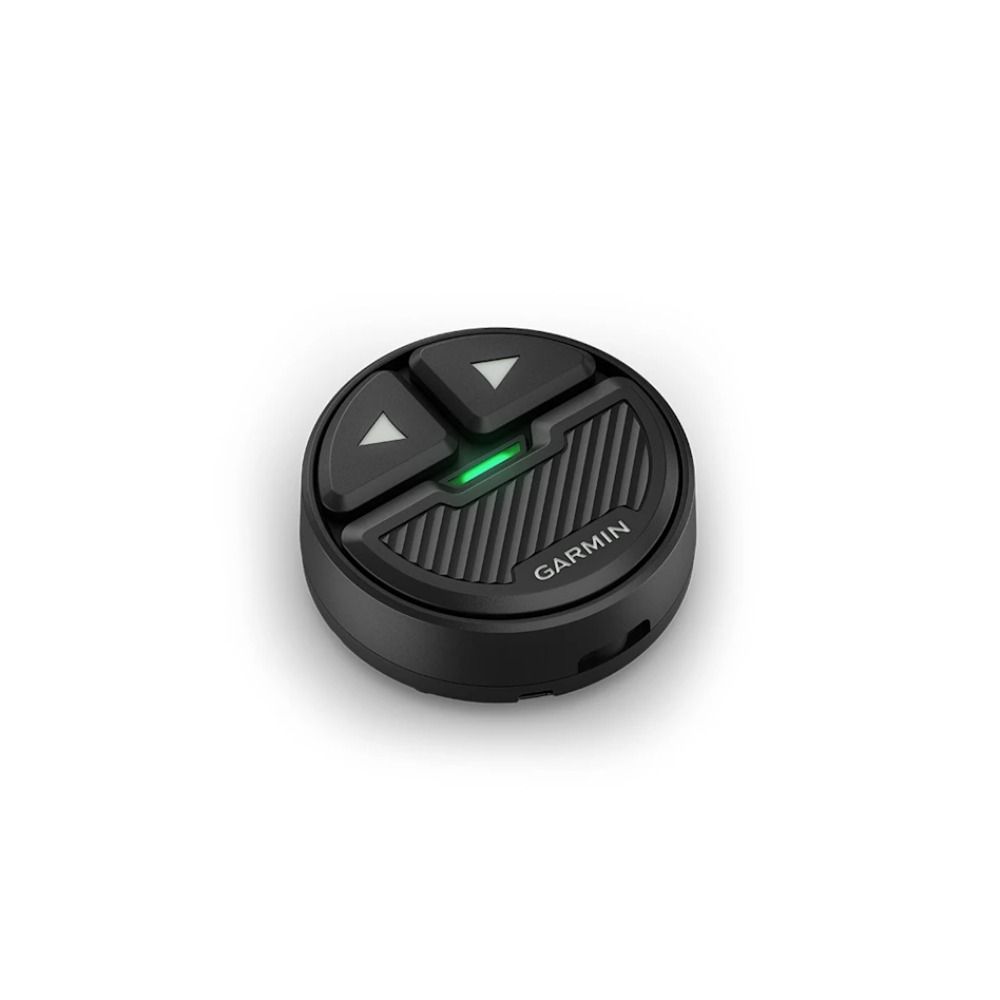

| Gesture Remote | |
|---|---|
| Dimensions | 1.25″ diametre x 0.5″ thickness |
| Wireless Communication | ✓ |
| Power Supply | CR2032 battery (included) |
| Battery Life (Typical Use) | 1 full season |
| Water Rating | IPX7 |
| Programmable Buttons | Yes (3) |
| Status Indication | LED Light |
| Quick-release Mounting Options | 2 rod, hat, handheld with lanyard |
| Floats | Yes (with handheld only) |
| Steering | Yes (swing and twist) |
| Heading Sensor | |
|---|---|
| Dimensions | 3.5″ x 2″ x 1″ |
| Wireless Communication | ✓ |
| Voltage | 10 V-45 V |
| Power Input | Wired, 2 m (6.5 ft) cable |
| Power Usage | 0.1 W typical; 1 W max |
| Fuse | 1 A |
| Water Rating | IPX7 |
| Status Indication | LED Light |
Intuitive Positioning - Keep your boat where you want it and have full control of your LiveScope sonar from a range of control modes, including SpyLock point locking technology, SpyScan search mode and SpyLink control mode.

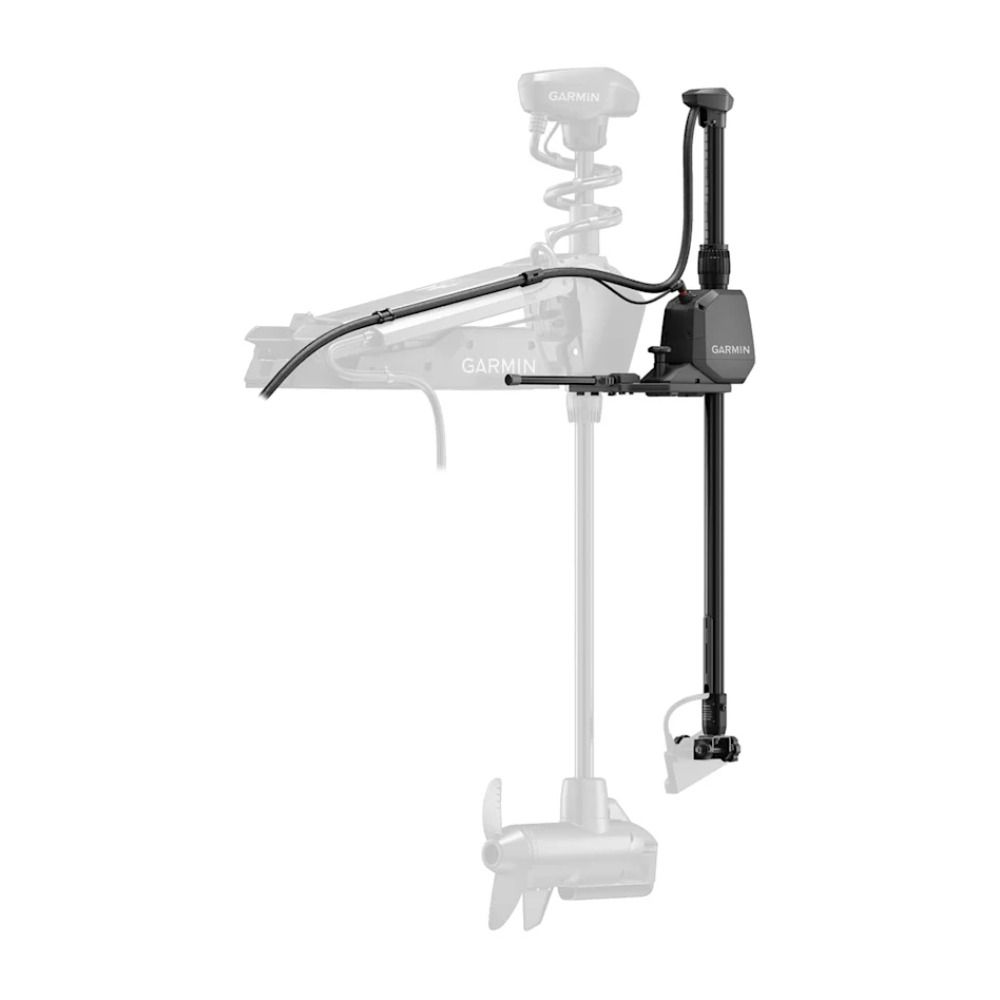

Multiple Mounting Options - Easily mount Spy Pole to your Force or Force Pro trolling motor, or mount it directly to your boat’s deck And enjoy smooth dismount with a quick-release system.
Control At Your Fingertips - Attach the included remote to your rod or use it as a handheld to maneuver Spy Pole with a simple turn of the wrist or the press of a button.

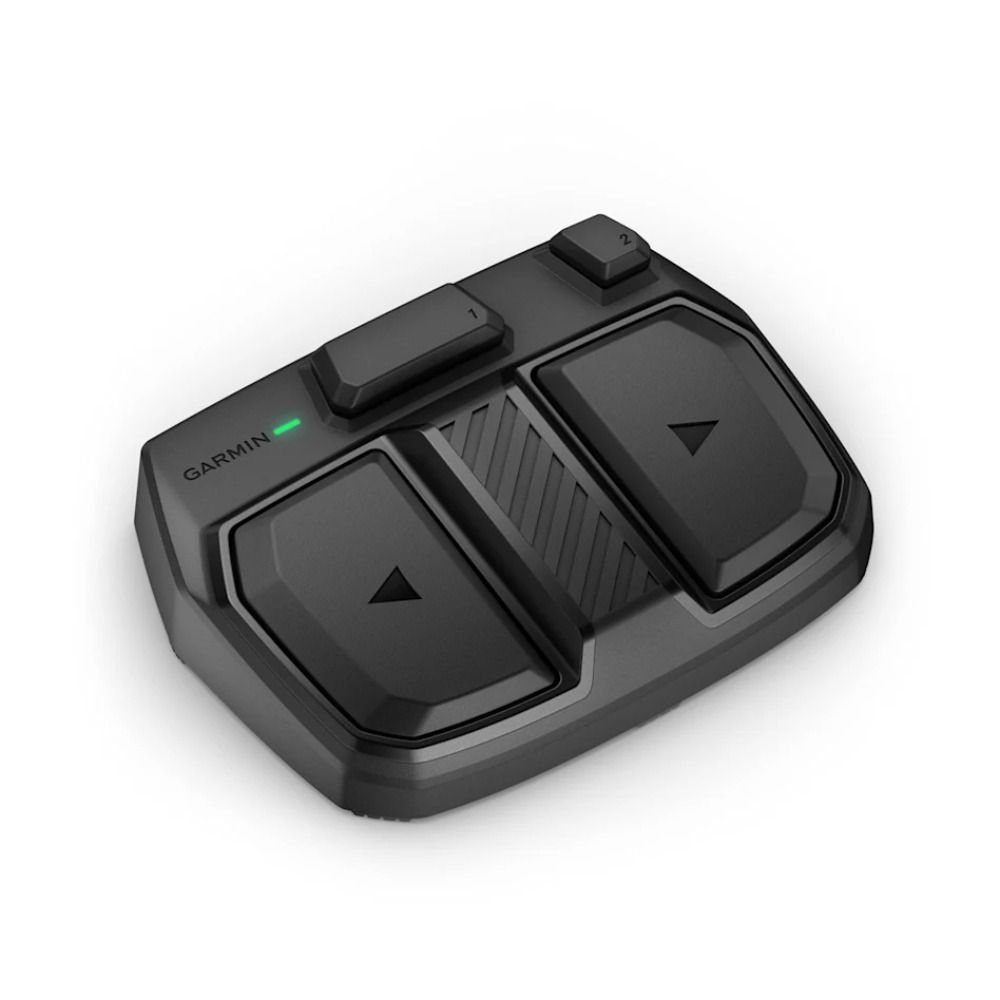

Foot Control - Use the included low-profile, easy-to-use foot control to position Spy Pole, keeping your hands free to fish.
Chartplotter Integration - Configure and control Spy Pole with your compatible Garmin chartplotter.
OneVu Sonar - Mount the GT360UHD transducer to see OneVü sonar with True Motion technology. Add LiveScope to unlock an additional live overlay in 3D mode.
See More Of The Water
True Motion - With True Motion technology and your GT360UHD, scans stay true to location as your boat moves.
Spylock - Lock your LiveScope sonar on any point of interest, such as a brush pile, rock mound or waypoint.
Spyscan - Automatically sweep Spy Pole back and forth in any direction to simplify your search for fish and structure.
Spylink - Synchronise with the speed and direction of your Force or Force Pro trolling motor, then control Spy with your Force pedal while in anchor lock.
